When it comes to controlling the lighting in a room, a 2 way light switch is a convenient option. This type of switch allows you to control a single light or set of lights from two different locations, providing flexibility and convenience. Understanding how to wire a 2 way light switch can help you easily install and use this type of switch in your home.
Before starting the wiring process, it’s important to have a clear understanding of the components involved. A 2 way light switch consists of two switches that control a single light or set of lights. These switches are typically labeled as “1” and “2” to indicate their positions in the circuit.

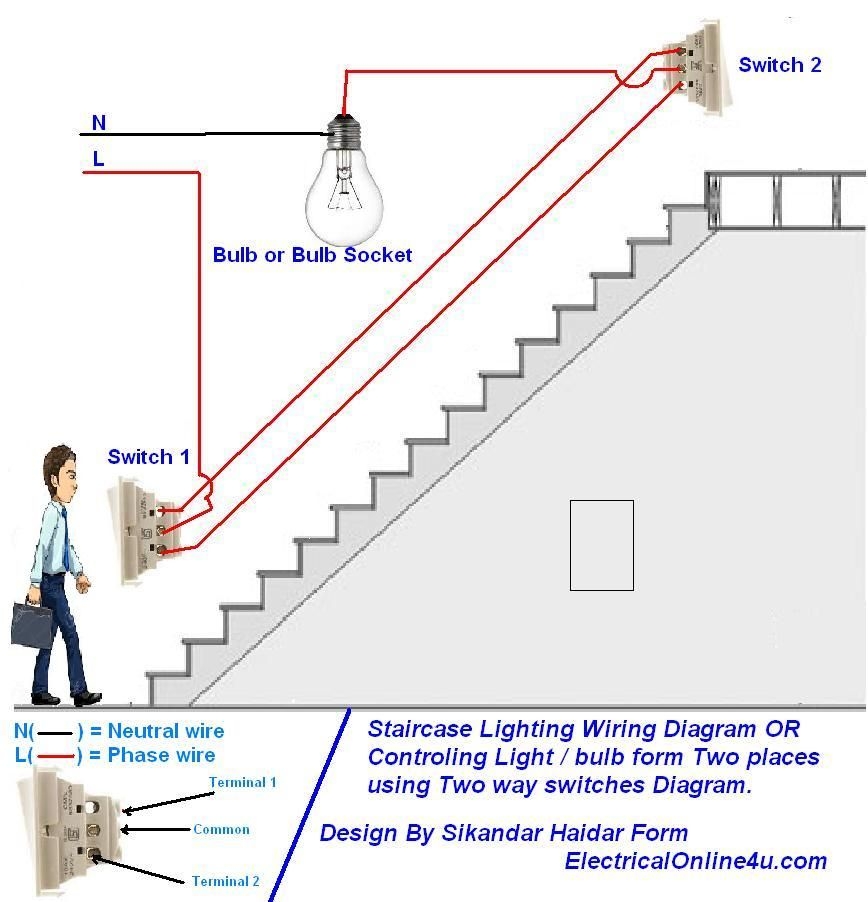

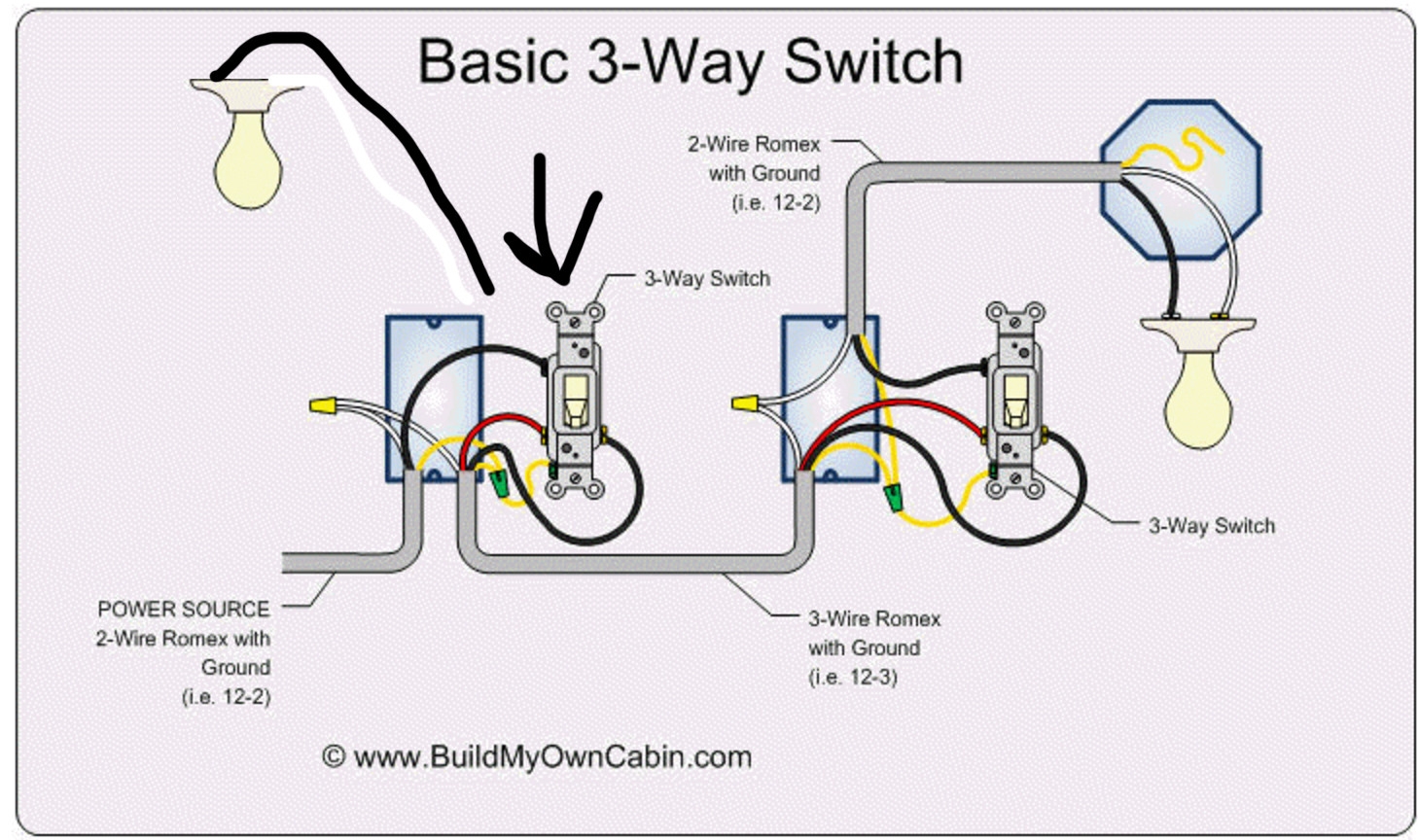

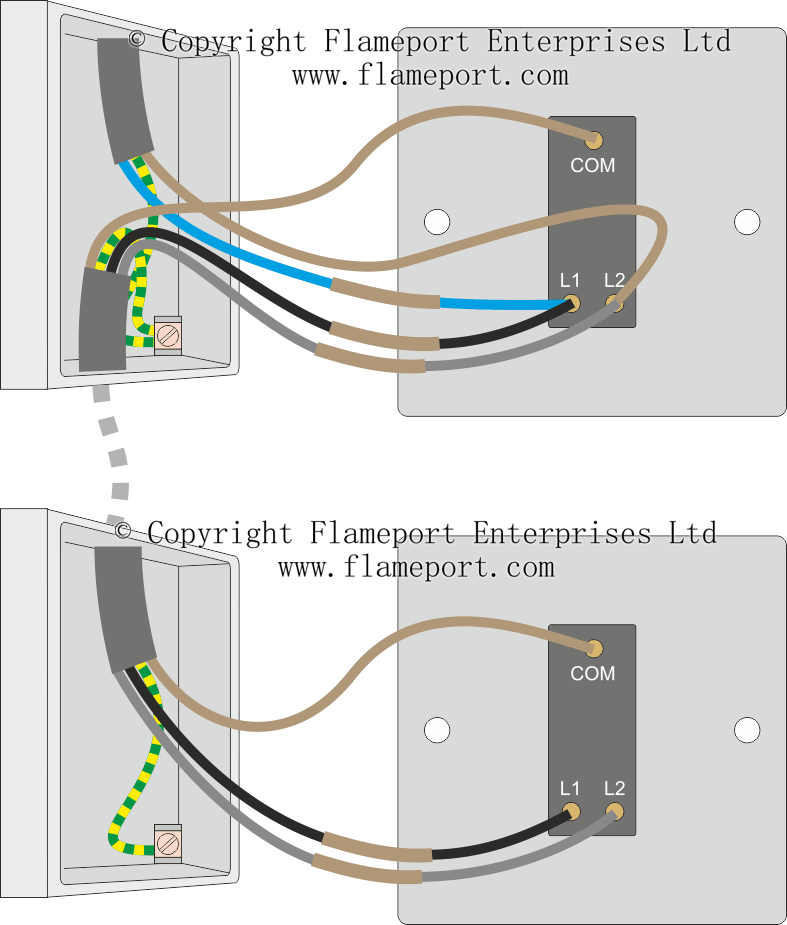

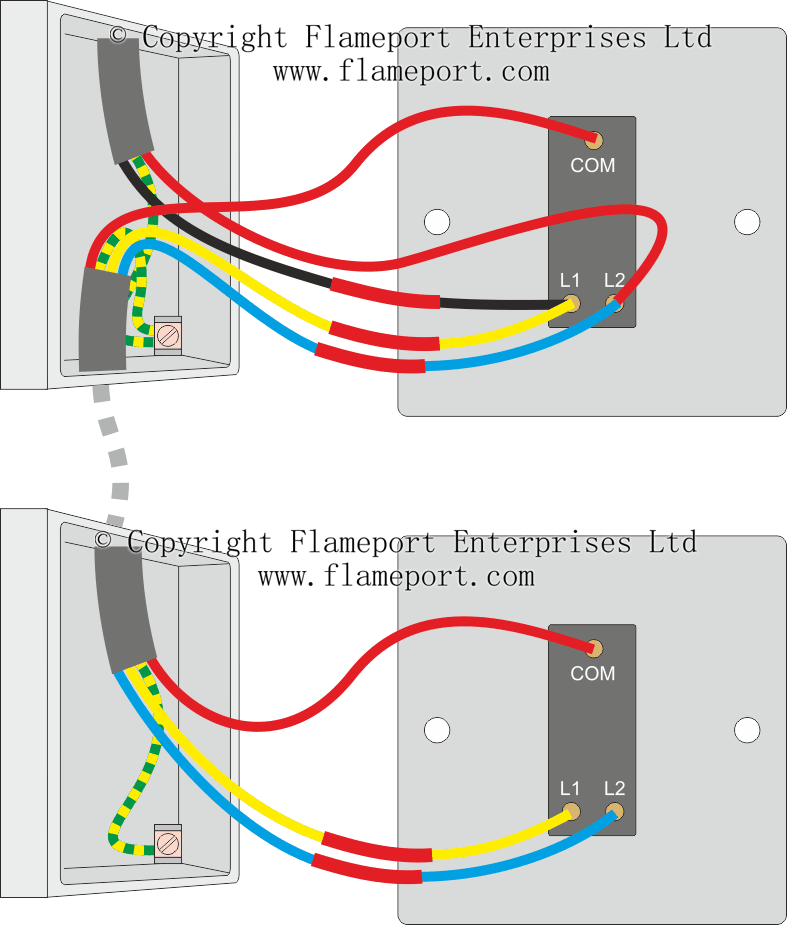

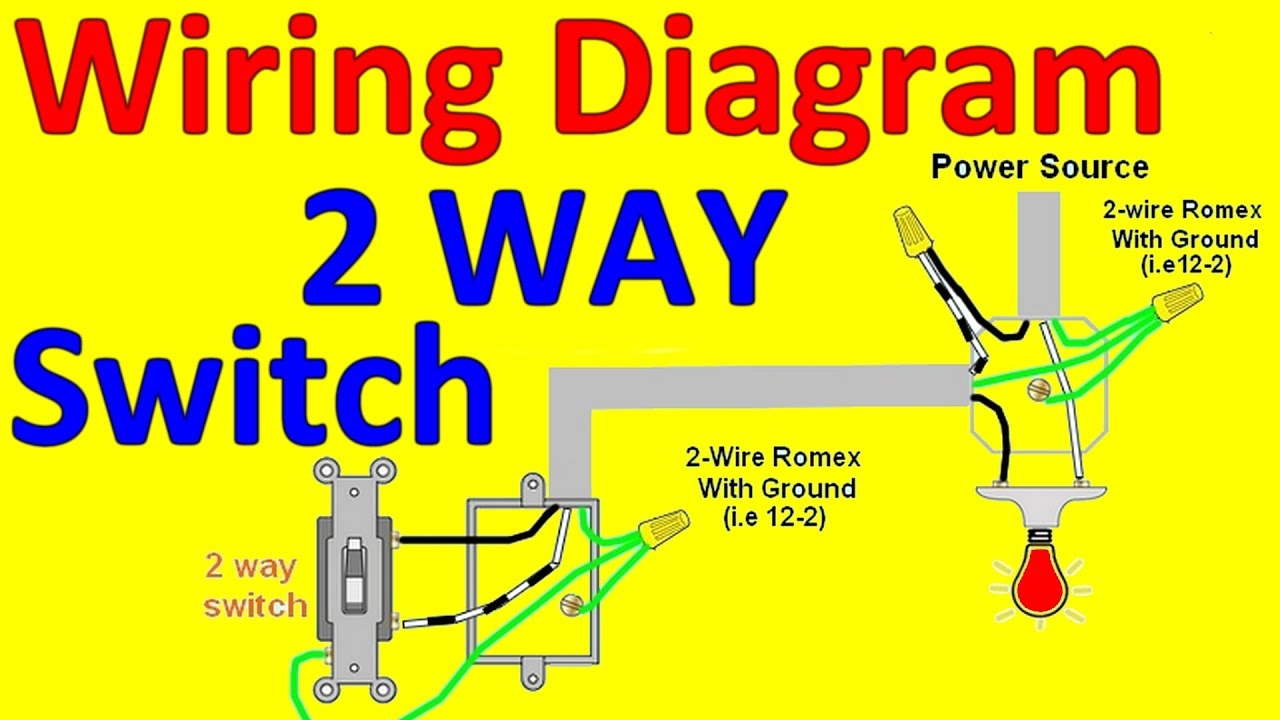

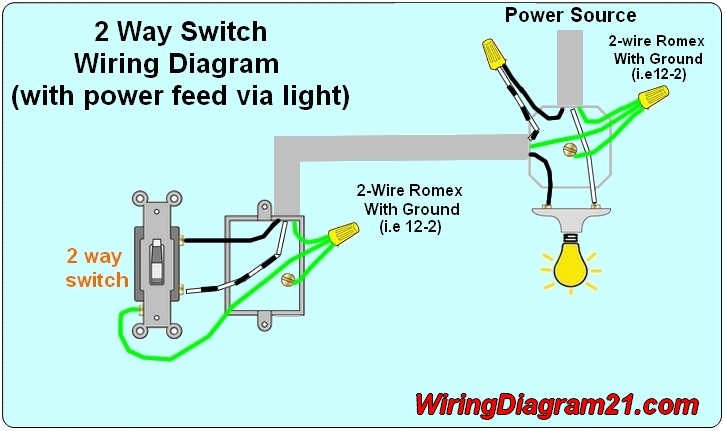

Wiring Diagram For A 2 Way Light Switch
To wire a 2 way light switch, you will need to connect the common terminal of the first switch to the live or hot wire, and the common terminal of the second switch to the light fixture. The two travelers on each switch are then connected to each other. This configuration allows you to control the light from either switch.
It’s important to follow the wiring diagram for a 2 way light switch carefully to ensure proper functionality. Incorrect wiring can lead to issues such as the light not turning on or off properly, or the switches not working as intended. If you’re unsure about the wiring process, it’s always best to consult a professional electrician for assistance.
In conclusion, a 2 way light switch is a versatile option for controlling lighting in a room from multiple locations. By understanding the wiring diagram for a 2 way light switch and following the appropriate steps, you can easily install and use this type of switch in your home. Remember to always prioritize safety and consult a professional if needed to ensure a successful installation.
