Electrical outlets are an essential part of any home or building, providing power for various devices and appliances. Proper wiring is crucial to ensure the safety and functionality of these outlets. Understanding the wiring diagram for electrical outlets can help you troubleshoot any issues and make sure they are installed correctly.
When it comes to wiring an electrical outlet, there are a few key components to keep in mind. The hot wire, neutral wire, and ground wire are the three wires that connect to the outlet. The hot wire carries the electrical current, the neutral wire completes the circuit, and the ground wire provides a path for the current to safely dissipate in case of a fault.
Wiring Diagram Electrical Outlet

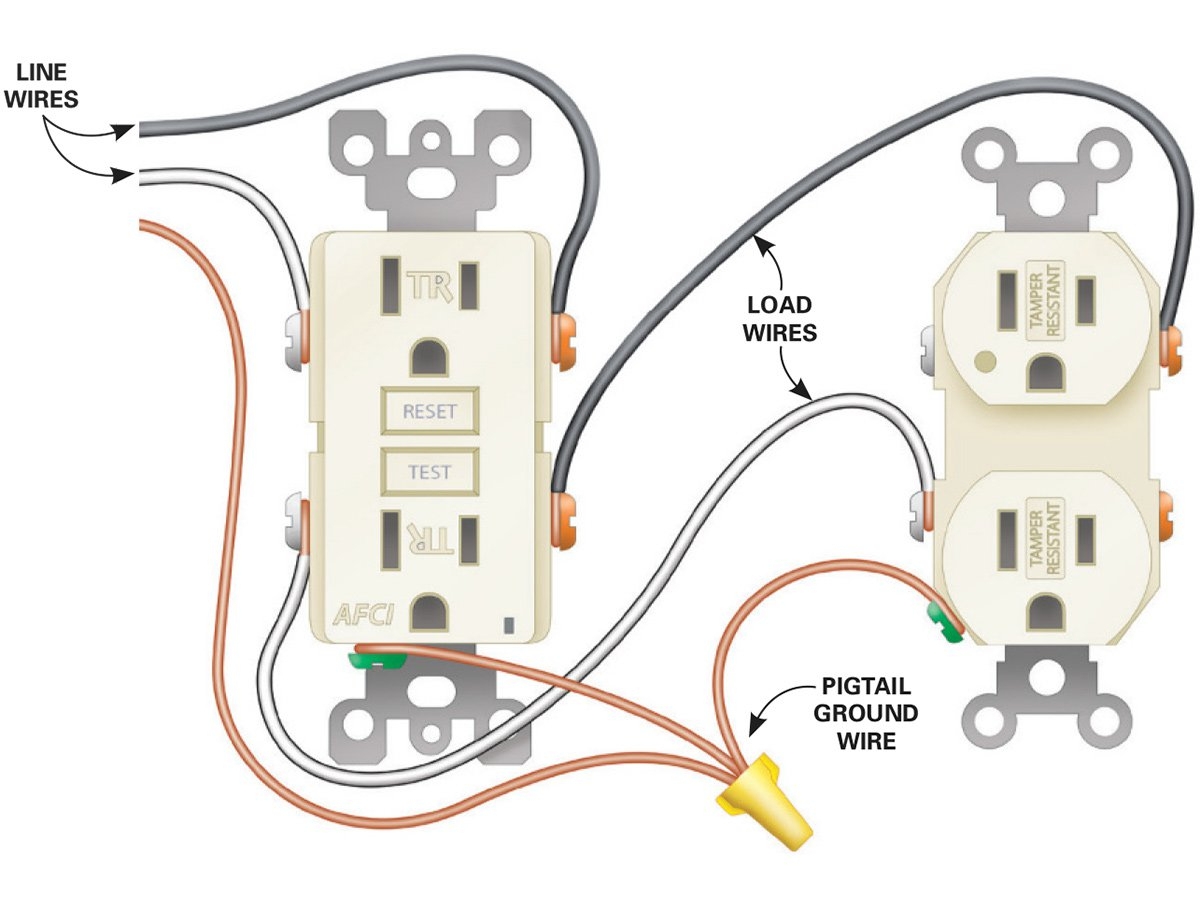

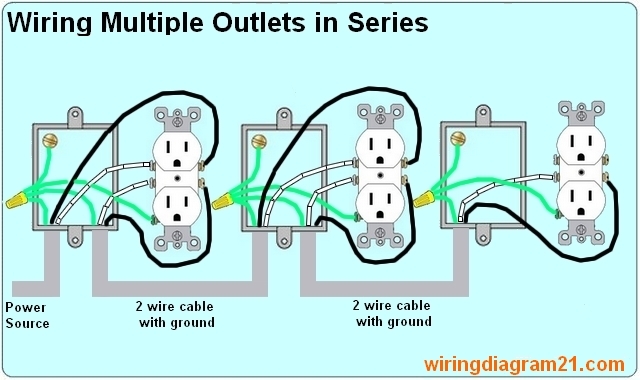

It is important to follow the correct wiring diagram when installing or replacing an electrical outlet. The diagram will show you which wires connect to which terminals on the outlet. Typically, the black wire is connected to the brass terminal, the white wire to the silver terminal, and the green or bare wire to the green terminal for the ground.
One common mistake when wiring an electrical outlet is reversing the hot and neutral wires. This can be dangerous and cause electrical shock or damage to appliances. Always double-check your wiring diagram and make sure the wires are connected to the correct terminals before turning on the power.
If you are unsure about how to wire an electrical outlet or encounter any issues, it is best to consult a professional electrician. They have the knowledge and experience to safely and correctly install or troubleshoot electrical outlets in your home or building.
In conclusion, understanding the wiring diagram for electrical outlets is essential for proper installation and safety. By following the correct wiring procedures and consulting a professional when needed, you can ensure that your electrical outlets are functioning correctly and safely.
