When it comes to wiring a light fixture with two switches, it can be a bit confusing for those who are not familiar with electrical work. However, with the right diagram and instructions, it can be a straightforward process. In this article, we will discuss the wiring diagram for two switches controlling one light.
Before starting the wiring process, make sure to turn off the power to the circuit at the breaker box to avoid any accidents. It is also important to gather all the necessary tools and materials, including wire, switches, and a light fixture.

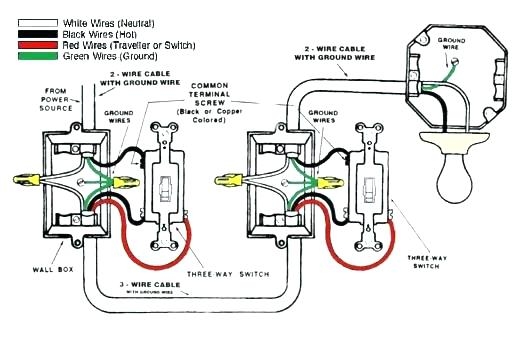

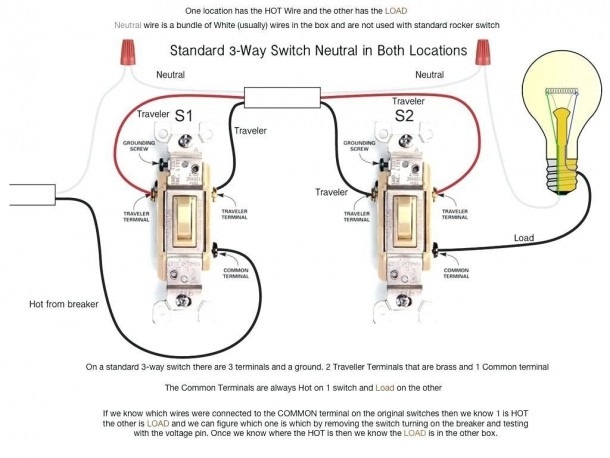

Two Switches One Light Wiring Diagram
First, you will need to run a 3-wire cable from the main electrical panel to the location of the light fixture. This cable will have a black, white, and red wire, along with a ground wire. The black wire is for hot, the white wire is neutral, the red wire is the traveler wire, and the ground wire is for safety.
Next, connect the black wire from the main panel to one terminal of each switch. Then, connect the red wire from the 3-wire cable to the other terminal of each switch. This will create a switch loop that allows both switches to control the light fixture.
Finally, connect the white wire from the main panel to the white wire of the light fixture, and connect the black wire from the 3-wire cable to the black wire of the light fixture. Make sure to secure all connections with wire nuts and wrap them with electrical tape for added safety.
Once all the connections are made, turn the power back on at the breaker box and test the switches to ensure they are working properly. If done correctly, you should now be able to control the light fixture from either switch. If you encounter any issues, double-check your connections and consult a professional electrician if needed.
In conclusion, wiring a light fixture with two switches may seem daunting at first, but with the right diagram and step-by-step instructions, it can be a manageable DIY project. Remember to always prioritize safety when working with electricity and consult a professional if you are unsure about any part of the process.
