When it comes to electrical work, understanding how to wire a sub panel is essential for ensuring proper functionality and safety. A sub panel is an additional circuit breaker panel that is connected to the main panel in a home or building. It allows for additional circuits to be added without overloading the main panel.
Before starting any electrical work, it is important to consult with a licensed electrician to ensure that all wiring is done correctly and up to code. Safety should always be the top priority when working with electrical systems.

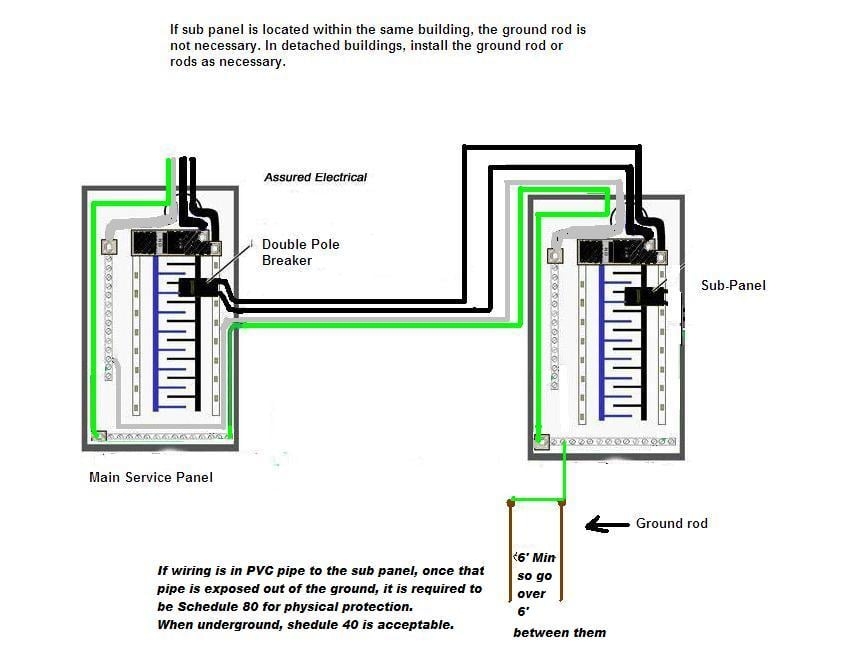

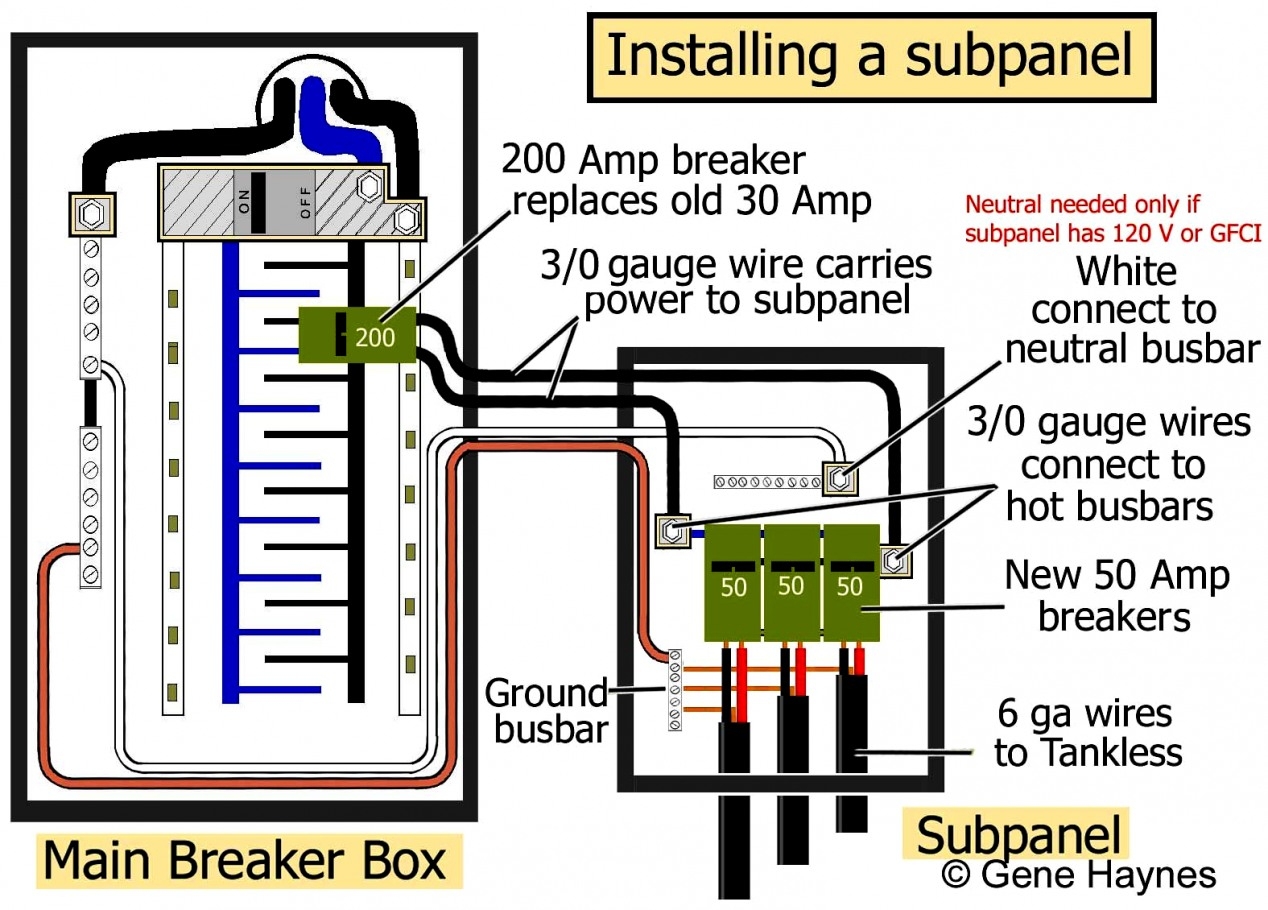

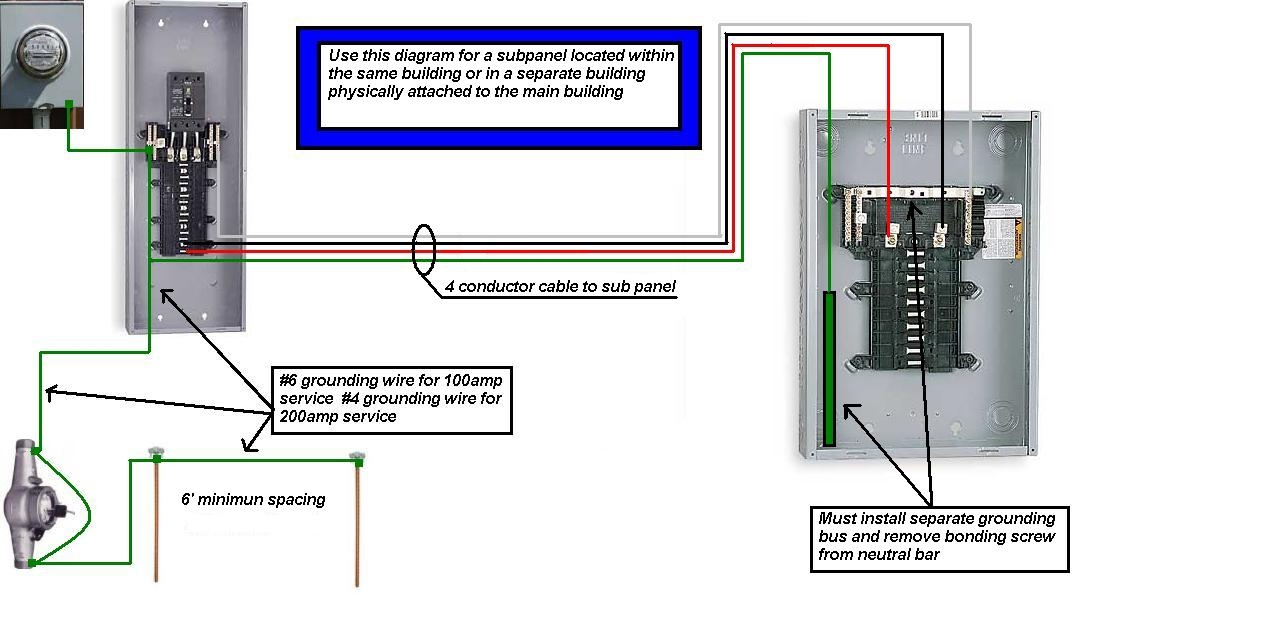

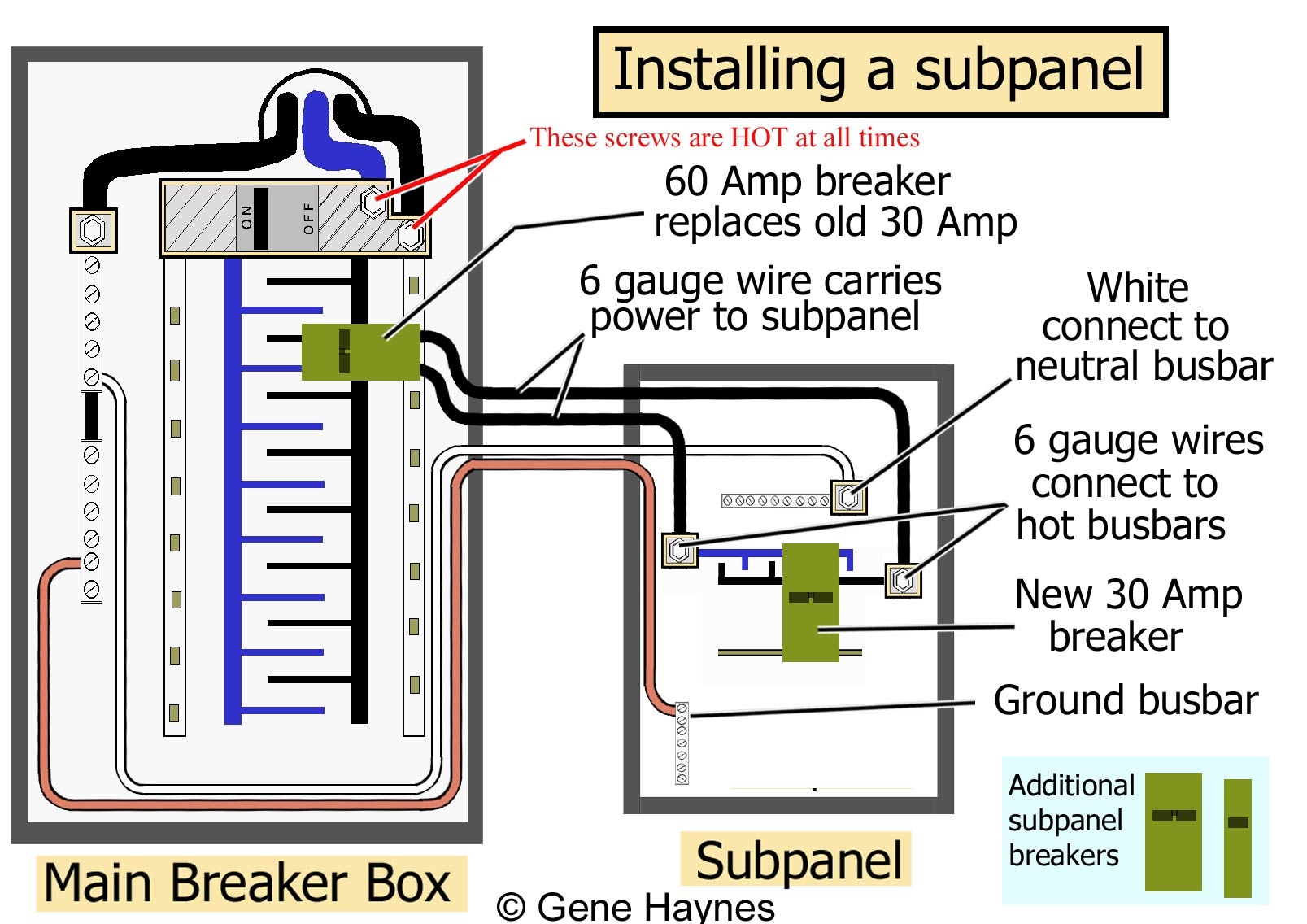

Wiring Sub Panel Diagram
First, you will need to determine the appropriate size of the sub panel based on the electrical needs of the space. The sub panel should have enough circuits to accommodate all the additional electrical devices that will be connected to it.
Next, you will need to select the location for the sub panel. It should be situated in a dry, easily accessible area that is close to the main panel. The sub panel should be mounted securely to a wall or other stable surface.
Once the location is determined, you can begin wiring the sub panel. This will involve connecting the main panel to the sub panel using appropriate gauge wires. The wires should be run through conduit to protect them and prevent any damage.
Each circuit in the sub panel should be clearly labeled to indicate what it is powering. This will make it easier to troubleshoot any issues that may arise in the future. Proper labeling is an important step in ensuring the safety and functionality of the electrical system.
After the sub panel is wired and all circuits are labeled, it should be tested to ensure that everything is working correctly. This may involve turning on each circuit individually and checking to make sure that power is flowing properly.
In conclusion, understanding how to wire a sub panel is an important skill for anyone working with electrical systems. By following the appropriate steps and guidelines, you can ensure that your sub panel is installed safely and functions properly. Remember to always prioritize safety and consult with a professional if you are unsure about any aspect of the wiring process.
