When it comes to wiring a 3-way switch, it can seem a bit daunting at first. However, with the right guidance and a clear diagram, it can be a straightforward process. A 3-way switch allows you to control a single light or set of lights from two different locations, making it a convenient option for many households.
Understanding the wiring for a 3-way switch diagram is essential before you begin the installation process. This diagram will show you how to connect the switches and lights in the circuit, ensuring that everything works properly. It’s important to follow the diagram carefully to avoid any mistakes that could lead to electrical issues down the line.

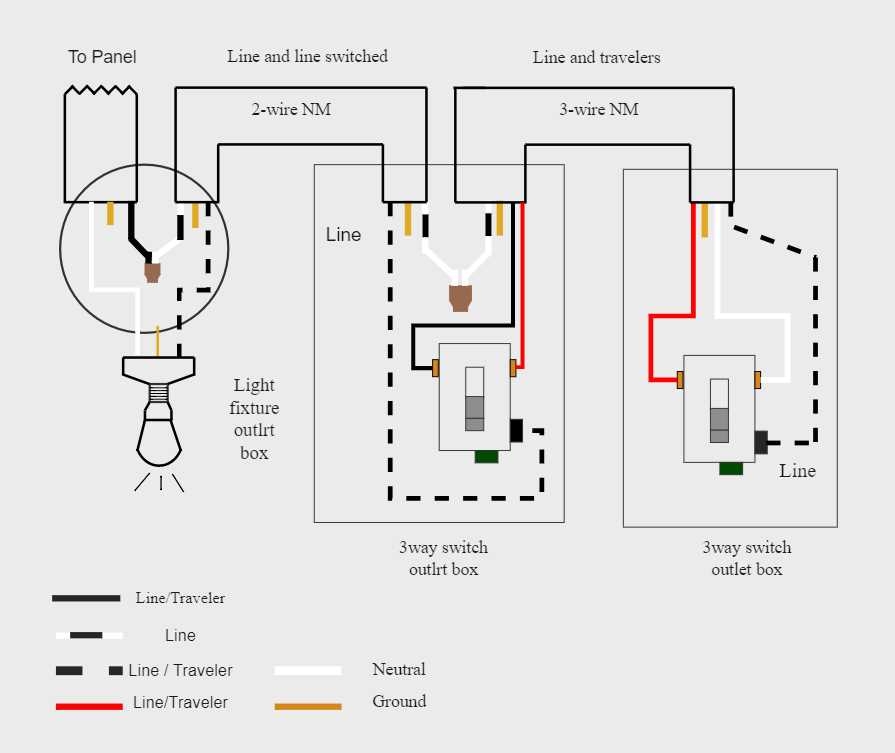

Wiring For 3 Way Switch Diagram
Typically, a 3-way switch setup involves two switches and one light fixture. The switches are connected in a way that allows you to turn the light on or off from either location. The wiring for this setup includes a common wire, a traveler wire, and a ground wire. Each switch will have a common terminal, a traveler terminal, and a ground terminal that need to be connected correctly.
To wire a 3-way switch, you will need to identify the common wire and traveler wires in your electrical box. The common wire is typically black, while the traveler wires are usually red and white. You will connect these wires to the corresponding terminals on each switch, following the diagram carefully. It’s crucial to turn off the power before starting the wiring process to avoid any accidents.
Once you have successfully wired the 3-way switch according to the diagram, you can test the setup by flipping the switches to see if the light turns on and off from both locations. If everything is working correctly, you can secure the switches and cover the electrical box. It’s always a good idea to double-check your work and ensure that all connections are secure before using the switches.
In conclusion, wiring a 3-way switch can be a manageable task with the right guidance and a clear diagram. By understanding the wiring setup and following the steps carefully, you can successfully install a 3-way switch in your home. Remember to always prioritize safety and turn off the power before working on any electrical projects.
