When it comes to electrical work in your home, understanding how to wire a wall outlet is essential. A wall outlet, also known as a receptacle, is a device that allows you to plug in electrical appliances and devices. Having a clear wiring diagram for a wall outlet can help you safely and correctly install or replace outlets in your home.
It is important to note that working with electricity can be dangerous, so if you are unsure about how to wire a wall outlet, it is best to consult a professional electrician. However, with the right tools and knowledge, you can successfully wire a wall outlet on your own.
Wiring Diagram For Wall Outlet

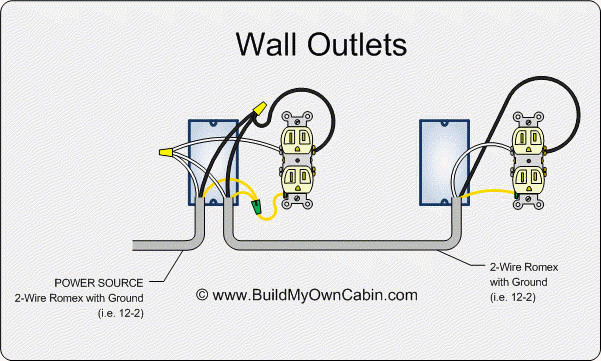

Here is a basic wiring diagram for a wall outlet:
1. Turn off the power to the circuit you will be working on at the circuit breaker.
2. Remove the cover plate of the existing outlet and unscrew the outlet from the electrical box.

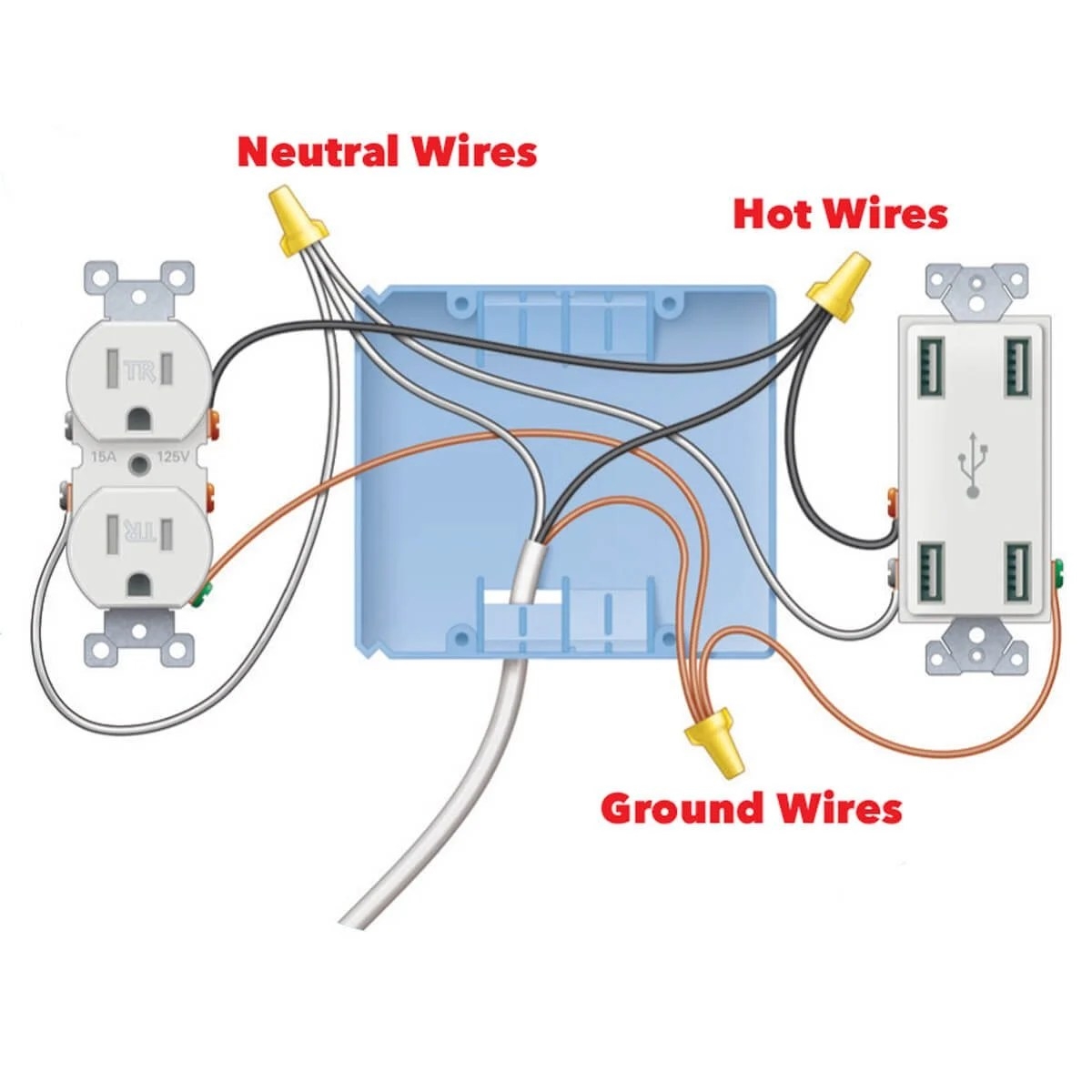

3. Disconnect the wires from the old outlet, making note of which wire is connected to which terminal (typically black for hot, white for neutral, and green or bare copper for ground).
4. Connect the new outlet by attaching the black wire to the brass-colored screw, the white wire to the silver-colored screw, and the green or bare copper wire to the green screw for ground.
5. Carefully tuck the wires back into the electrical box, making sure they are not pinched or crushed.
Remember to always double-check your work and test the outlet with a voltage tester before turning the power back on. If you encounter any issues or are unsure about the wiring, do not hesitate to seek professional help.
By following a wiring diagram for a wall outlet and taking necessary safety precautions, you can ensure that your electrical work is done correctly and safely.
