When it comes to towing a trailer, safety is key. One important aspect of trailer safety is ensuring that your trailer lights are working properly. Having functioning trailer lights not only keeps you safe on the road, but it also helps other drivers see your trailer. If you need to wire your trailer lights in a 4-way configuration, it’s important to follow the correct wiring diagram to ensure everything is connected properly.
Whether you’re towing a boat, RV, or utility trailer, having properly functioning lights is crucial. A 4-way trailer wiring system is one of the most common setups for trailers, as it allows for basic lighting functions such as running lights, brake lights, and turn signals. Following the correct wiring diagram for a 4-way trailer light setup will ensure that all of these functions work correctly.
Wiring Diagram For Trailer Lights 4 Way

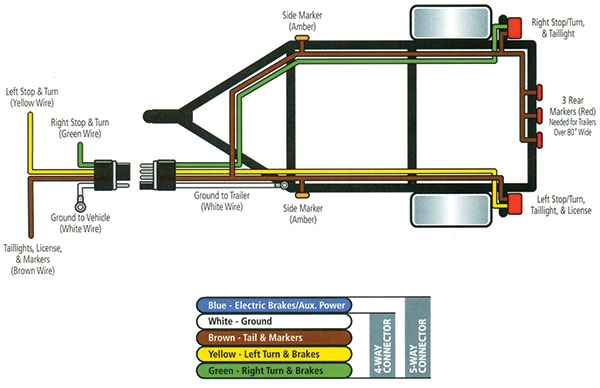

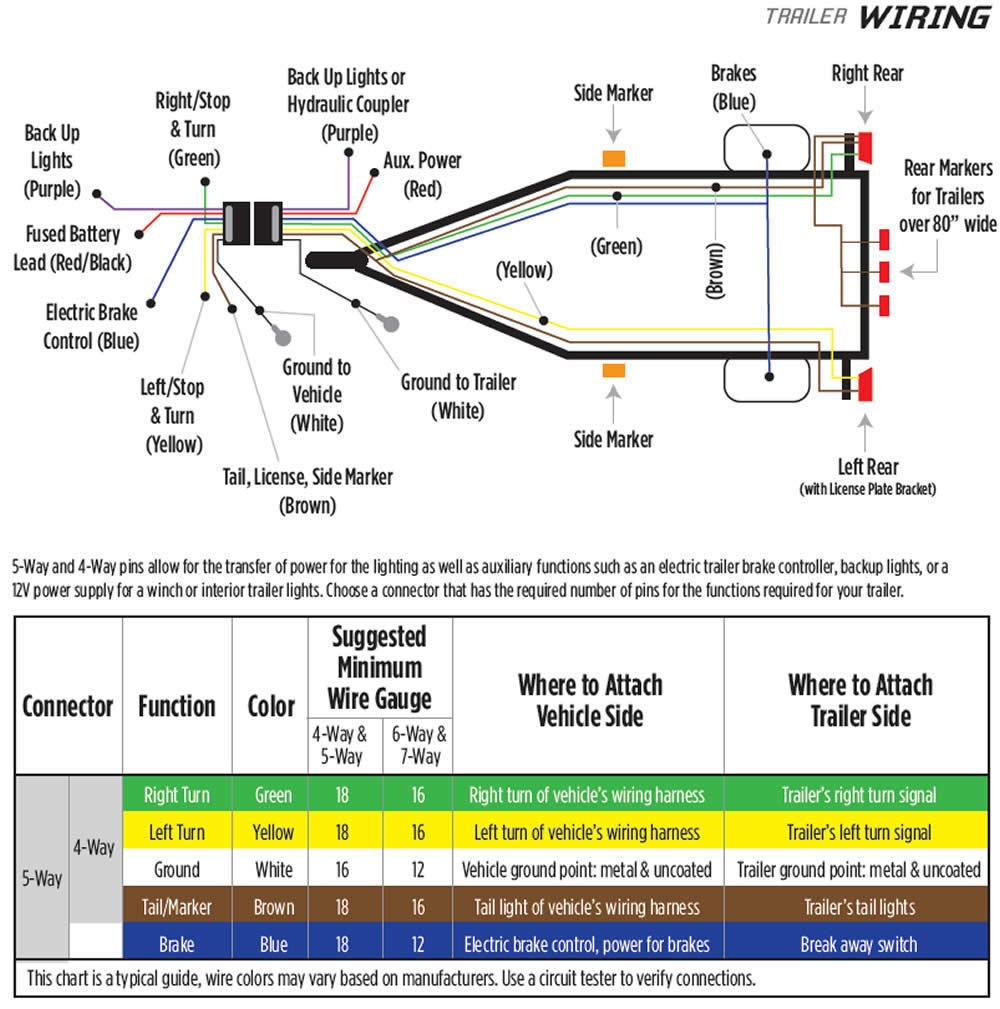

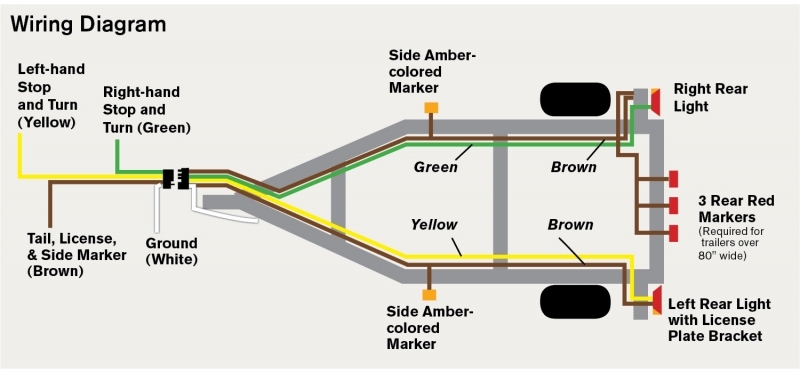

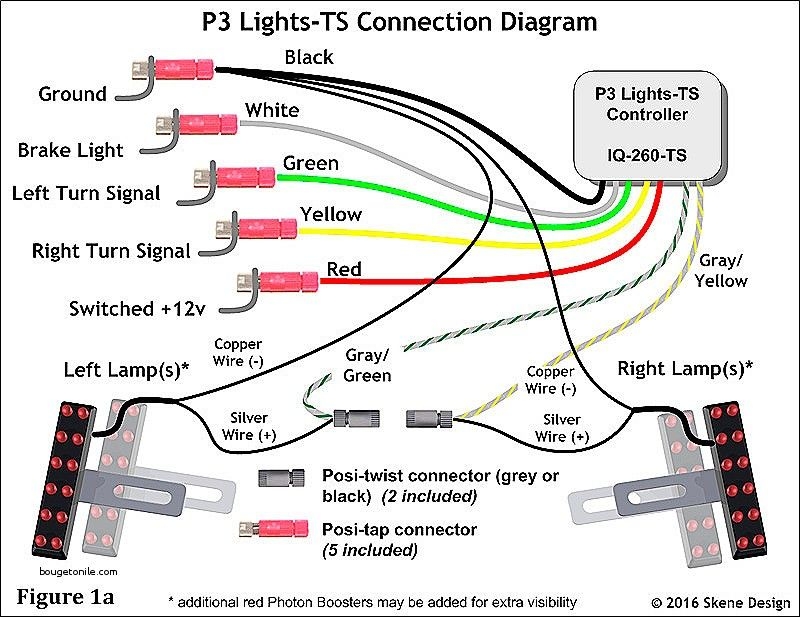

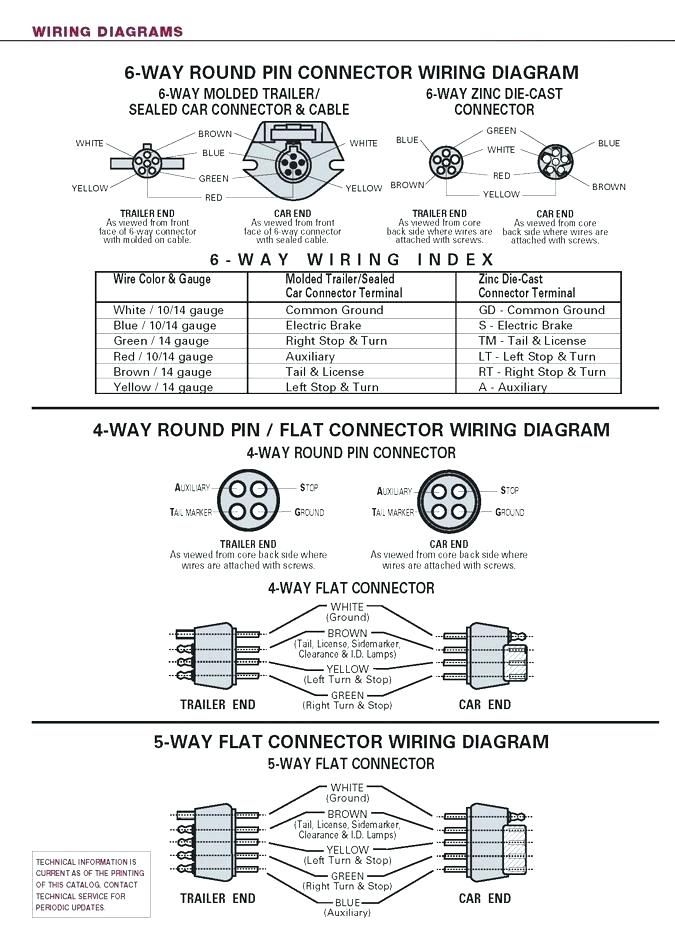

Here is a basic wiring diagram for trailer lights in a 4-way configuration:
1. White wire – Ground wire (connects to the trailer frame)
2. Brown wire – Tail lights
3. Yellow wire – Left turn signal and brake light
4. Green wire – Right turn signal and brake light
When wiring your trailer lights, it’s important to use the correct gauge of wire and to secure all connections properly. Make sure to test your lights before hitting the road to ensure everything is working as it should. If you’re unsure about how to wire your trailer lights, it’s always best to consult a professional to avoid any safety hazards.
By following the correct wiring diagram for trailer lights in a 4-way configuration, you can ensure that your trailer is safe and visible on the road. Properly functioning lights not only keep you safe, but they also help prevent accidents and ensure that other drivers can see your trailer clearly. Take the time to wire your trailer lights correctly to enjoy a safe and worry-free towing experience.
So, whether you’re heading out on a camping trip or hauling equipment for work, make sure your trailer lights are in proper working order. Following the correct wiring diagram for a 4-way trailer light setup will help keep you safe on the road and ensure that your trailer is visible to other drivers.
