When it comes to towing a trailer, having the proper wiring setup is crucial for safe and efficient operation. A wiring diagram for a trailer helps to ensure that all the lights and electrical components are properly connected and functioning correctly. Whether you’re towing a boat, camper, or utility trailer, having a clear understanding of the wiring system is essential.

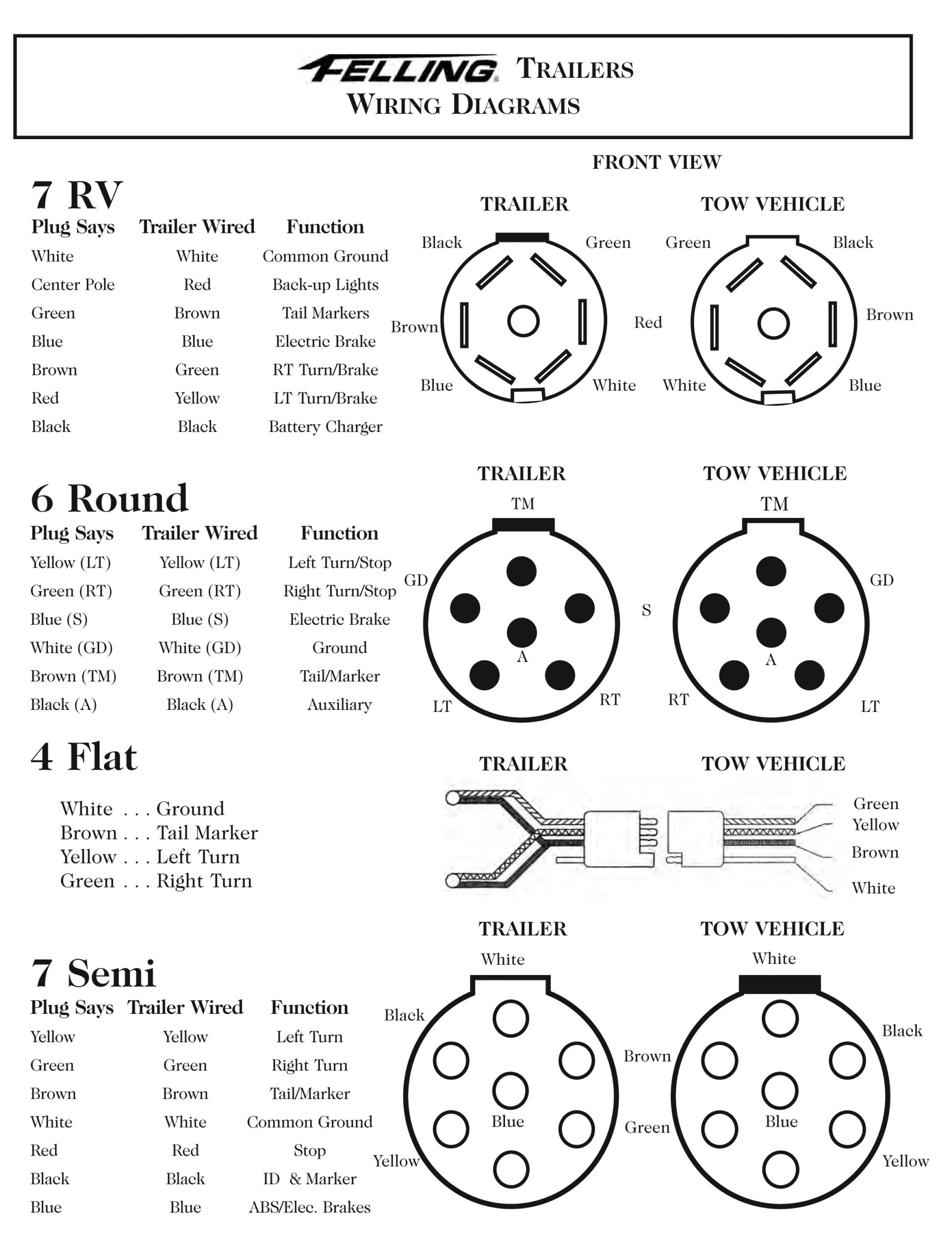

Before hitting the road with your trailer, it’s important to familiarize yourself with the wiring diagram specific to your trailer setup. This diagram will outline the connections for the brake lights, turn signals, running lights, and any other electrical components. By following the wiring diagram carefully, you can avoid any potential issues while on the road.

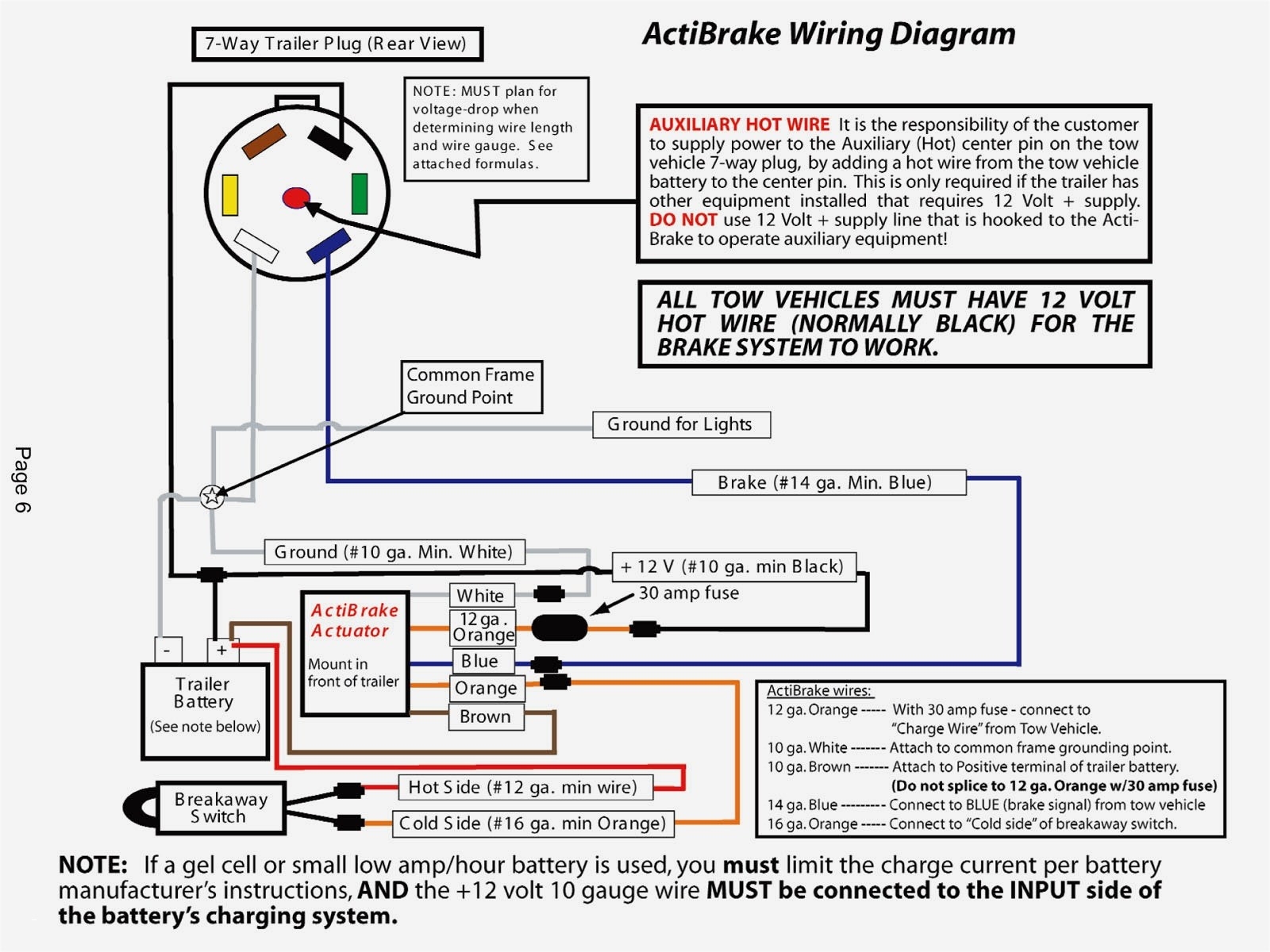

Wiring Diagram For Trailer

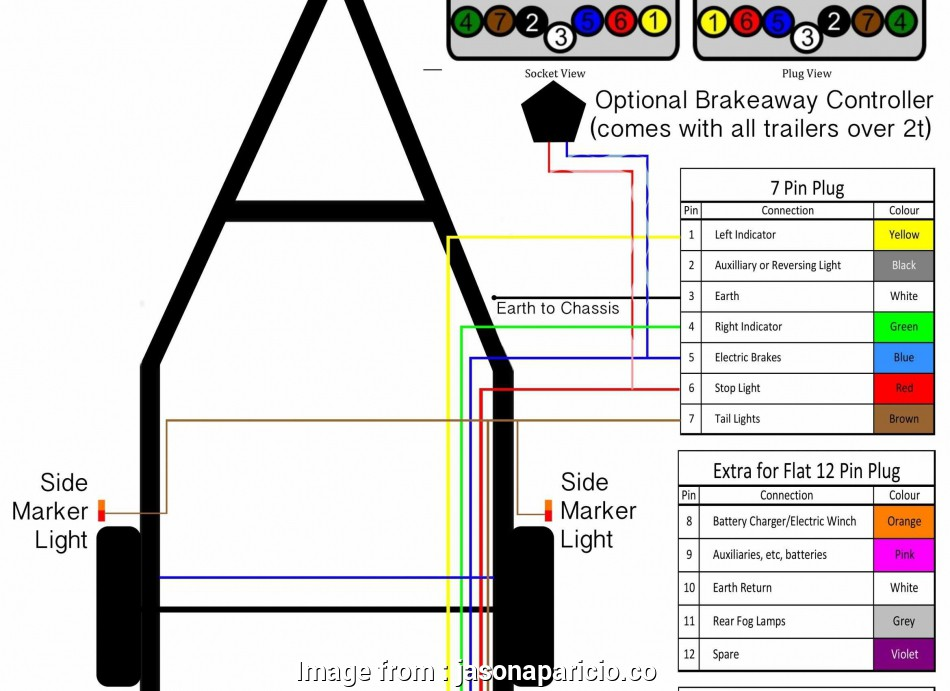

Typically, a trailer wiring diagram will include color-coded wires that correspond to specific functions. For example, brown wires are often used for the running lights, yellow wires for the left turn signal and brake light, green wires for the right turn signal and brake light, and white wires for the ground connection. By following these color codes and the diagram, you can easily identify and connect the appropriate wires.
It’s important to ensure that all connections are secure and that there are no exposed wires that could cause a short circuit. Additionally, using the proper gauge of wire for your trailer’s electrical system is crucial to prevent overheating and potential damage. Regularly inspecting and maintaining the wiring on your trailer will help to ensure safe and reliable operation.
In conclusion, a wiring diagram for a trailer is an essential tool for anyone towing a trailer. By understanding the connections and following the diagram carefully, you can ensure that your trailer’s electrical system is functioning properly. Regular maintenance and inspections will help to prevent any issues on the road and keep you safe while towing. Be sure to consult your trailer’s specific wiring diagram and follow it closely for a trouble-free towing experience.
