Photocells, also known as photoelectric sensors, are devices that detect light and are commonly used in outdoor lighting systems. They automatically turn on lights at dusk and off at dawn, saving energy and providing convenience. Proper wiring of a photocell is essential to ensure it functions correctly and reliably.
When wiring a photocell, it is important to follow the manufacturer’s instructions carefully. Incorrect wiring can result in the photocell not working properly or even damaging the device. Understanding the wiring diagram for a photocell is crucial to ensure a successful installation.

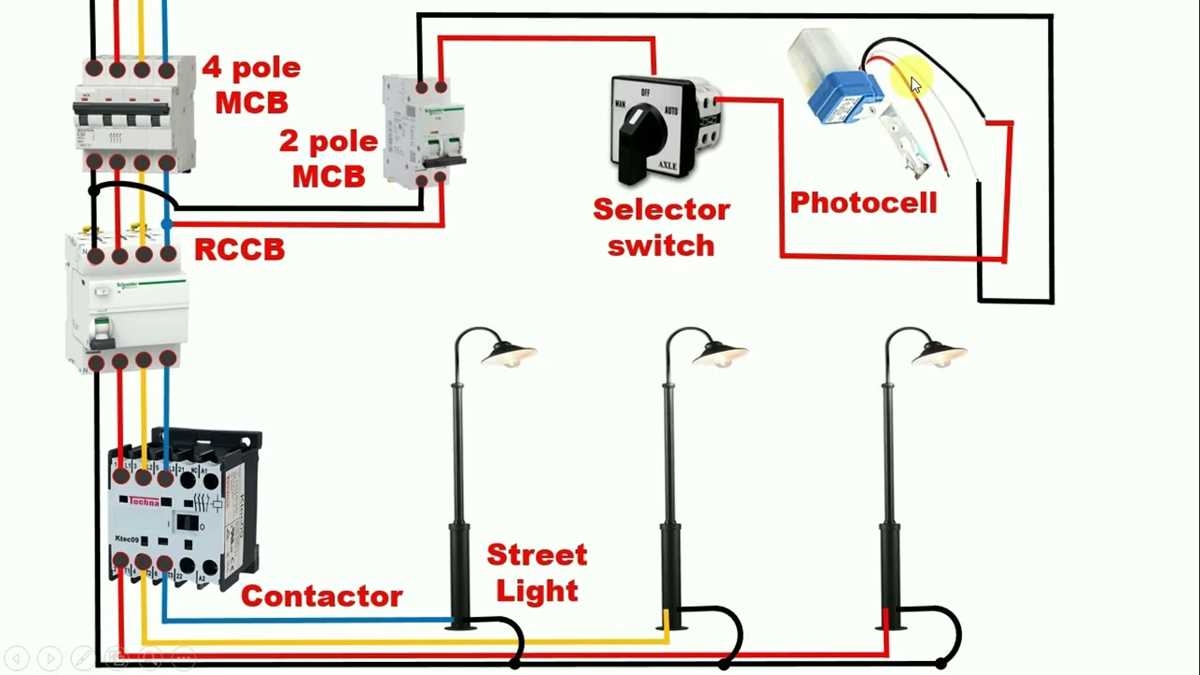

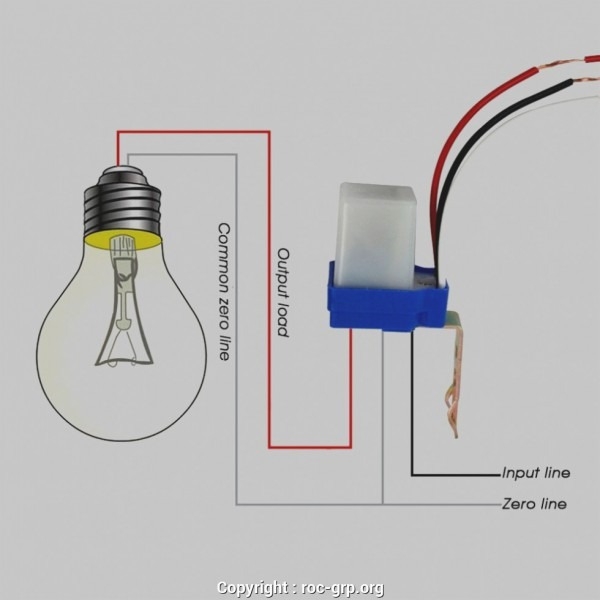

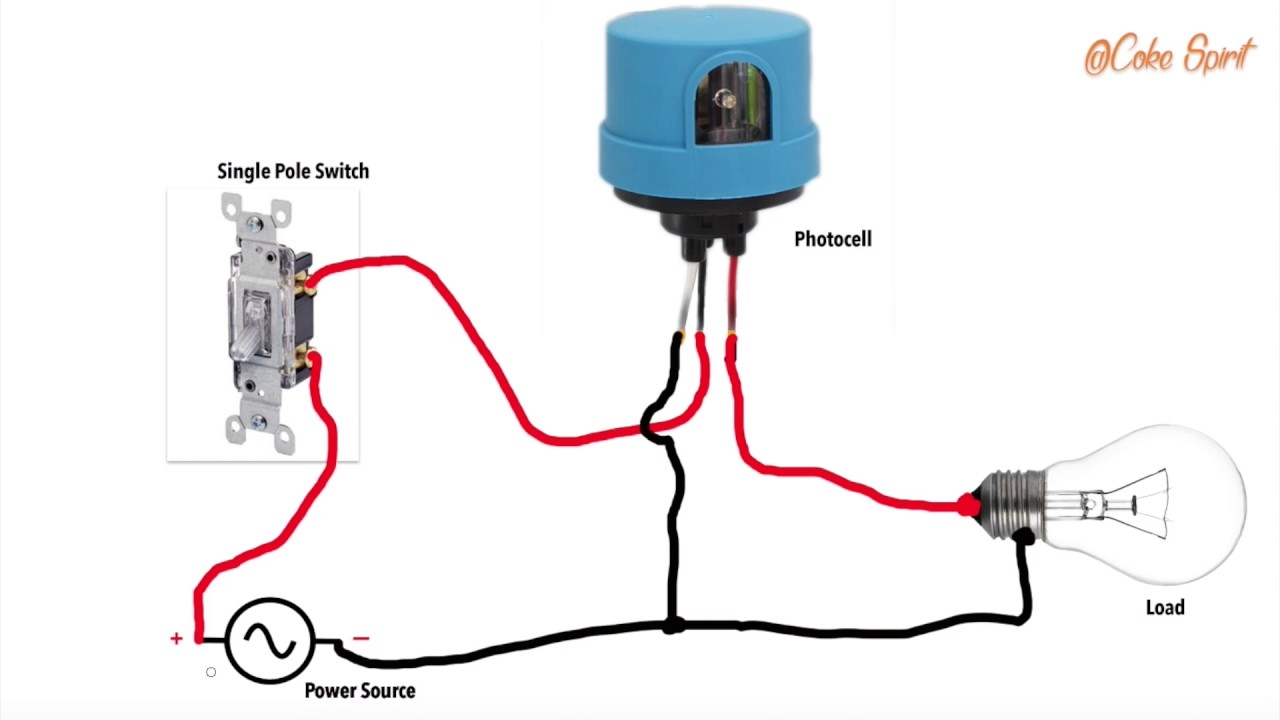

Wiring Diagram For Photocell

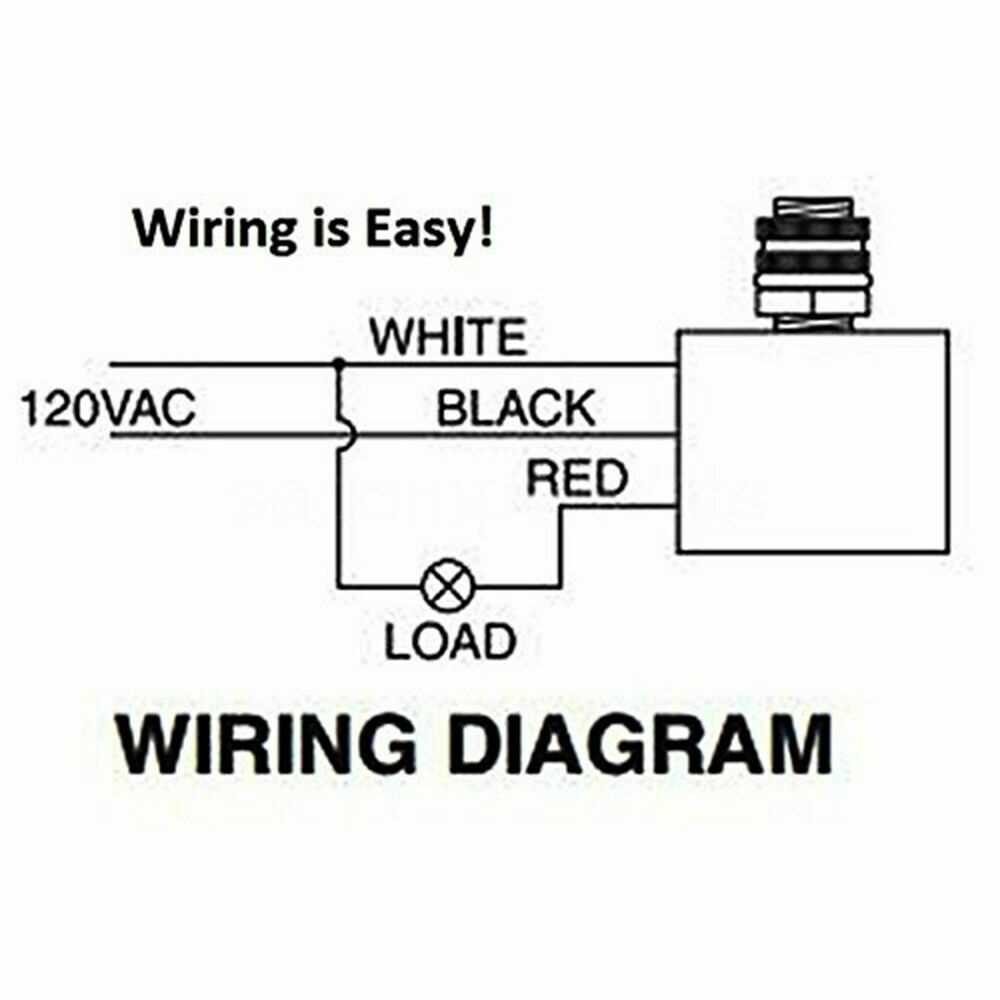

Typically, a photocell has three terminals: one for power (usually labeled “L”), one for the light fixture (usually labeled “LOAD”), and one for the power source (usually labeled “LINE”). The wiring diagram will show how these terminals should be connected to the power source, light fixture, and photocell.
To wire a photocell, first, turn off the power to the circuit you will be working on. Connect the power source wire to the LINE terminal on the photocell. Then, connect the wire from the light fixture to the LOAD terminal. Finally, connect the ground wire to the appropriate terminal on the photocell, if required.
After completing the wiring, secure all connections with wire nuts and electrical tape. Then, restore power to the circuit and test the photocell by covering it with a dark cloth to simulate darkness. The light should turn on when the photocell detects low light levels and off when it detects high light levels.
In conclusion, understanding the wiring diagram for a photocell is crucial for a successful installation. By following the manufacturer’s instructions and proper wiring techniques, you can ensure that your photocell functions correctly and reliably. Properly installed photocells can help save energy, improve security, and provide convenience in outdoor lighting systems.
