When it comes to controlling the lighting in a room from multiple locations, a four-way switch is a great solution. This type of switch allows you to turn the lights on and off from three or more locations. However, wiring a four-way switch can be a bit more complex than a standard switch setup.
Understanding the wiring diagram for a four-way switch is essential to ensure that the switch functions properly. With the right knowledge and tools, you can easily install a four-way switch in your home.

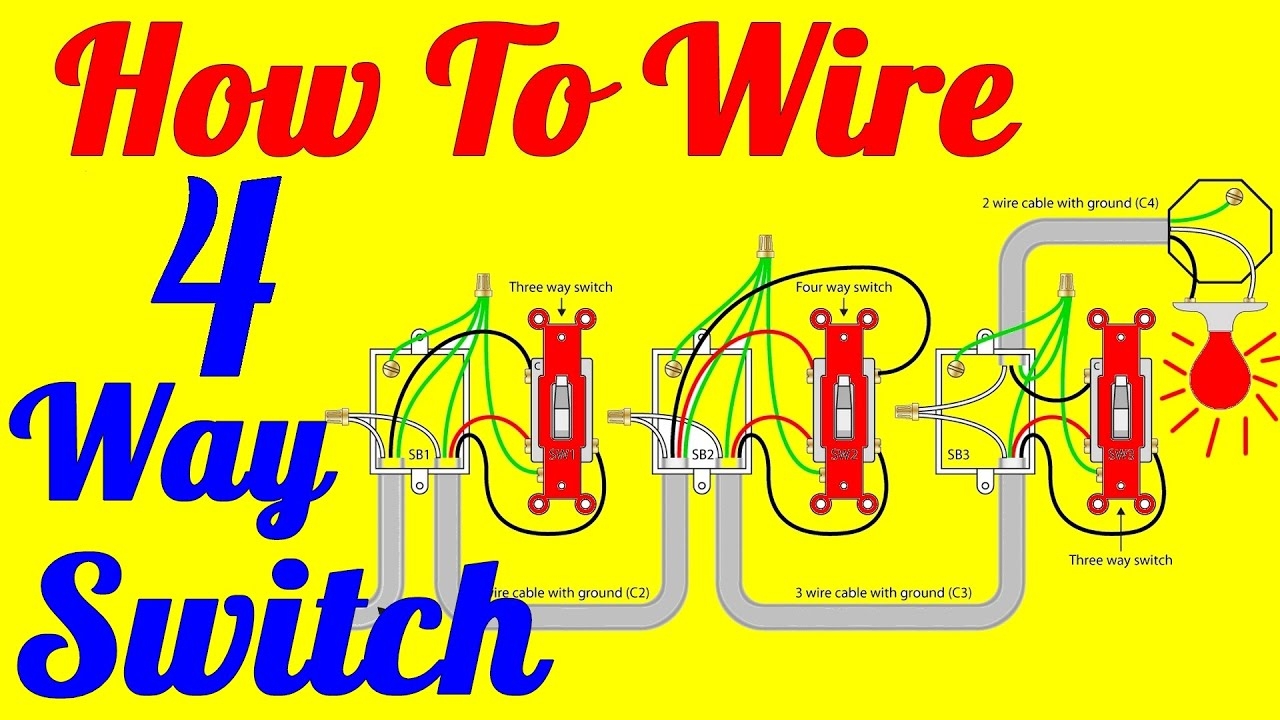

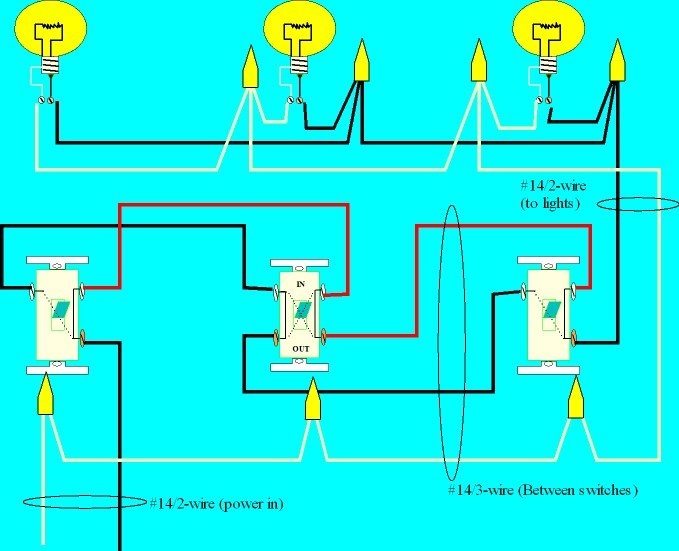

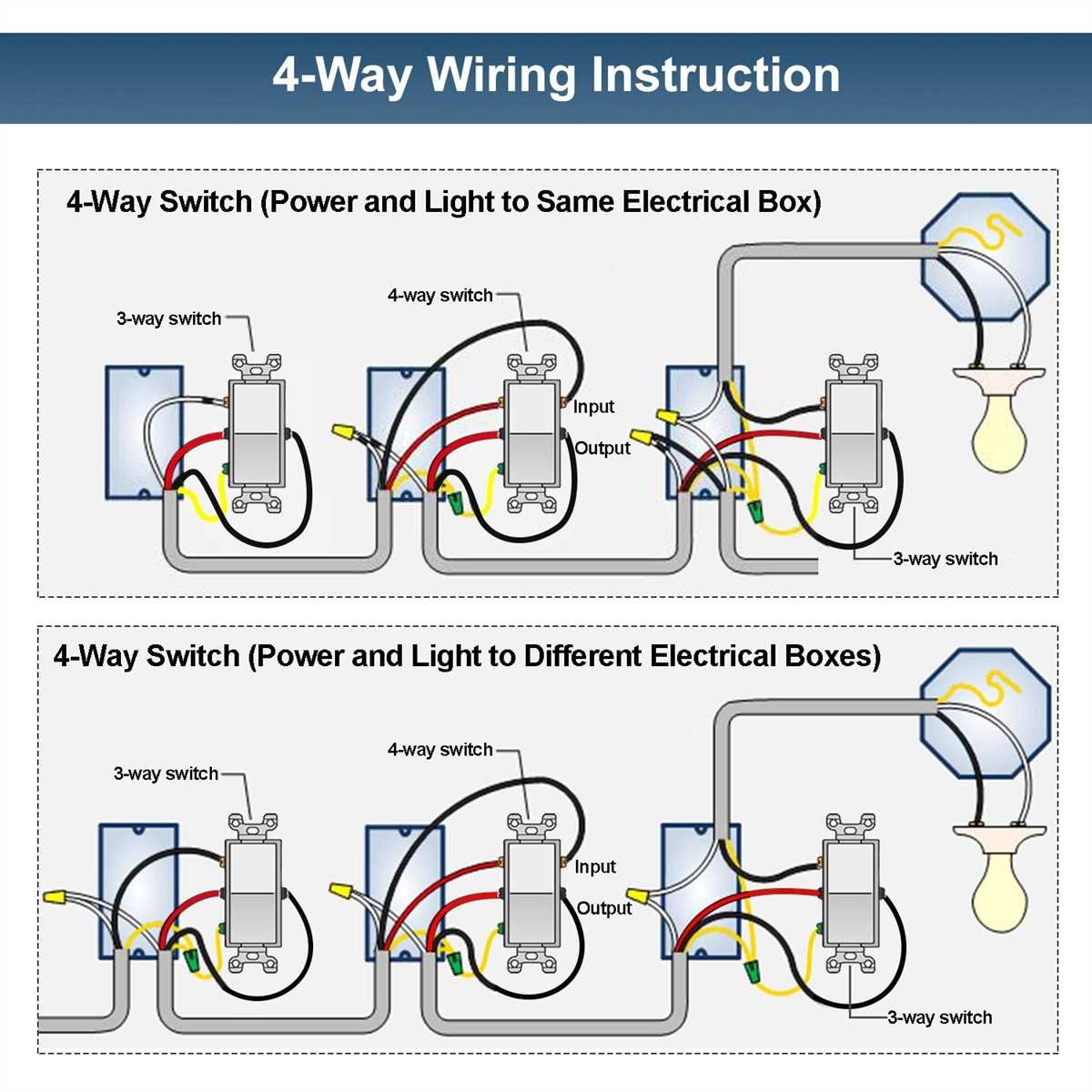

Wiring Diagram For Four Way Switch
Wiring Diagram For Four Way Switch

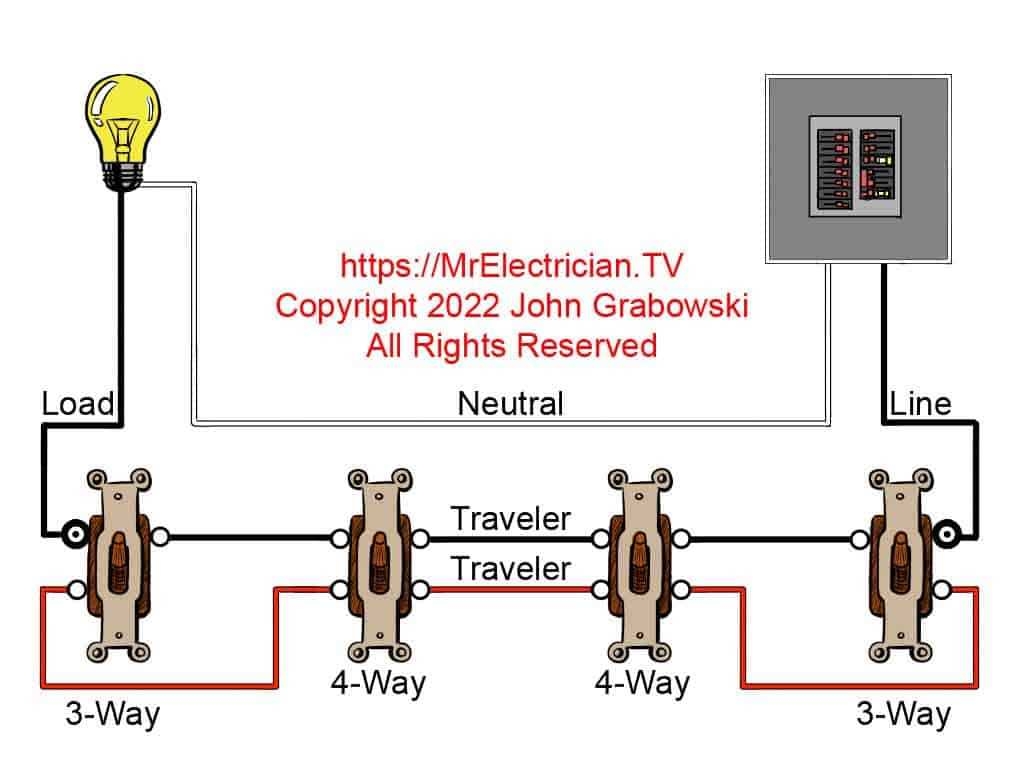

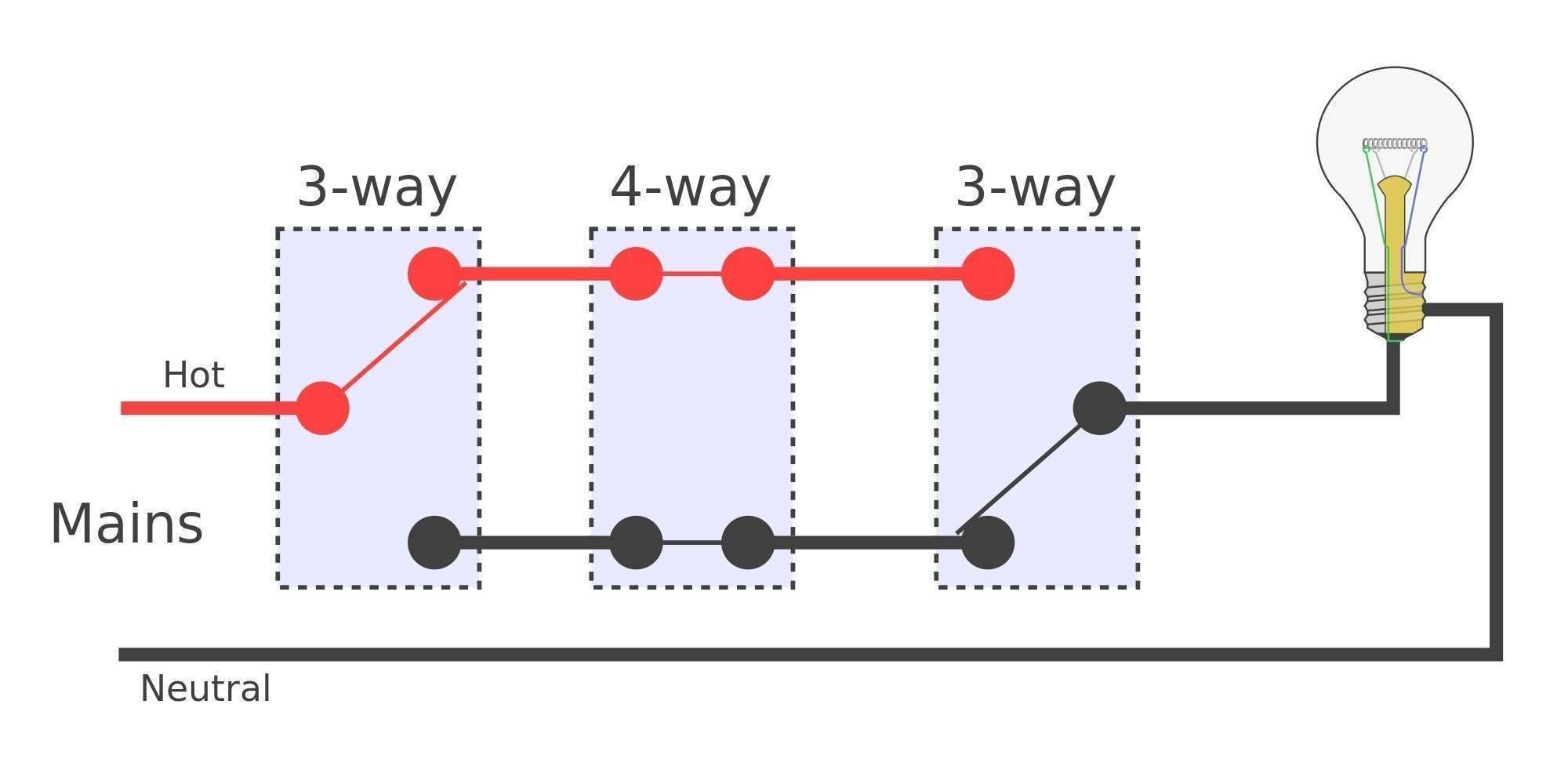

To wire a four-way switch, you will need four switches and a basic understanding of electrical wiring. The diagram for a four-way switch setup typically includes two three-way switches and one four-way switch. The four-way switch is placed between the two three-way switches to control the flow of electricity.
Each switch in a four-way setup has four terminals: two traveler terminals and two common terminals. The traveler terminals are used to connect the switches in the circuit, while the common terminals are used to control the flow of electricity to the light fixture.
It is important to follow the wiring diagram carefully to ensure that the switches are connected correctly. If the switches are wired incorrectly, the circuit may not work as intended, or there could be a risk of electrical shock.
Before starting the installation process, make sure to turn off the power to the circuit at the breaker box. Use a voltage tester to confirm that the power is off before touching any wires. Once the power is off, you can begin connecting the switches according to the wiring diagram.
After the switches are connected, turn the power back on and test the circuit to ensure that the switches are working properly. If the lights do not turn on or off as expected, double-check the wiring connections and troubleshoot any issues that may arise.
With the right tools and a clear understanding of the wiring diagram, installing a four-way switch can be a straightforward process. Remember to take all necessary safety precautions and consult a professional electrician if you are unsure about any aspect of the installation.
By following the wiring diagram for a four-way switch and carefully connecting the switches, you can easily control the lighting in a room from multiple locations with ease.
