When it comes to installing a double switch for controlling both a fan and a light in a room, it’s important to have a clear understanding of the wiring diagram. This type of setup allows you to independently control the fan and light, providing flexibility and convenience.
Before you begin the installation process, make sure to turn off the power to the circuit you’ll be working on to avoid any accidents. Always follow safety guidelines and consult with a professional if you’re unsure about any step in the process.
Wiring Diagram For Double Switch For Fan And Light

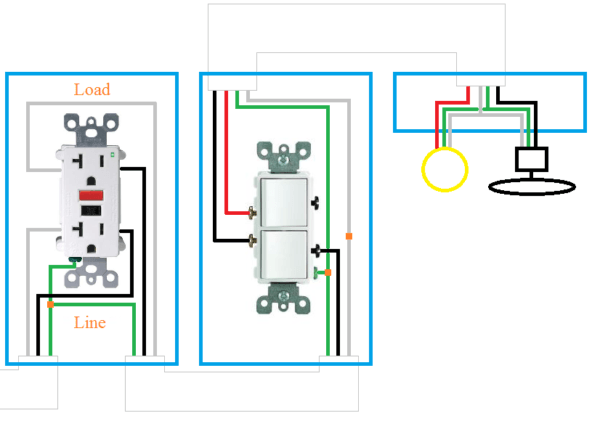

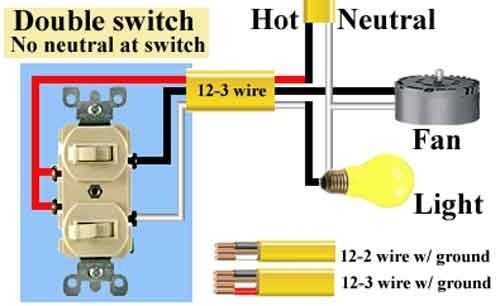

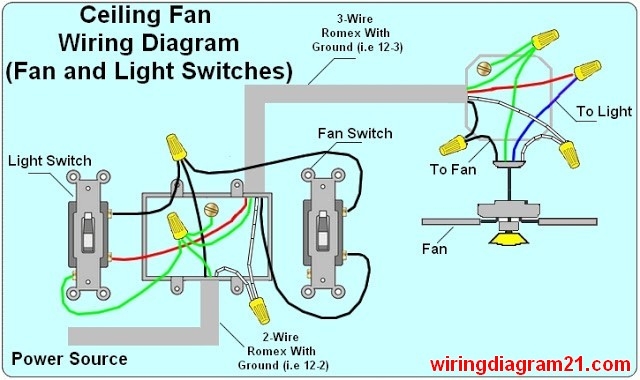

Here is a basic wiring diagram for a double switch for a fan and light:
1. Start by identifying the incoming power source and the cables leading to the fan and light. Typically, there will be three cables – one for power, one for the fan, and one for the light.
2. Connect the power cable to the common terminal of the double switch. This will provide power to the switch and allow you to control both the fan and light independently.
3. Connect the cable leading to the fan to one of the switch terminals. This will allow you to turn the fan on and off using the switch.
4. Connect the cable leading to the light to the other switch terminal. This will enable you to control the light separately from the fan.
5. Once all the connections are made, carefully tuck the wires back into the electrical box and secure the double switch in place. Turn on the power and test the switch to ensure that both the fan and light are working correctly.
In conclusion, installing a double switch for a fan and light can be a straightforward process if you follow the wiring diagram and take necessary safety precautions. Having the ability to control both the fan and light independently can enhance the functionality and ambiance of any room. If you’re unsure about any step in the process, don’t hesitate to seek help from a professional electrician.
