When it comes to installing a ceiling fan with a light, it’s important to follow the proper wiring diagram to ensure everything is connected correctly. This will not only ensure the fan and light function properly, but also help prevent any electrical issues down the line.
Before you begin, make sure to turn off the power to the circuit you’ll be working on to avoid any accidents. It’s also a good idea to have some basic tools on hand, such as a screwdriver and wire strippers, to make the installation process smoother.

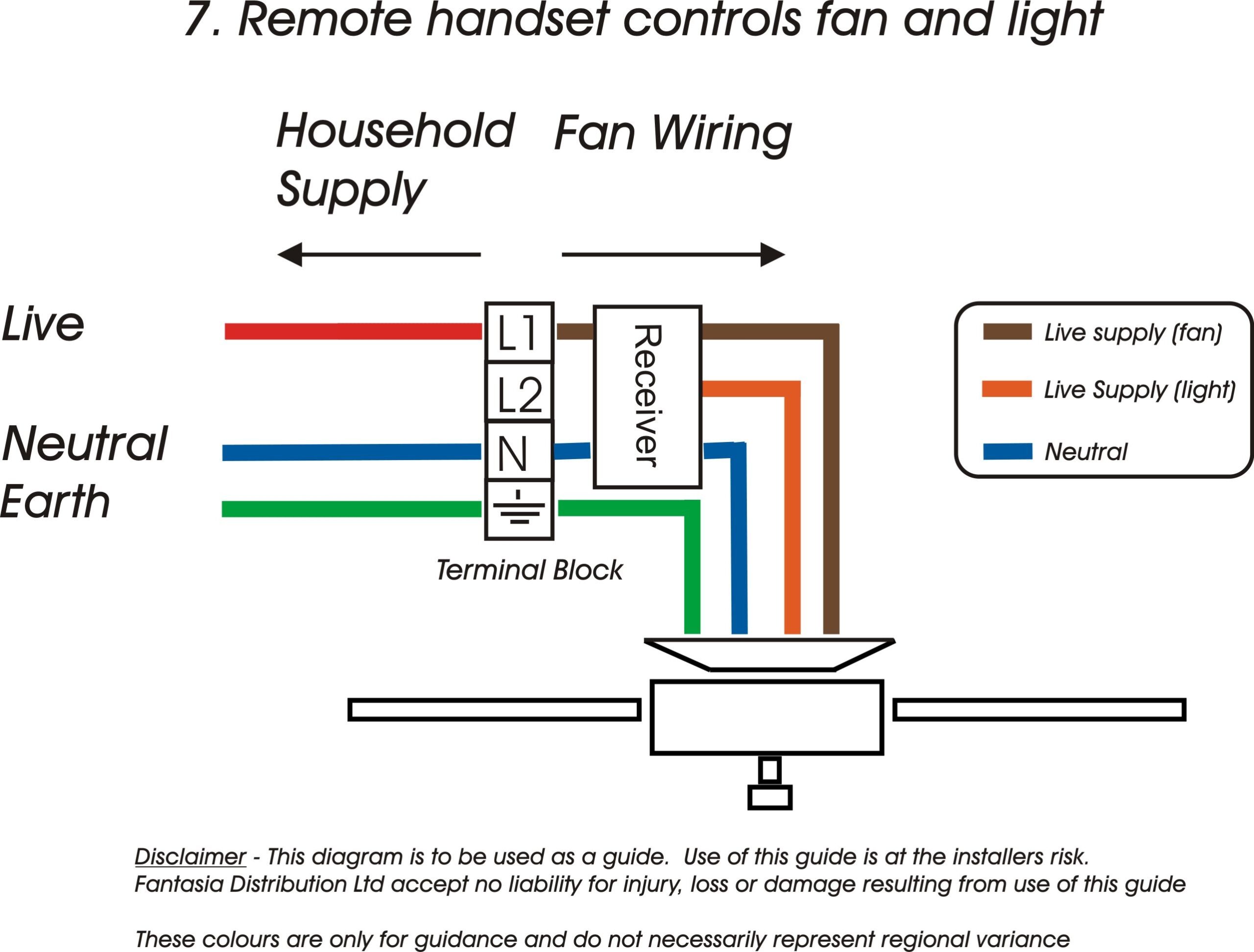

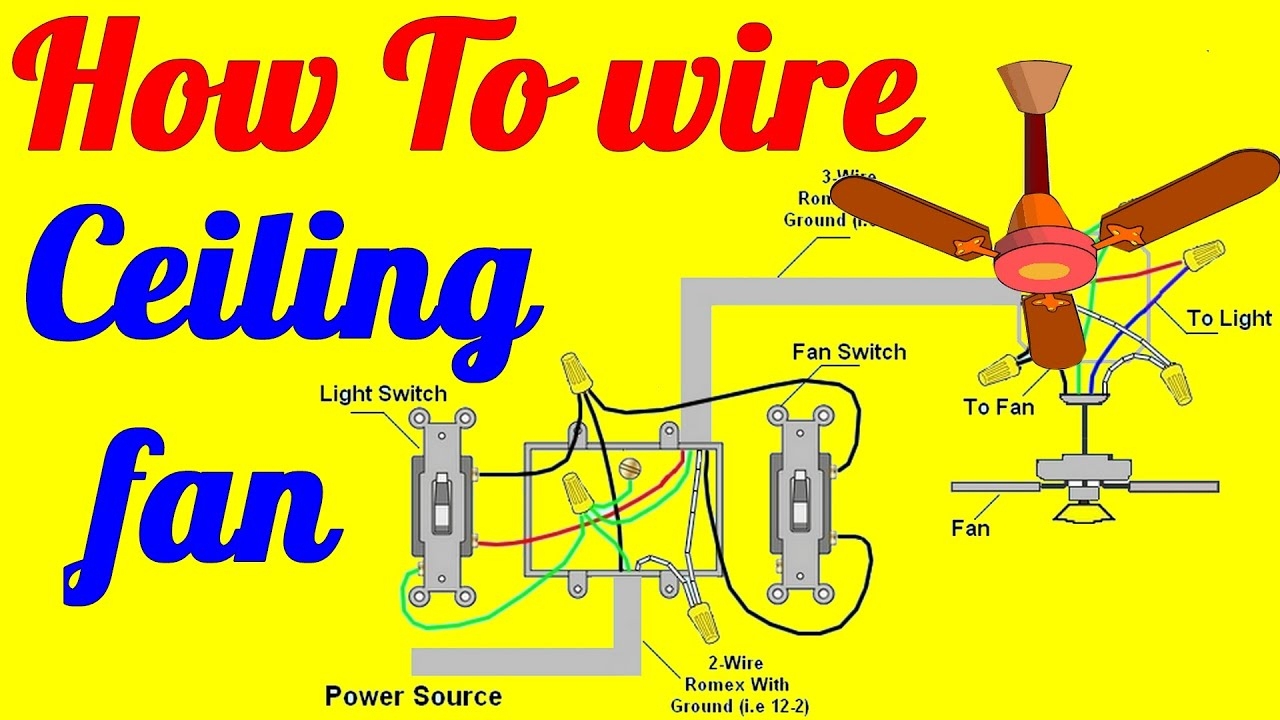

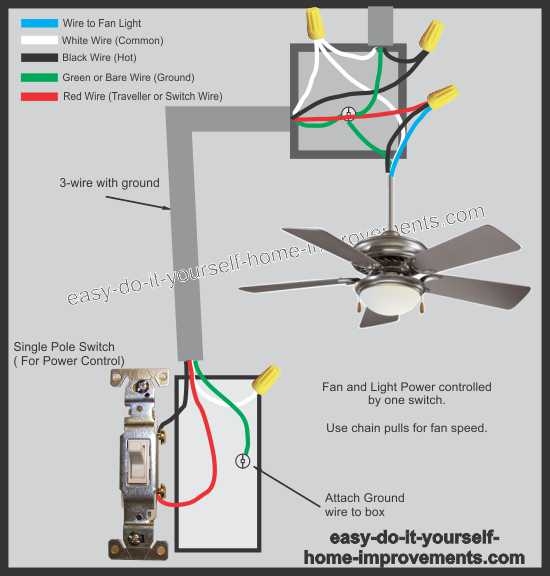

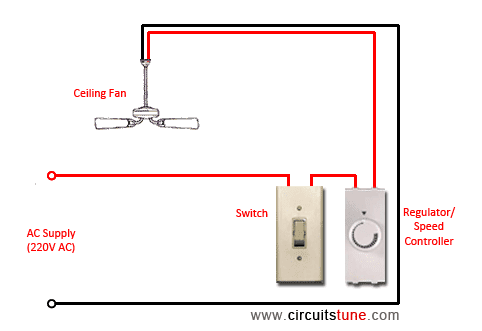

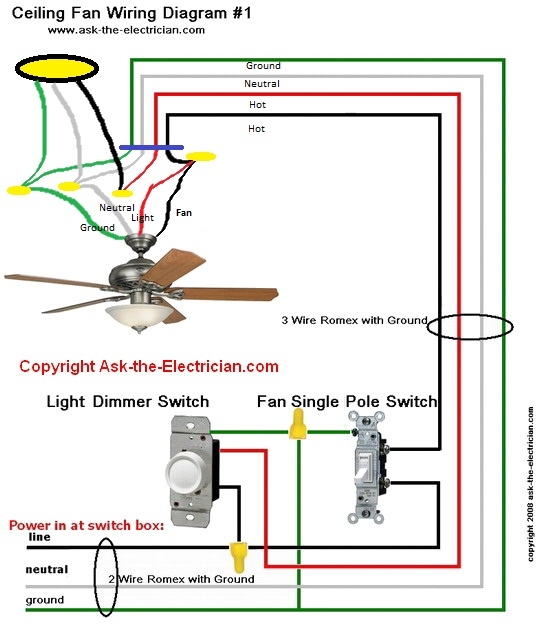

Wiring Diagram For Ceiling Fan And Light
First, you’ll need to identify the wires coming from the ceiling. Typically, you’ll see a black wire (hot), a white wire (neutral), and a green or bare copper wire (ground). The black wire is for the fan, the blue wire is for the light, and the white wire is the neutral wire for both the fan and light.
Next, you’ll need to connect the wires from the ceiling to the corresponding wires from the fan and light. Connect the black wire from the ceiling to the black wire from the fan, the blue wire from the fan to the blue wire from the light, and the white wire from the ceiling to both the white wires from the fan and light.
Once the wires are connected, you can secure them with wire nuts and electrical tape to ensure a safe and secure connection. Finally, you can attach the fan and light to the ceiling using the provided mounting hardware and follow the manufacturer’s instructions for completing the installation.
By following the wiring diagram for a ceiling fan and light, you can enjoy a comfortable and well-lit room without any electrical issues. Remember to always turn off the power before working on any electrical wiring and consult a professional if you’re unsure about any step in the installation process.
