When it comes to electrical safety in your home, a ground fault circuit interrupter (GFCI) outlet is a crucial component. A GFCI outlet is designed to quickly shut off power if it detects a ground fault, preventing electric shocks and potential fires. Wiring a GFCI outlet may seem intimidating, but with the right guidance, it can be done safely and effectively.
Before attempting to wire a GFCI outlet, it’s important to gather the necessary tools and materials. You will need a GFCI outlet, a screwdriver, wire cutters, wire strippers, and electrical tape. Make sure to turn off the power to the outlet at the circuit breaker before starting any work.

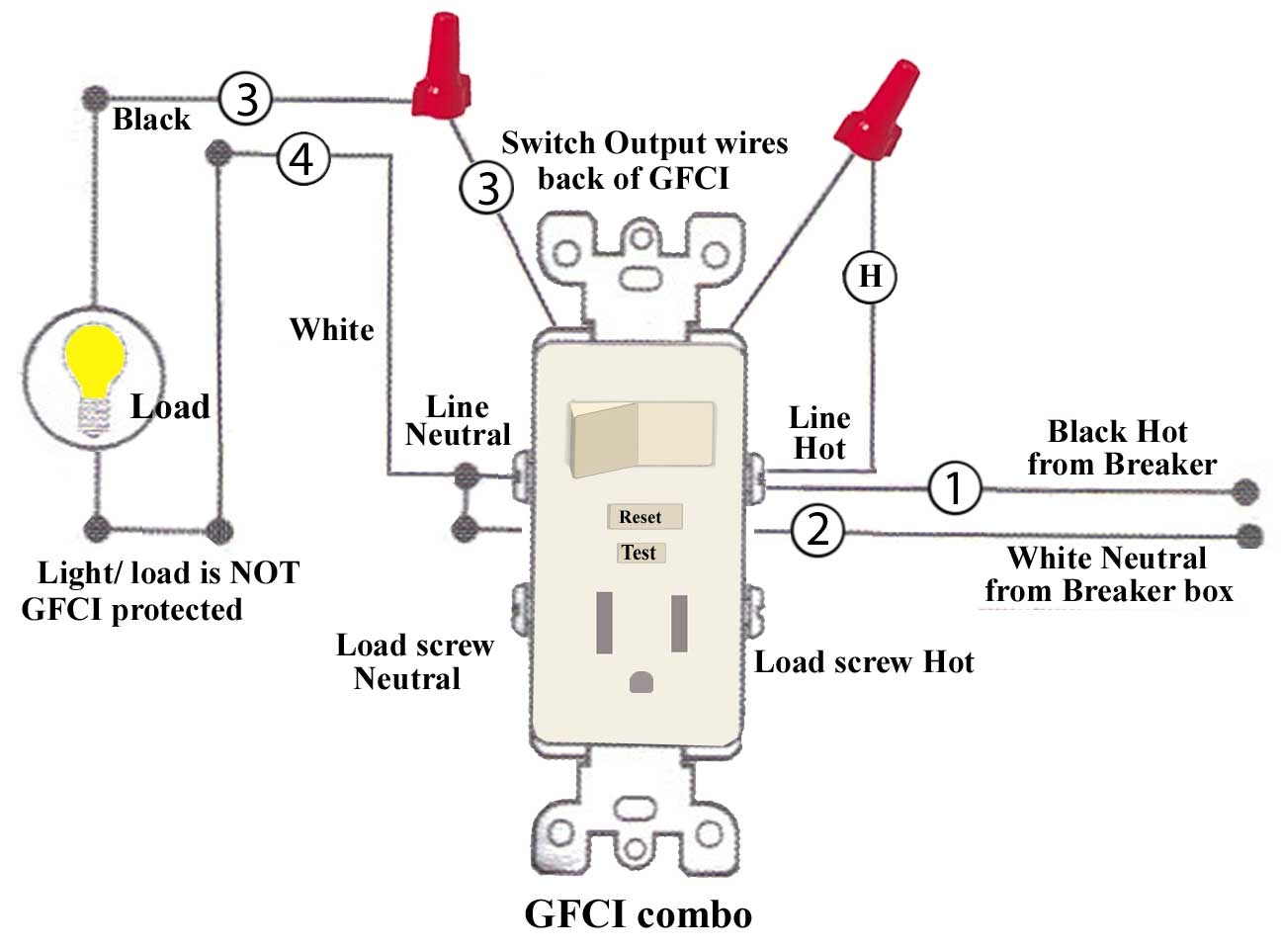

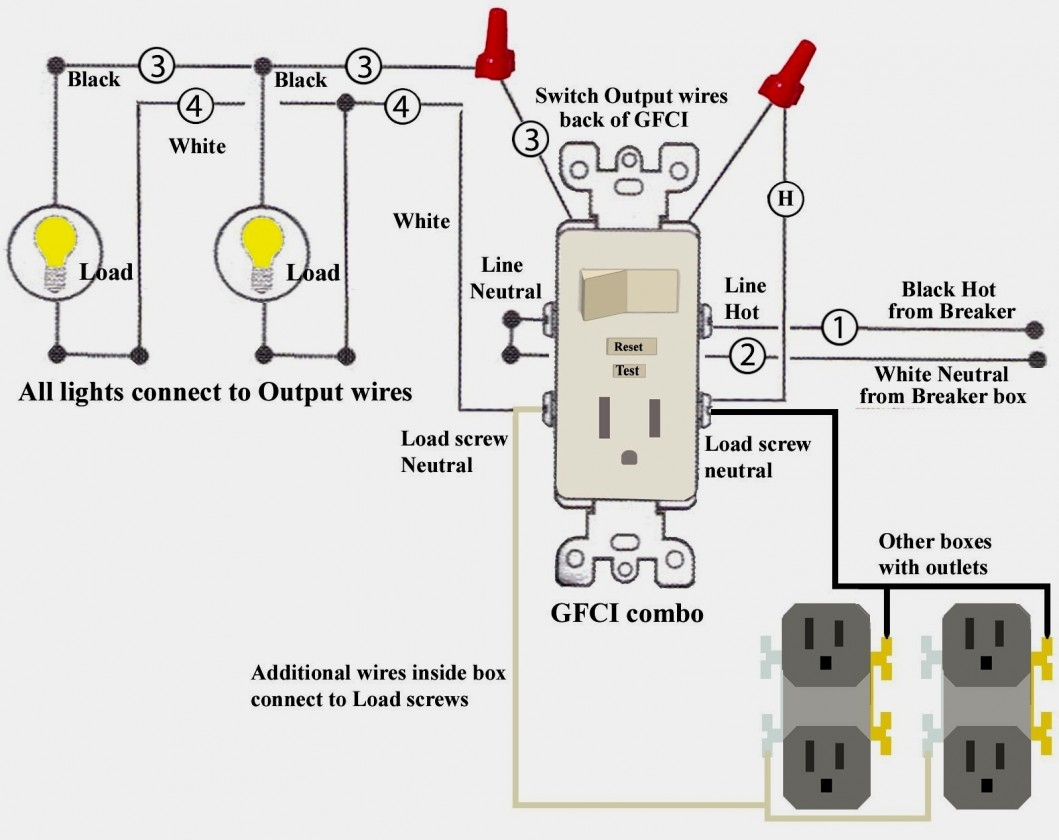

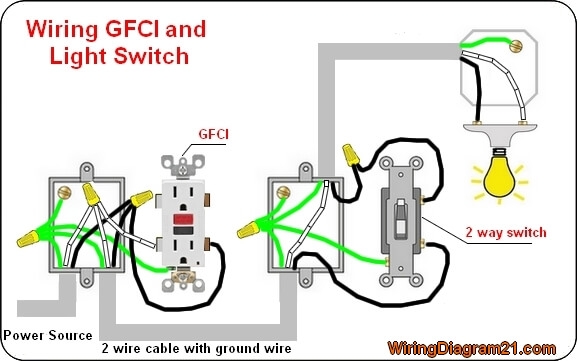

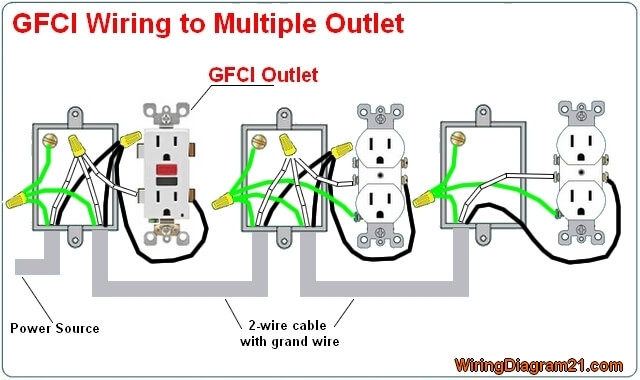

Wiring Diagram For A Gfci Outlet
Start by removing the old outlet and disconnecting the wires. The GFCI outlet will have line terminals for incoming power and load terminals for outgoing power. The black wire is the hot wire, the white wire is the neutral wire, and the green or bare wire is the ground wire. Connect the wires to the appropriate terminals on the GFCI outlet, making sure to tighten the screws securely.
Once the wires are connected, carefully fold them back into the electrical box and attach the GFCI outlet to the box using the provided screws. Double-check all connections to ensure they are secure and tight. Turn the power back on at the circuit breaker and test the GFCI outlet by pressing the “test” and “reset” buttons.
If the GFCI outlet is wired correctly, it should trip when the “test” button is pressed and reset when the “reset” button is pressed. If the GFCI outlet does not trip, there may be a wiring issue that needs to be addressed. In this case, it’s best to consult a professional electrician to ensure the outlet is installed safely and correctly.
Overall, wiring a GFCI outlet is a straightforward process that can greatly enhance the safety of your home’s electrical system. By following the proper wiring diagram and taking the necessary precautions, you can install a GFCI outlet with confidence and peace of mind.
