When it comes to controlling lights from multiple locations, a four-way switch is a convenient solution. A four-way switch allows you to control a single light fixture from three or more locations. This is especially useful in large rooms or hallways where multiple switches are needed for convenience.
Understanding the wiring diagram for a four-way switch is essential for proper installation. It may seem complex at first, but with the right guidance, you can easily set up a four-way switch in your home.

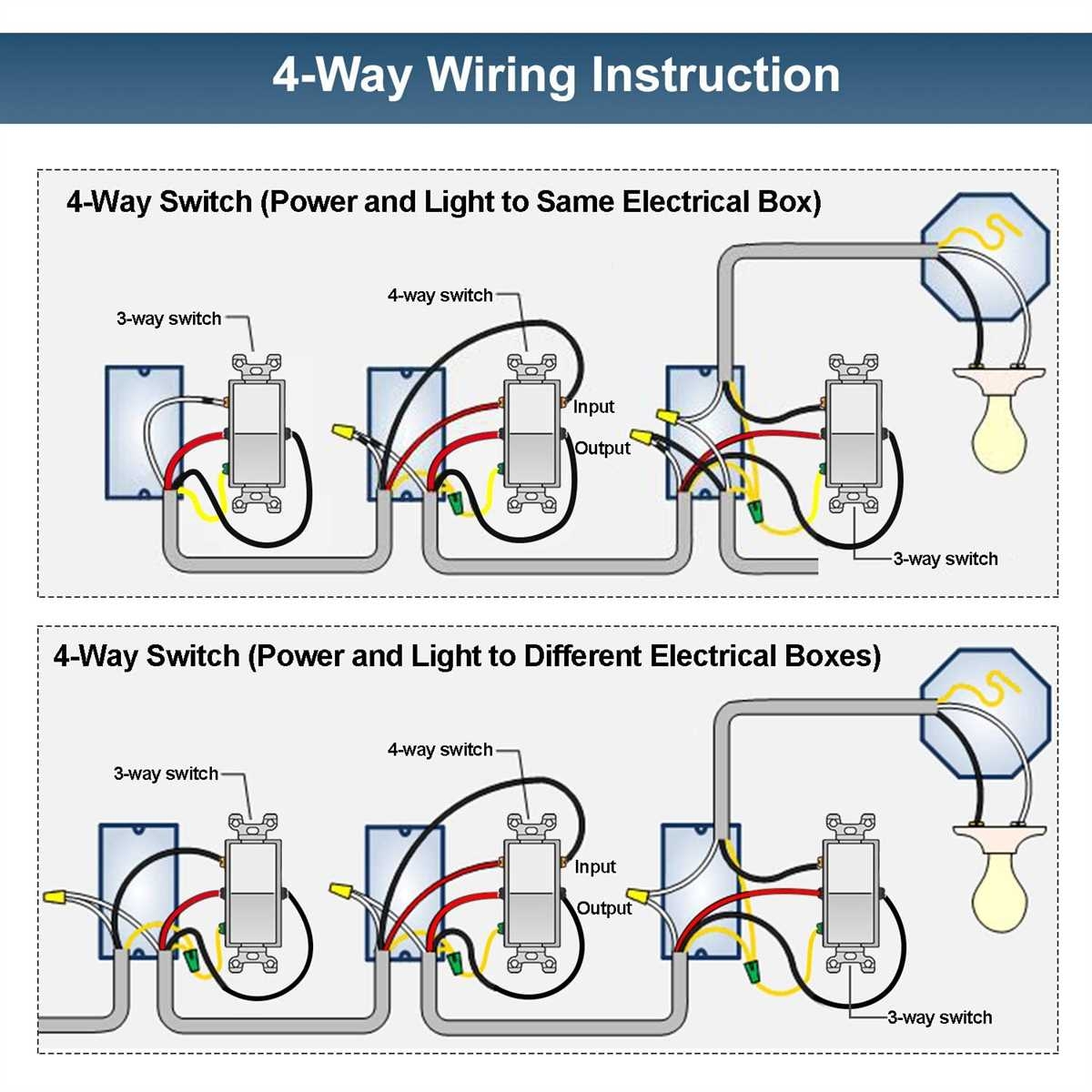

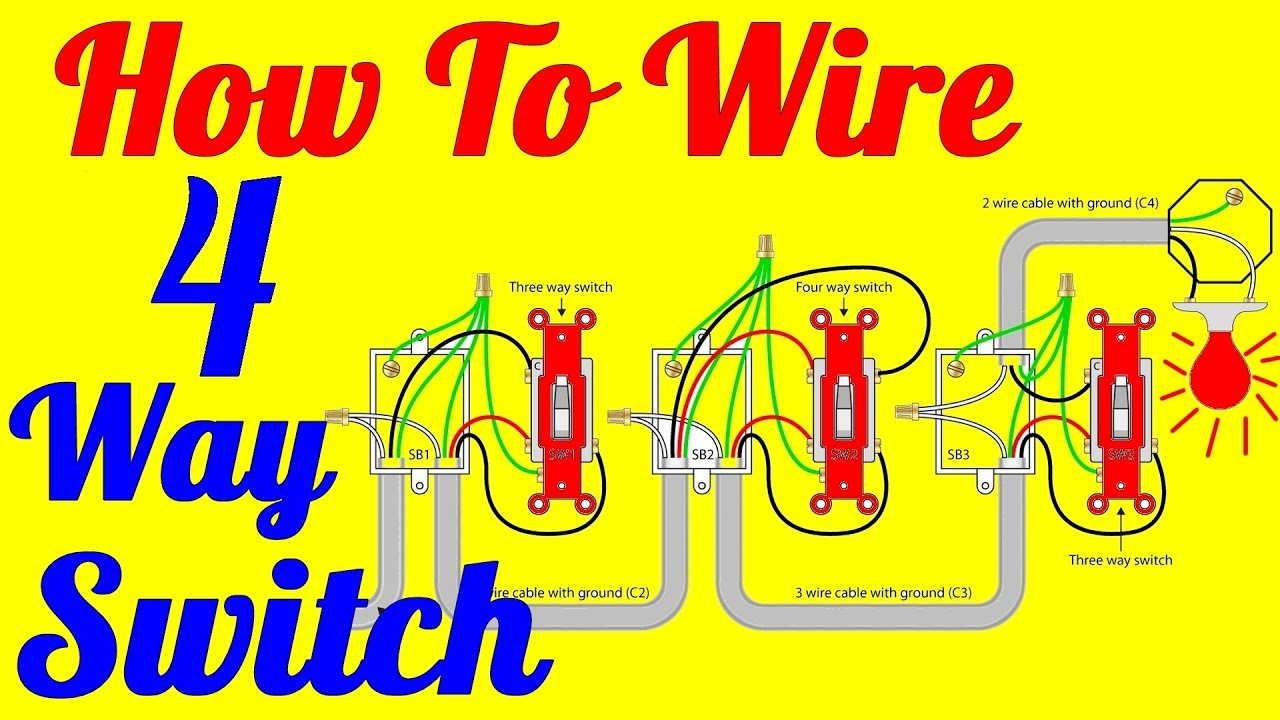

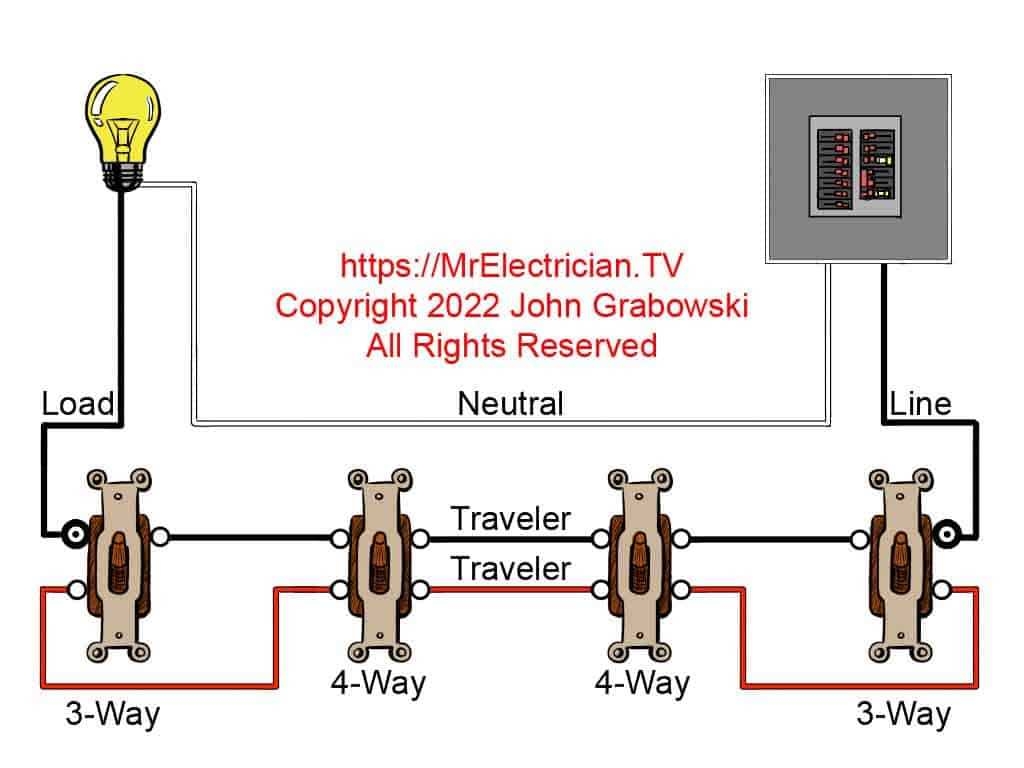

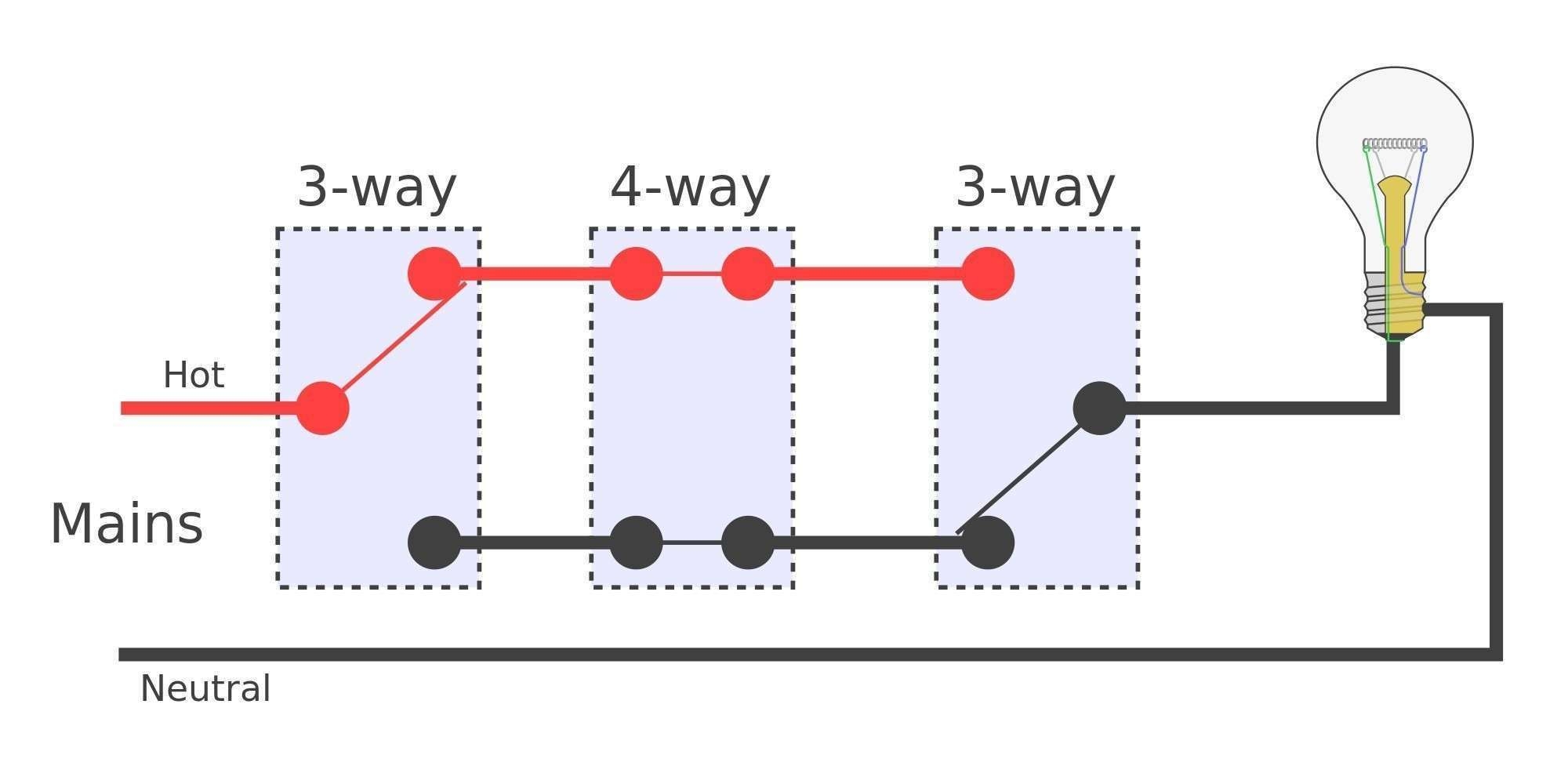

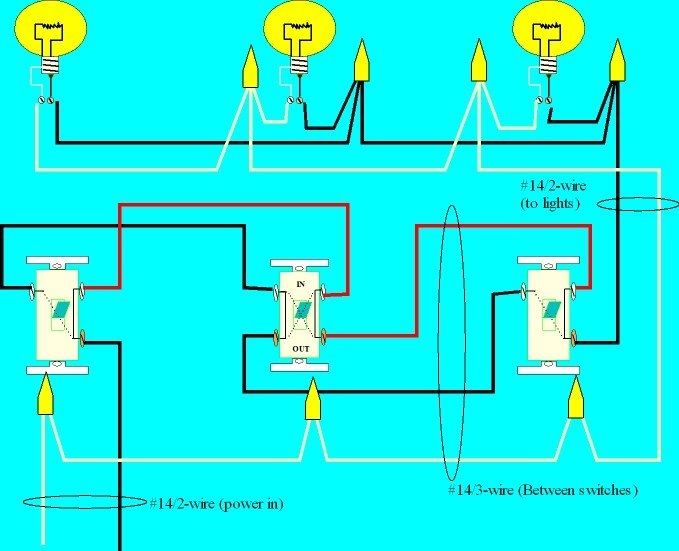

Wiring Diagram For A Four Way Switch
First, let’s take a look at the basic components of a four-way switch setup. You will need two three-way switches and one four-way switch. The three-way switches are used at the ends of the circuit, while the four-way switch is placed in the middle. The switches are connected with traveler wires, allowing for control from multiple locations.
To wire a four-way switch, start by connecting the hot wire to the common terminal of the first three-way switch. Then, connect the traveler wires to the remaining terminals of the three-way switch. Next, connect the traveler wires to the corresponding terminals on the four-way switch. Finally, connect the traveler wires to the common terminal of the second three-way switch.
It’s important to follow the wiring diagram carefully to ensure proper functionality of the four-way switch. If you’re unsure about the wiring or need assistance, consult a professional electrician to avoid any safety hazards.
In conclusion, a four-way switch is a versatile option for controlling lights from multiple locations. By understanding the wiring diagram and following the proper installation steps, you can easily set up a four-way switch in your home. Remember to always prioritize safety when working with electrical components and consult a professional if needed.
