When it comes to powering your RV, having the right electrical setup is crucial. One important component of this setup is the 50 amp RV plug, which allows you to connect your RV to shore power for charging the batteries and running appliances. Understanding the wiring diagram for a 50 amp RV plug is essential for safe and efficient operation.
Whether you’re a seasoned RV enthusiast or a beginner, knowing how to properly wire a 50 amp RV plug can save you time, money, and potential safety hazards. By following the correct wiring diagram, you can ensure that your RV’s electrical system functions smoothly and reliably.
Wiring Diagram For A 50 Amp Rv Plug

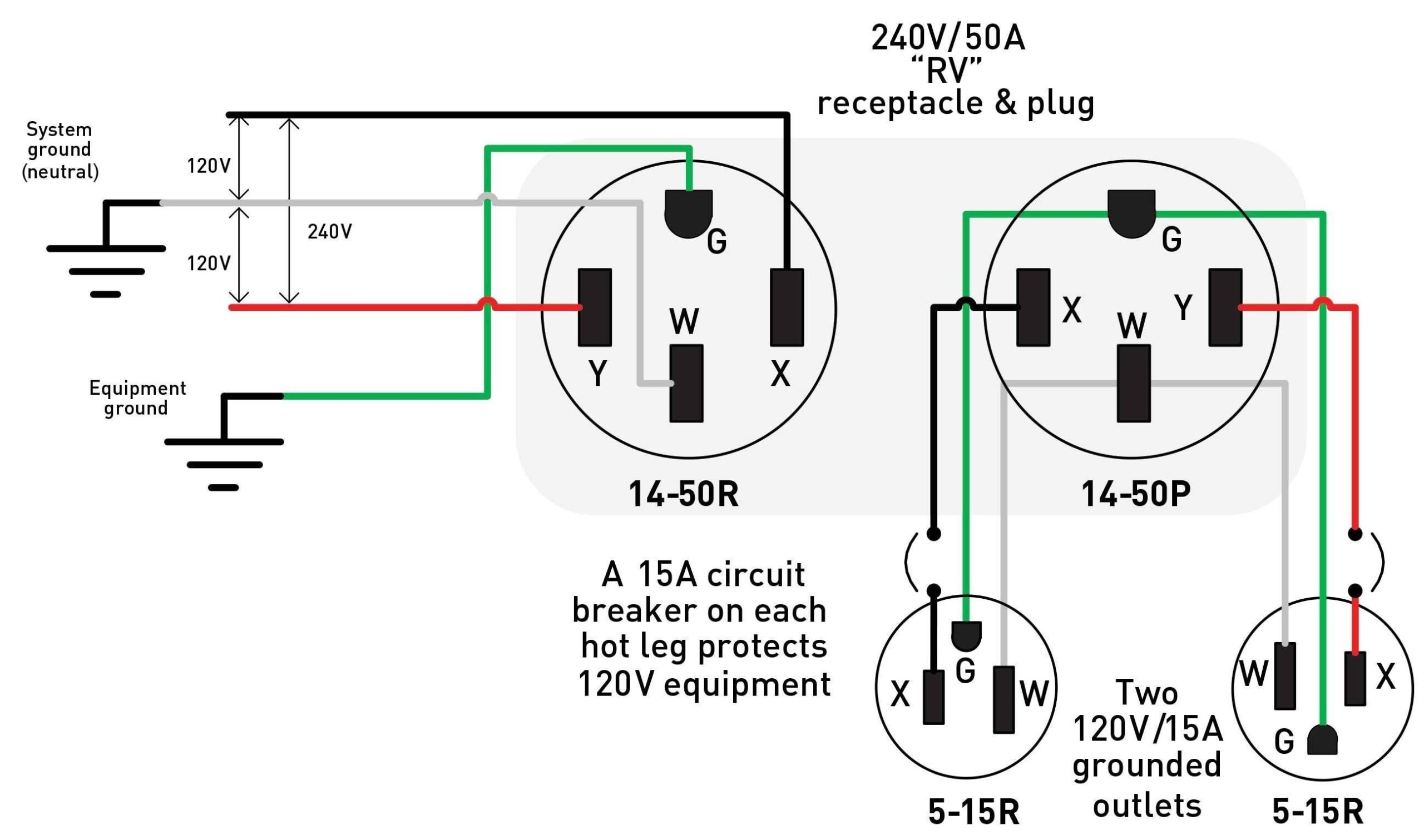

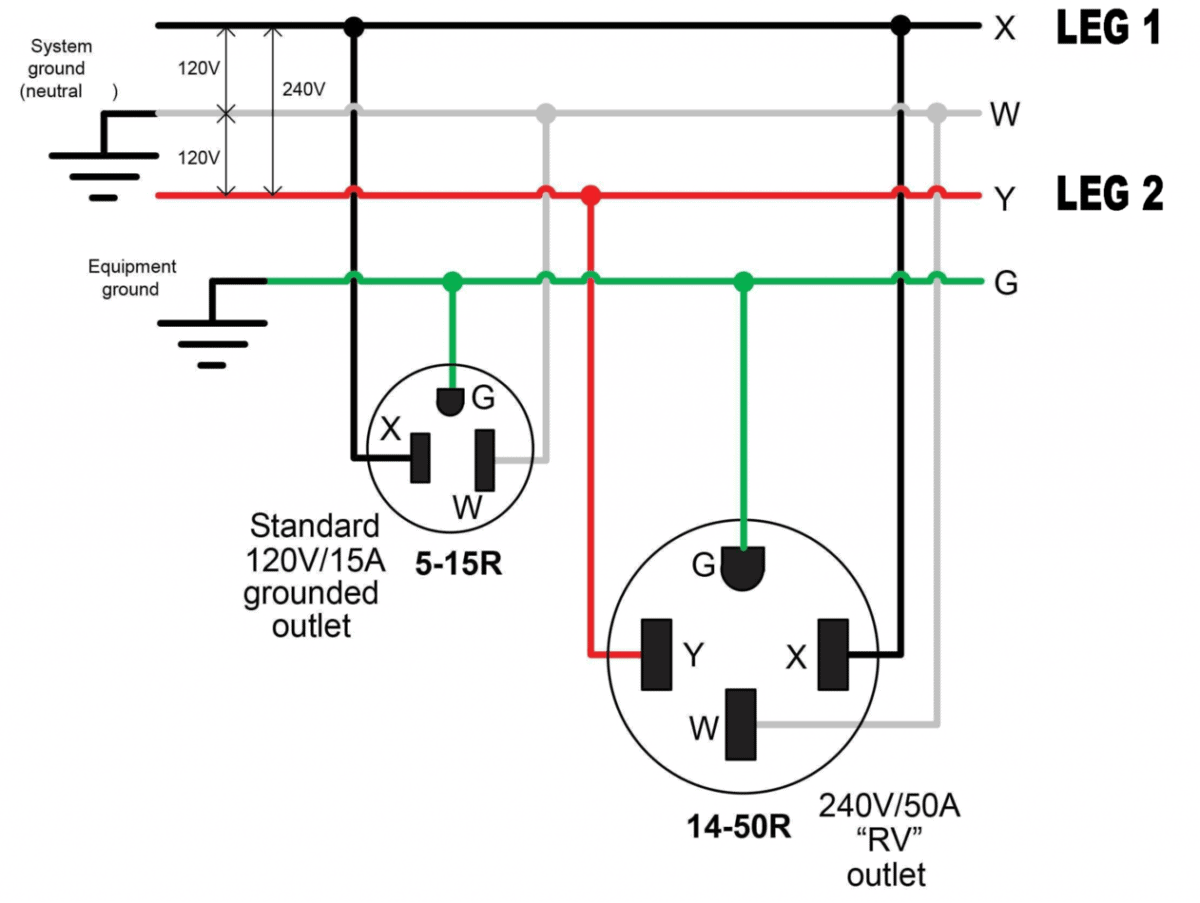

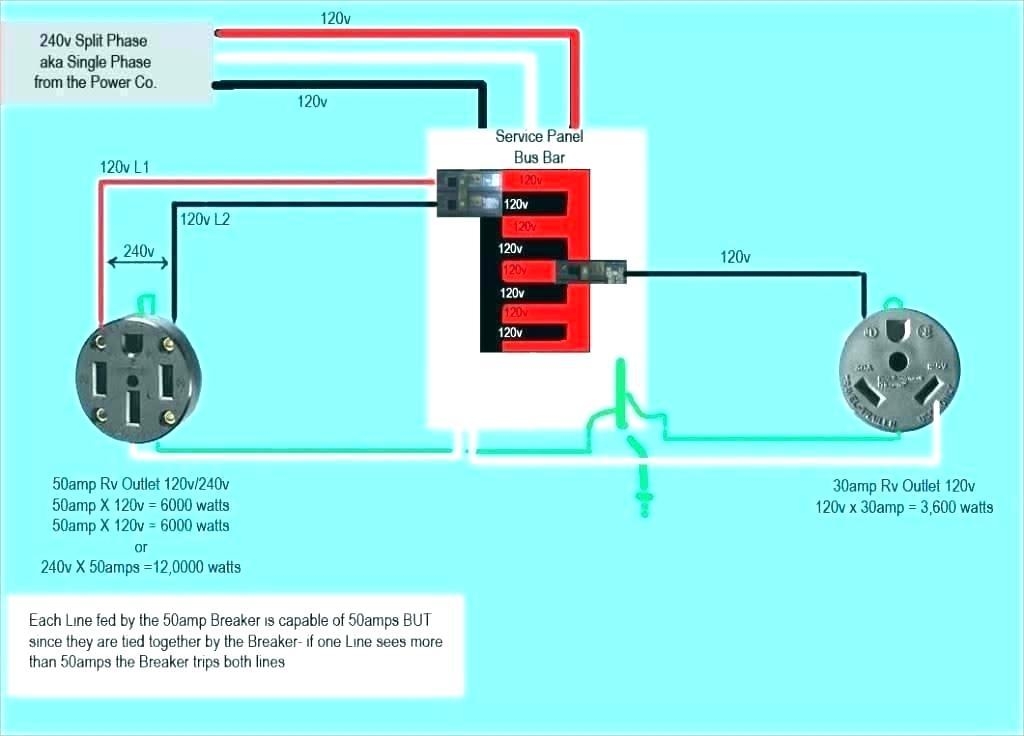

When wiring a 50 amp RV plug, it’s important to follow the specific color-coding and connections outlined in the diagram. Typically, a 50 amp RV plug has four prongs: two hot wires (black and red), one neutral wire (white), and one ground wire (green). Each wire must be connected to the corresponding terminal in the plug to ensure proper voltage distribution.
Start by turning off the power supply and verifying that the circuit is safe to work on. Next, remove the cover of the RV plug to access the terminals. Connect the black and red wires to the hot terminals, the white wire to the neutral terminal, and the green wire to the ground terminal. Make sure to secure the connections tightly to prevent any loose wires.
After wiring the plug, double-check your connections and ensure that everything is properly insulated. Once you’ve verified the wiring, you can safely plug your RV into the shore power source. Remember to always follow safety guidelines and consult a professional if you’re unsure about any part of the wiring process.
By understanding and following the wiring diagram for a 50 amp RV plug, you can ensure a reliable and efficient electrical setup for your RV. Proper wiring not only protects your RV’s electrical system but also provides peace of mind during your travels. So, take the time to learn and implement the correct wiring procedures for your 50 amp RV plug.
