When it comes to towing a trailer, having the right wiring setup is crucial for safety and functionality. One of the most common trailer wiring configurations is the 7 way plug, which provides connections for all the necessary lights and electrical functions on a trailer. Understanding the wiring diagram for a 7 way trailer plug is essential for proper installation and operation.
With a 7 way trailer plug, you have connections for the following functions: ground, tail lights, left turn/brake, right turn/brake, electric brakes, backup lights, and 12V power. Each of these functions is assigned a specific pin on the plug, making it easy to wire up your trailer correctly.

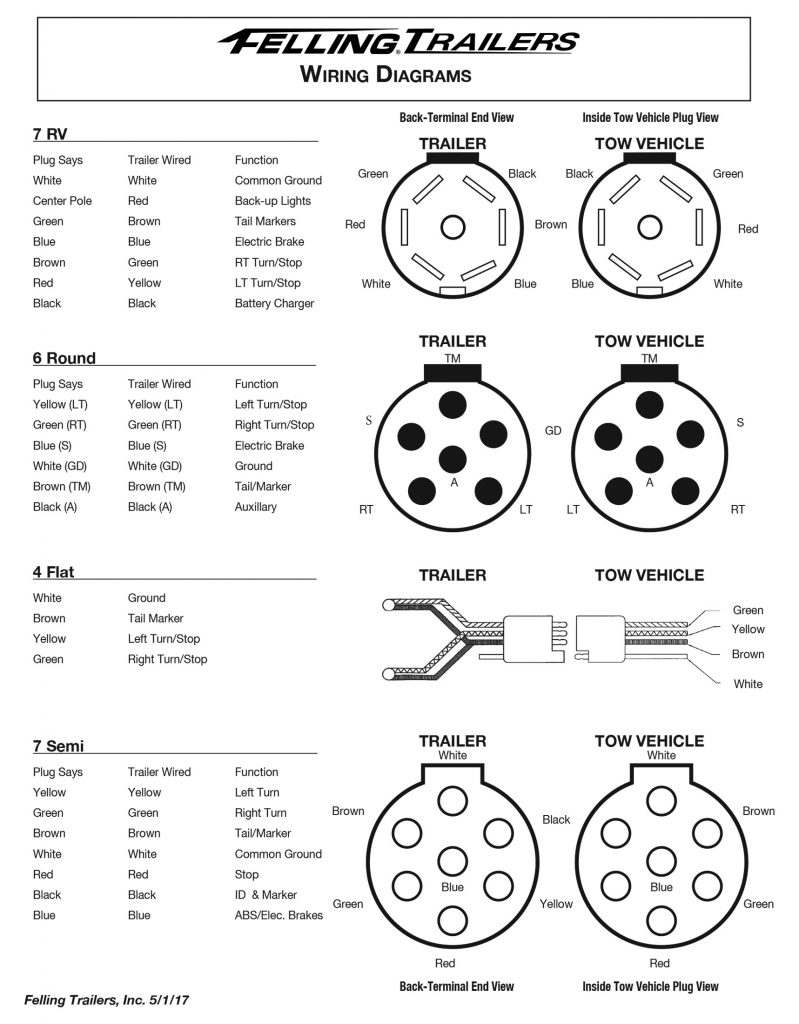

Wiring Diagram For 7 Way Trailer Plug
Starting with the ground wire, which is typically white, connect it to the designated pin on the plug. The tail lights, left turn/brake, and right turn/brake wires are usually brown, yellow, and green respectively. Electric brakes are connected to the blue wire, while backup lights use the purple wire. The 12V power wire is typically black.
It’s important to follow the wiring diagram for the 7 way trailer plug carefully to ensure that each wire is connected to the correct pin. This will prevent any electrical issues and ensure that your trailer lights and brakes work properly when towing. If you’re unsure about how to wire up the plug, consult a professional or refer to the manufacturer’s instructions.
Once you have connected all the wires to the correct pins on the 7 way trailer plug, make sure to secure the connections with electrical tape or heat shrink tubing. This will help prevent any loose connections or shorts that could cause problems down the road. Finally, test your trailer lights and brakes to ensure everything is working as it should.
Having a solid understanding of the wiring diagram for a 7 way trailer plug is essential for safe and reliable towing. By following the proper wiring instructions and making sure all connections are secure, you can enjoy peace of mind knowing that your trailer is properly equipped for the road.
