When it comes to towing a trailer, having the right wiring setup is crucial for safety and functionality. One common type of trailer plug is the 6-way plug, which provides connections for turn signals, brake lights, and other necessary functions. Understanding how to wire a 6-way trailer plug is essential for anyone who tows trailers regularly.
Whether you are hooking up a utility trailer, camper, or boat trailer, having a properly wired 6-way trailer plug is essential. This type of plug provides connections for the running lights, brake lights, turn signals, and ground wire. By following a wiring diagram for a 6-way trailer plug, you can ensure that all your trailer’s lights and signals work properly, keeping you safe on the road.

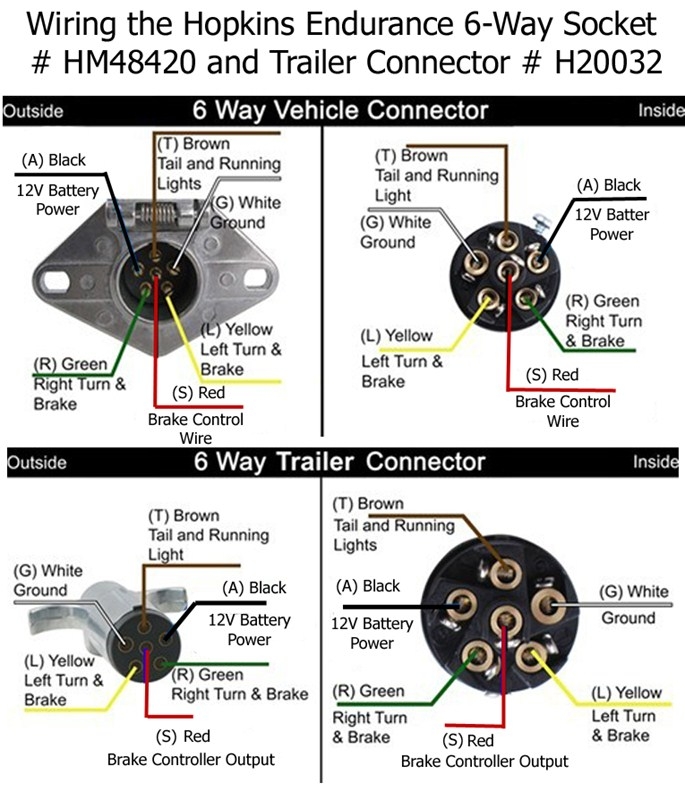

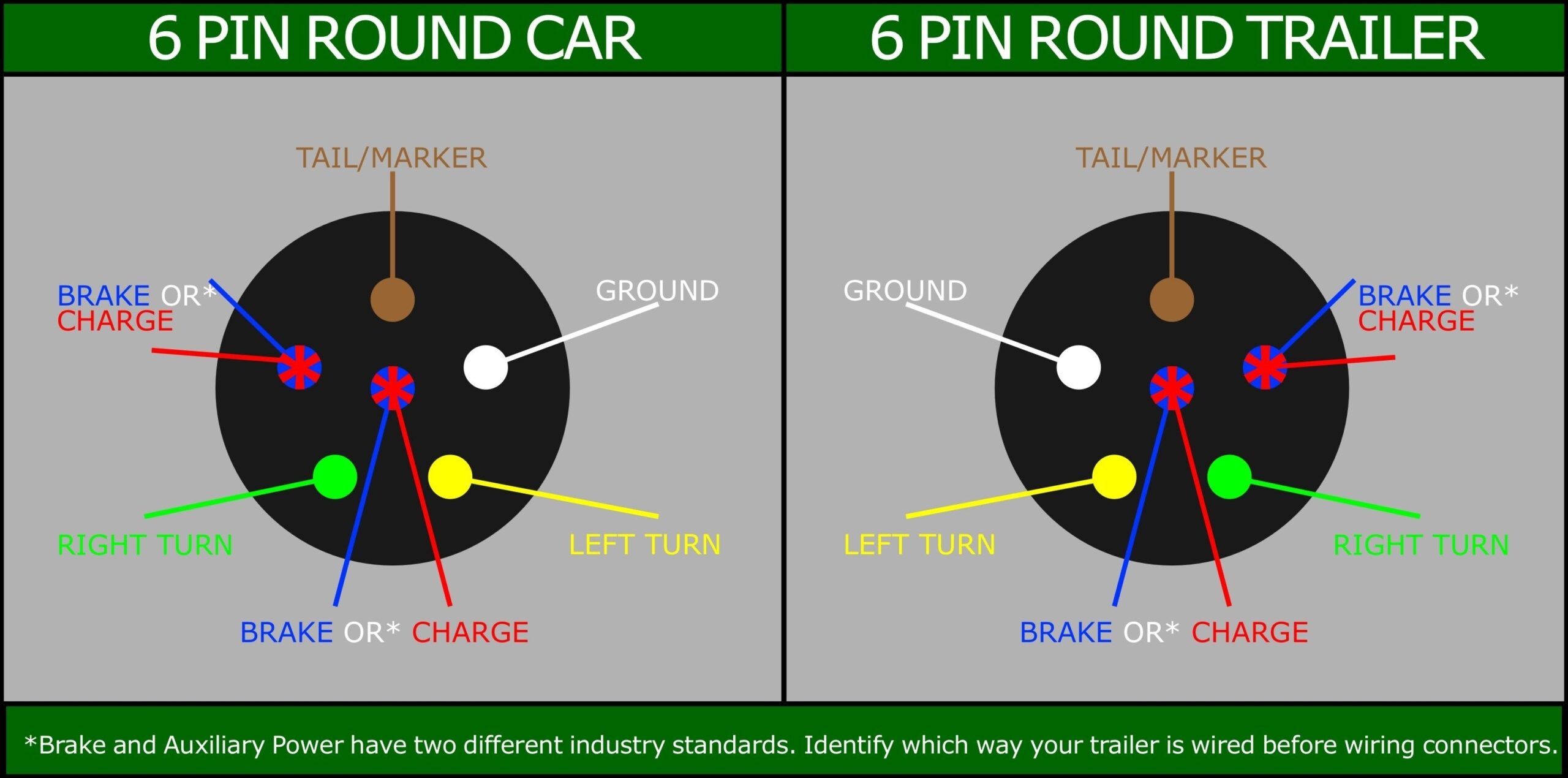

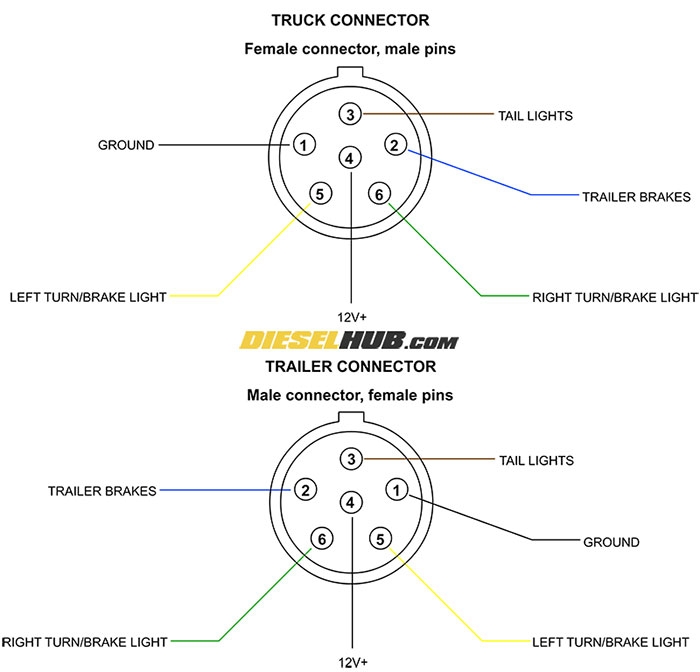

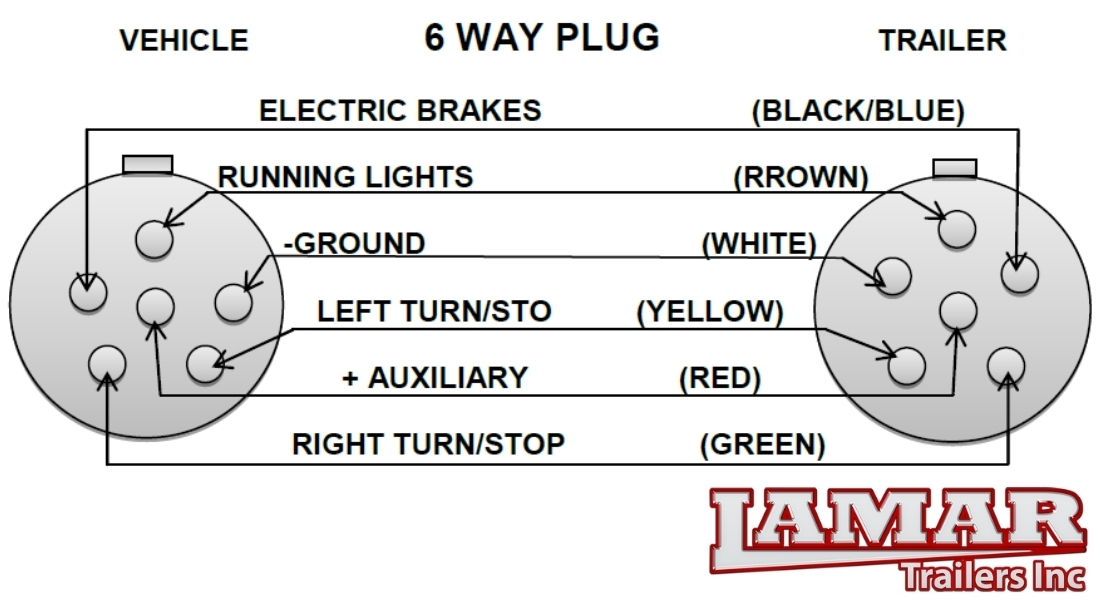

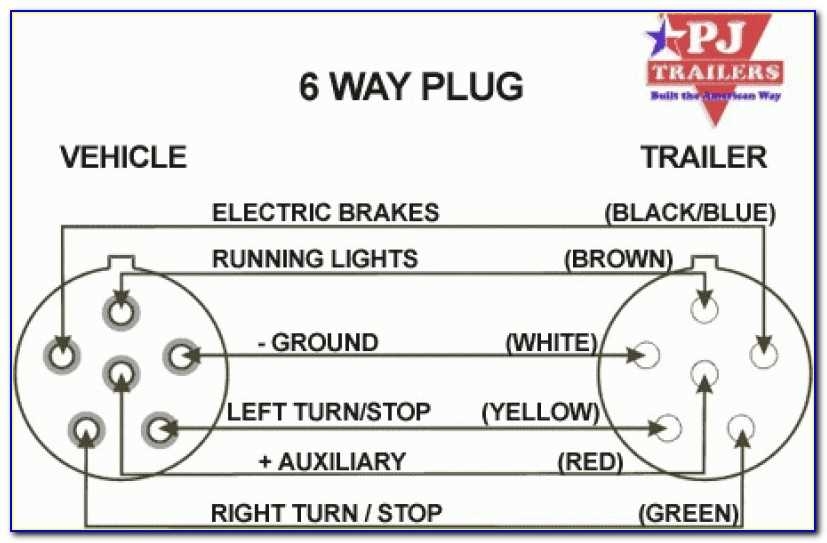

Wiring Diagram For 6 Way Trailer Plug
When wiring a 6-way trailer plug, it is important to follow the correct color-coding for each wire. The standard color-coding for a 6-way plug is as follows: white for ground, brown for tail lights, yellow for left turn/brake lights, green for right turn/brake lights, blue for electric brakes, and black for 12v power. By connecting each wire to the corresponding terminal on the plug, you can ensure that all your trailer’s lights and signals function correctly.
To wire a 6-way trailer plug, start by stripping the insulation off the ends of each wire and crimping on the appropriate terminal connectors. Then, insert each wire into its corresponding terminal on the plug, making sure to tighten the screws securely. Finally, test each light and signal on the trailer to ensure that everything is working properly. If you encounter any issues, double-check your wiring against a diagram to ensure everything is connected correctly.
Having a properly wired 6-way trailer plug is essential for safe towing. By following the correct wiring diagram and color-coding for each wire, you can ensure that your trailer’s lights and signals work correctly every time you hit the road. Regularly inspecting and maintaining your trailer’s wiring will help prevent any issues and keep you safe while towing.
In conclusion, understanding how to wire a 6-way trailer plug is essential for anyone who tows trailers regularly. By following a wiring diagram and color-coding for each wire, you can ensure that all your trailer’s lights and signals work properly, keeping you safe on the road. Properly maintaining your trailer’s wiring will help prevent any issues and ensure a smooth towing experience.
