When it comes to lighting control in a room, 3-way switches are commonly used to allow for control of a light fixture from two different locations. This type of switch setup is ideal for rooms with multiple entrances or where you want the convenience of turning a light on or off from different spots.
Understanding how to wire 3-way switches is essential for any DIY enthusiast or electrician. With the right knowledge and tools, you can easily install or troubleshoot these switches in your home.

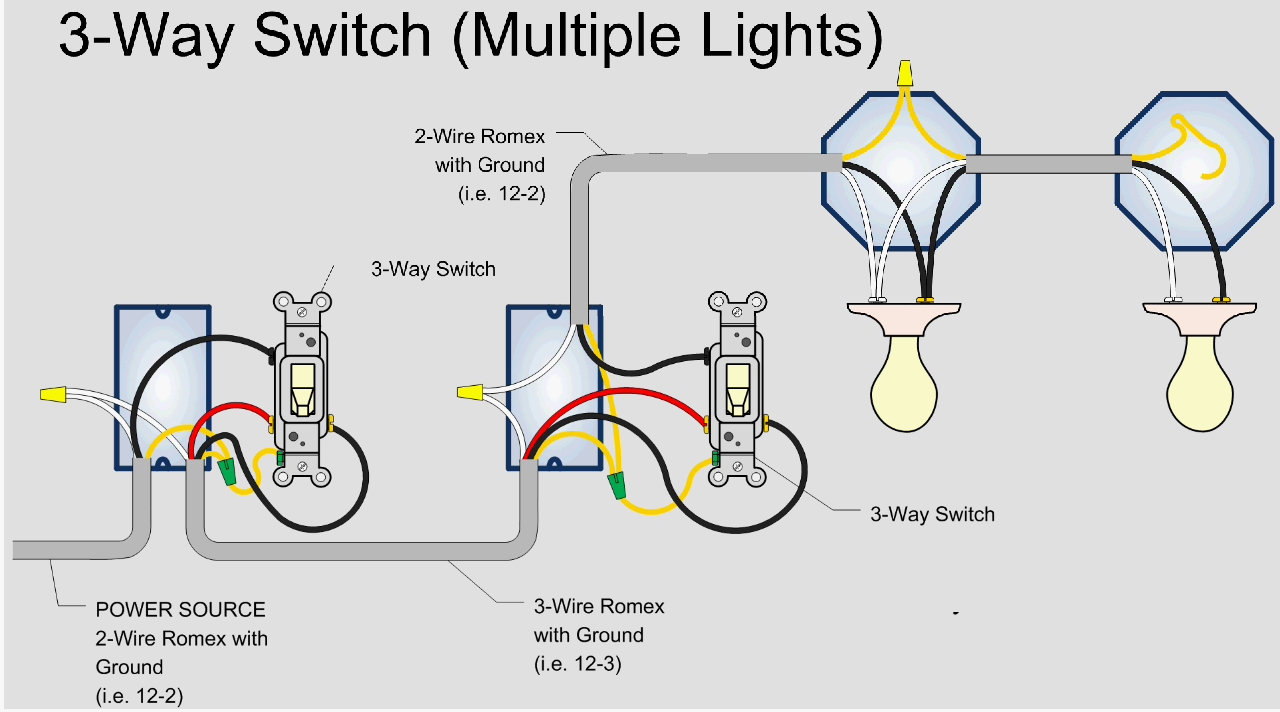

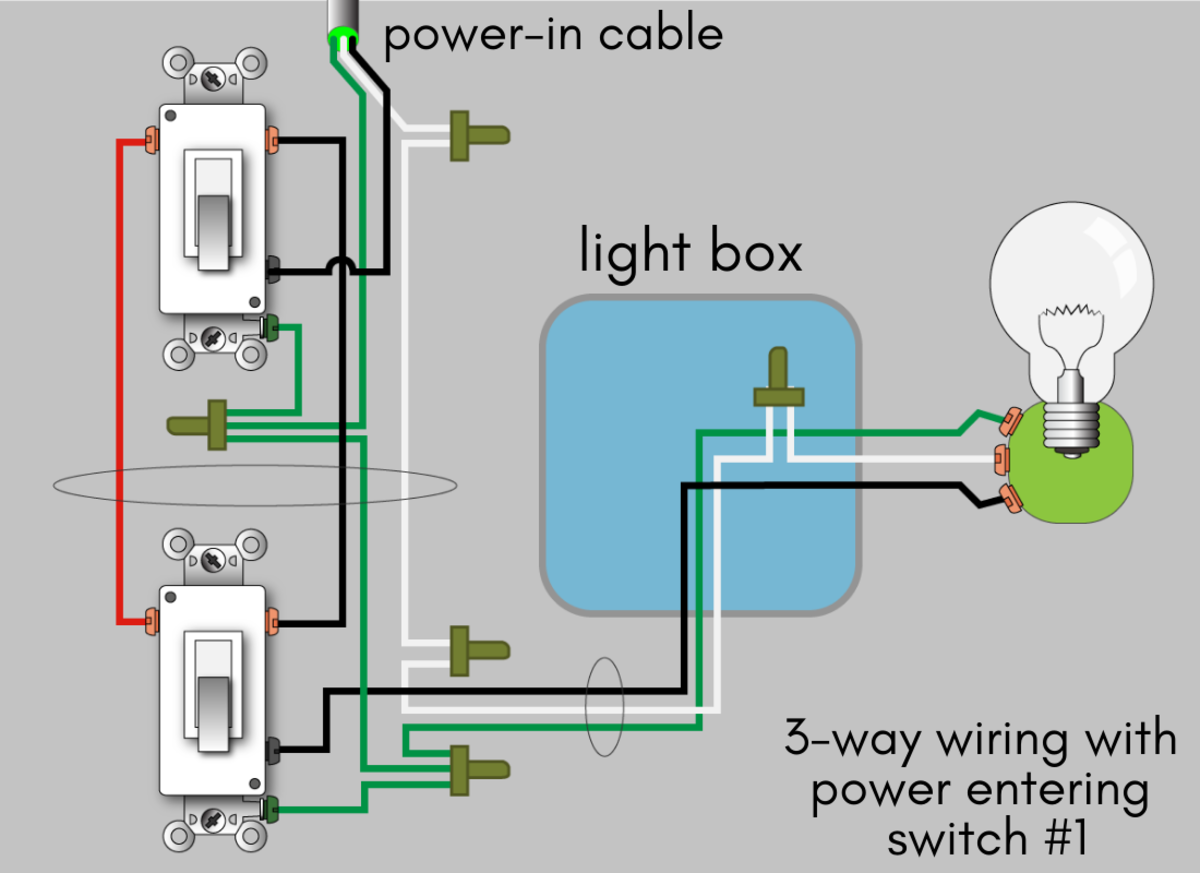

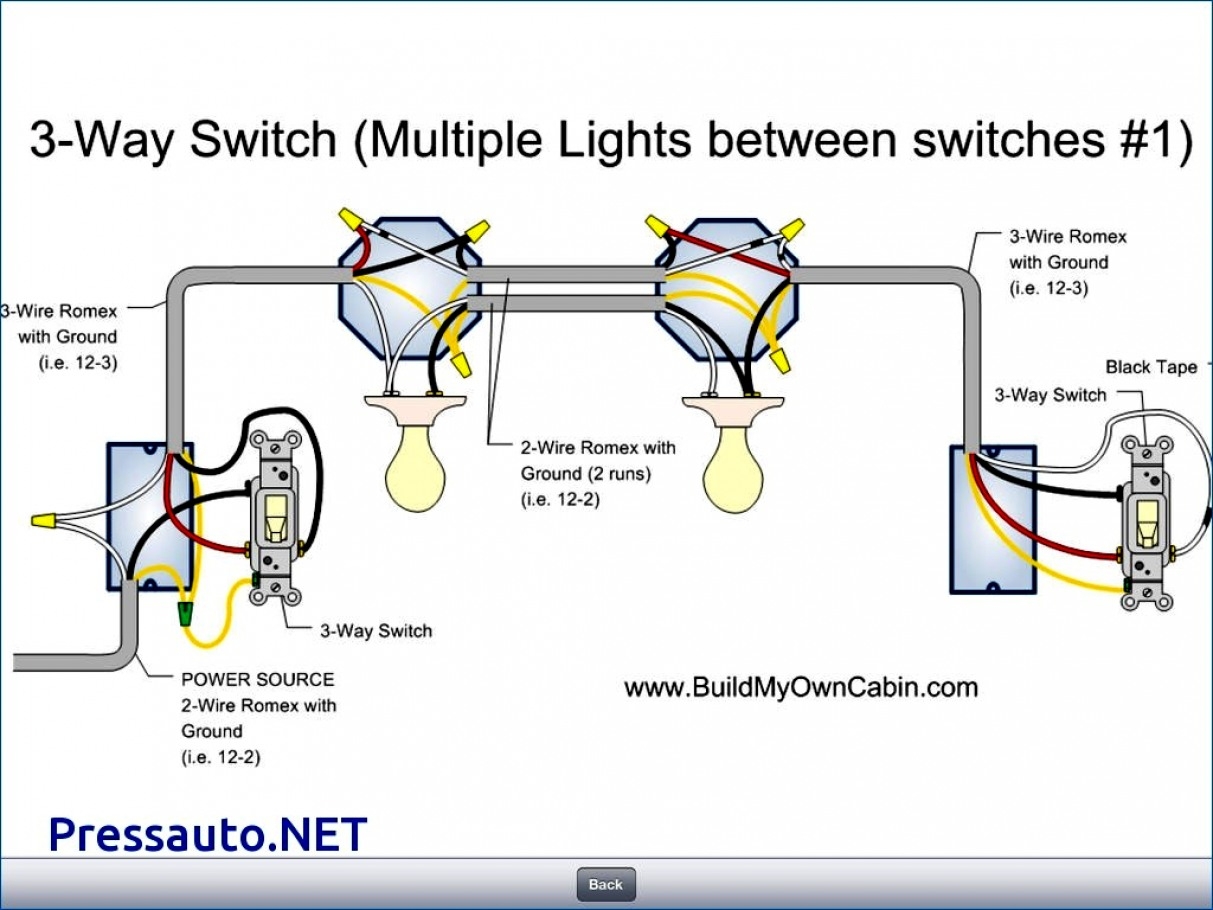

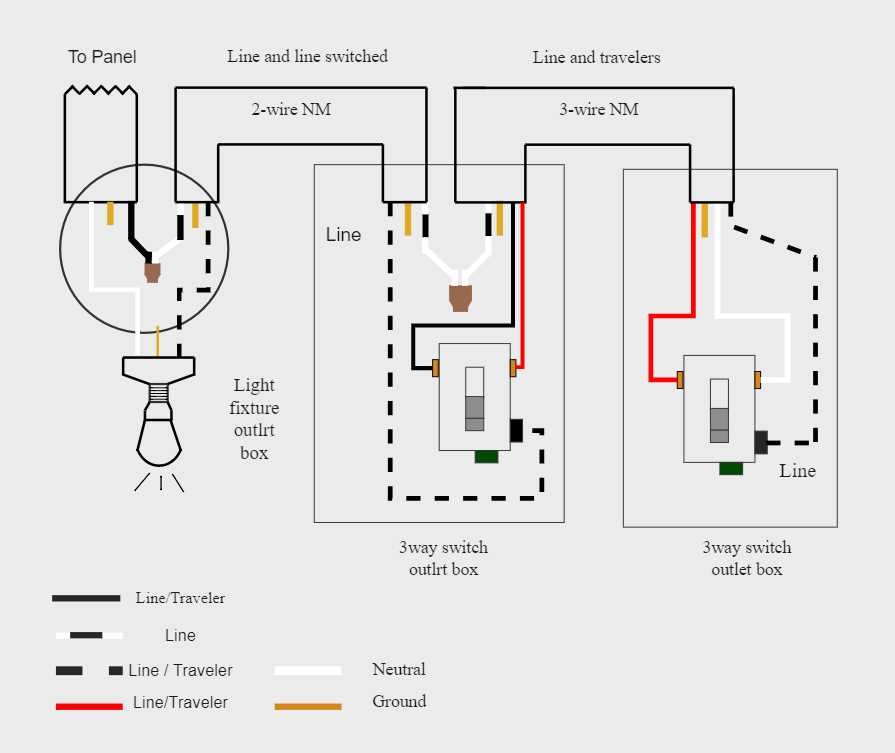

Wiring Diagram For 3 Way Switches
How to Wire 3-Way Switches
To wire 3-way switches, you will need a basic understanding of electrical wiring and the right tools for the job. Here is a step-by-step guide to help you wire 3-way switches correctly:
1. Turn off the power to the circuit at the breaker box to ensure safety while working on the switches.
2. Identify the two 3-way switches in your setup – one will be the “control” switch, and the other will be the “companion” switch.
3. Connect the common terminal of the control switch to the power source (typically black wire) and the common terminal of the companion switch to the light fixture.
4. Connect the travelers (typically red and white wires) between the two switches, ensuring they are correctly matched on both ends.
5. Test the switches to ensure they are working correctly before securing them in place and turning the power back on.
By following these steps and referencing a wiring diagram for 3-way switches, you can successfully wire these switches in your home without any hassle.
Overall, understanding how to wire 3-way switches is essential for anyone looking to control lighting in a room from multiple locations. With the right knowledge and tools, you can tackle this electrical project with confidence and ensure that your switches work seamlessly.
