When it comes to controlling a single light fixture from two different locations, a 3-way switch is the perfect solution. This type of switch allows you to turn the light on or off from either switch, providing convenience and flexibility in your lighting setup.
Understanding how to wire a 3-way switch can be a bit confusing for beginners, but with the right guidance, it can be a straightforward process. In this article, we will discuss the wiring diagram for a 3-way switch and how you can easily install it in your home.
Wiring Diagram For 3 Way Switch
Wiring Diagram For 3 Way Switch

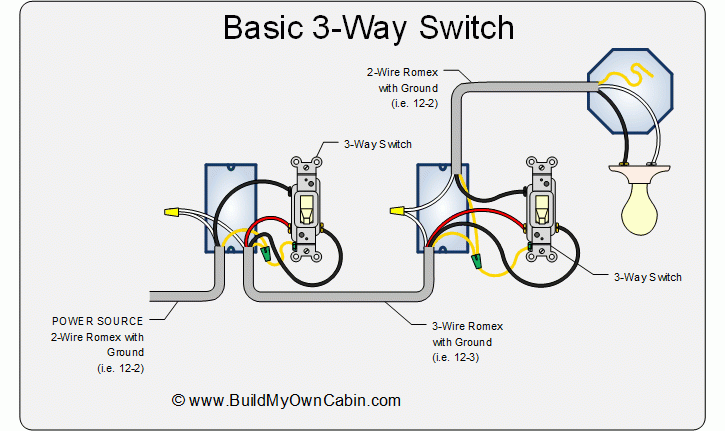

First, let’s take a look at the basic wiring diagram for a 3-way switch. You will need two 3-way switches and one light fixture. The switches are typically labeled as “SW1” and “SW2,” with the light fixture labeled as “L.”
Here is a simple wiring diagram:

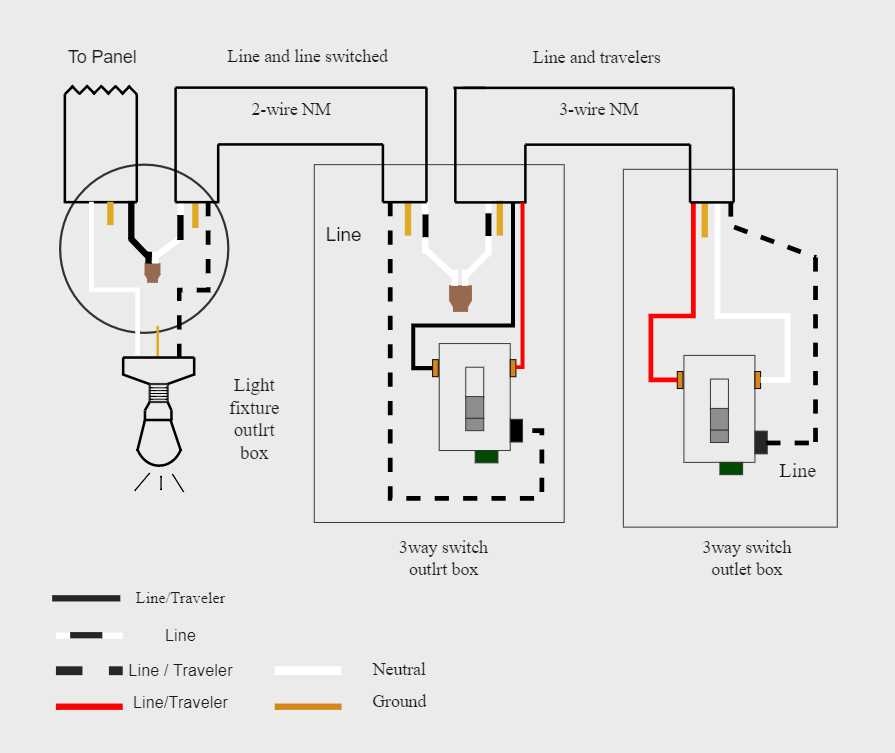

As shown in the diagram, the power source connects to the common terminal of SW1. The travelers from SW1 are connected to the travelers of SW2, and the common terminal of SW2 is connected to the light fixture. This setup allows you to control the light fixture from both switches.
It is important to follow the wiring diagram carefully and ensure that all connections are secure to prevent any electrical hazards. If you are unsure about the wiring process, it is recommended to consult a professional electrician for assistance.
Once you have successfully wired the 3-way switch, you can test the functionality by flipping the switches and observing the light fixture. If the light turns on and off from both switches, then your wiring is correct.
In conclusion, understanding the wiring diagram for a 3-way switch is essential for anyone looking to install this type of switch in their home. With the right tools and knowledge, you can easily set up a 3-way switch system that provides convenience and flexibility in your lighting setup.
