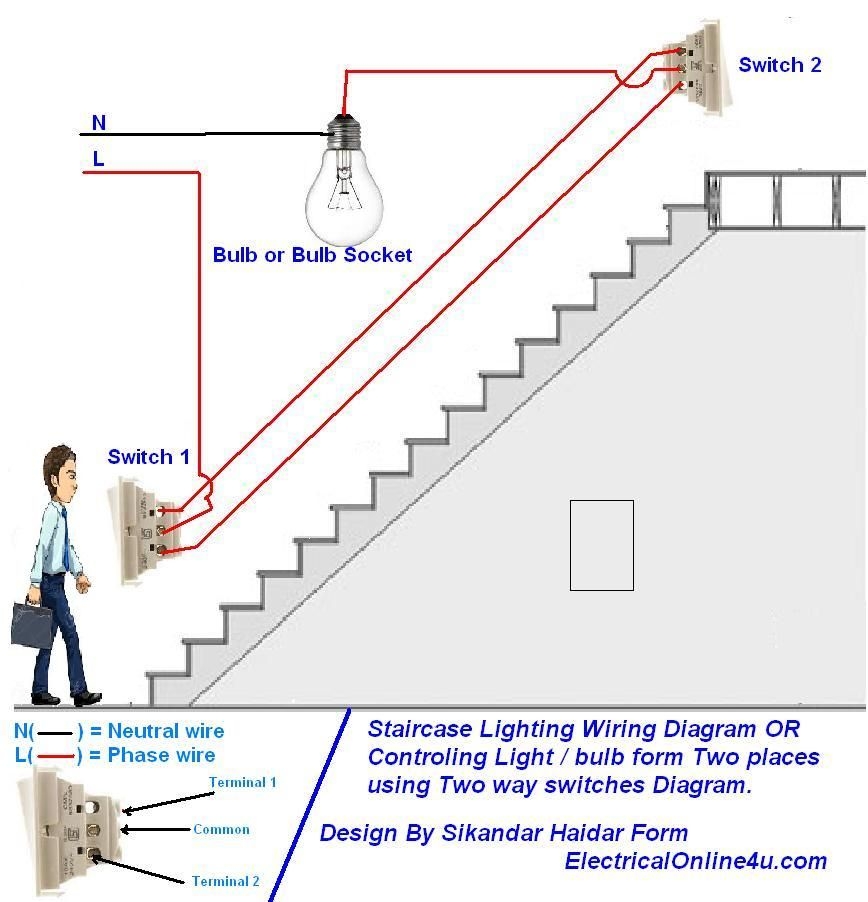

When it comes to controlling the lighting in a room, a 2-way light switch is a convenient option. This type of switch allows you to control the same light fixture from two different locations, such as at the top and bottom of a staircase or at either end of a hallway.
Understanding how to wire a 2-way light switch is essential for proper installation. With the right wiring diagram and a few basic tools, you can easily set up a 2-way switch in your home.
Wiring Diagram For 2 Way Light Switch

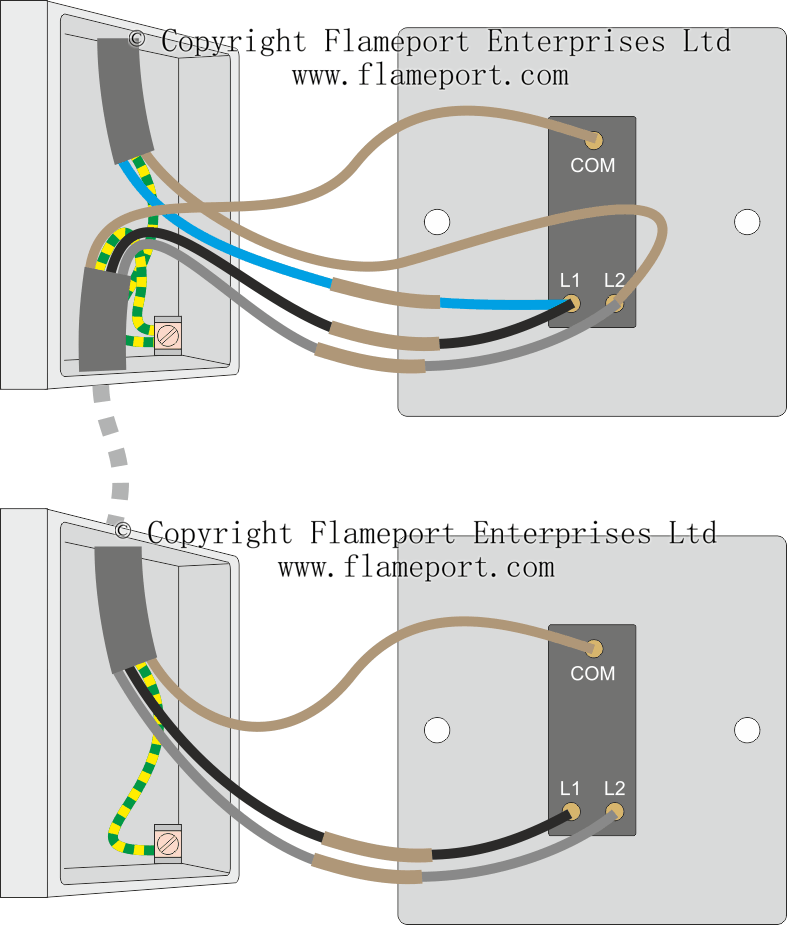

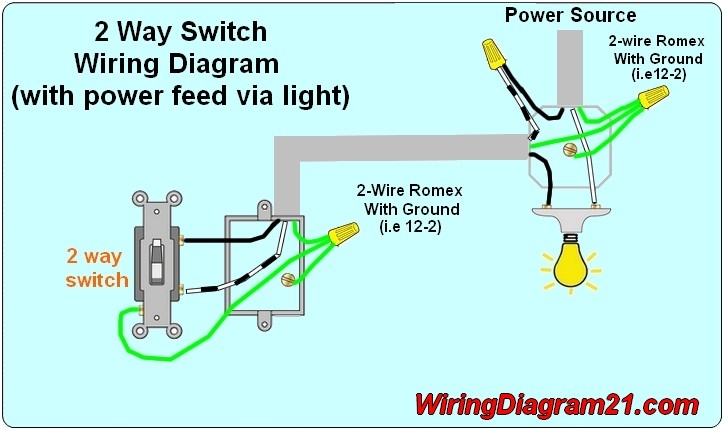

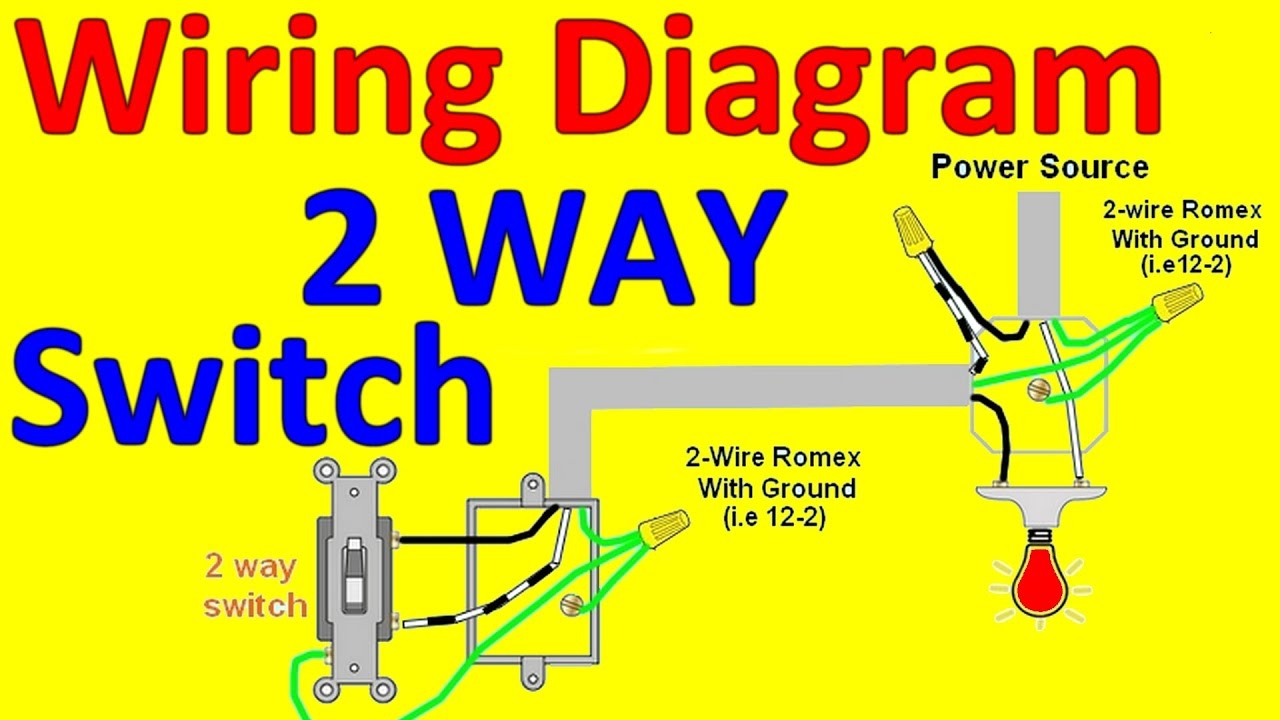

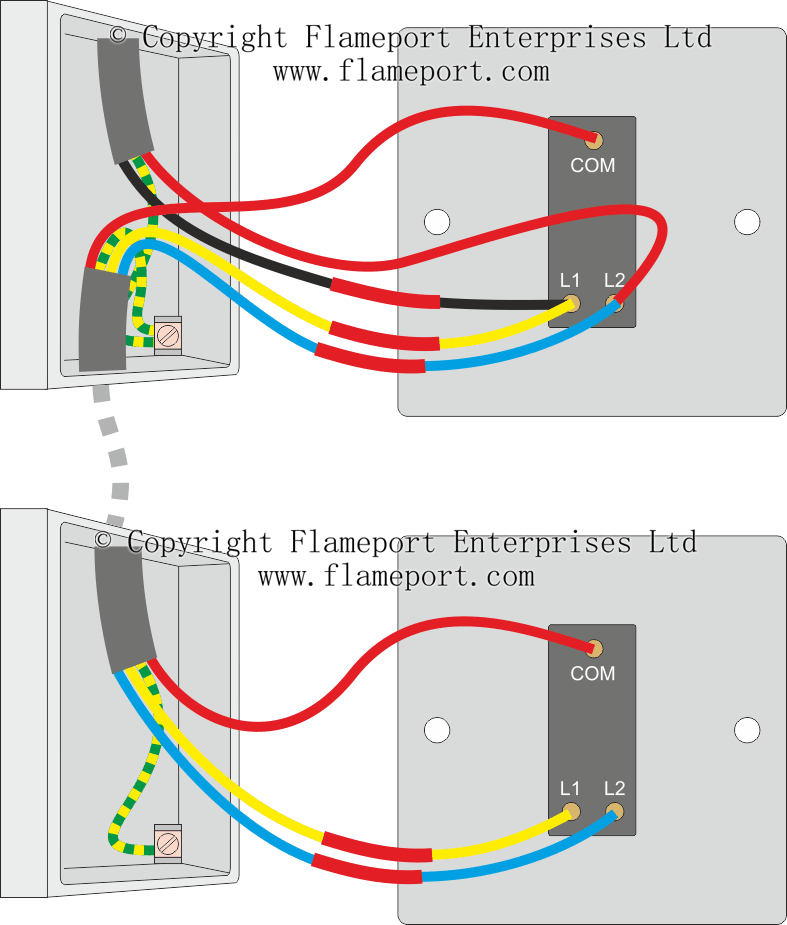

Here is a basic wiring diagram for a 2-way light switch:
1. Start by turning off the power to the circuit at the breaker box. Use a voltage tester to ensure that the power is off before proceeding with the installation.
2. Connect the power source to the common terminal of the first switch using a black wire. The common terminal is typically labeled with a black screw on the switch.
3. Run a 3-wire cable between the two switches, connecting the travelers on one switch to the travelers on the other switch. The travelers are typically connected to the brass screws on the switch.
4. Connect the light fixture to the common terminal of the second switch using a black wire. Make sure to connect the white neutral wires together and the ground wires to the green screw on each switch.
5. Once all the connections are made, carefully tuck the wires back into the switch box and secure the switches in place with the screws provided.
By following this wiring diagram and these steps, you can successfully install a 2-way light switch in your home. Remember to always turn off the power before working on any electrical installation and consult a professional if you are unsure about any part of the process.
