Ceiling fans with lights are a popular addition to many rooms in the home. They provide both a cooling breeze and overhead lighting, making them a functional and stylish choice. When installing a ceiling fan with a light, it’s important to follow the correct wiring diagram to ensure proper functionality.
Before beginning the installation process, make sure to turn off the power to the circuit you will be working on. This will help prevent any accidents or injuries while wiring the ceiling fan with light.

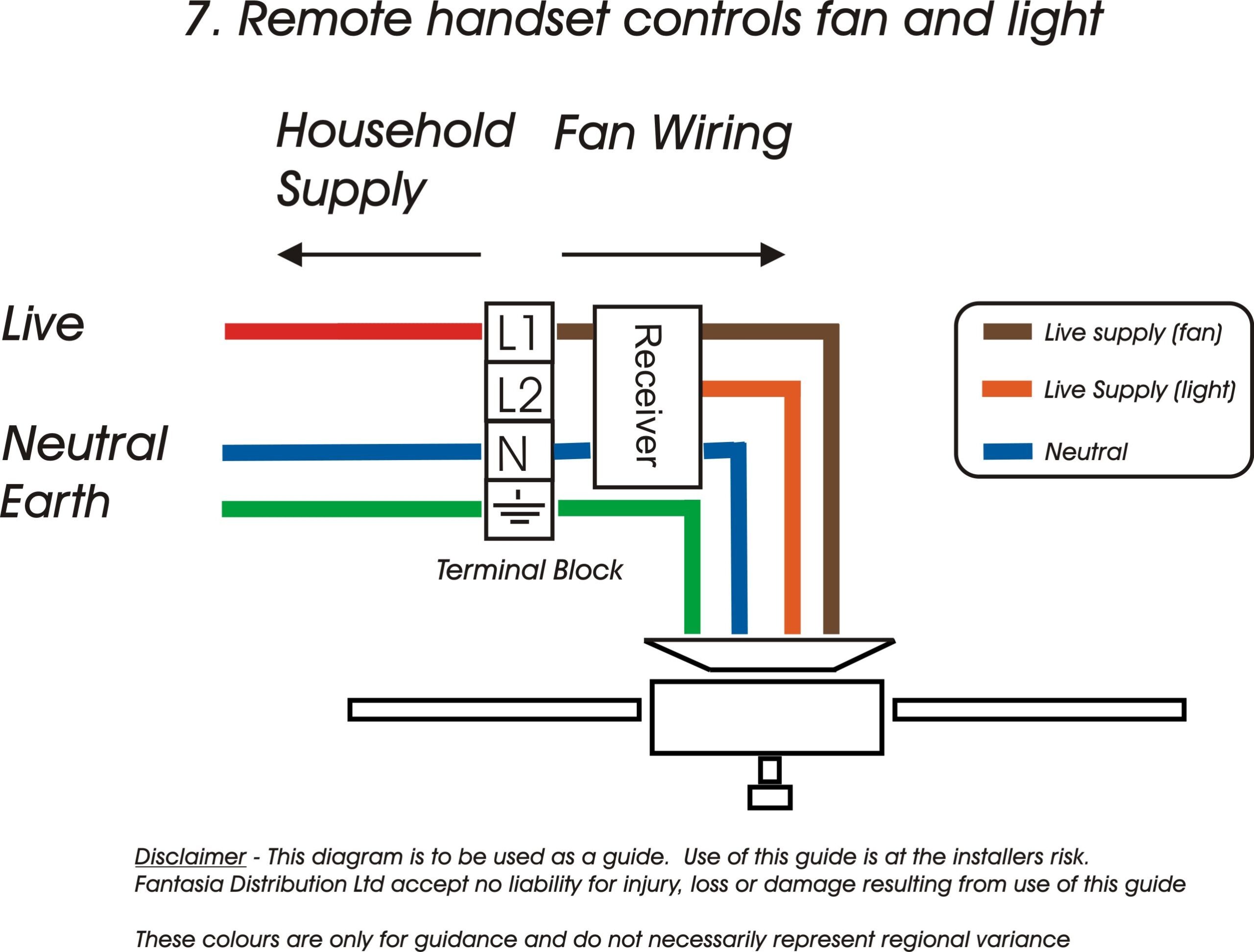

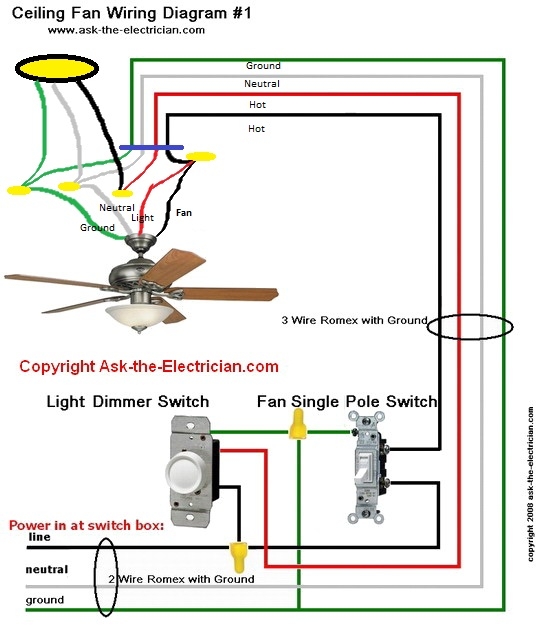

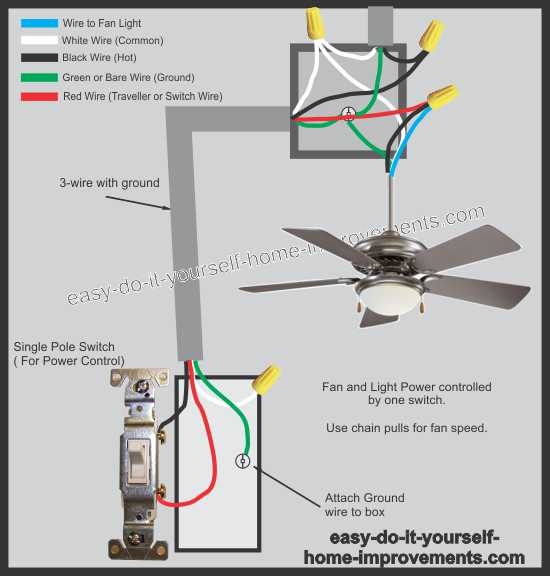

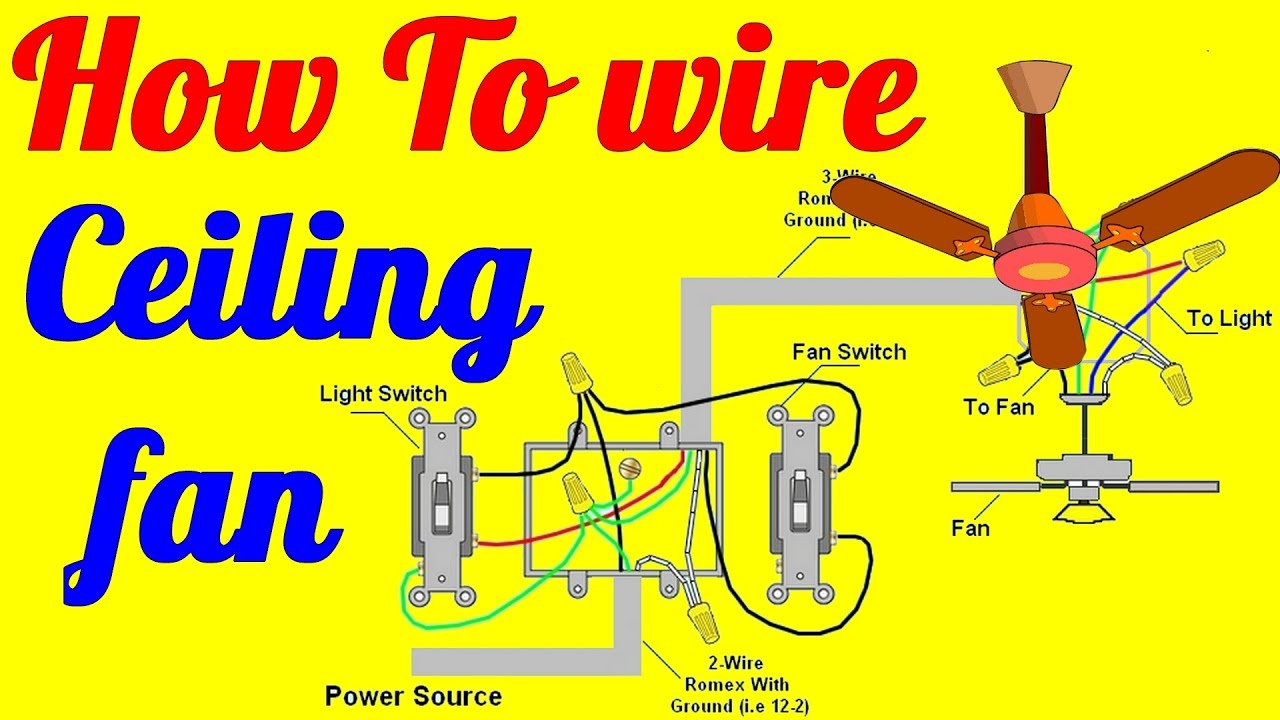

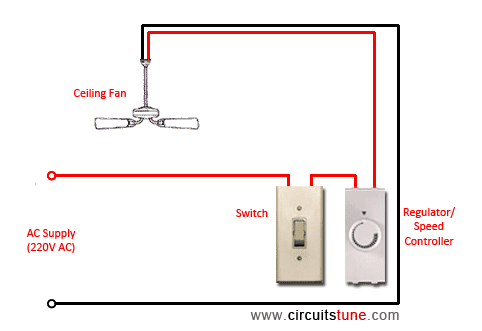

Wiring Diagram Ceiling Fan With Light
First, identify the wires coming from the ceiling. You should have a black (hot) wire, a white (neutral) wire, and a green or bare copper (ground) wire. The black wire is the power supply, the white wire is the return path for the power, and the green or bare copper wire is for grounding.
Next, refer to the wiring diagram provided with your ceiling fan. Typically, you will connect the black wire from the ceiling to the black wire of the fan, the white wire from the ceiling to the white wire of the fan, and the green or bare copper wire from the ceiling to the grounding wire of the fan.
If your ceiling fan has a light kit, there will be additional wires to connect. Usually, the blue wire from the fan will connect to the black wire from the ceiling for the light, and the white wire from the fan will connect to the white wire from the ceiling for the light. Make sure to follow the wiring diagram carefully to avoid any issues.
Once all the wires are properly connected, secure the connections with wire nuts and tuck the wires neatly into the electrical box. Attach the fan blades and light kit according to the manufacturer’s instructions, and turn the power back on to test the fan and light.
In conclusion, wiring a ceiling fan with a light is a straightforward process as long as you follow the correct wiring diagram. By taking the time to carefully connect the wires and follow the instructions provided, you can enjoy a cool breeze and overhead lighting in your room. Remember to always prioritize safety when working with electricity.
