The Cat 5 cable is a commonly used type of network cable for Ethernet connections. It consists of four twisted pairs of copper wire, making it ideal for transmitting data over short to medium distances. To ensure proper connectivity and functionality, it is important to understand the wiring diagram for Cat 5 cables.

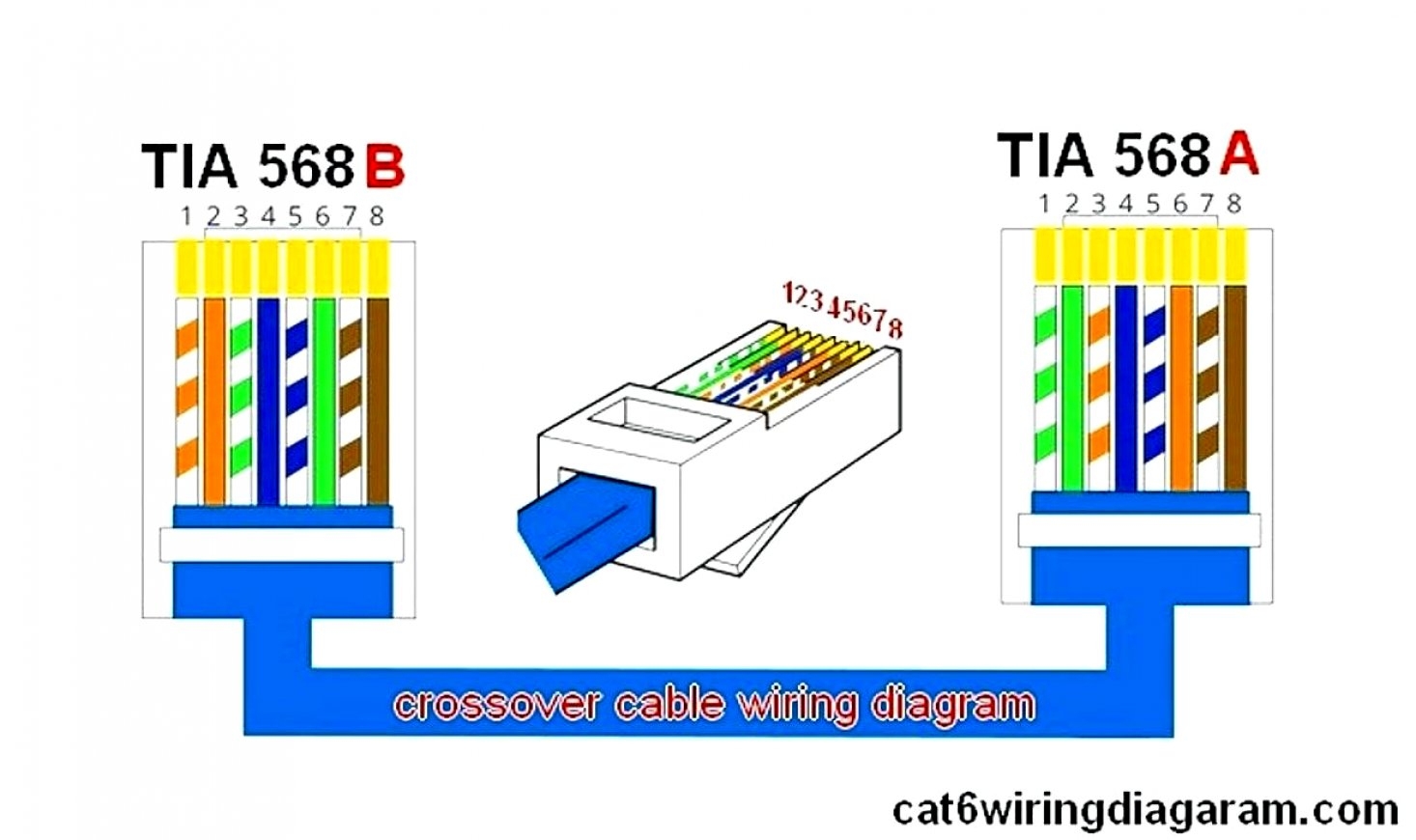

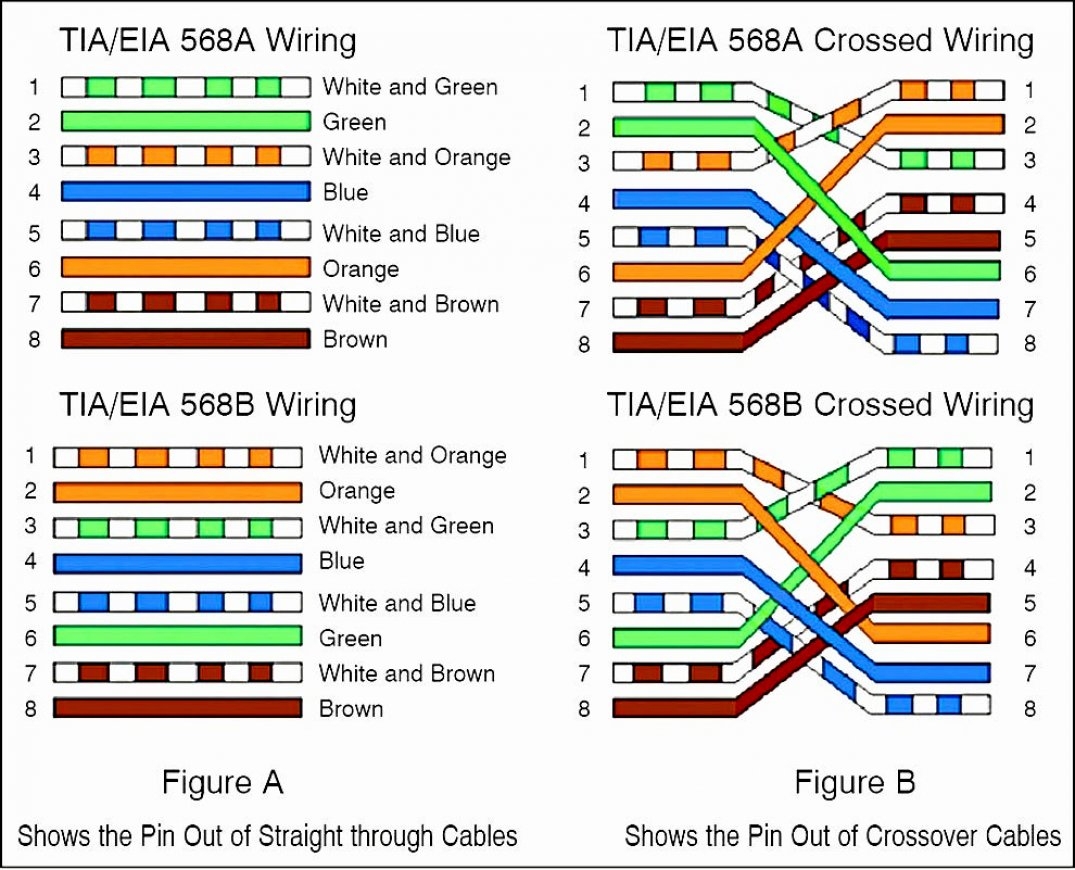

When wiring a Cat 5 cable, it is essential to follow the TIA/EIA (Telecommunications Industry Association/Electronic Industries Association) standard. This standard dictates the color coding scheme for the wires within the cable, ensuring consistency and compatibility across different network setups.
Wiring Diagram Cat 5 Cable

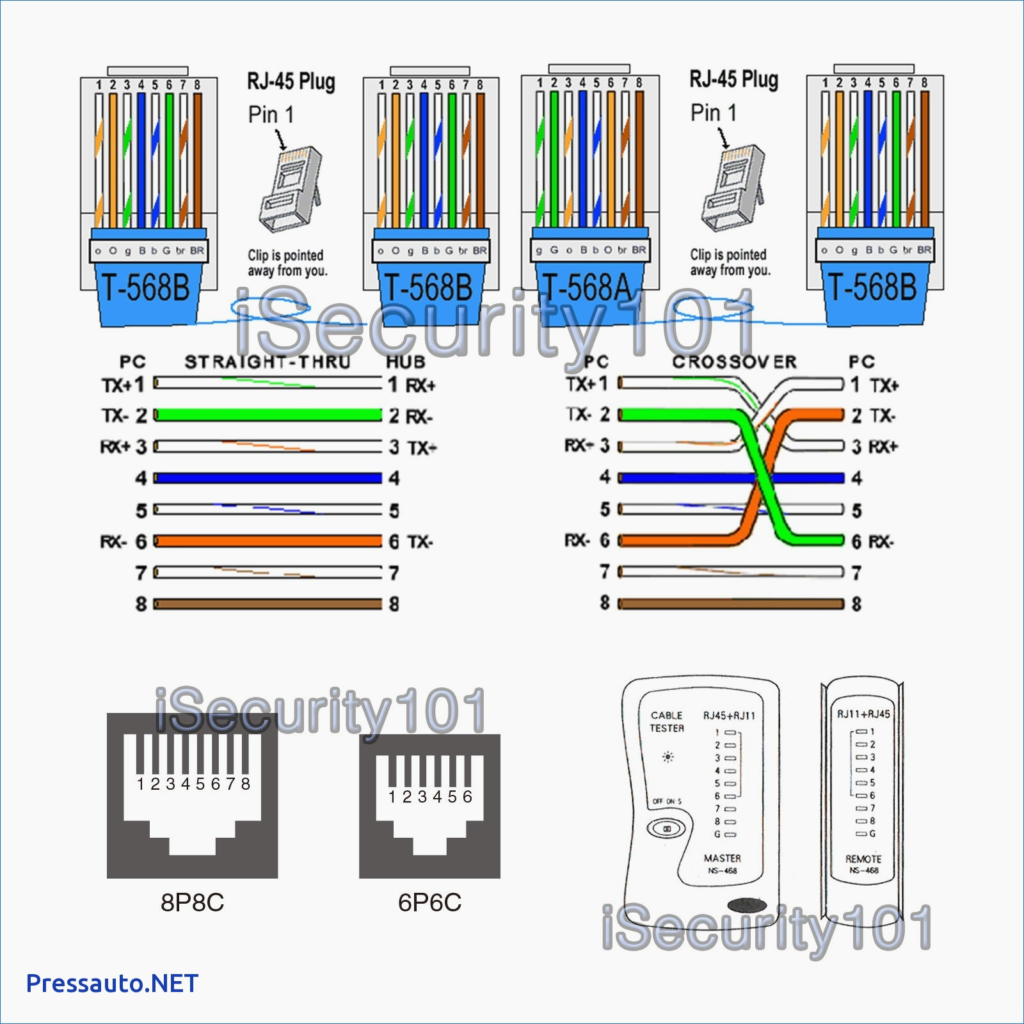

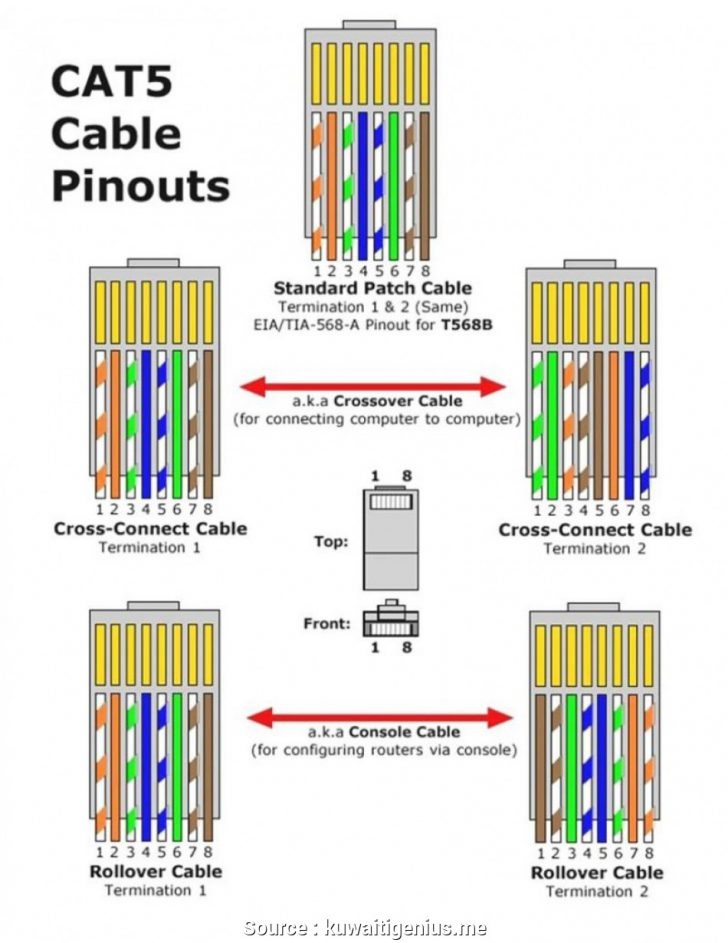

The wiring diagram for a Cat 5 cable typically involves connecting the wires to an RJ-45 connector using a specific sequence. The most common wiring scheme is known as T568B, where the wire colors are arranged in the following order: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown.

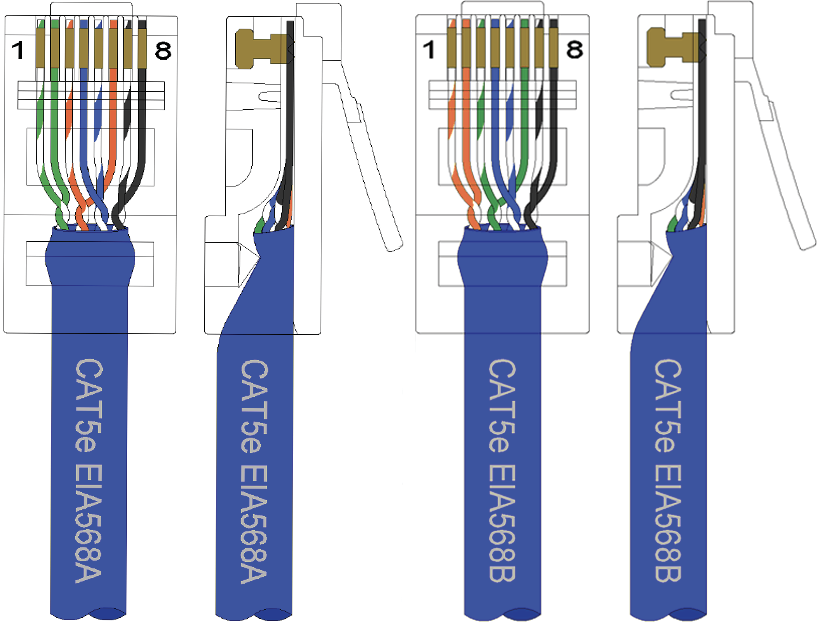

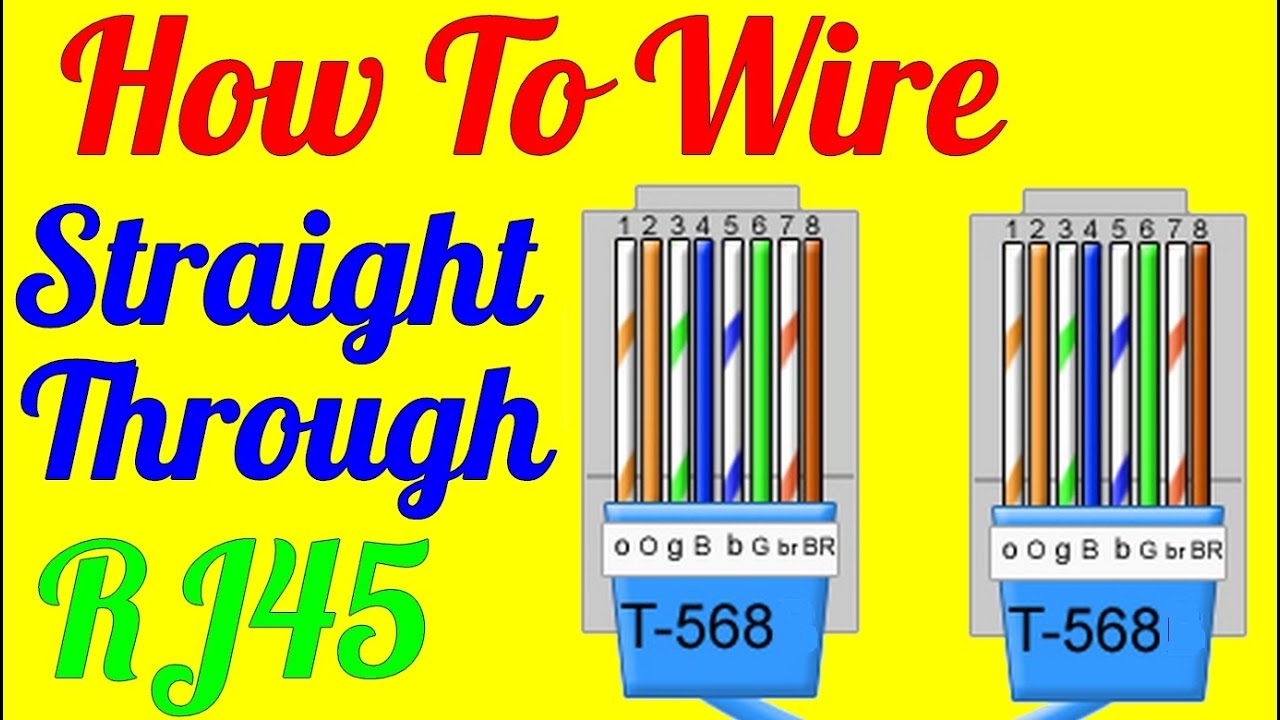

To properly wire a Cat 5 cable, you will need a crimper tool to attach the RJ-45 connector to the cable. It is important to strip the outer insulation of the cable carefully, exposing the individual twisted pairs of wires. Following the T568B color code, each wire should be inserted into the appropriate slot on the RJ-45 connector and crimped securely in place.
Once the Cat 5 cable is properly wired and connected to the devices, you can test the network connection to ensure it is functioning correctly. Using a cable tester or connecting the devices to a network switch can help verify that the wiring is correct and there are no connectivity issues.
In conclusion, understanding the wiring diagram for Cat 5 cables is crucial for setting up reliable network connections. By following the TIA/EIA standard and using the appropriate color coding scheme, you can ensure that your Cat 5 cable is properly wired and ready for use in your network setup.
