When it comes to hooking up a trailer to your vehicle, having the proper wiring is essential for safe and efficient towing. A 4-wire trailer wiring diagram is a handy tool to have on hand to ensure you are connecting everything correctly. With just four wires to worry about, it’s a straightforward process that even beginners can tackle.
Whether you are hauling a boat, camper, or utility trailer, having the right wiring setup is crucial. By following a 4-wire trailer wiring diagram, you can ensure that your lights, brakes, and signals are all in sync with your vehicle, providing a safe and smooth towing experience.
Wiring Diagram 4 Wire Trailer

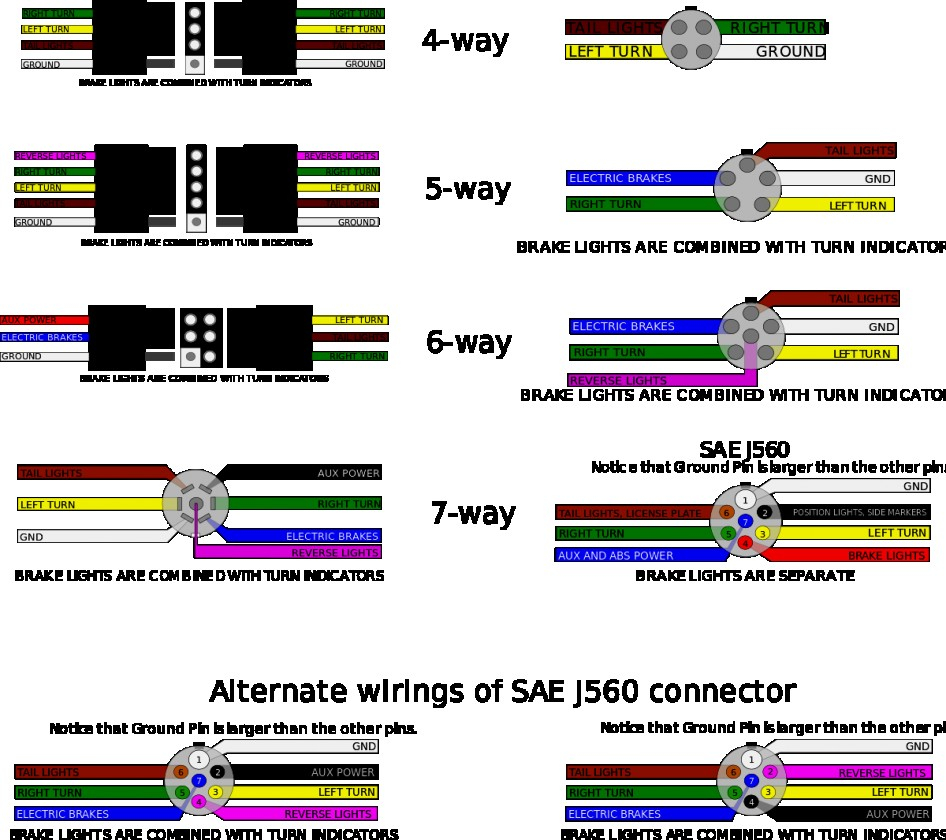

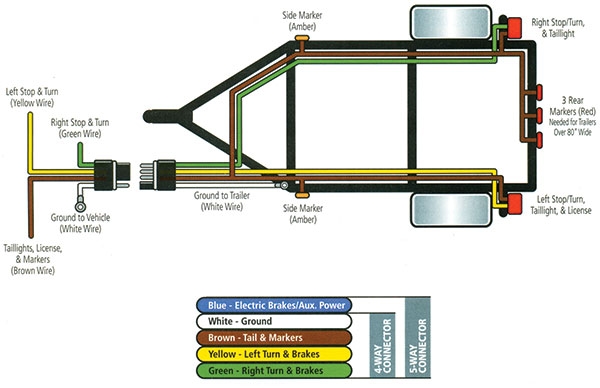

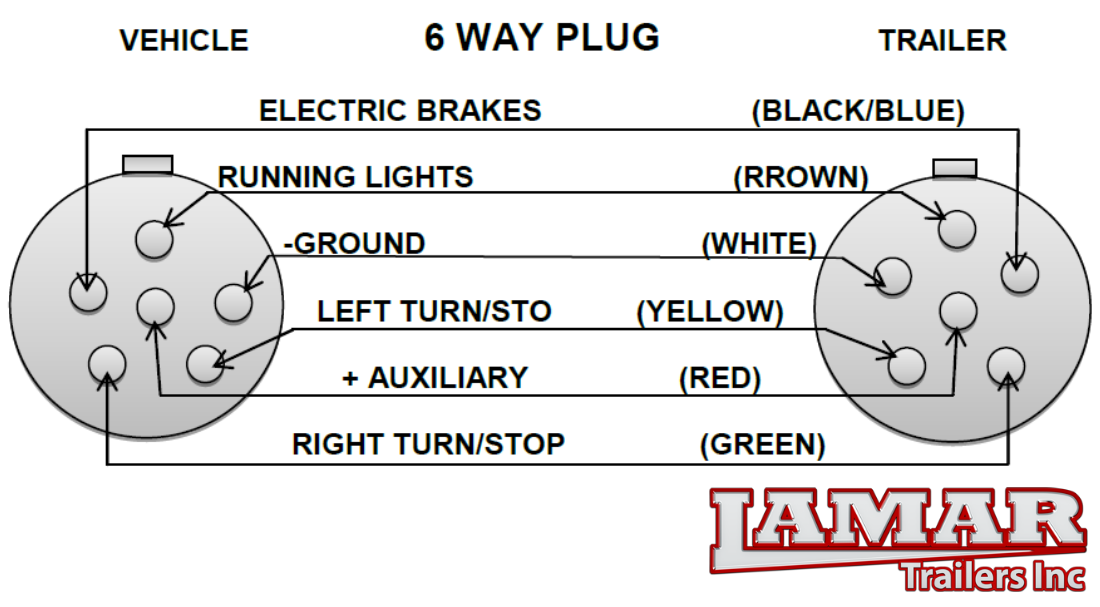

Typically, a 4-wire trailer wiring diagram will include the following connections: the green wire for right turn and brake lights, the yellow wire for left turn and brake lights, the brown wire for running lights, and the white wire for ground. By connecting these wires properly, you can ensure that your trailer is visible and safe on the road.
One important thing to note when using a 4-wire trailer wiring diagram is to make sure you have the right tools on hand, such as wire cutters, crimpers, and electrical tape. It’s also a good idea to double-check your connections before hitting the road to avoid any potential issues while towing.
Overall, having a 4-wire trailer wiring diagram can make the process of hooking up your trailer a breeze. By following the diagram and ensuring all connections are secure, you can have peace of mind knowing that your trailer is properly wired and ready for the road ahead.
So, the next time you are preparing to tow a trailer, be sure to reference a 4-wire trailer wiring diagram to make the process as smooth as possible. With the right tools and a little know-how, you’ll be hitting the road with confidence in no time.
