Wiring a light switch may seem like a daunting task for some, but with the right tools and knowledge, it can be a simple and straightforward process. By following a wiring diagram, you can easily understand how to connect the wires and install a light switch in your home.
Before starting the wiring process, it is important to turn off the power to the circuit you will be working on. This can be done by switching off the circuit breaker or removing the fuse. Safety should always be the top priority when working with electrical components.

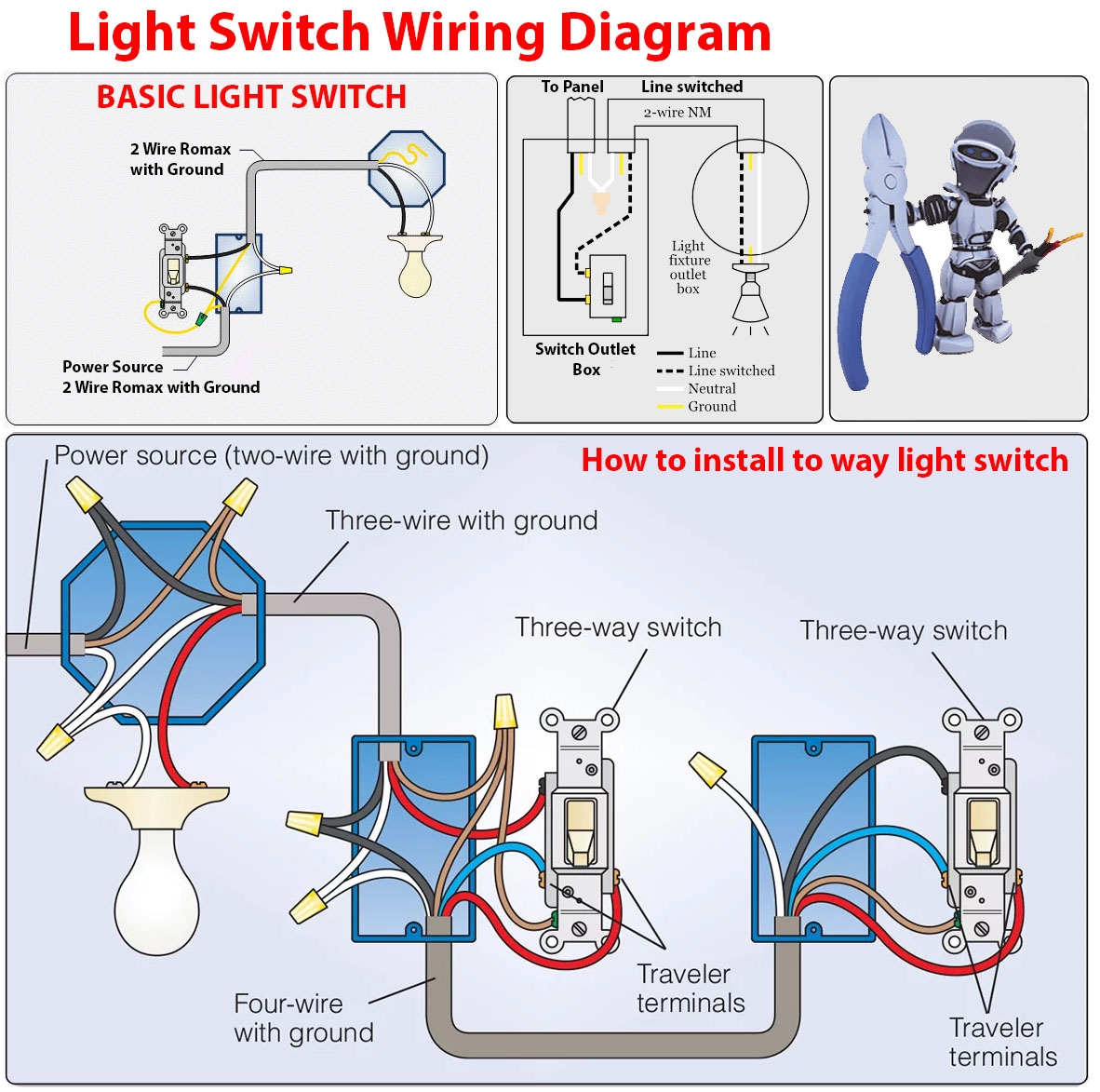

Wiring A Light Switch Diagram
Once the power is turned off, you can begin by identifying the wires in the electrical box. Typically, you will have a black “hot” wire, a white neutral wire, and a ground wire. The black wire is the live wire that carries the electricity, while the white wire is the return path for the current. The ground wire is for safety and should always be connected to the metal electrical box.
Next, refer to the wiring diagram for the light switch you are installing. The diagram will show you how to connect the wires to the switch terminals. Typically, the black wire is connected to the “hot” terminal, the white wire to the neutral terminal, and the ground wire to the ground terminal. Make sure to secure the wires with wire nuts and electrical tape.
After connecting the wires to the switch, carefully tuck them back into the electrical box and secure the switch with screws. Once everything is in place, you can turn the power back on and test the light switch to ensure it is working properly. If the light does not turn on, double-check your wiring connections and troubleshoot any issues.
In conclusion, wiring a light switch can be a simple and rewarding DIY project. By following a wiring diagram and taking the necessary safety precautions, you can successfully install a light switch in your home. Remember to always turn off the power before starting any electrical work and consult a professional if you are unsure about any steps in the process.
