USB A is a common type of USB connector that is used in various electronic devices such as computers, laptops, and smartphones. Understanding the wiring diagram of USB A is essential for troubleshooting and repairing USB connections.

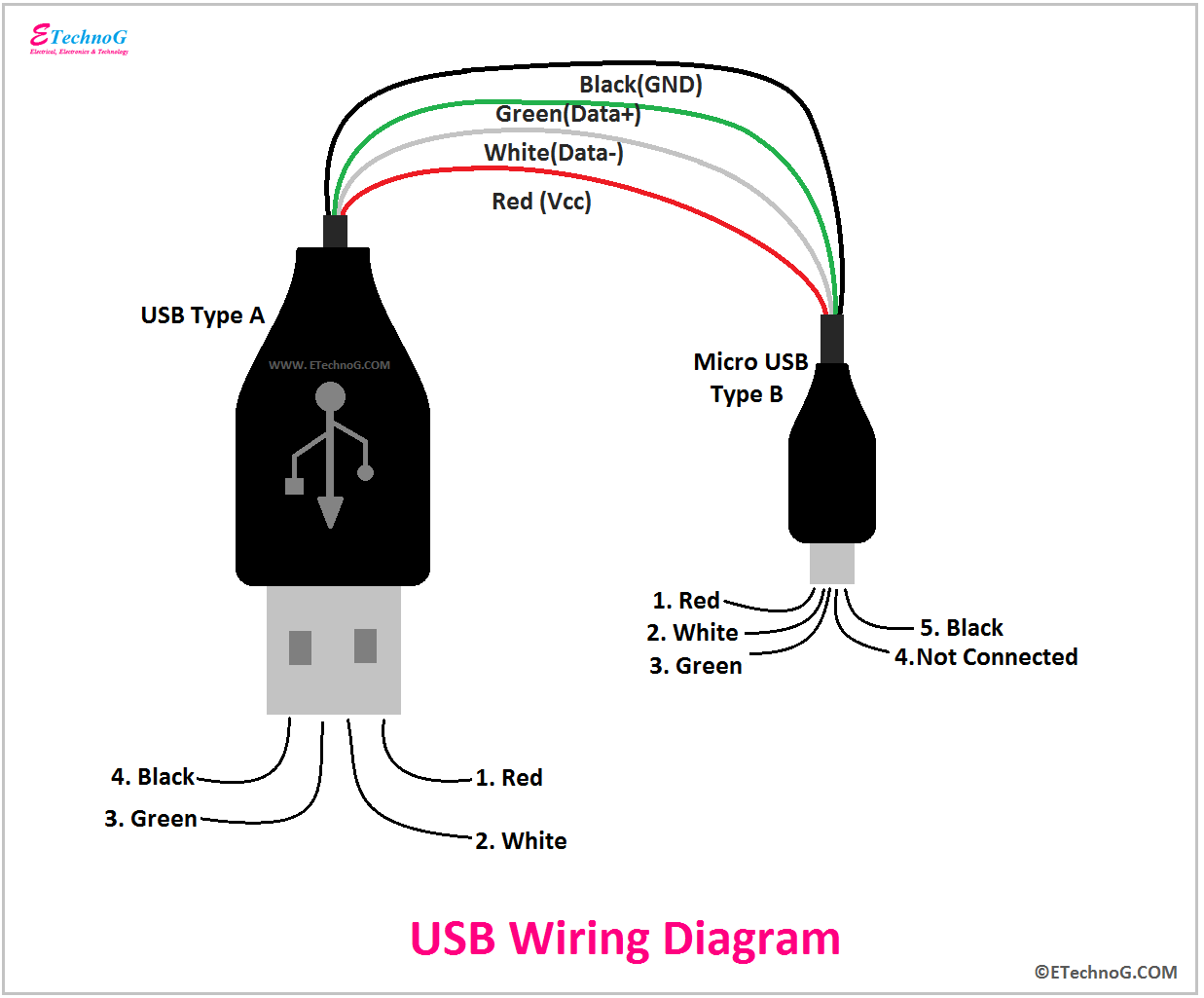

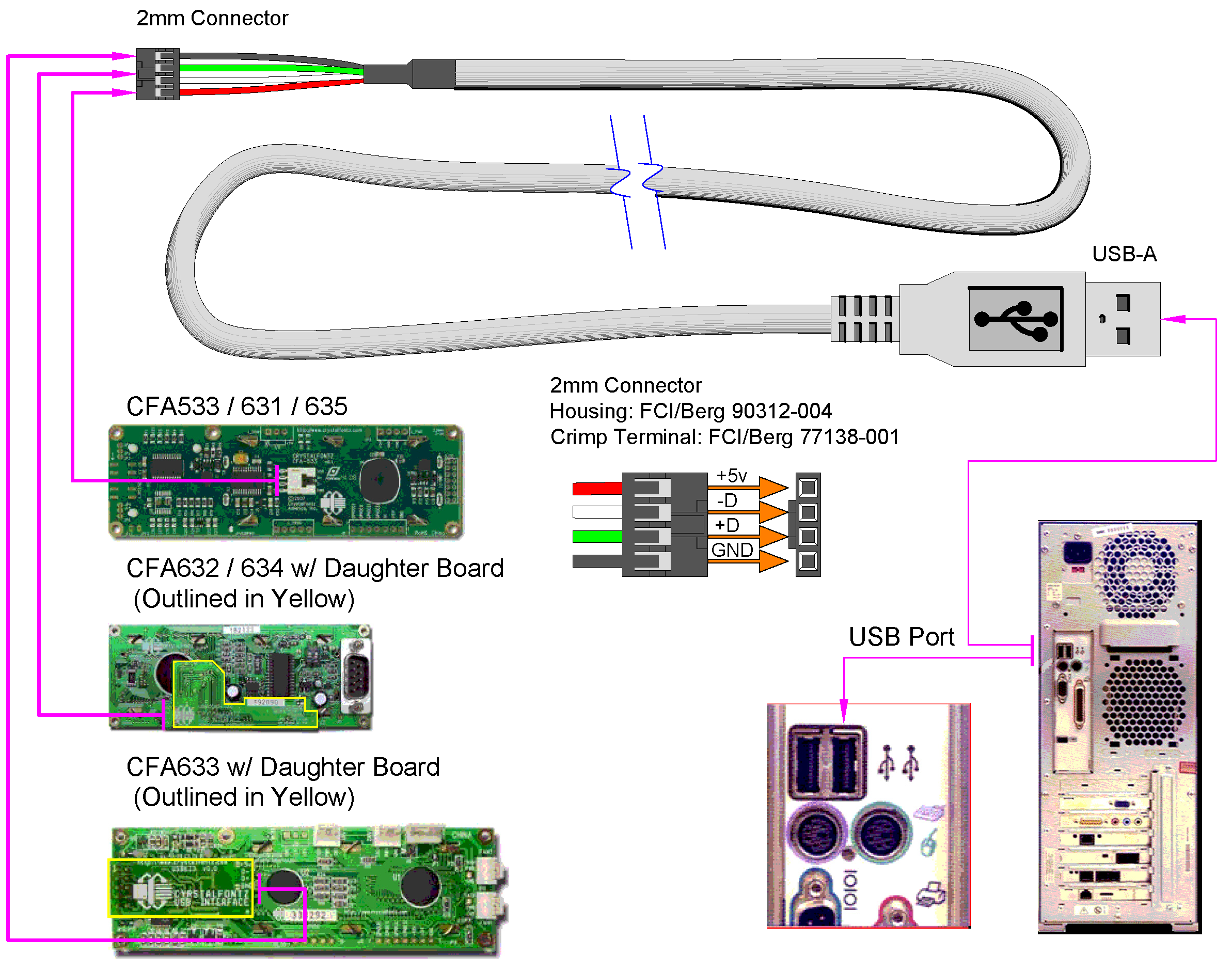

USB A wiring diagram consists of four pins – Vcc, Data+, Data-, and Ground. These pins are responsible for transmitting power and data between devices. By following the wiring diagram, you can easily identify the function of each pin and ensure proper connectivity.
Usb A Wiring Diagram

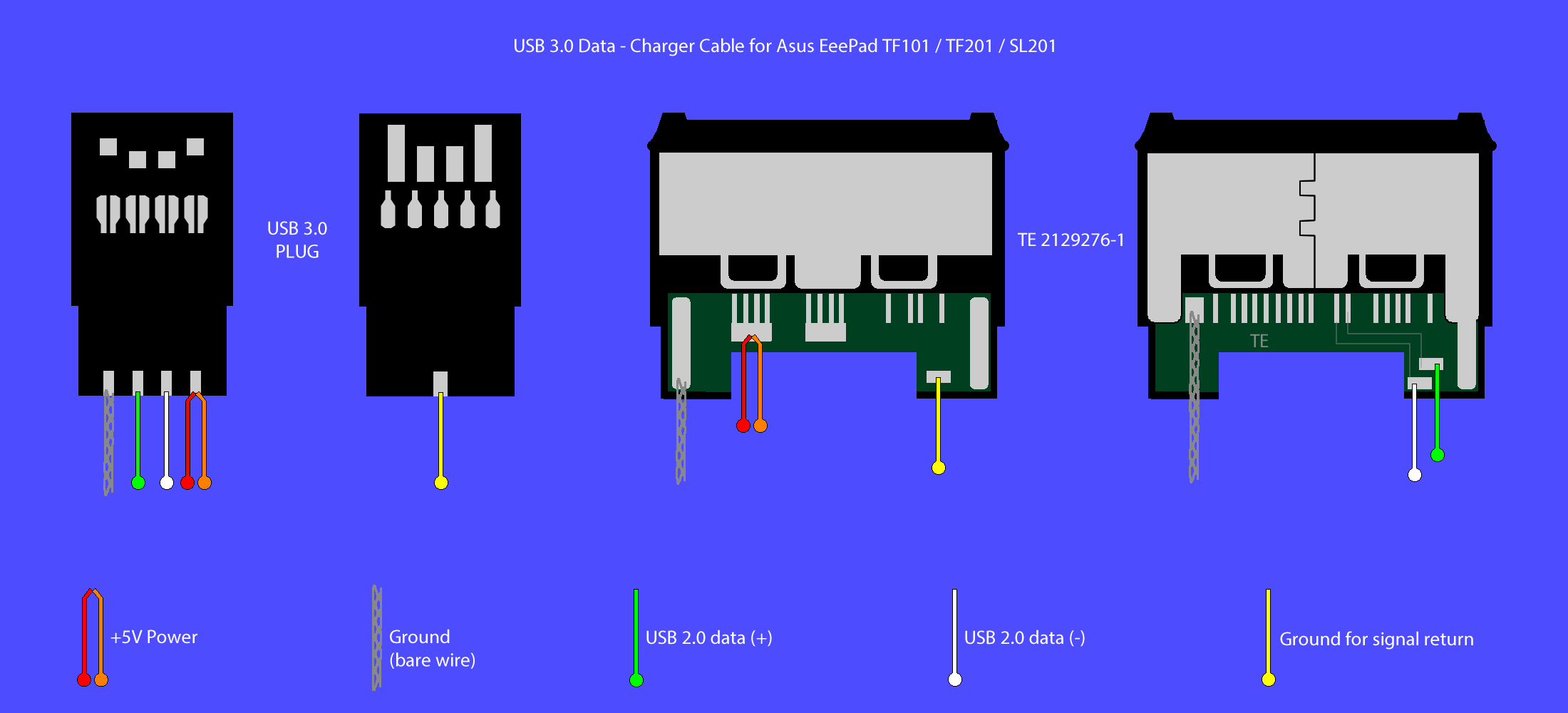

USB A Wiring Diagram

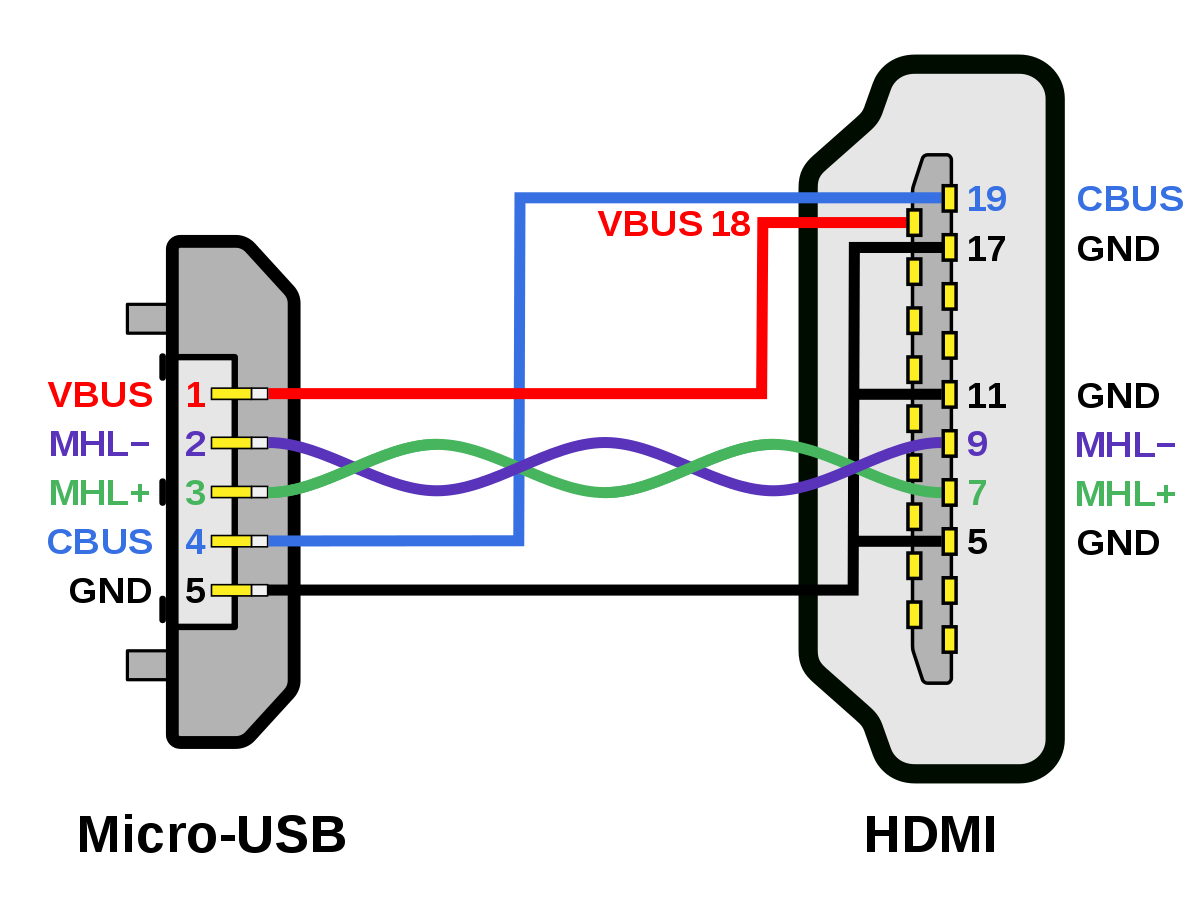

The Vcc pin provides power to the connected device, while the Data+ and Data- pins are used for data transmission. The Ground pin is essential for completing the circuit and providing a common reference point for the signals. By connecting these pins correctly, you can establish a reliable USB connection.
It is important to note that USB A wiring diagrams may vary depending on the device and manufacturer. It is recommended to refer to the specific wiring diagram provided by the manufacturer of the device you are working on. This will ensure accurate connections and prevent any damage to the device.
When troubleshooting USB connections, refer to the wiring diagram to identify any potential issues with the connections. Check for loose or damaged wires, incorrect pin connections, or faulty components. By following the wiring diagram, you can easily diagnose and resolve any connectivity issues.
In conclusion, understanding USB A wiring diagram is essential for maintaining and troubleshooting USB connections in electronic devices. By familiarizing yourself with the wiring diagram and following proper connection procedures, you can ensure reliable data transmission and power delivery between devices. Remember to always refer to the specific wiring diagram provided by the manufacturer for accurate connections.
