When it comes to wiring a two-way switch, it can seem a bit confusing at first. However, with the right instructions and understanding, it can be a simple process. A two-way switch allows you to control a single light or electrical device from two different locations.
Whether you are installing a new two-way switch or replacing an existing one, it is important to follow the correct wiring diagram to ensure everything works properly. By understanding the wiring diagram and following the steps carefully, you can easily complete this task.

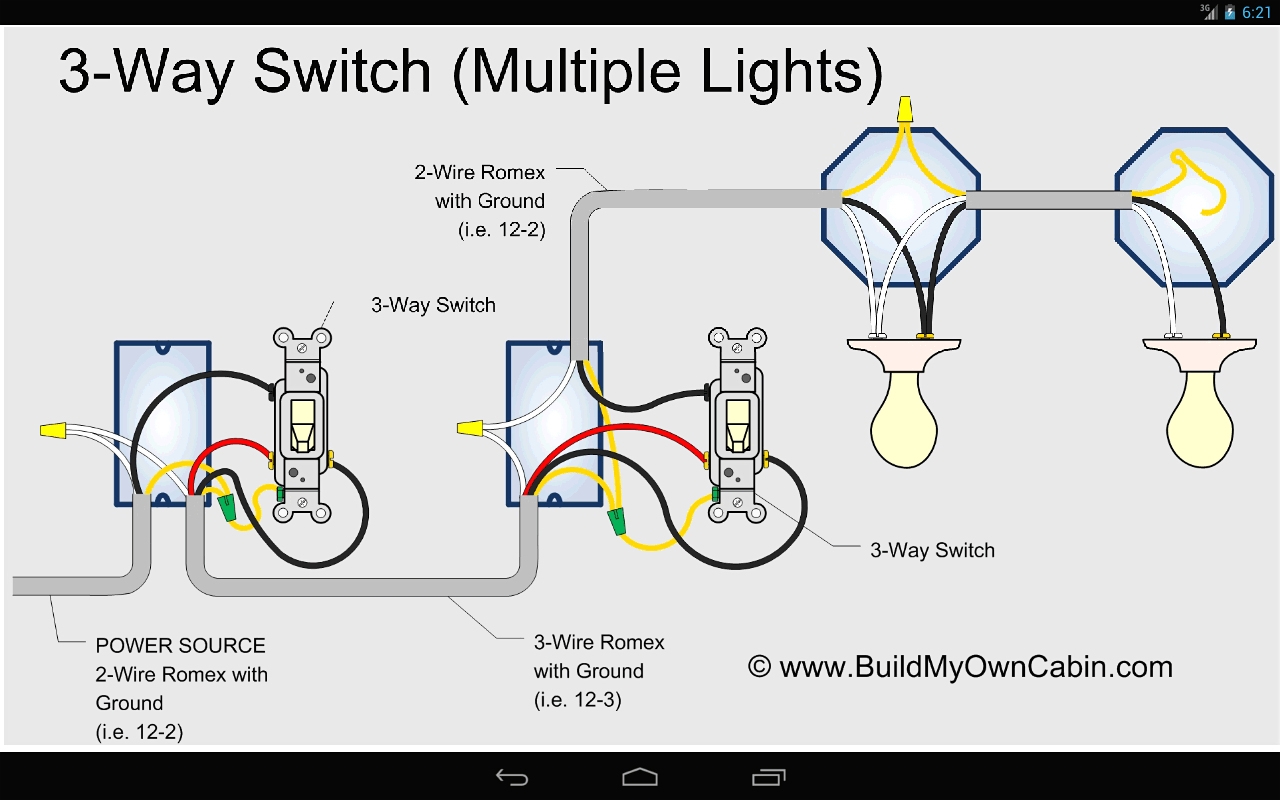

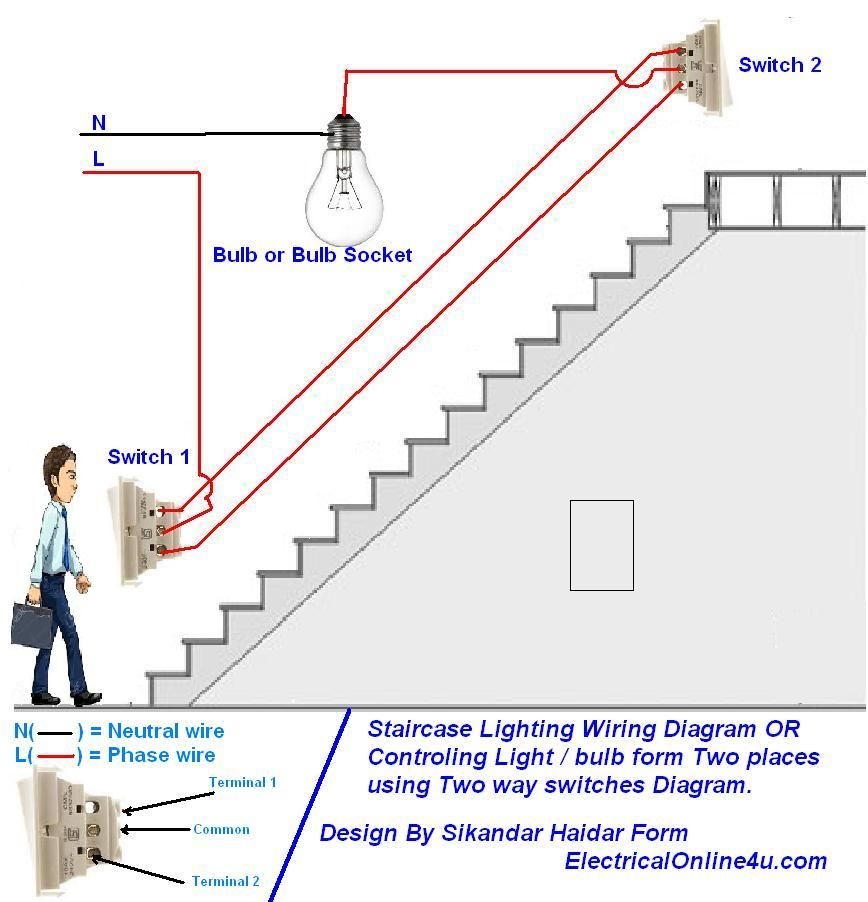

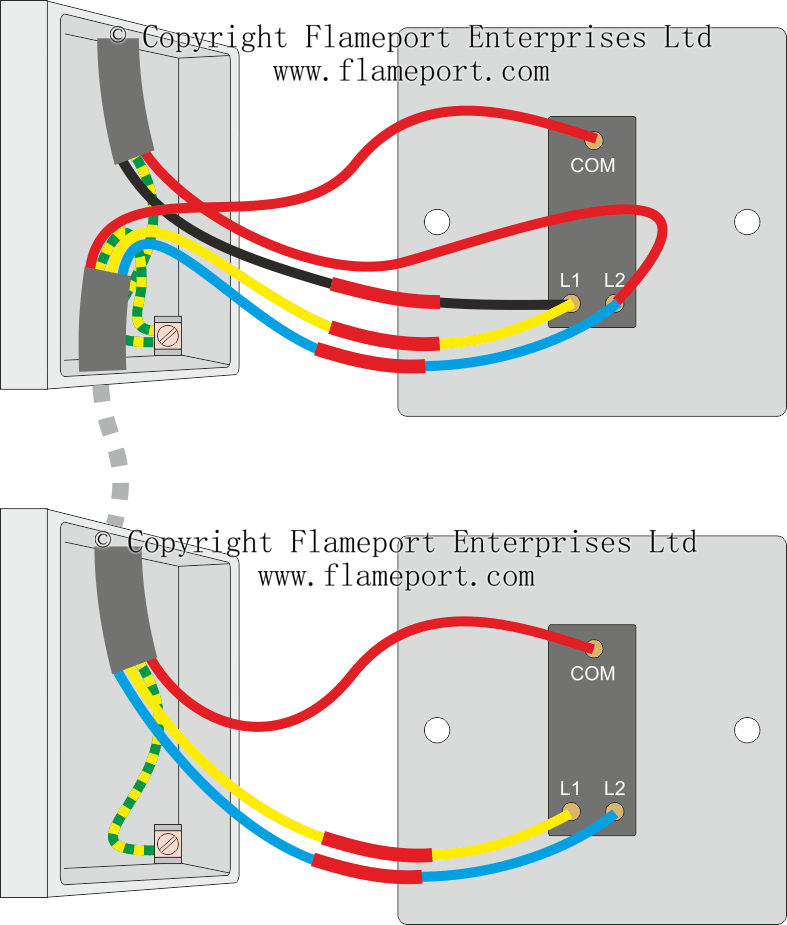

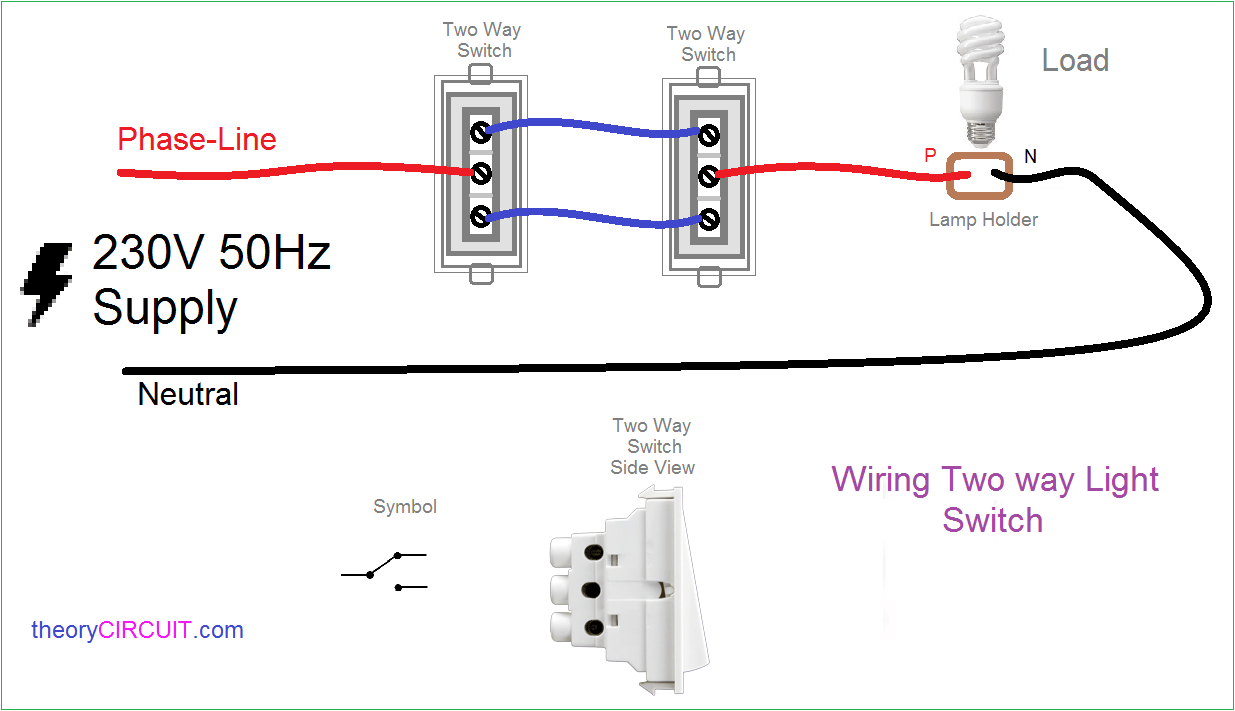

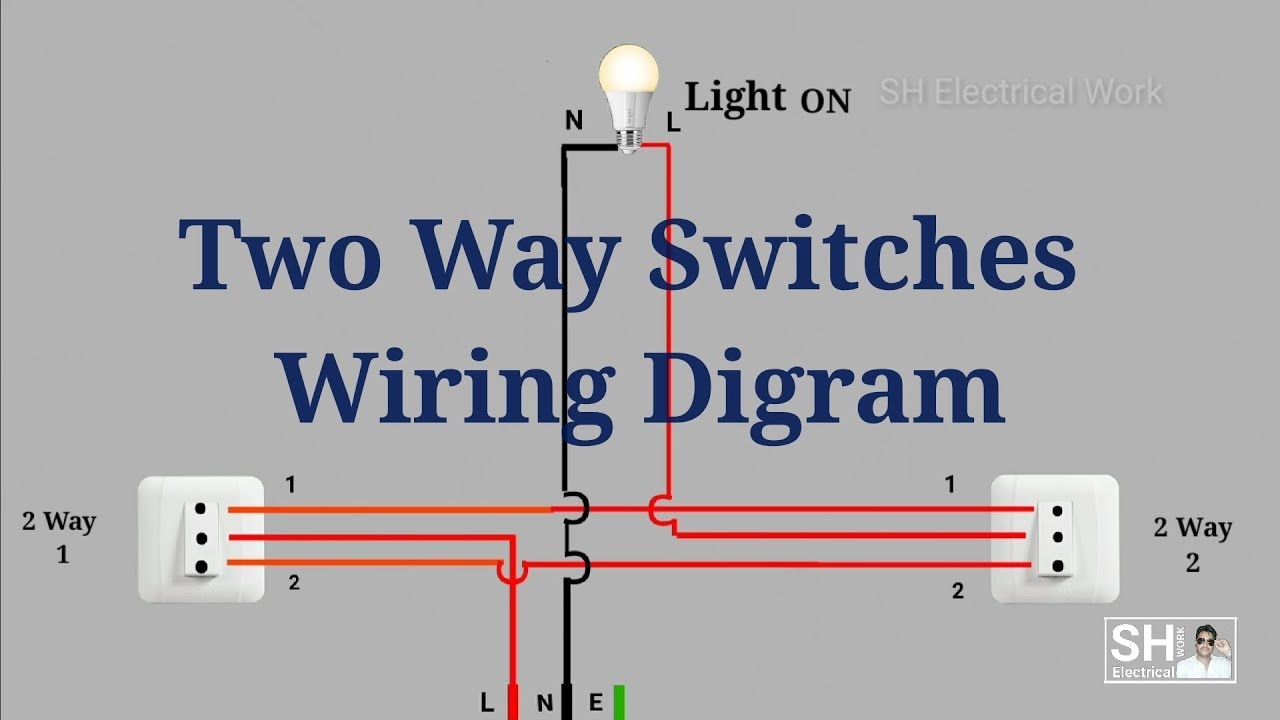

Two Way Switch Wiring Diagram
Here is a basic two-way switch wiring diagram to help guide you through the process:
1. Start by turning off the power to the circuit at the breaker box. This is essential for safety during the installation process. Use a voltage tester to double-check that the power is off before starting any work.
2. Identify the two switches that will be used to control the light or device. One switch will be the “hot” switch, and the other will be the “traveler” switch. The hot wire will be connected to the common terminal on one switch, while the traveler wire will connect the two switches.
3. Connect the hot wire to the common terminal on the first switch. Then, connect the traveler wire to the common terminal on the second switch. Finally, connect the remaining wires to the appropriate terminals on each switch according to the wiring diagram.
4. Once all the wires are connected, secure the switches in place and mount them to the wall. Turn the power back on at the breaker box and test the switches to ensure they are working correctly. If everything is wired properly, you should be able to control the light or device from both switches.
By following this two-way switch wiring diagram and the steps outlined above, you can successfully install or replace a two-way switch in your home. Remember to always prioritize safety and double-check your work to avoid any electrical issues.
