When it comes to wiring a two way light switch, it can seem a bit confusing at first. However, with the right diagram and a little bit of know-how, you can easily install a two way light switch in your home. A two way light switch allows you to control a single light from two different locations, making it a convenient option for hallways, staircases, and rooms with multiple entry points.
Before you begin the wiring process, it’s important to turn off the power to the circuit you will be working on. This can be done by switching off the circuit breaker in your electrical panel. Once the power is off, you can begin the process of wiring the two way light switch.

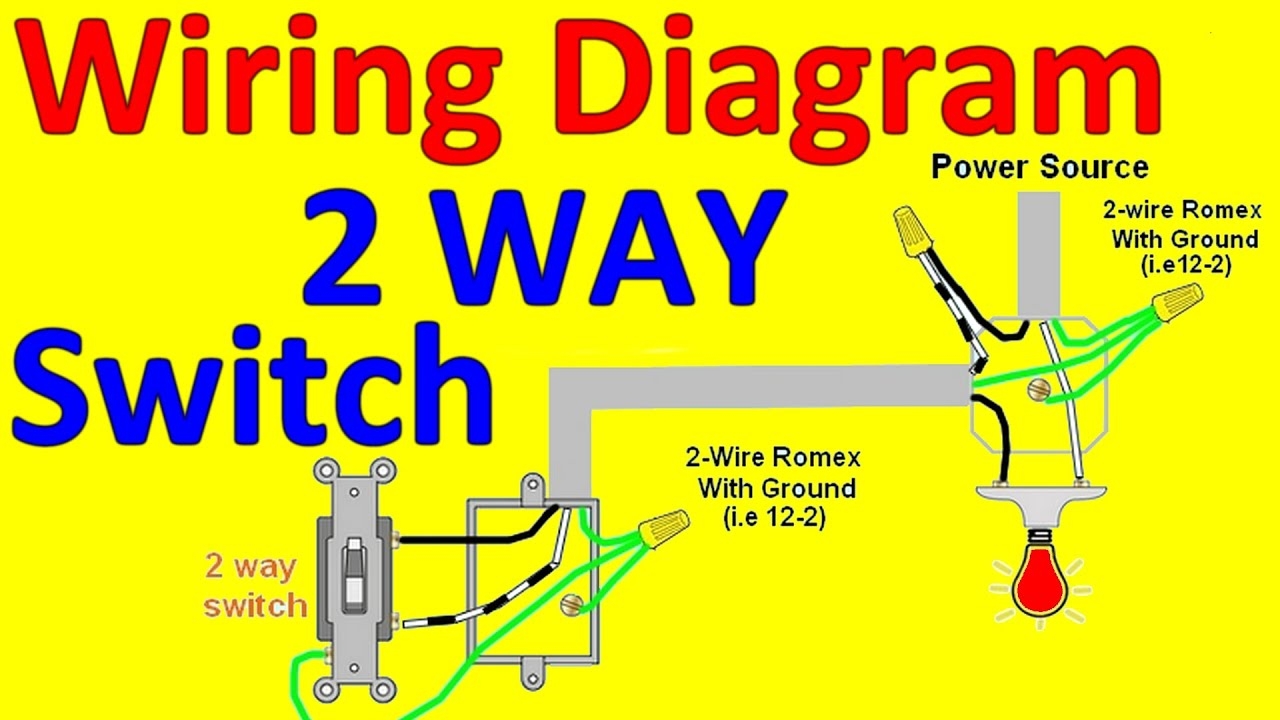

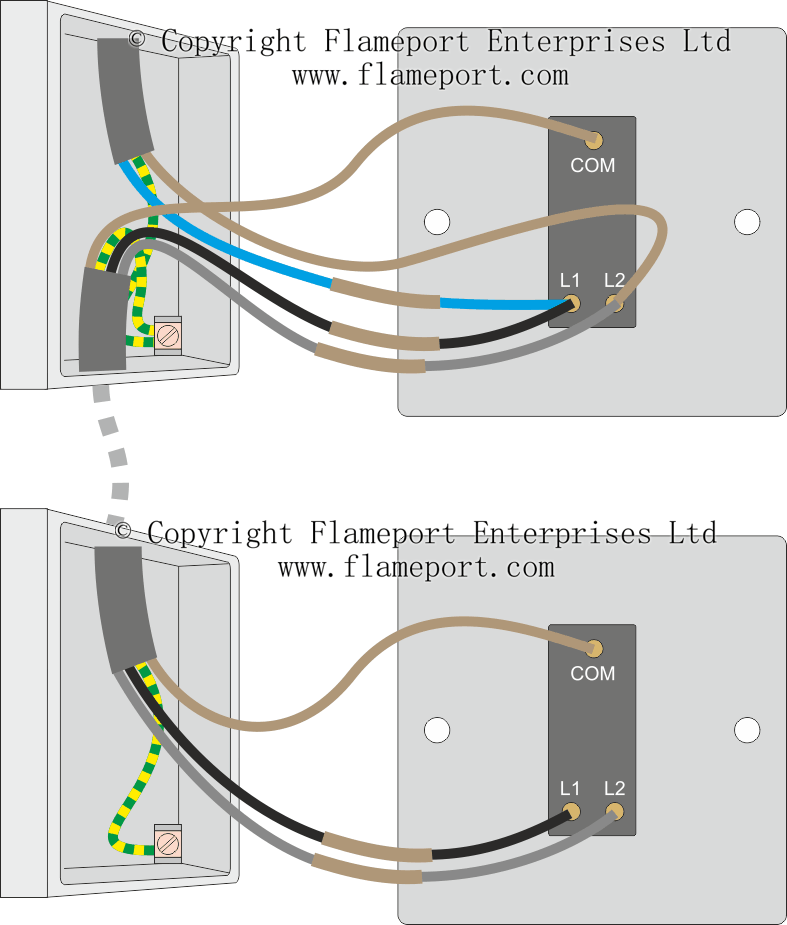

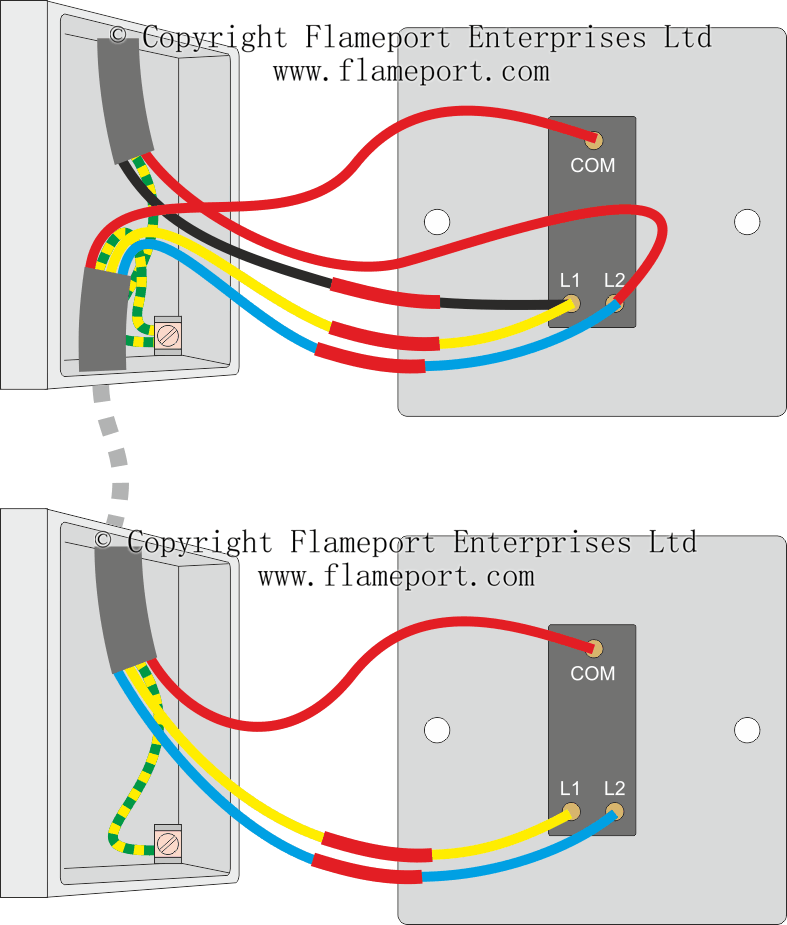

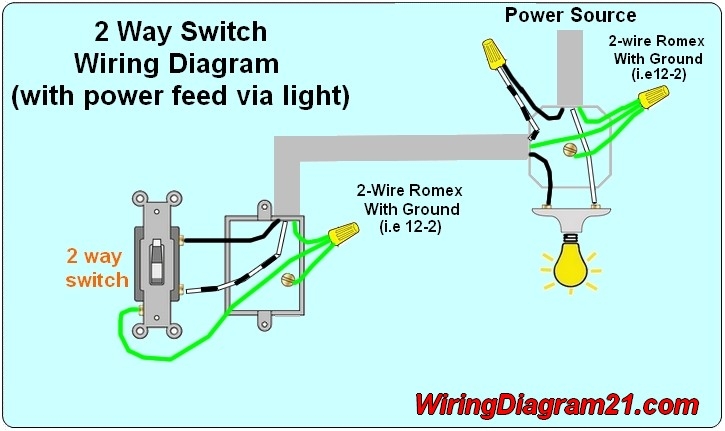

Two Way Light Switch Wiring Diagram
Start by identifying the two terminals on the two way light switch. These are typically labeled as “common” and “L1” or “1” and “2”. The common terminal is where the incoming power is connected, while the L1 and L2 terminals are where the light fixture is connected. You will also need a three-core and earth cable to complete the wiring process.
Next, connect the live wire from the power source to the common terminal on the two way light switch. Then, connect the brown wire from the three-core and earth cable to the L1 terminal, and the blue wire to the L2 terminal. Finally, connect the earth wire to the earth terminal on the switch.
Once all the wires are securely connected, you can turn the power back on and test the two way light switch. You should now be able to control the light fixture from both locations where the switches are installed. If the light does not turn on or there are any issues, double check your wiring connections and make sure everything is properly connected.
Installing a two way light switch may seem daunting at first, but with the right wiring diagram and a bit of patience, you can easily add this convenient feature to your home. Just remember to always turn off the power before working on any electrical wiring, and double check your connections to ensure a safe and functional installation.
