When it comes to towing a trailer, having the proper wiring is essential for ensuring safety on the road. One common type of trailer plug wiring is the 6-way configuration, which provides connections for the basic lighting functions of a trailer. Understanding how to wire a 6-way trailer plug can help you easily connect your trailer to your vehicle and ensure all lights are working properly.
Before diving into the wiring process, it’s important to have a clear understanding of the different wires and their functions in a 6-way trailer plug. The 6-way plug typically includes connections for ground, running lights, left turn signal, right turn signal, brake lights, and a 12V power supply. Each wire serves a specific function and must be connected correctly to ensure proper trailer operation.

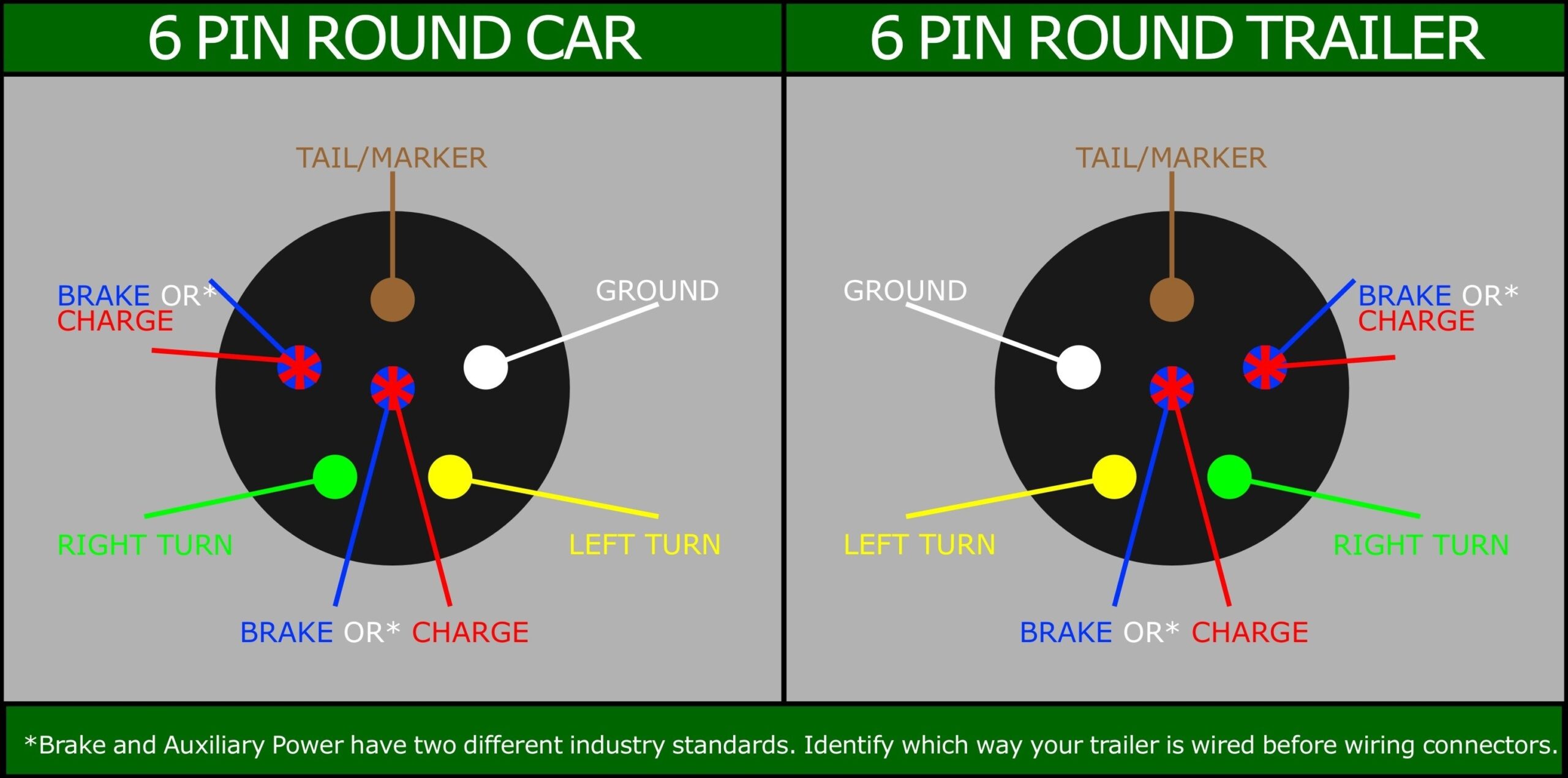

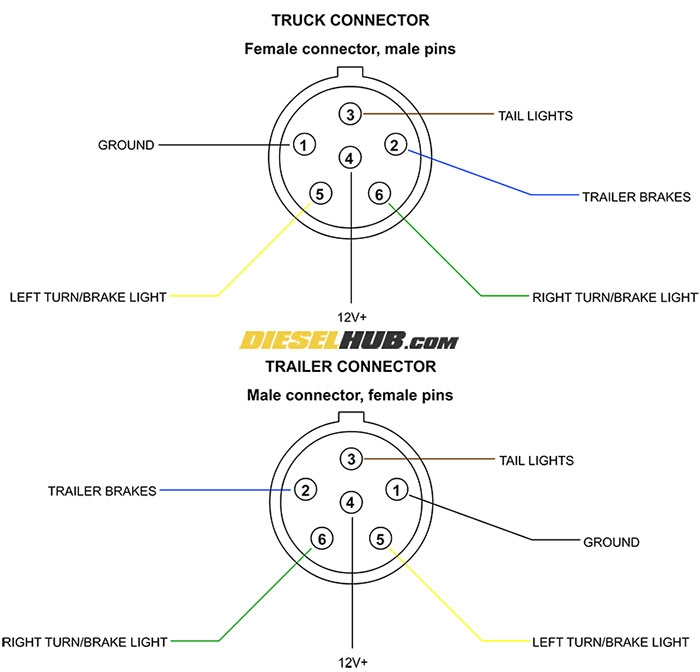

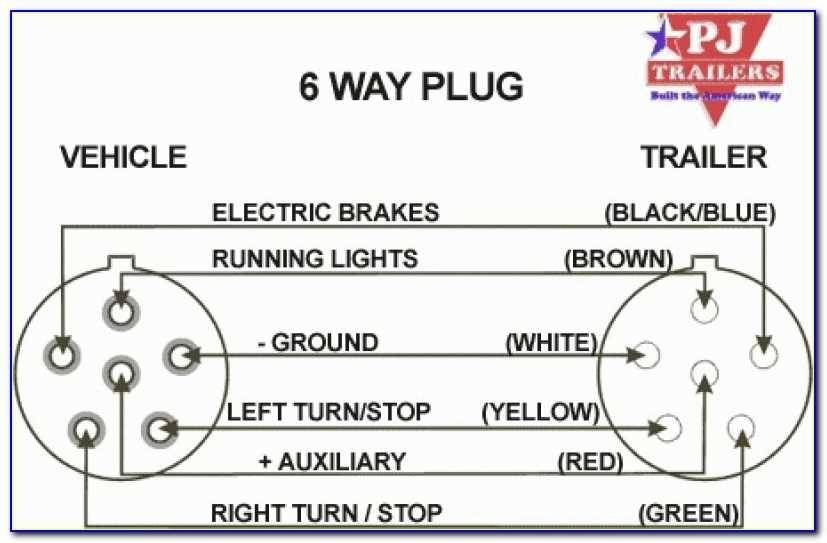

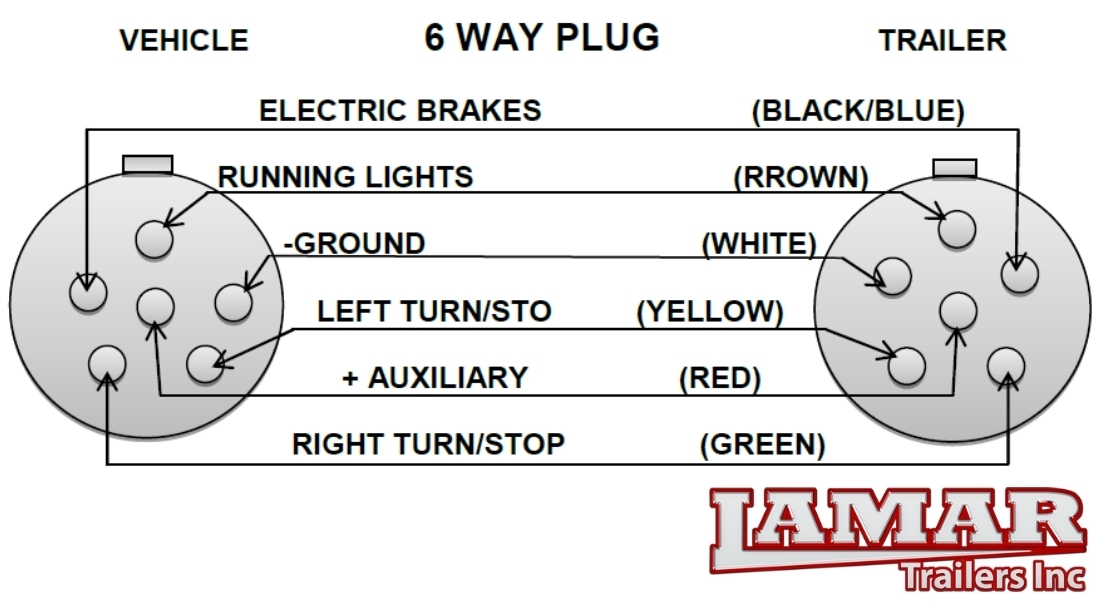

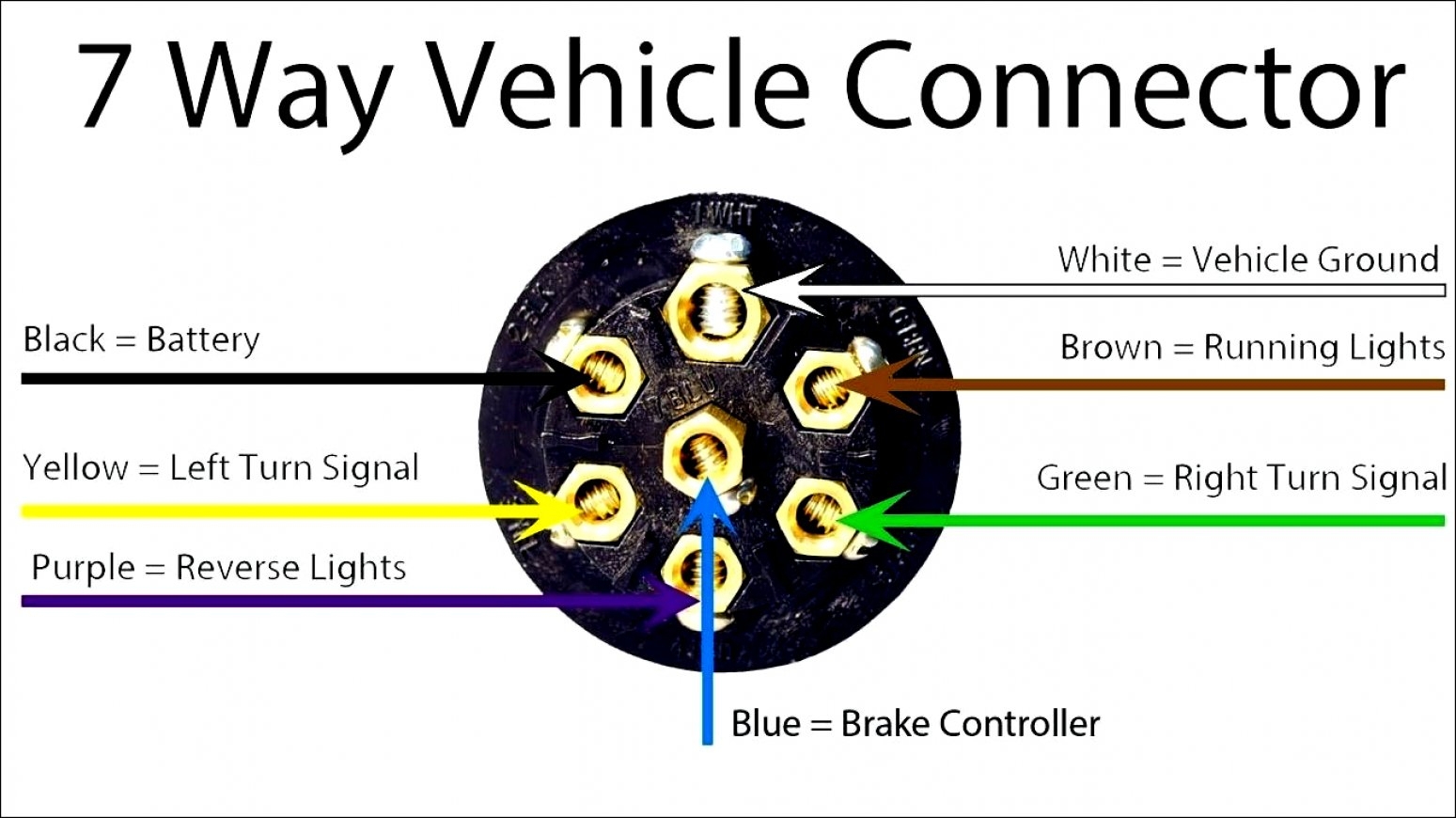

Trailer Plug Wiring Diagram 6 Way
Starting with the ground wire, which is usually white, connect it to the trailer frame or grounding point on the vehicle. The running lights wire, typically brown, should be connected to the running lights circuit on both the trailer and the vehicle. The left turn signal wire (yellow) and right turn signal wire (green) should be connected to their respective circuits on both the trailer and vehicle.
Next, connect the brake lights wire (blue) to the brake lights circuit on both the trailer and vehicle. Finally, the 12V power supply wire (black) should be connected to the 12V power source on the vehicle. Once all wires are connected properly, test the trailer lights to ensure they are functioning correctly before hitting the road.
Overall, understanding how to wire a 6-way trailer plug is essential for safe and reliable towing. By following a wiring diagram and ensuring each wire is connected to the correct circuit, you can easily set up your trailer for proper operation. Whether you’re towing a boat, camper, or utility trailer, having the right wiring connections in place is crucial for a successful towing experience.
In conclusion, having a solid understanding of trailer plug wiring diagrams, specifically the 6-way configuration, is important for anyone who tows trailers regularly. By following the proper wiring instructions and ensuring all connections are secure, you can ensure a safe and efficient towing experience. Remember to always double-check your wiring before hitting the road to avoid any potential issues while towing your trailer.
