When it comes to wiring a three-way switch, there are several different configurations to choose from. One common setup is the power at the light switch, meaning the power source comes into the light fixture first before being distributed to the switches. This can be a convenient setup in certain situations, and knowing how to wire it correctly is essential.
With a three-way switch setup, you can control a light fixture from two different locations. This is useful in rooms with multiple entry points or staircases where you want to be able to turn the lights on or off from different spots. Understanding the wiring diagram for a three-way switch with power at the light is key to successfully completing this project.

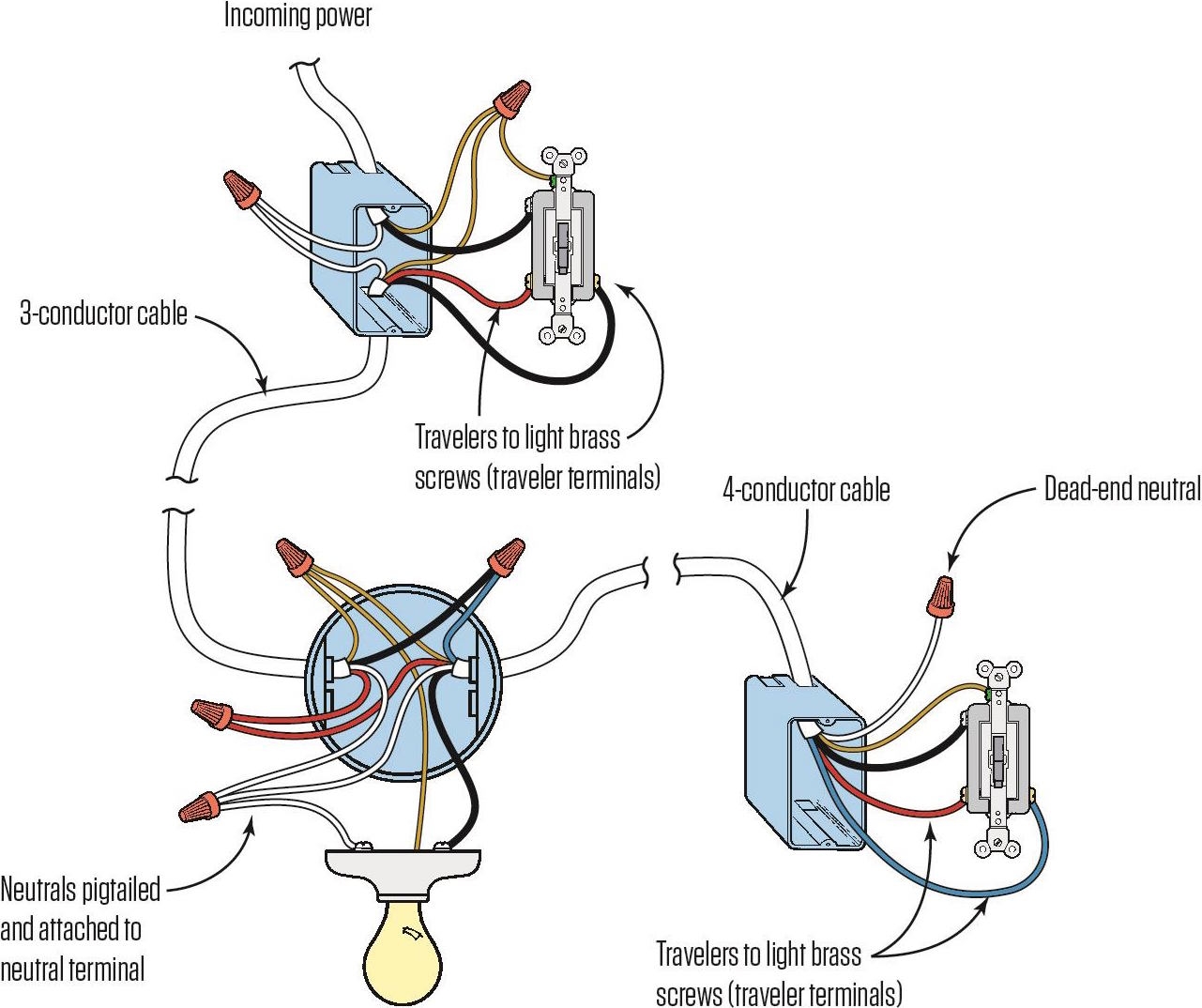

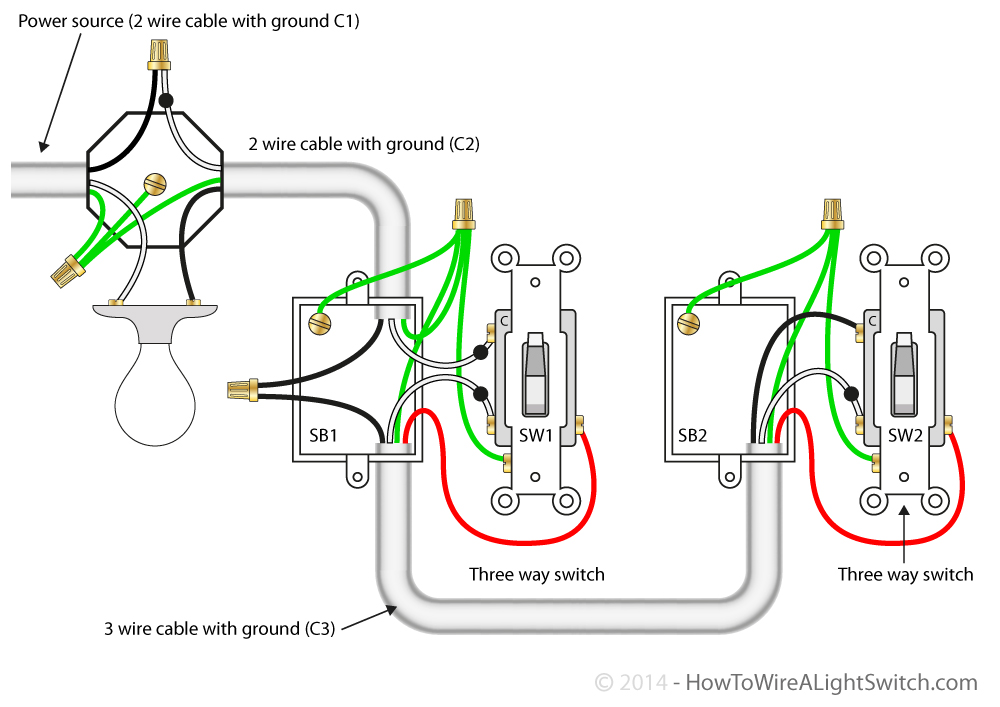

Three Way Switch Wiring Diagram Power At Light
First, you will need to identify the power source coming into the light fixture. This will involve turning off the power to the circuit and using a voltage tester to ensure the wires are not live. Once you have located the power source, you can begin wiring the switches. The power source wire will be connected to the black wire of the light fixture, while the white wire will be connected to the neutral wire.
Next, you will need to run a 3-wire cable between the light fixture and the two switches. The black wire will be connected to the common terminal of one switch, while the red and white wires will be connected to the other two terminals. At the other switch, the red wire will connect to the common terminal, while the black and white wires will connect to the remaining terminals.
Lastly, you will need to connect the ground wires at each switch and the light fixture. It is important to follow electrical codes and safety guidelines when working with electricity. Once all the connections are made, you can turn the power back on and test the switches to ensure they are working properly. Following a clear wiring diagram and taking your time will help ensure a successful installation.
Overall, wiring a three-way switch with power at the light can be a straightforward process if you understand the necessary steps and have the right tools. By following a clear diagram and being cautious when working with electricity, you can create a convenient and functional lighting setup in your home.
