When it comes to controlling the brightness of your lights, a three way dimmer switch can be a convenient option. This type of switch allows you to adjust the lighting levels from multiple locations in a room, giving you flexibility and control over the ambiance.
However, wiring a three way dimmer switch can be a bit more complex than a standard single pole switch. It requires careful attention to detail to ensure that the circuit is wired correctly to avoid any issues with the functionality of the switch.
Three Way Dimmer Switch Wiring Diagram

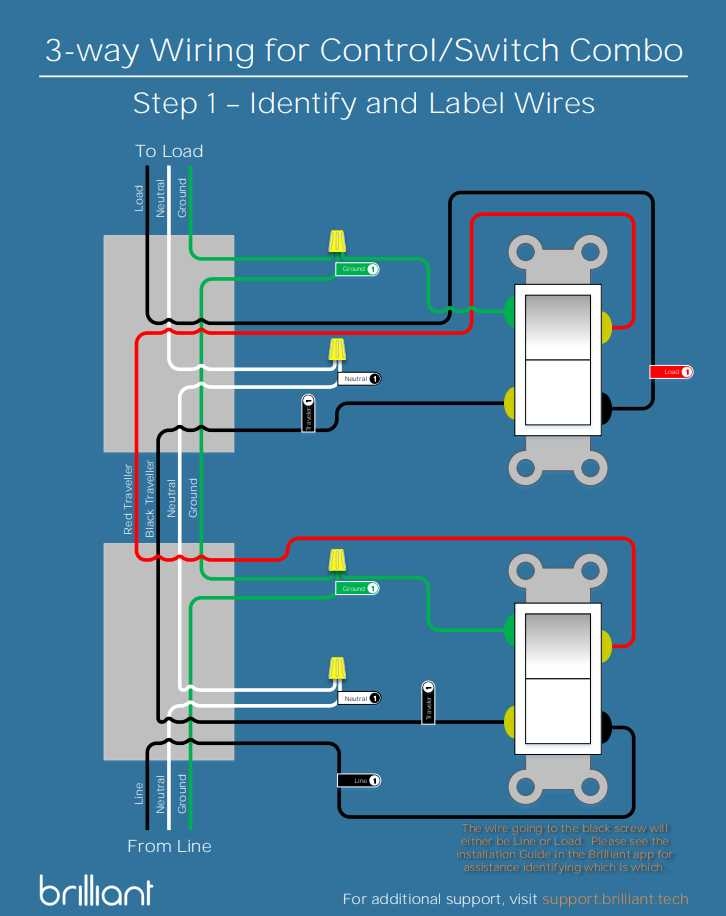

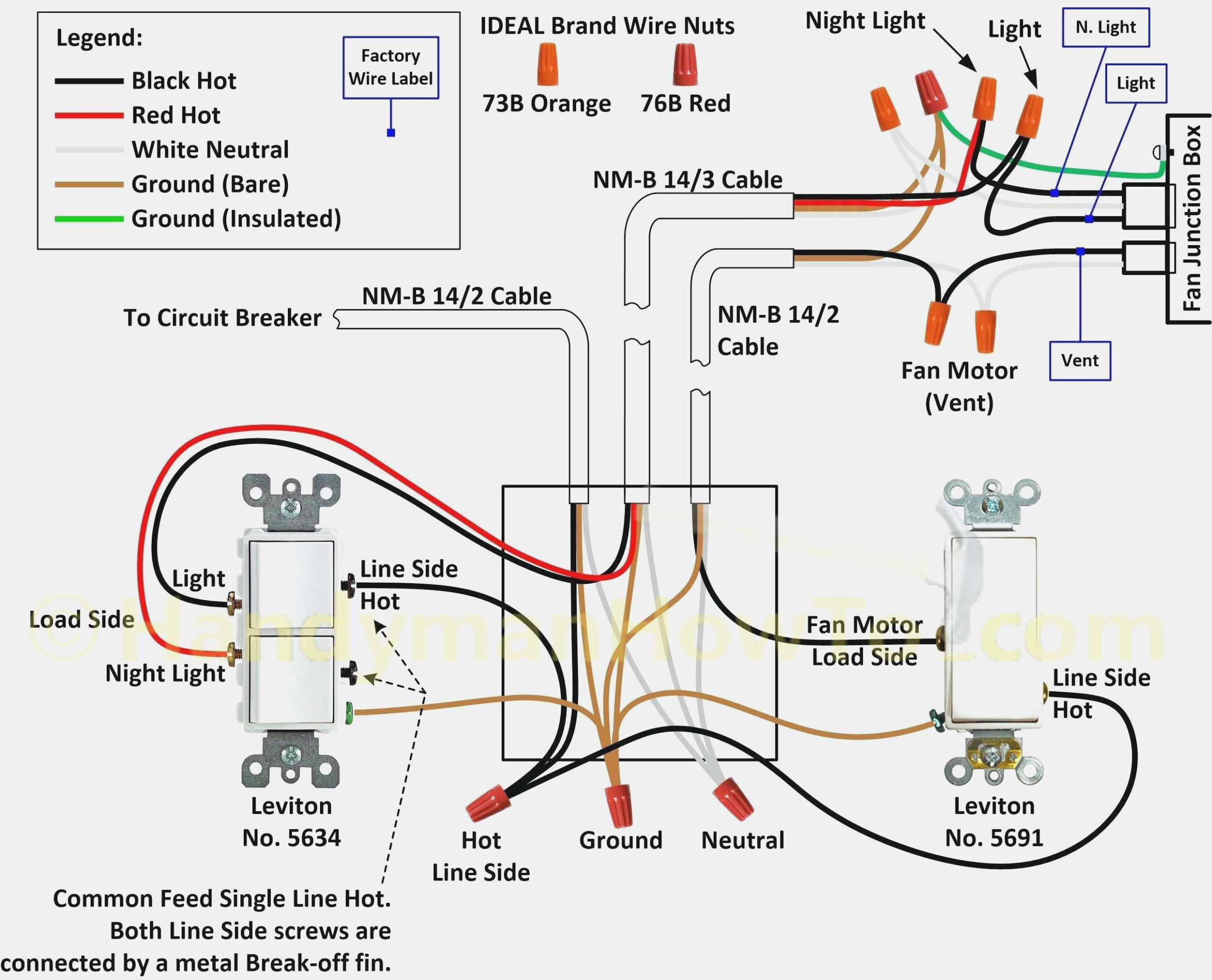

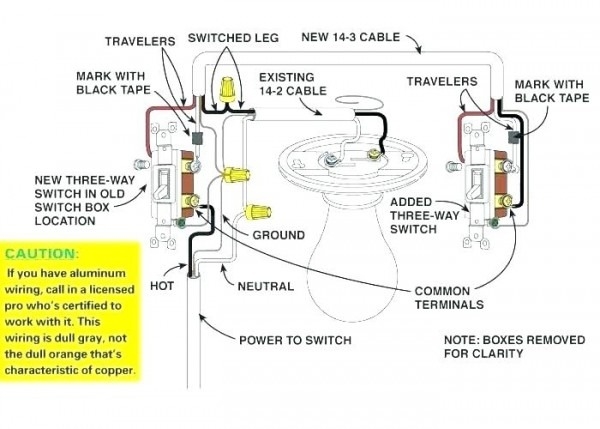

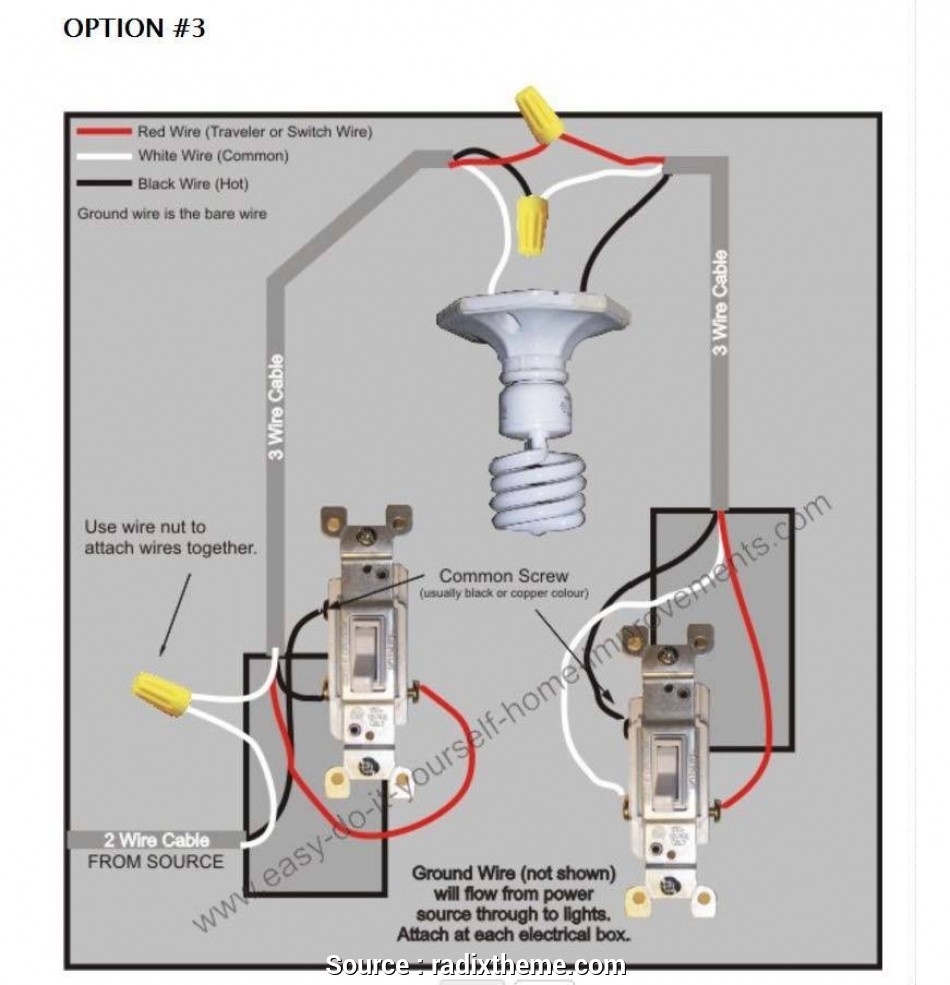

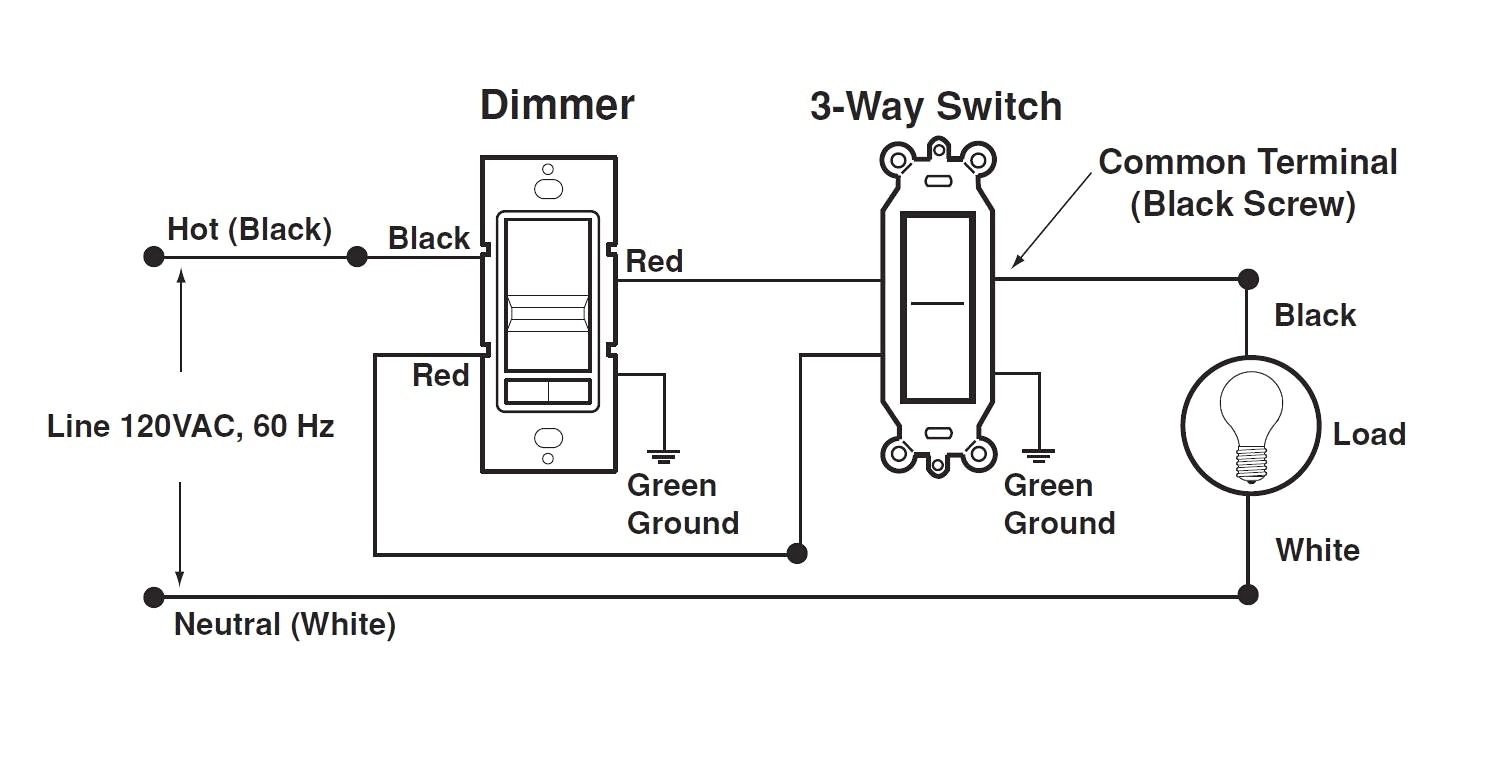

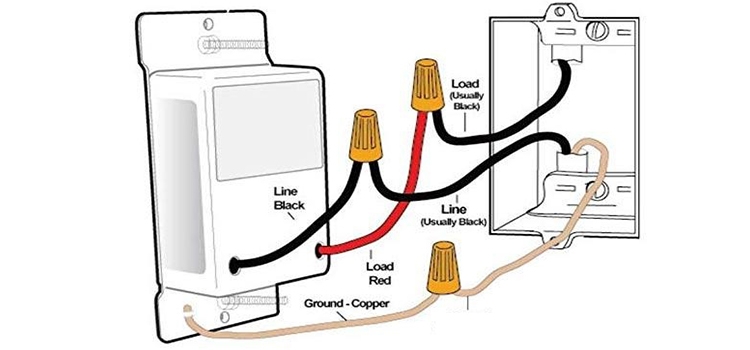

Here is a basic wiring diagram for a three way dimmer switch:
1. Start by turning off the power to the circuit at the breaker box. This is crucial to prevent any accidents while working on the wiring.
2. Remove the existing switch from the wall and identify the common wire, traveler wires, and ground wire. The common wire is typically black, while the traveler wires are usually red or a different color.
3. Connect the common wire from the dimmer switch to the black wire in the electrical box. Use wire nuts to secure the connections and ensure they are tight.
4. Next, connect the traveler wires from the dimmer switch to the traveler wires in the electrical box. It’s important to match the wires correctly to ensure proper functionality.
5. Finally, connect the ground wire from the dimmer switch to the ground wire in the electrical box. This will help ensure the safety of the circuit and prevent any electrical hazards.
Once you have completed the wiring, carefully tuck the wires back into the electrical box and secure the dimmer switch in place. Turn the power back on at the breaker box and test the dimmer switch to make sure it is working properly.
In conclusion, wiring a three way dimmer switch requires attention to detail and proper knowledge of electrical wiring. By following a wiring diagram and taking the necessary precautions, you can successfully install a dimmer switch in your home and enjoy the benefits of adjustable lighting levels.
