When it comes to electric guitars, the Fender Stratocaster is one of the most iconic and beloved models in the world. Known for its versatile sound and sleek design, the Stratocaster has been a favorite among musicians for decades. One key aspect of the Stratocaster is its wiring diagram, which determines how the guitar’s pickups are connected to the controls and output jack. Understanding the Strat wiring diagram is essential for guitar players looking to customize their instrument’s sound.

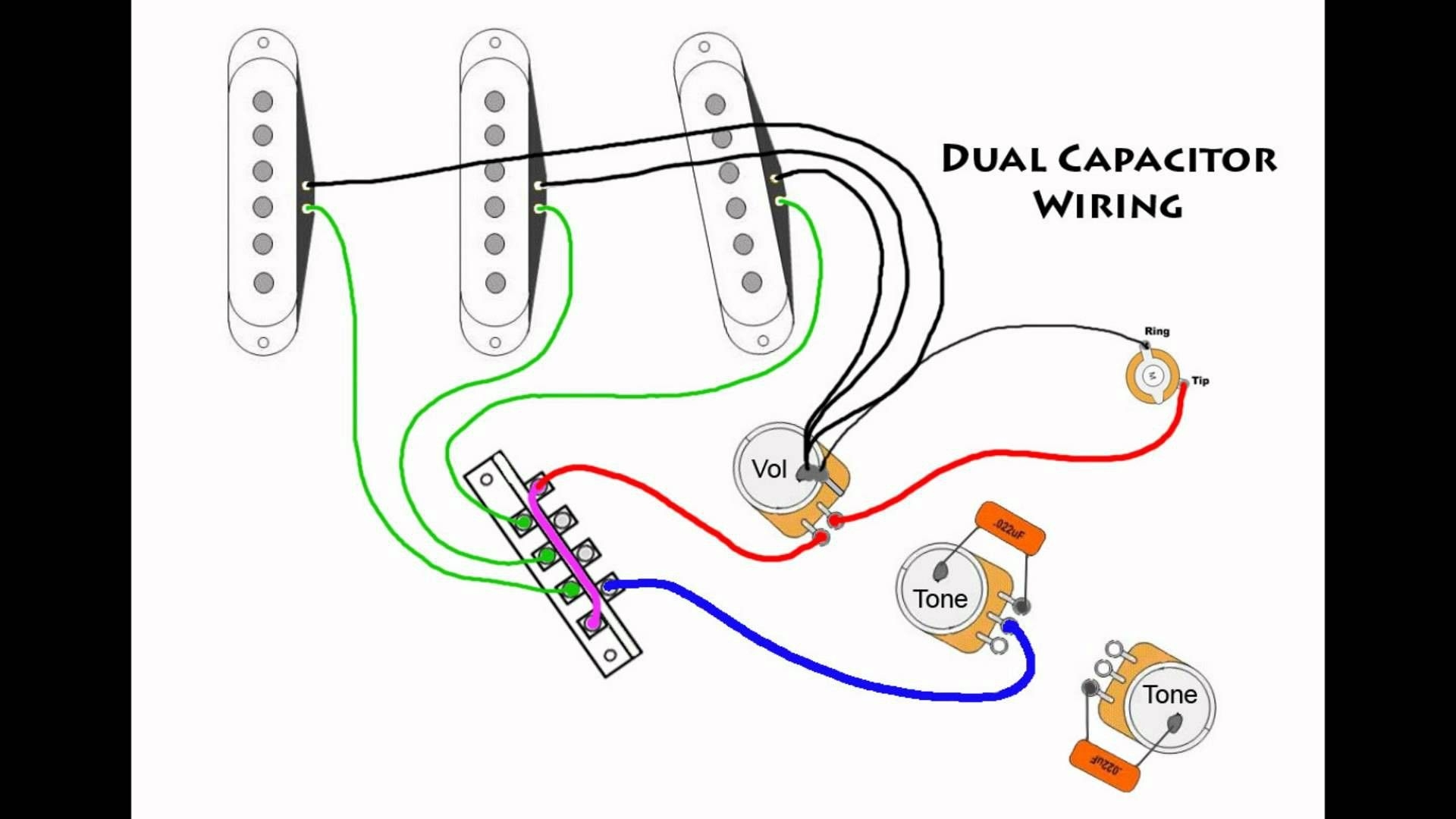

The Stratocaster typically has three single-coil pickups, each with a dedicated tone control and a master volume control. The standard wiring diagram for a Stratocaster features a five-way switch that allows players to select different pickup combinations. The diagram also includes a capacitor on the tone controls to roll off high frequencies and achieve various tonal options. Additionally, the bridge pickup is wired to a tone control, giving players more control over their sound.

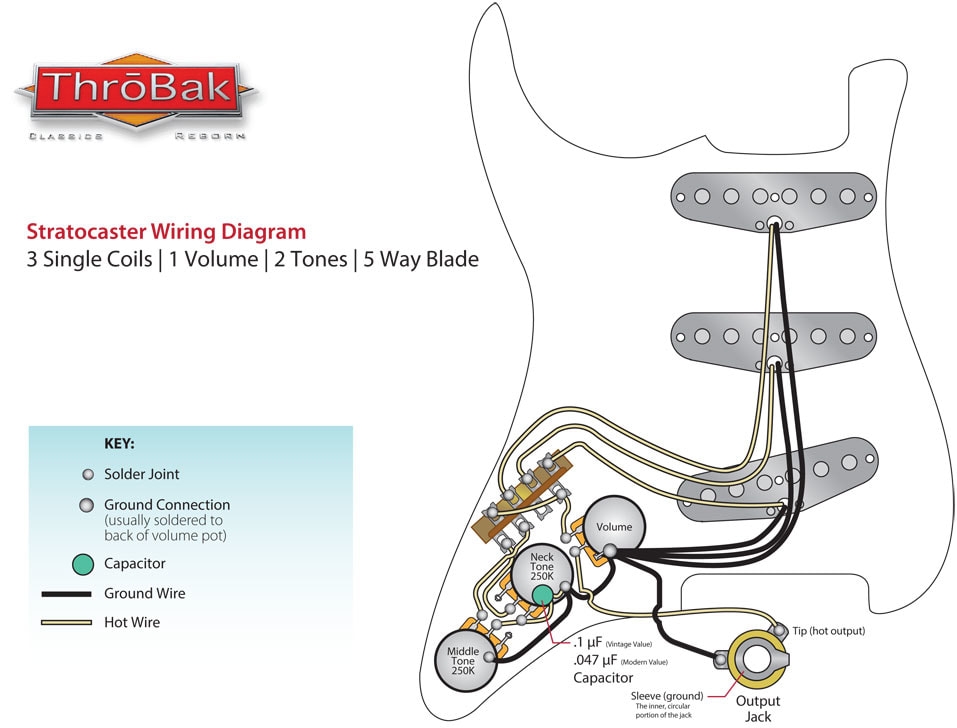

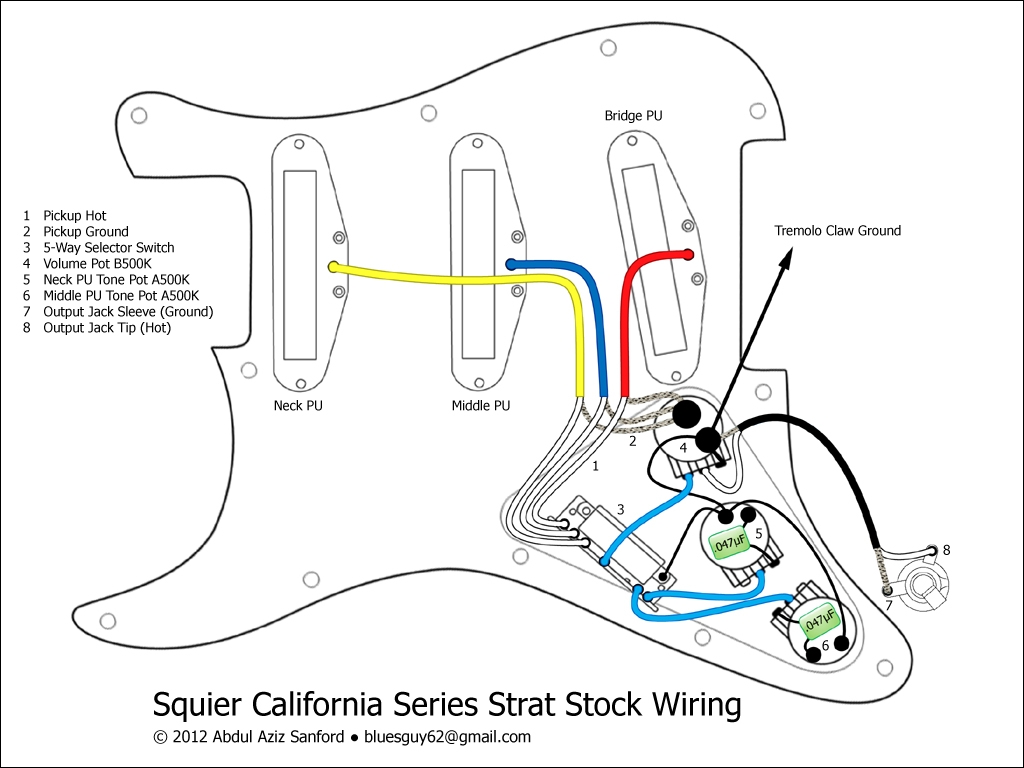

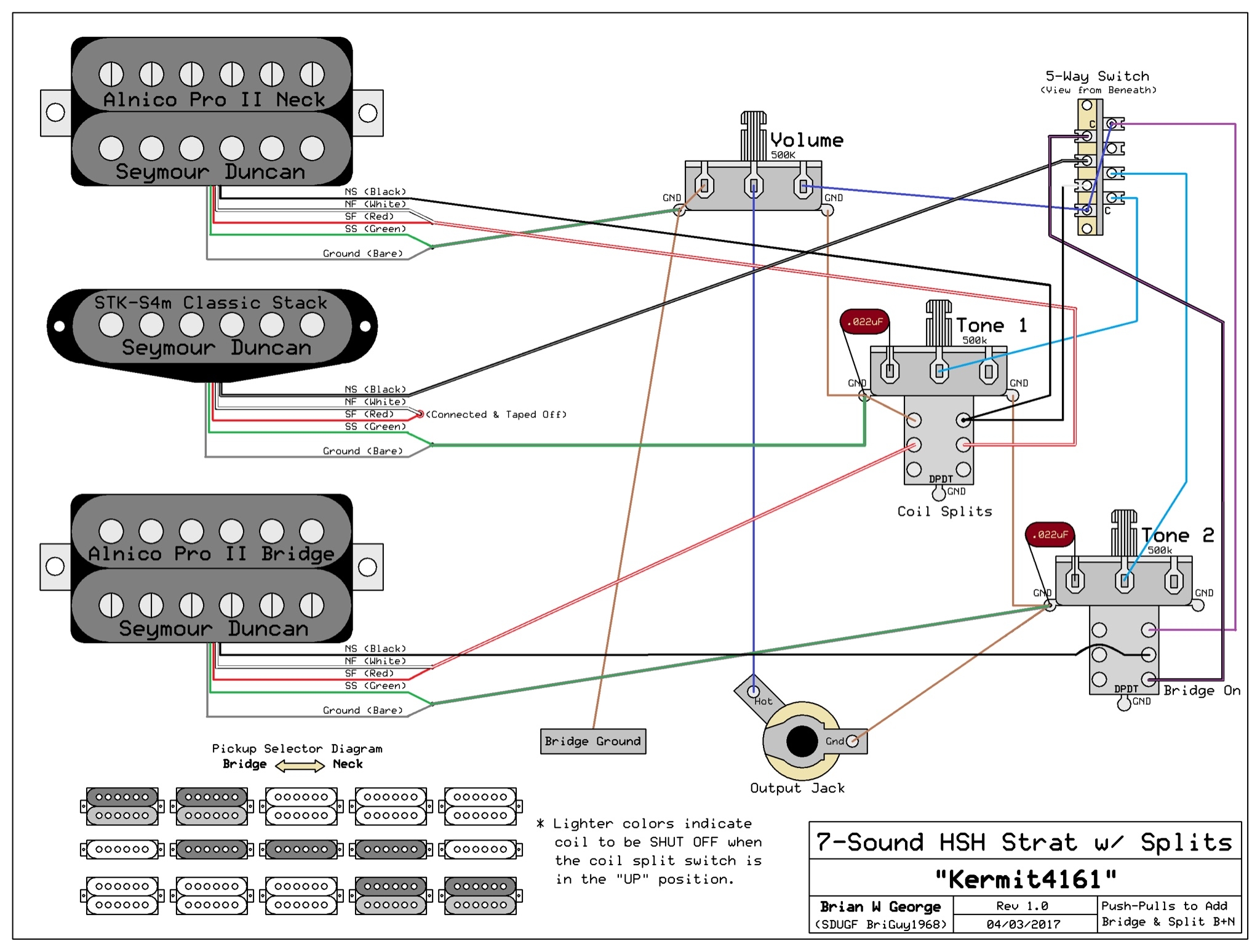

Strat Wiring Diagram

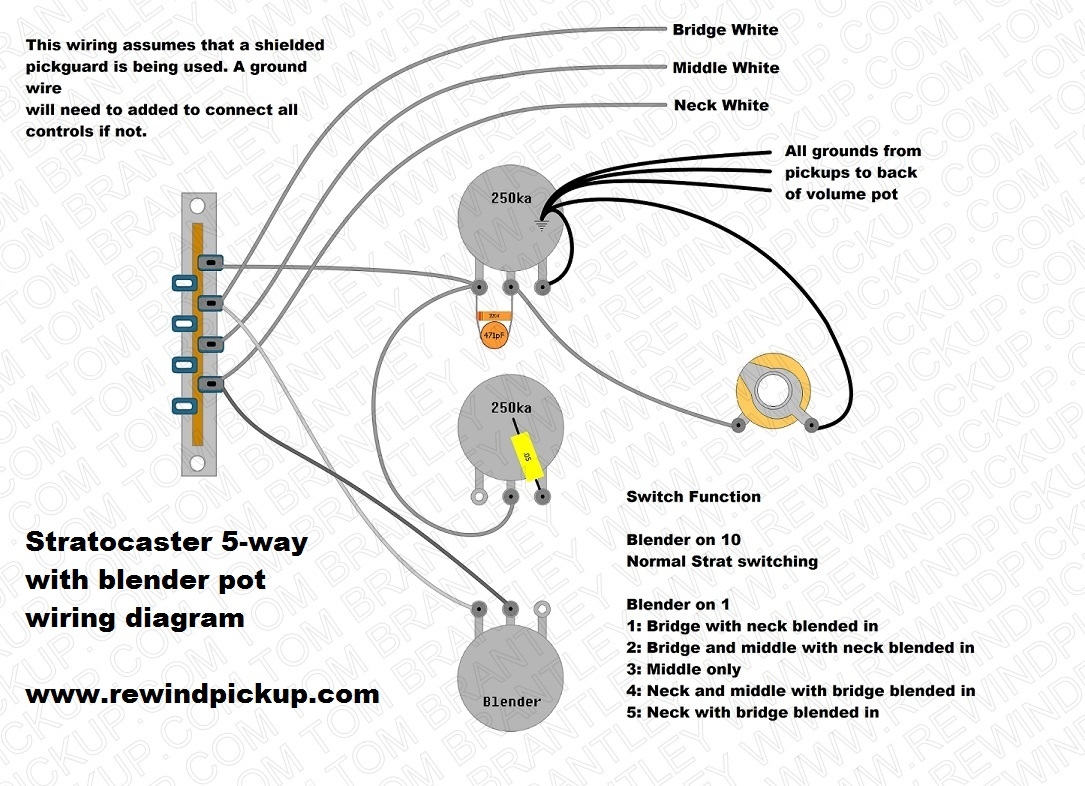

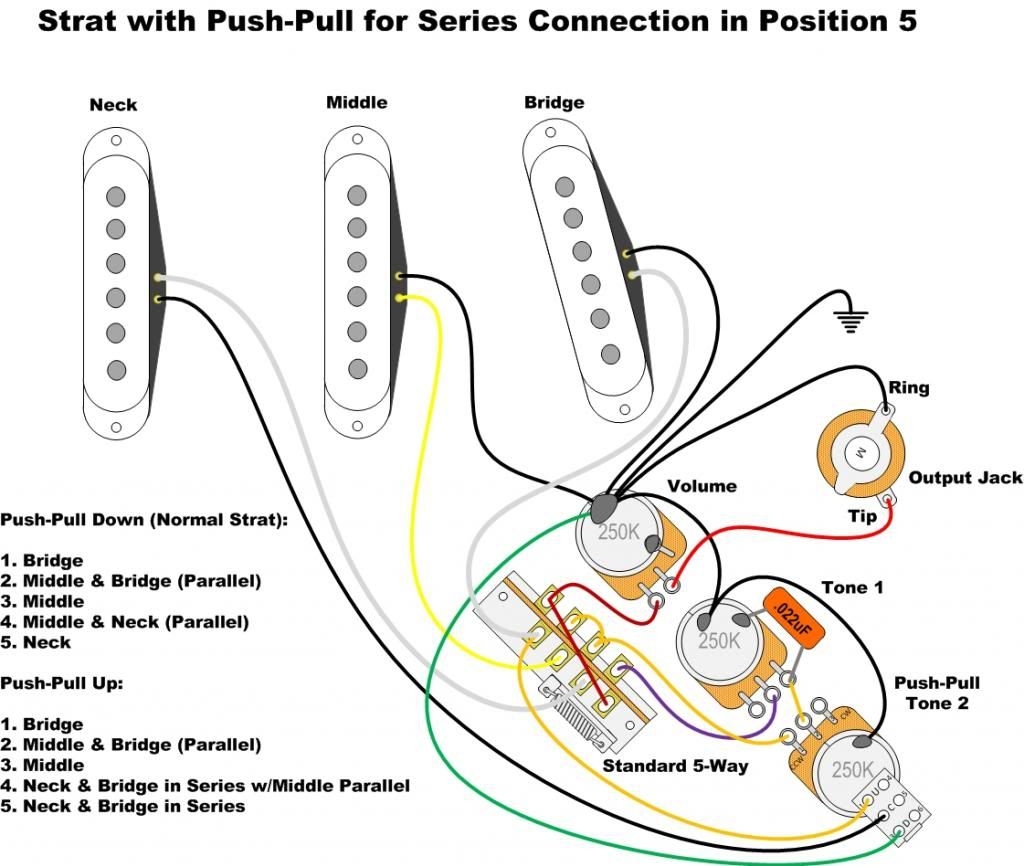

One popular modification to the standard Strat wiring diagram is the “blender” mod, which involves rewiring the tone controls to allow for more tonal options. With this mod, players can blend the neck and bridge pickups together for a unique sound that isn’t possible with the standard wiring. Another common modification is the addition of a push-pull potentiometer, which can be used to split the coils of a humbucker pickup for a single-coil sound.
Players looking to customize their Stratocaster’s wiring diagram can find numerous resources online, including diagrams for different pickup configurations and wiring mods. It’s important to have a basic understanding of electronics and soldering skills before attempting to modify the wiring of a guitar. Consulting with a professional guitar technician is also recommended for more complex modifications.
In conclusion, the Strat wiring diagram is a crucial element of the Fender Stratocaster’s versatile sound. By understanding the diagram and exploring different wiring mods, players can customize their instrument to suit their unique playing style and preferences. Whether you’re looking to achieve a classic Strat sound or experiment with new tonal options, the wiring diagram is a valuable tool for unlocking the full potential of this legendary guitar.
