When it comes to wiring a seven wire trailer plug, it’s important to understand the correct configuration to ensure proper functionality. The seven wire plug is commonly used for heavy-duty trailers that require additional power for features such as electric brakes or charging the trailer battery while towing.
Before starting the wiring process, it’s crucial to have a clear understanding of the color codes and functions of each wire in the plug. This will help you avoid any confusion and ensure that the wiring is done correctly.

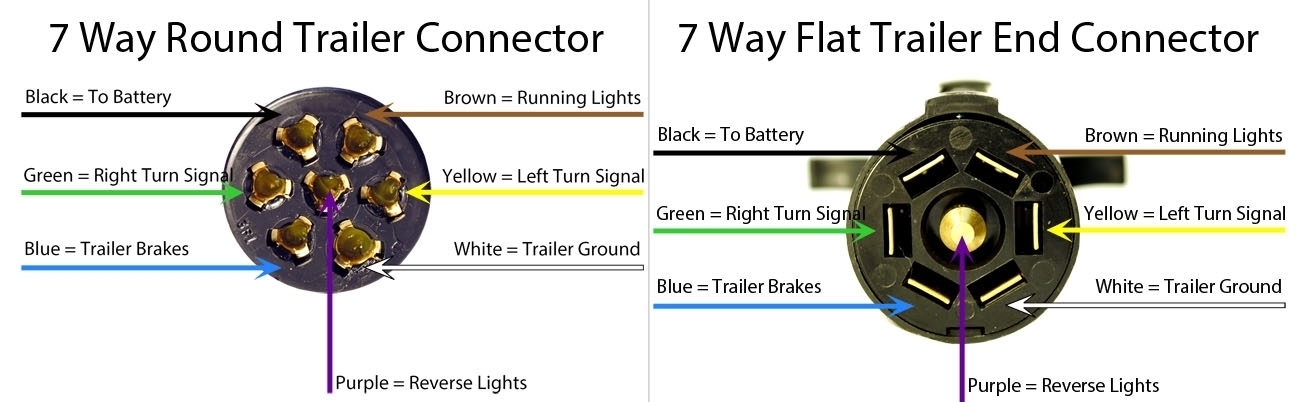

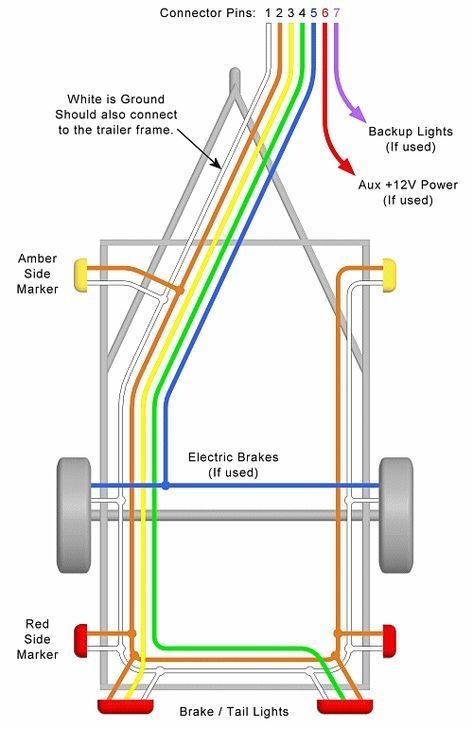

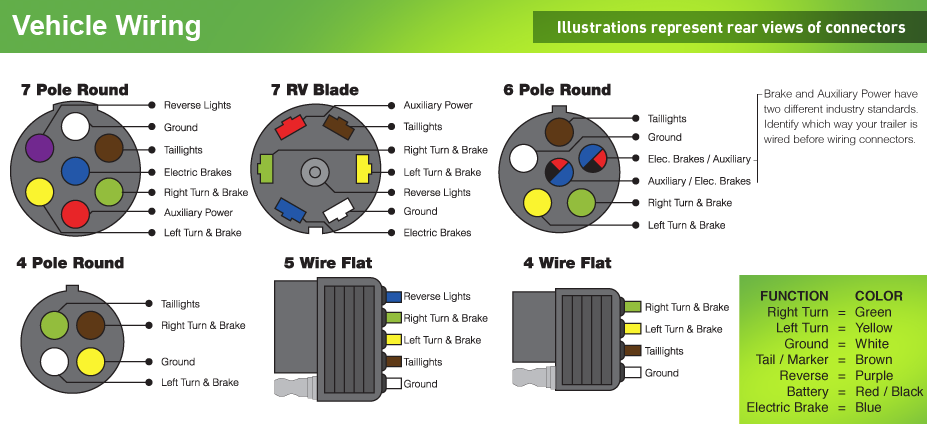

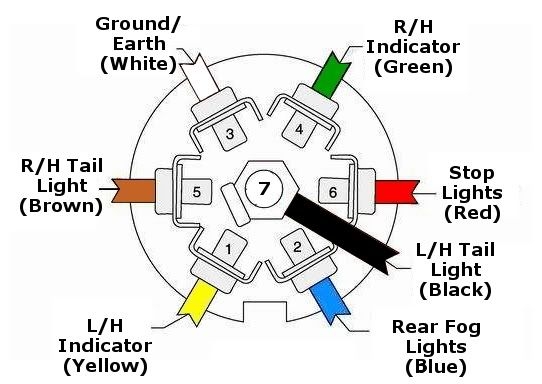

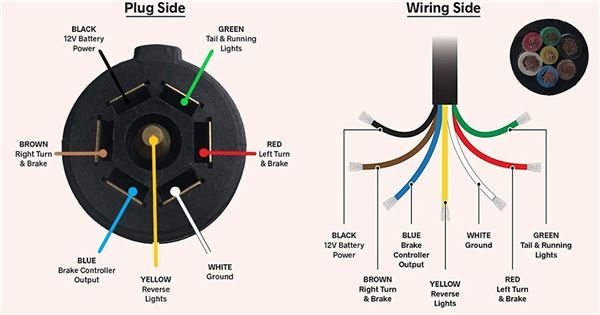

Seven Wire Trailer Plug Wiring Diagram
Typically, the seven wire trailer plug consists of the following color-coded wires: white (ground), brown (tail lights), yellow (left turn signal), green (right turn signal), blue (electric brakes), black (12V power), and red (auxiliary power). Each wire serves a specific function and must be connected to the appropriate terminal on the plug.
To wire the seven wire trailer plug, start by stripping the insulation off the ends of each wire. Then, connect the white wire to the terminal labeled “GND” for ground, the brown wire to the terminal labeled “TM” for tail lights, the yellow wire to the terminal labeled “LT” for left turn signal, the green wire to the terminal labeled “RT” for right turn signal, the blue wire to the terminal labeled “EB” for electric brakes, the black wire to the terminal labeled “12V” for 12V power, and the red wire to the terminal labeled “AUX” for auxiliary power.
Once all the wires are securely connected to their respective terminals, use electrical tape or heat shrink tubing to insulate the connections and prevent any short circuits. Finally, test the trailer plug by connecting it to a vehicle with a compatible seven wire trailer socket and ensure that all lights and functions are working properly.
By following the correct wiring diagram and color codes for the seven wire trailer plug, you can ensure a safe and reliable connection for towing heavy-duty trailers. Proper installation is essential to prevent any electrical issues and ensure the safety of both the driver and other road users.
