When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. One of the most common types of trailer wiring is the seven way plug, which allows for connections to the various electrical components of the trailer. Understanding the wiring diagram for a seven way plug is crucial for ensuring that everything is connected correctly.
Whether you’re towing a boat, camper, or other type of trailer, having a seven way plug ensures that you have all the necessary connections for lights, brakes, and other electrical components. By following a wiring diagram, you can easily see how each wire should be connected to the corresponding terminal on the plug.
Seven Way Plug Wiring Diagram

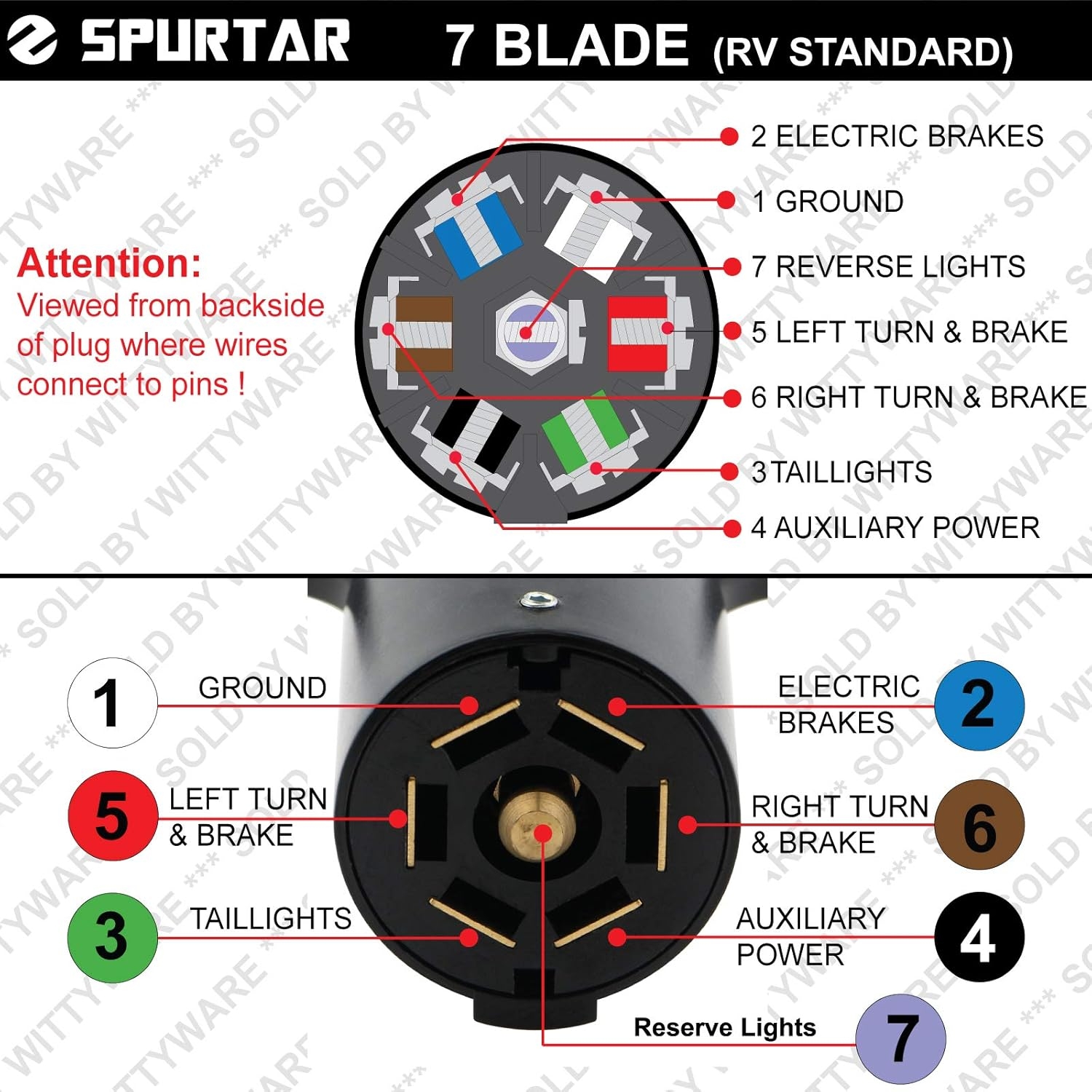

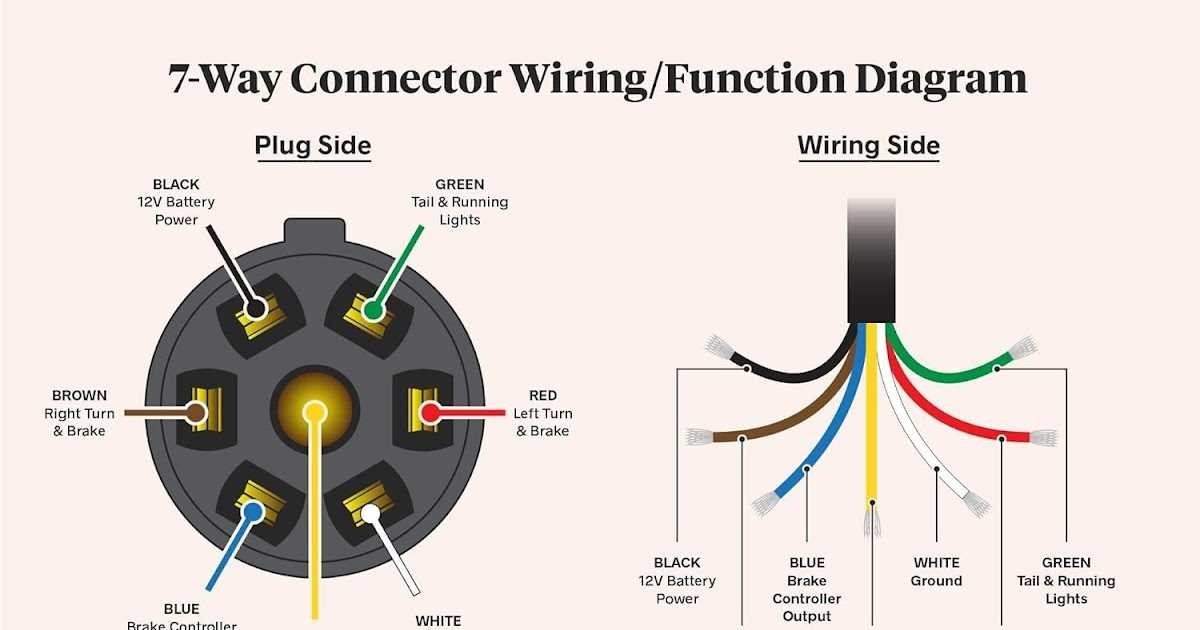

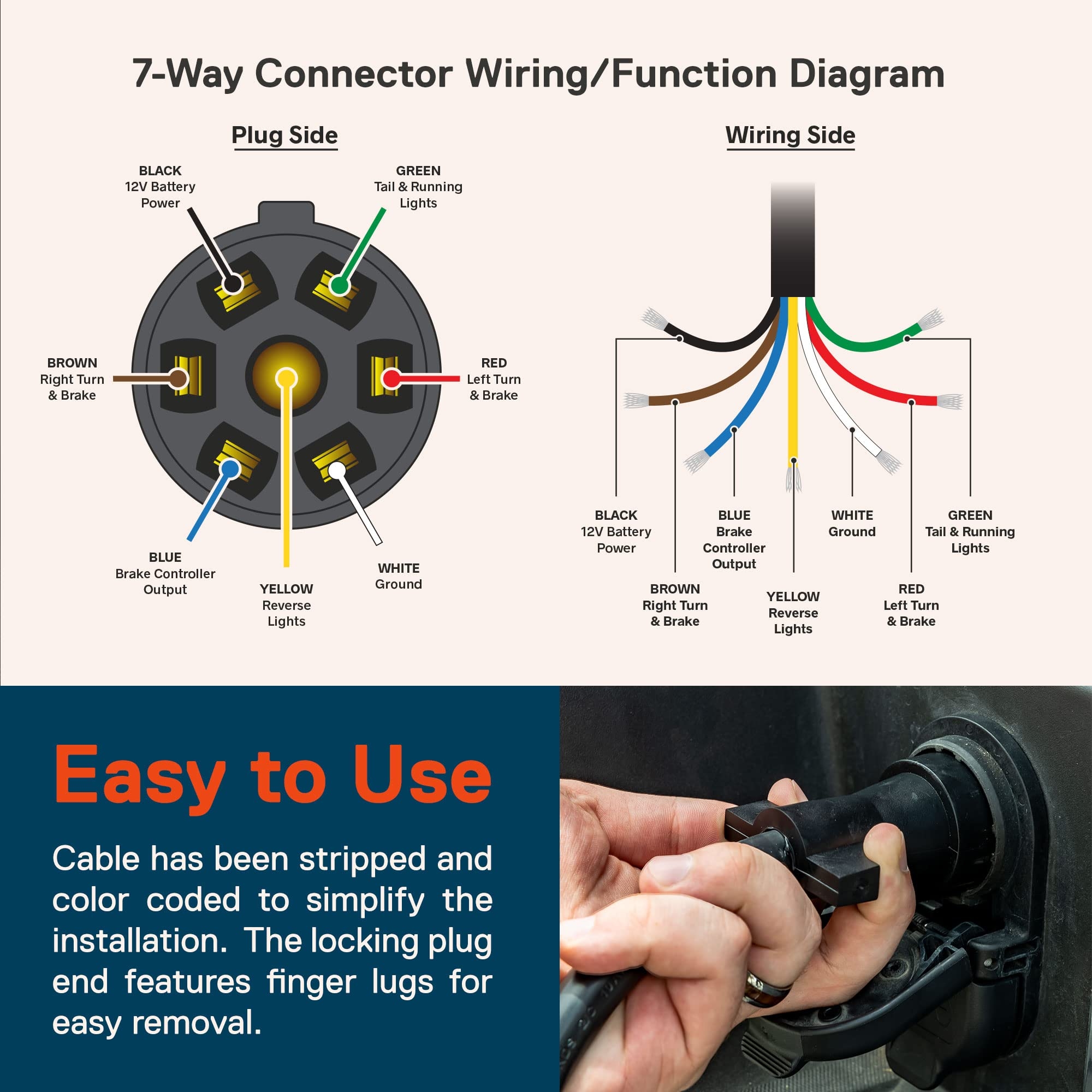

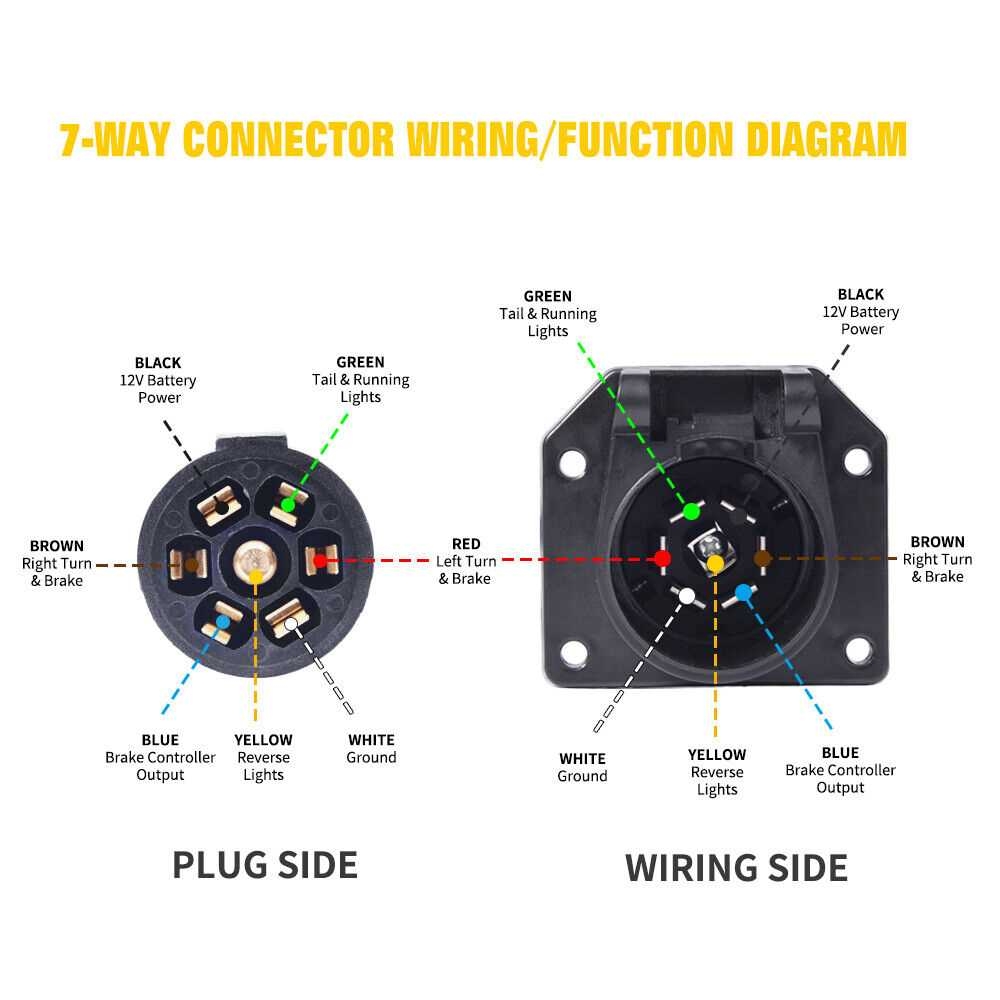

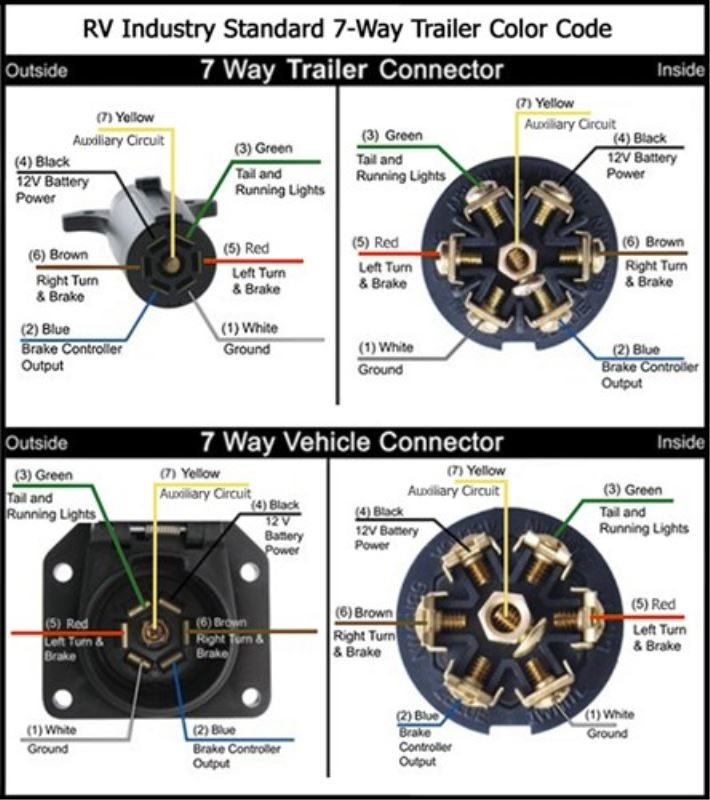

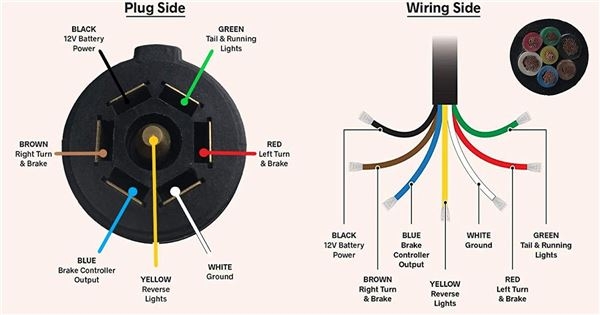

Typically, a seven way plug will have seven pins or terminals, each designated for a specific function. These functions may include the right turn signal, left turn signal, brake lights, tail lights, ground, electric brake control, and 12V power. By referring to a wiring diagram, you can easily identify which wire should be connected to each terminal.
It’s important to note that the color-coding of wires may vary depending on the manufacturer, so always refer to the specific wiring diagram for your seven way plug. Additionally, using a wiring harness with pre-wired connectors can make the installation process much easier and ensure a secure connection.
Before connecting your trailer to your vehicle, always double-check the wiring to ensure that everything is connected correctly. Testing the lights and brakes before hitting the road is also recommended to avoid any potential issues while towing. By following the wiring diagram for your seven way plug, you can ensure a safe and reliable towing experience.
In conclusion, understanding the wiring diagram for a seven way plug is essential for proper trailer connections. By referring to the diagram and following the correct wire connections, you can ensure that all electrical components are functioning correctly. Always double-check your wiring before towing and test the lights and brakes to ensure everything is in working order.
