When it comes to towing a trailer, having the proper wiring is essential for safe and efficient operation. A seven prong trailer wiring diagram is a useful tool for those looking to ensure their trailer is properly connected to their vehicle.
Understanding the wiring diagram can help prevent any potential electrical issues while towing, such as malfunctioning lights or brakes. It is important to follow the diagram closely to ensure that all connections are made correctly.
Seven Prong Trailer Wiring Diagram

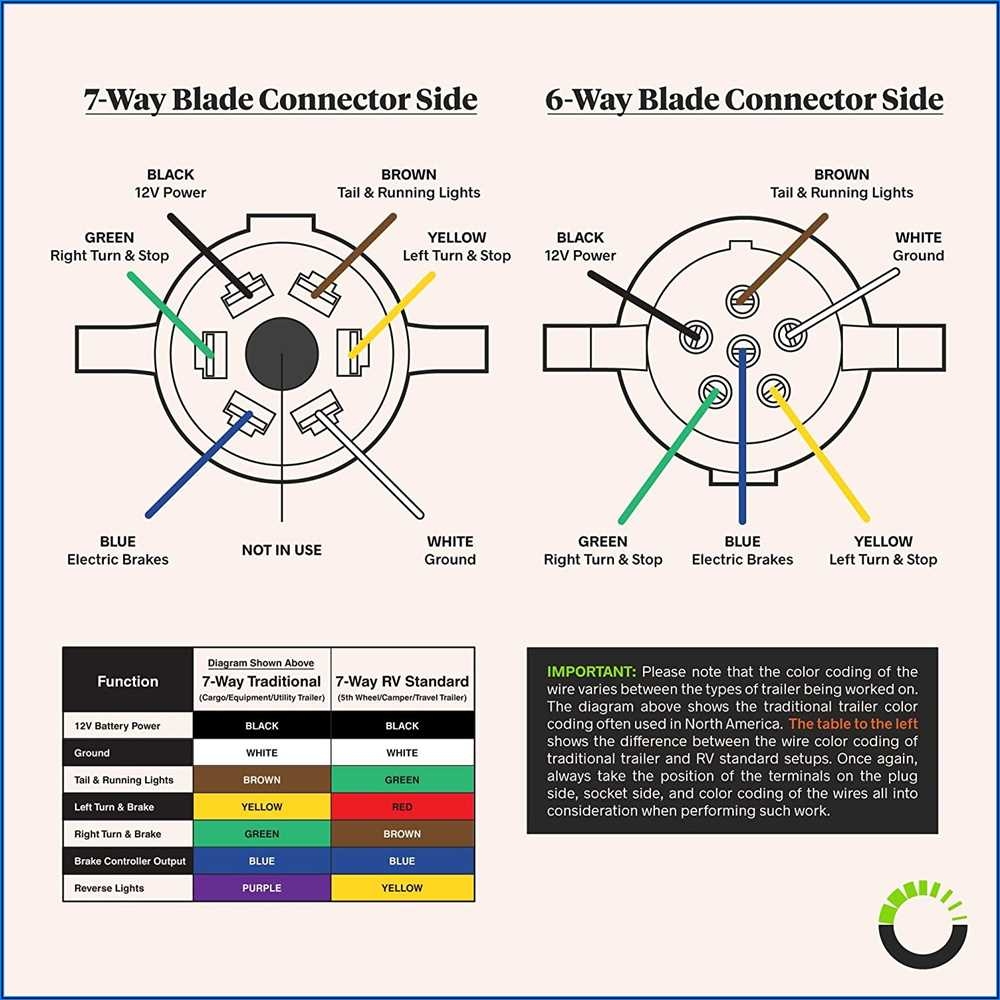

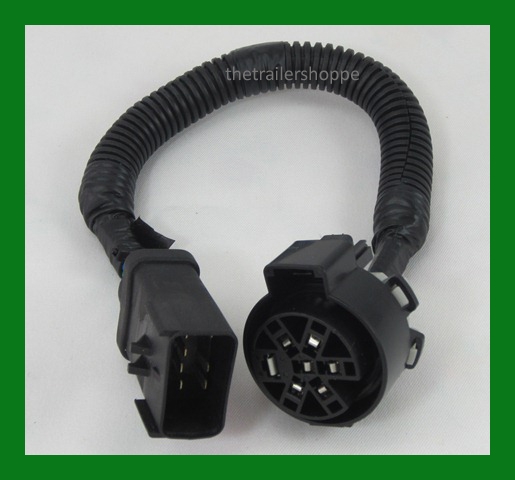

There are seven prongs on a trailer wiring connector, each serving a specific purpose. The prongs are typically color-coded to make it easier to identify which wire corresponds to each function. For example, the white wire is usually the ground wire, while the brown wire is for the running lights.

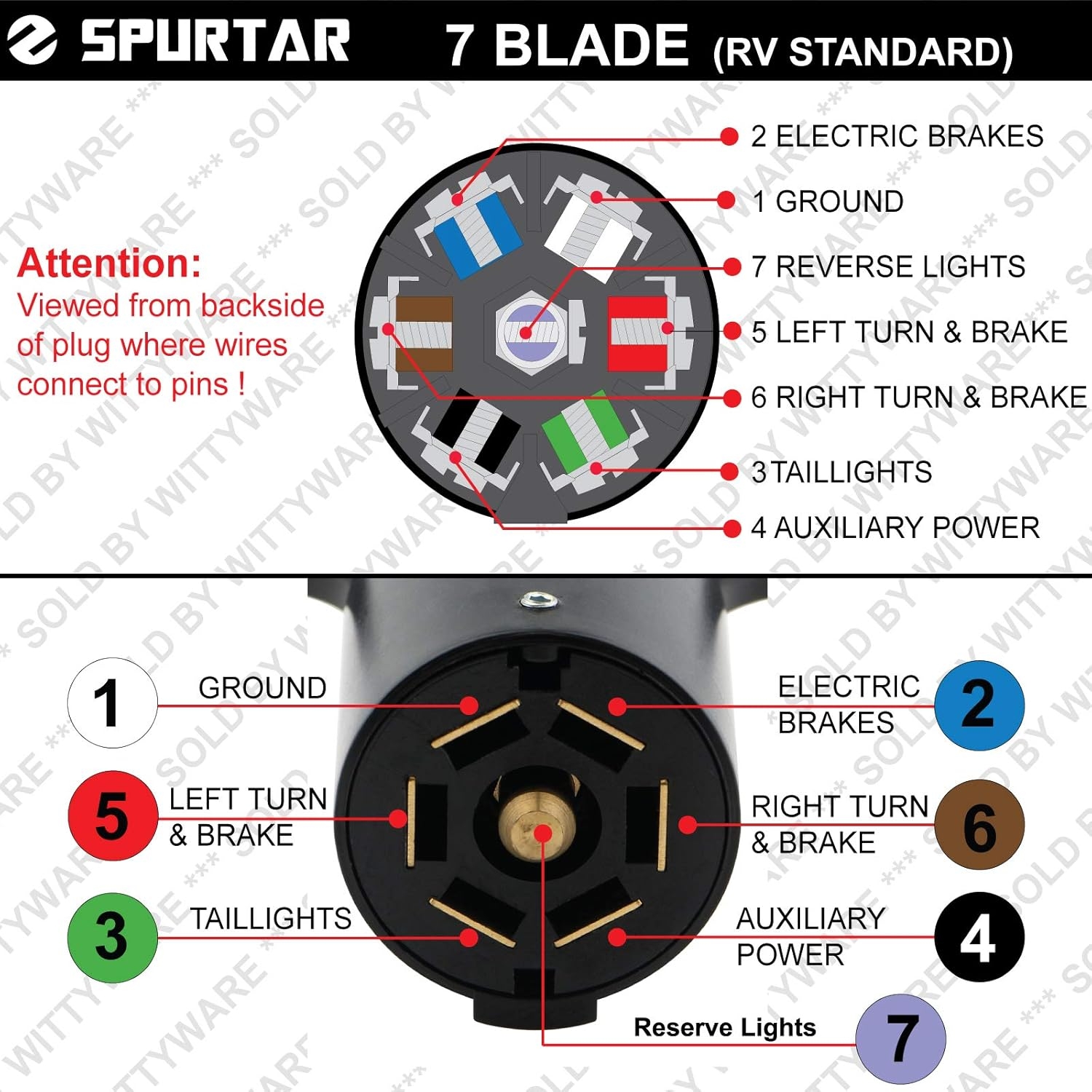

The seven prongs on a trailer wiring connector typically include wires for the ground, running lights, left turn signal, right turn signal, brake lights, electric brakes, and a 12V power supply. It is important to verify the wiring diagram for your specific trailer to ensure proper connections.
Properly connecting your trailer wiring can help ensure the safety of yourself and others on the road. It is important to regularly inspect your trailer wiring for any signs of wear or damage, and to make any necessary repairs or replacements as needed.
By following a seven prong trailer wiring diagram, you can ensure that your trailer is properly connected to your vehicle and that all electrical functions are working correctly. This can help prevent any potential accidents or malfunctions while towing, providing peace of mind for your travels.
