When it comes to wiring a Nema 14 50 outlet, it’s important to understand the proper diagram to ensure a safe and efficient electrical connection. The Nema 14 50 outlet is commonly used for electric vehicles and RVs, providing a high-voltage power source for charging. By following the correct wiring diagram, you can ensure that your outlet is set up correctly and can handle the necessary power requirements.
Before attempting to wire a Nema 14 50 outlet, it’s important to familiarize yourself with the specific wiring requirements and regulations in your area. It’s also recommended to consult with a professional electrician to ensure that the installation is done correctly and safely.
Nema 14 50 Wiring Diagram
Nema 14 50 Wiring Diagram

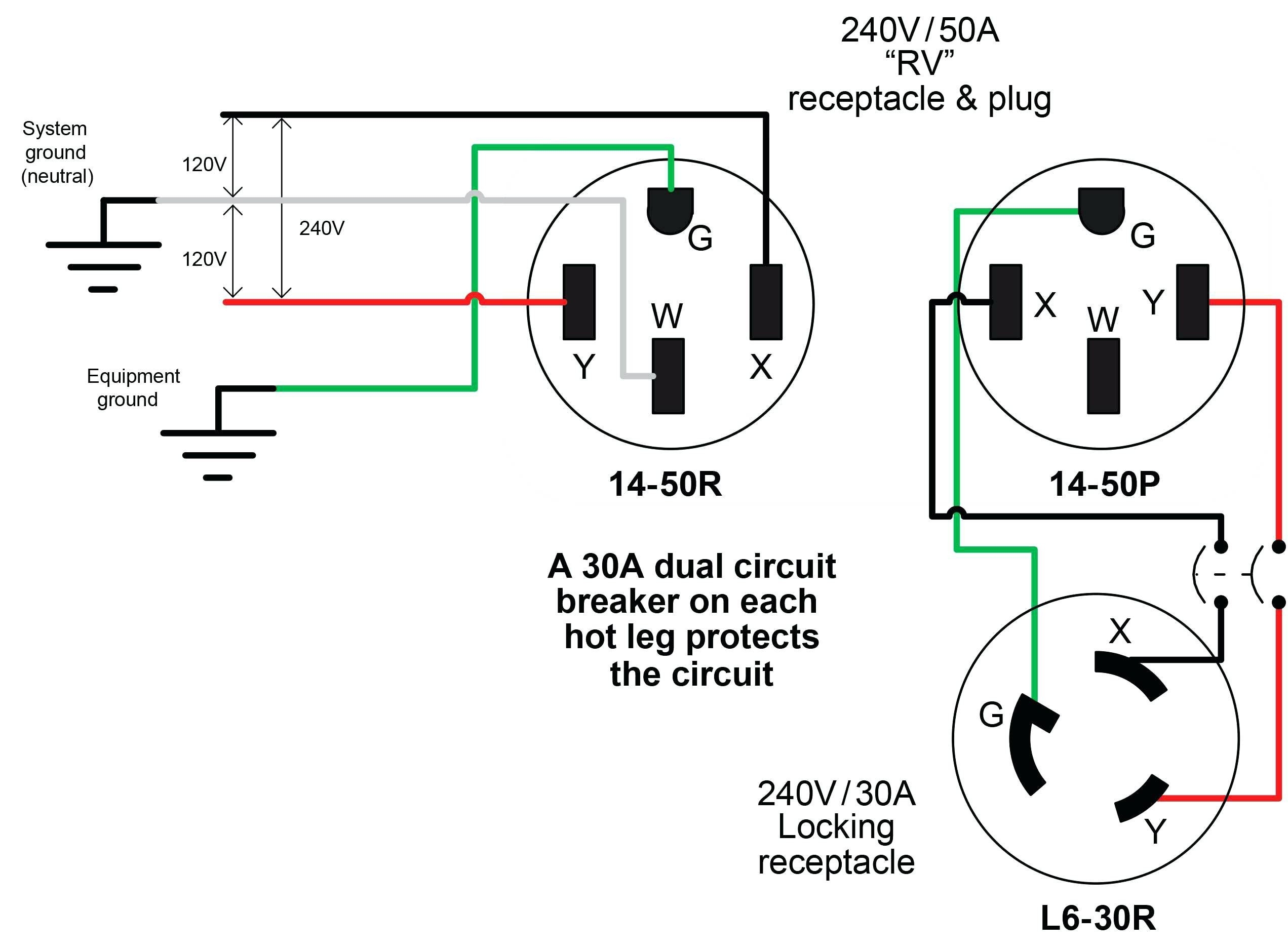

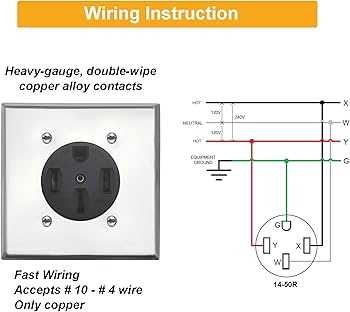

The Nema 14 50 outlet requires a 4-wire configuration, consisting of two hot wires, a neutral wire, and a ground wire. The hot wires are typically black and red, the neutral wire is white, and the ground wire is green. The wiring diagram will show you how to connect these wires to the corresponding terminals on the outlet.

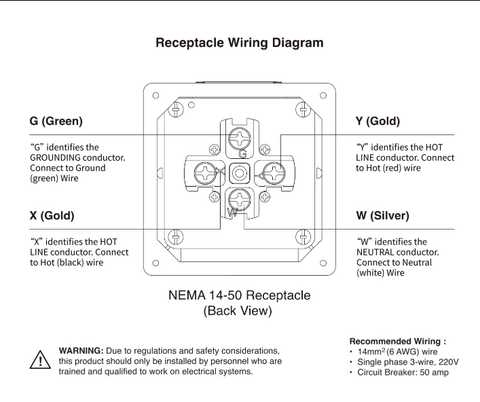

It’s important to ensure that the wires are securely connected to the correct terminals on the outlet to prevent any electrical hazards. The hot wires should be connected to the brass terminals, the neutral wire should be connected to the silver terminal, and the ground wire should be connected to the green terminal.
Once you have wired the Nema 14 50 outlet according to the diagram, it’s important to test the outlet to ensure that it is functioning properly. You can use a voltage tester to check for the presence of power and ensure that all connections are secure.
By following the correct Nema 14 50 wiring diagram and taking the necessary precautions, you can safely and effectively install a high-voltage outlet for your electric vehicle or RV. Remember to always prioritize safety and consult with a professional if you have any doubts or concerns about the installation process.
Overall, understanding the Nema 14 50 wiring diagram is crucial for a successful installation of a high-voltage outlet. By following the guidelines and consulting with a professional, you can ensure a safe and efficient electrical connection for your electric vehicle or RV.
