When it comes to installing a dimmer switch in your home, Lutron is a trusted name in the industry. A 3-way dimmer switch allows you to control the brightness of a light from two different locations, making it a versatile option for any room. Understanding the wiring diagram is essential to ensure proper installation and functionality.
Before diving into the wiring process, it’s important to gather all the necessary tools and materials. You will need a Lutron 3-way dimmer switch, wire strippers, electrical tape, a screwdriver, and a voltage tester. Make sure to turn off the power to the circuit before beginning any work to avoid any accidents.
Lutron Dimmer Wiring Diagram 3-Way

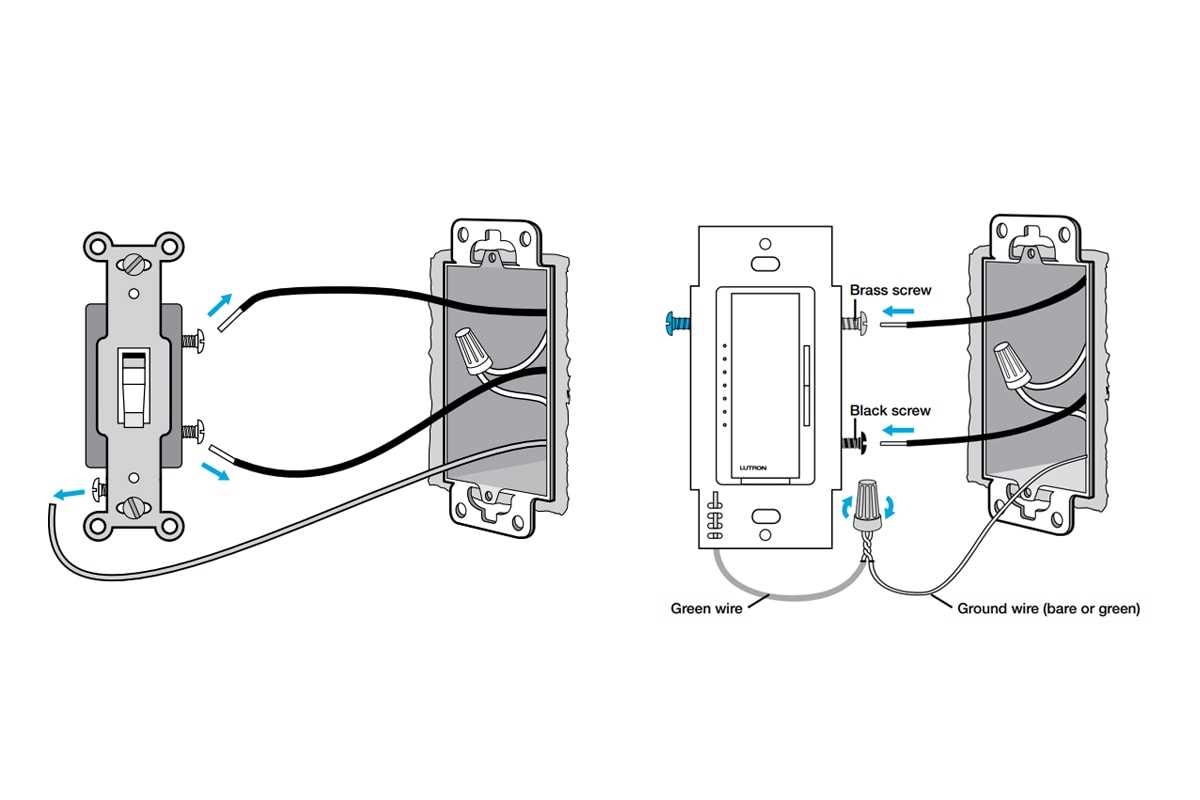

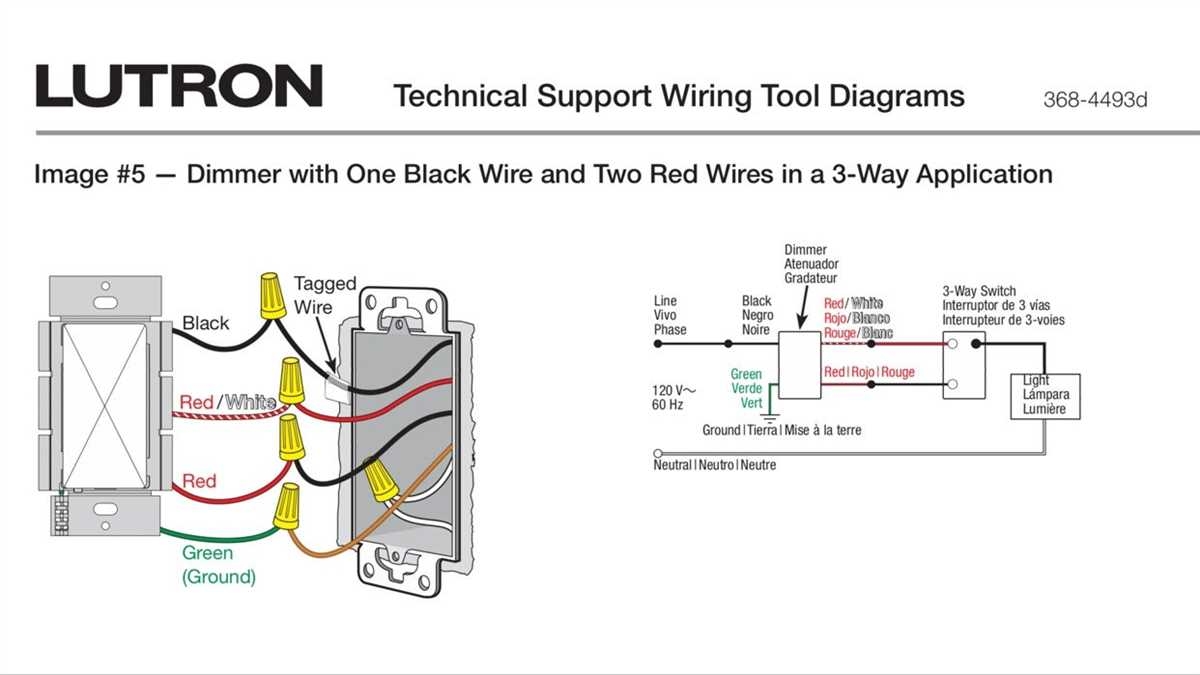

Start by identifying the common wire in your existing 3-way switch setup. This wire is typically black or red and connects to the dark-colored screw on the switch. Connect this wire to the black wire on the Lutron dimmer switch using a wire connector. The remaining two wires, usually red and white, will connect to the other two screws on the dimmer switch.
Next, connect the ground wire from the dimmer switch to the ground wire in the electrical box. This wire is typically green or bare copper. Make sure all connections are secure and use electrical tape to insulate any exposed wires. Once everything is connected, carefully tuck the wires back into the electrical box and secure the dimmer switch in place with the screws provided.
After completing the wiring process, turn the power back on and test the dimmer switch to ensure it is working correctly. You should be able to control the brightness of the light from both locations with ease. If the switch is not functioning properly, double-check your connections and make sure everything is wired according to the diagram provided by Lutron.
In conclusion, installing a Lutron dimmer switch in a 3-way setup is a straightforward process that can enhance the ambiance of any room. By following the wiring diagram and taking the necessary precautions, you can enjoy the convenience and energy-saving benefits of dimmable lighting in your home.
