When it comes to wiring a light switch and outlet together, using 2 wire Romex can be a simple and efficient solution. This type of wiring allows you to control both the light fixture and the outlet from a single switch, making it a convenient option for rooms where you need both lighting and power outlets.
By following a specific wiring diagram, you can easily install a light switch and outlet using 2 wire Romex. This diagram helps you understand the connections and ensures that you have a safe and reliable setup.

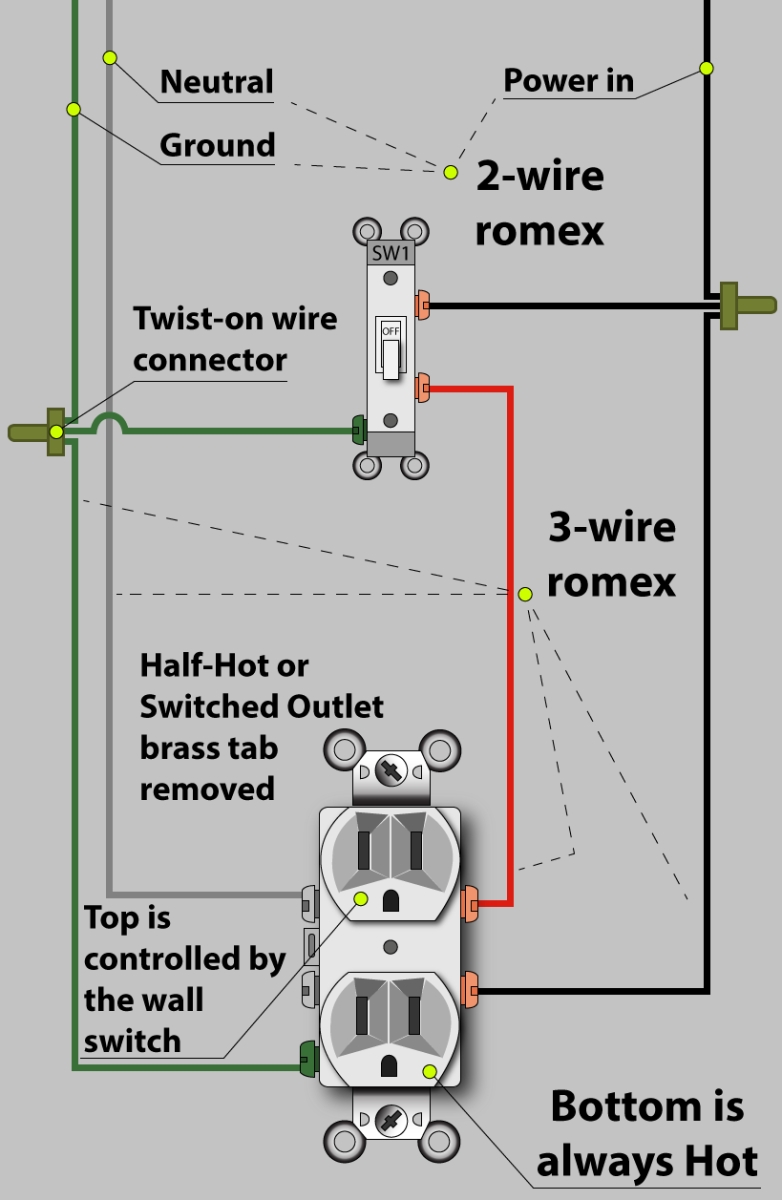

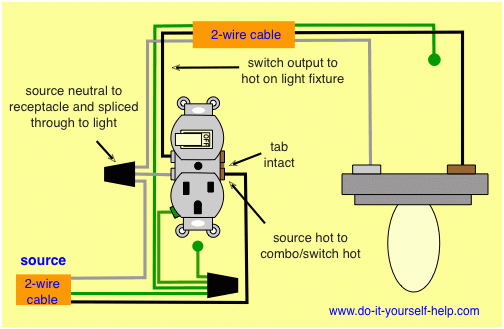

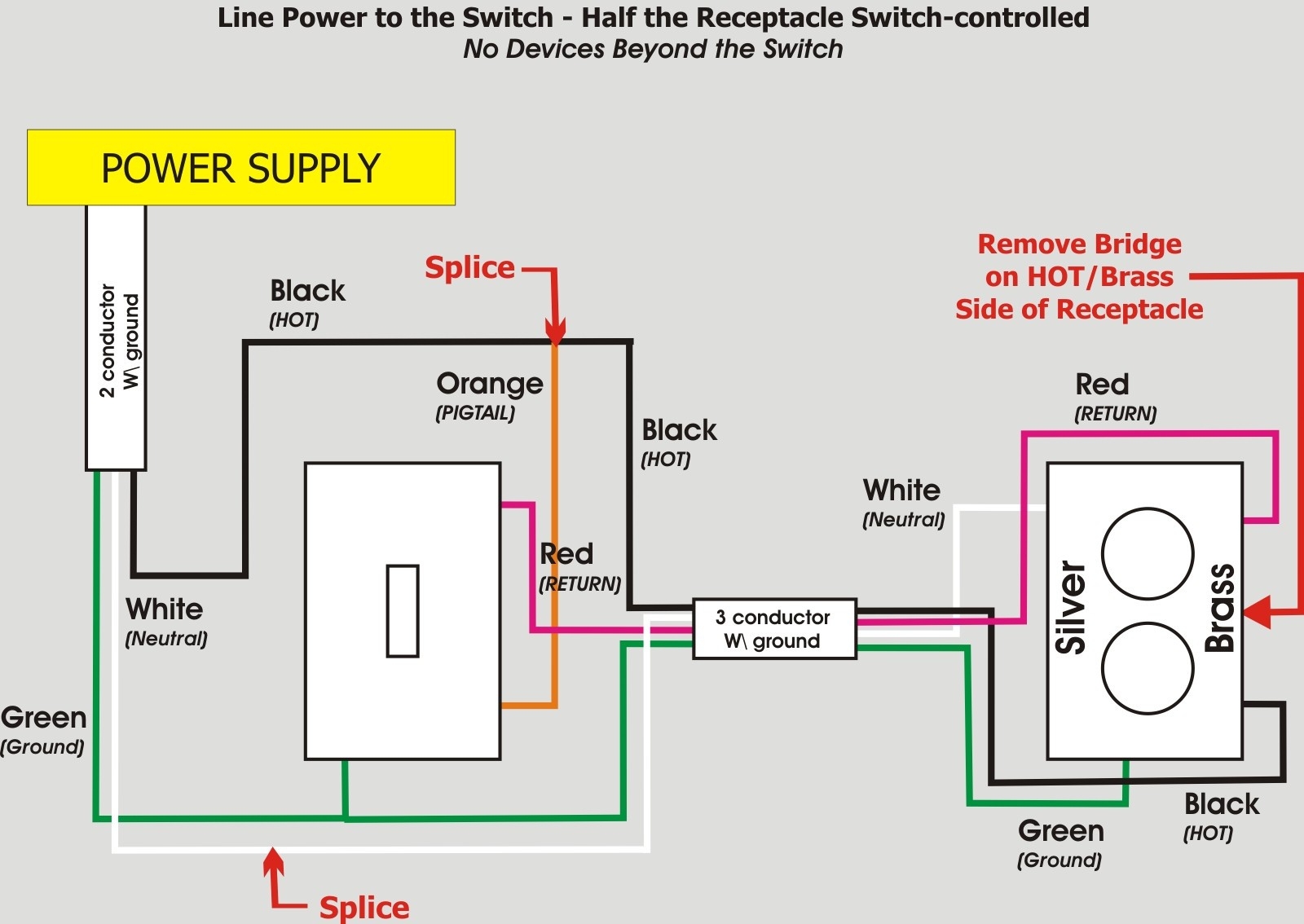

Light Switch Outlet Wiring Diagram Using 2 Wire Romex
First, you will need to turn off the power to the circuit you will be working on. Make sure to use a voltage tester to confirm that the power is off before proceeding with the installation. Then, remove the existing switch and outlet from the wall to access the wiring.
Next, identify the hot wire, neutral wire, and ground wire in the 2 wire Romex cable. The hot wire will be connected to the brass screw on the switch, while the neutral wire will be connected to the silver screw. The ground wire should be attached to the green screw on the switch.
Once the switch is wired correctly, you can then connect the outlet. The hot wire will be connected to the brass screw on the outlet, the neutral wire to the silver screw, and the ground wire to the green screw. Make sure to secure all connections with wire nuts and wrap them with electrical tape for added safety.
After all the connections are made, carefully tuck the wires back into the electrical box and secure the switch and outlet in place. Turn the power back on and test the switch and outlet to ensure they are functioning properly. If everything is working as it should, you have successfully wired a light switch and outlet using 2 wire Romex.
In conclusion, wiring a light switch and outlet together using 2 wire Romex can be a straightforward project with the right tools and knowledge. By following a wiring diagram and taking the necessary safety precautions, you can create a convenient and efficient electrical setup in your home.
