When it comes to installing a dimmer switch in your home, understanding the wiring diagram is crucial for a successful installation. Leviton dimmer switches are known for their quality and reliability, but without the proper wiring, they won’t work as intended.
Before you begin the installation process, make sure to turn off the power to the circuit you will be working on. Safety should always be your top priority when dealing with electrical wiring. Once the power is off, you can start following the Leviton dimmer switch wiring diagram.
Leviton Dimmer Switch Wiring Diagram

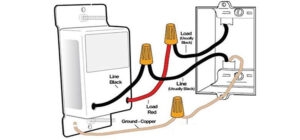

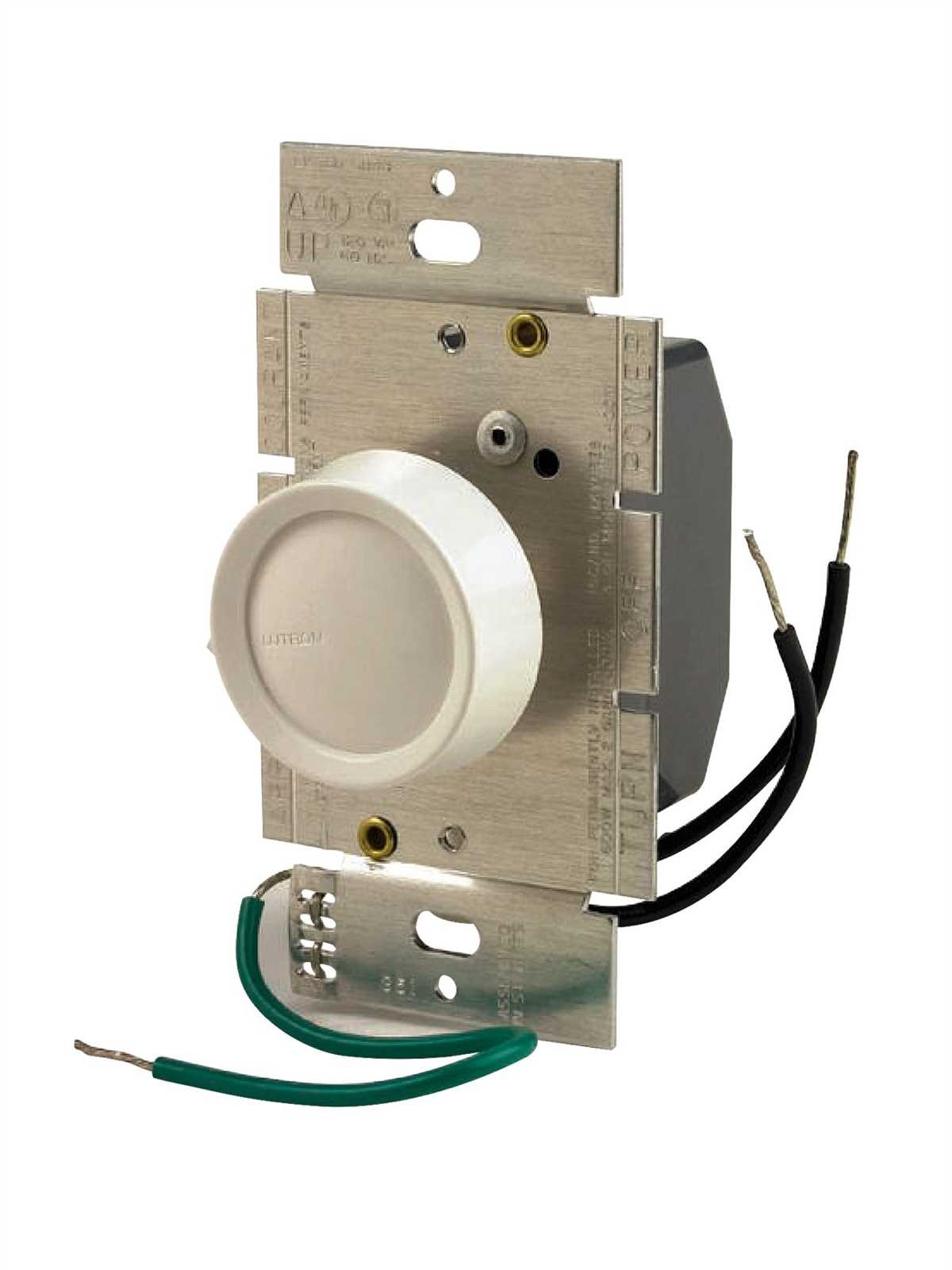

Typically, Leviton dimmer switches will have three wires: a hot wire, a load wire, and a ground wire. The hot wire is usually black, the load wire is typically red or blue, and the ground wire is green or bare copper. Refer to the wiring diagram provided with your dimmer switch to identify which wire is which.
Once you have identified the wires, you can begin connecting them to the corresponding terminals on the dimmer switch. The hot wire should be connected to the black terminal, the load wire to the red or blue terminal, and the ground wire to the green or bare copper terminal. Make sure to secure the connections with wire nuts and electrical tape for added safety.
After all the wires are connected, you can carefully tuck them back into the electrical box and secure the dimmer switch in place. Once everything is secure, you can turn the power back on and test the dimmer switch to ensure it is working properly. If you followed the Leviton dimmer switch wiring diagram correctly, your dimmer switch should now be fully functional.
In conclusion, understanding the wiring diagram for your Leviton dimmer switch is essential for a successful installation. By following the instructions provided and taking the necessary safety precautions, you can easily install a dimmer switch in your home. Remember to always consult a professional if you are unsure about any part of the installation process.
