LED lighting has become increasingly popular due to its energy efficiency and long lifespan. One common practice when converting to LED lighting is bypassing the ballast in existing fluorescent fixtures. This not only improves the efficiency of the LED bulbs but also eliminates the risk of compatibility issues with the ballast.
Before attempting to bypass the ballast, it is important to understand the wiring diagram and ensure that you have the necessary tools and knowledge to perform the task safely. Here, we will provide a step-by-step guide on how to bypass the ballast in a fluorescent fixture and wire in LED bulbs.

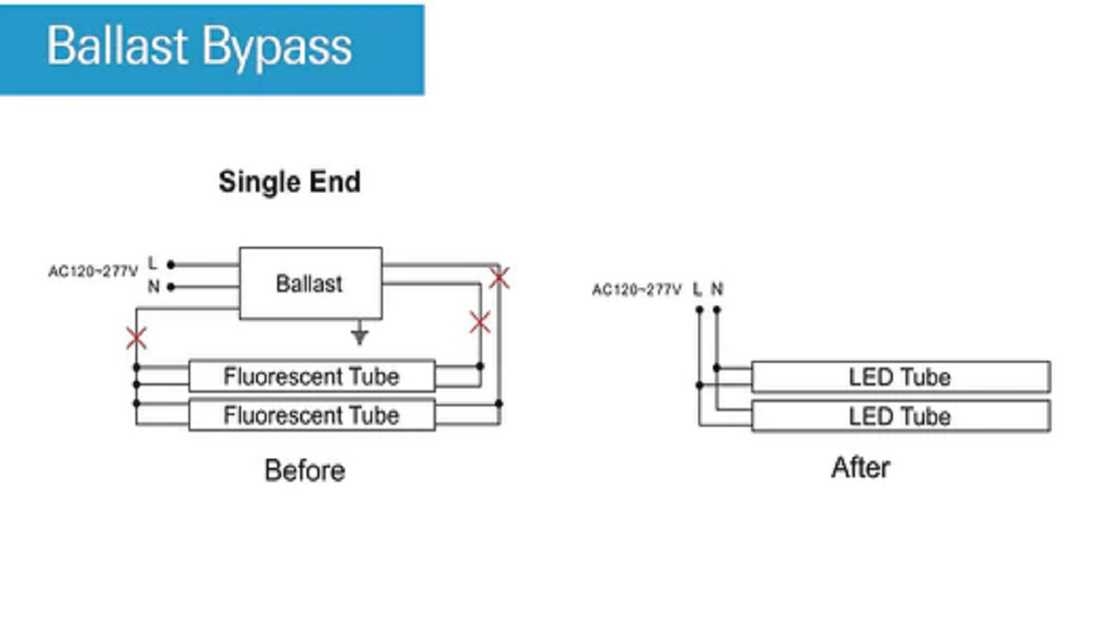

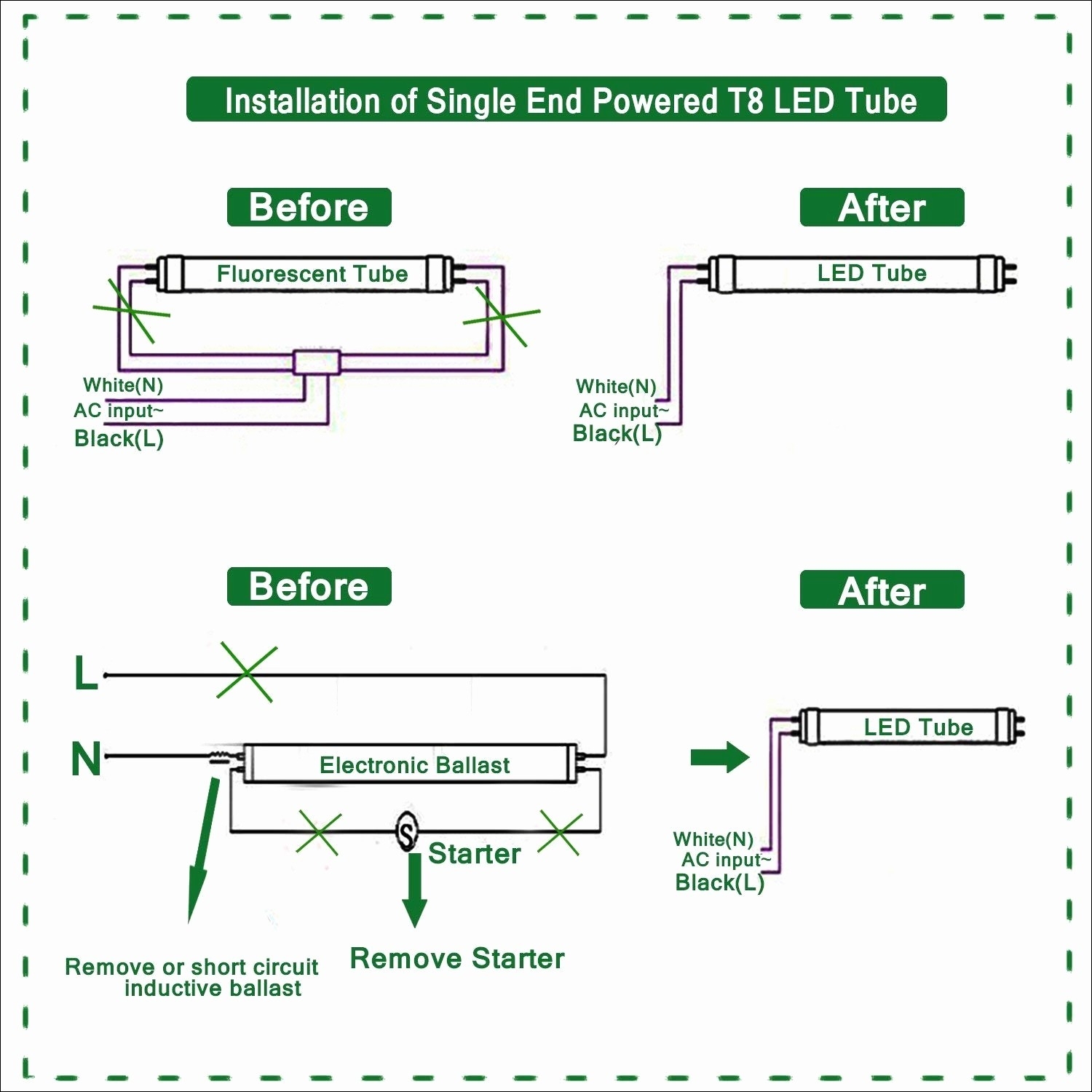

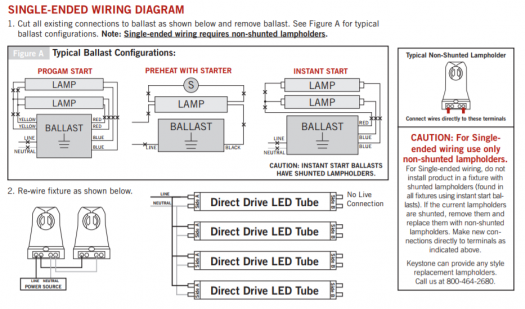

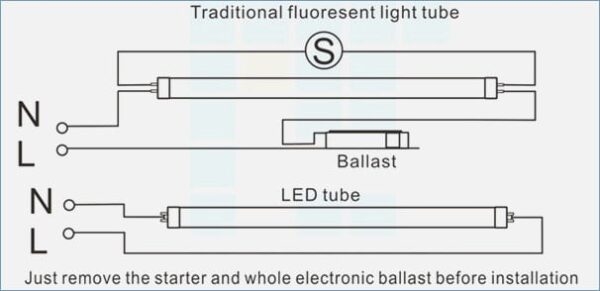

Led Ballast Bypass Wiring Diagram
Step 1: Turn Off Power
Before starting any electrical work, make sure to turn off the power to the fixture at the circuit breaker. This will prevent any accidents or shocks while working on the wiring.
Step 2: Remove the Ballast
Open the fixture and locate the ballast. Disconnect the wires from the ballast and remove it from the fixture. You may need to cut the wires connected to the ballast to remove it completely.
Step 3: Wire in the LED Bulbs
Once the ballast is removed, you can now wire in the LED bulbs. Connect the live wire (black) from the fixture to the live wire on the LED bulb. Connect the neutral wire (white) from the fixture to the neutral wire on the LED bulb. Secure the connections with wire nuts and close the fixture.
Step 4: Test the Lights
After wiring in the LED bulbs, turn the power back on and test the lights to ensure they are working properly. If the lights do not turn on, double-check the connections and make sure the wiring is correct.
In conclusion, bypassing the ballast in a fluorescent fixture to wire in LED bulbs is a straightforward process that can help improve energy efficiency and reduce maintenance costs. By following the wiring diagram and steps provided, you can easily convert your existing fixtures to LED lighting.
