When it comes to installing a Honeywell thermostat, it is important to have the correct wiring diagram to ensure proper installation. The Honeywell thermostat wiring diagram for a 6-wire setup can be a helpful guide for homeowners looking to install their thermostat themselves. By following the diagram carefully, you can ensure that your thermostat is wired correctly and functioning properly.
Having a clear understanding of the wiring diagram is essential before beginning the installation process. This will help you avoid any potential mistakes that could lead to your thermostat not working correctly. With the right information at hand, you can confidently install your Honeywell thermostat and enjoy the benefits of a properly functioning heating and cooling system in your home.
Honeywell Thermostat Wiring Diagram 6-Wire

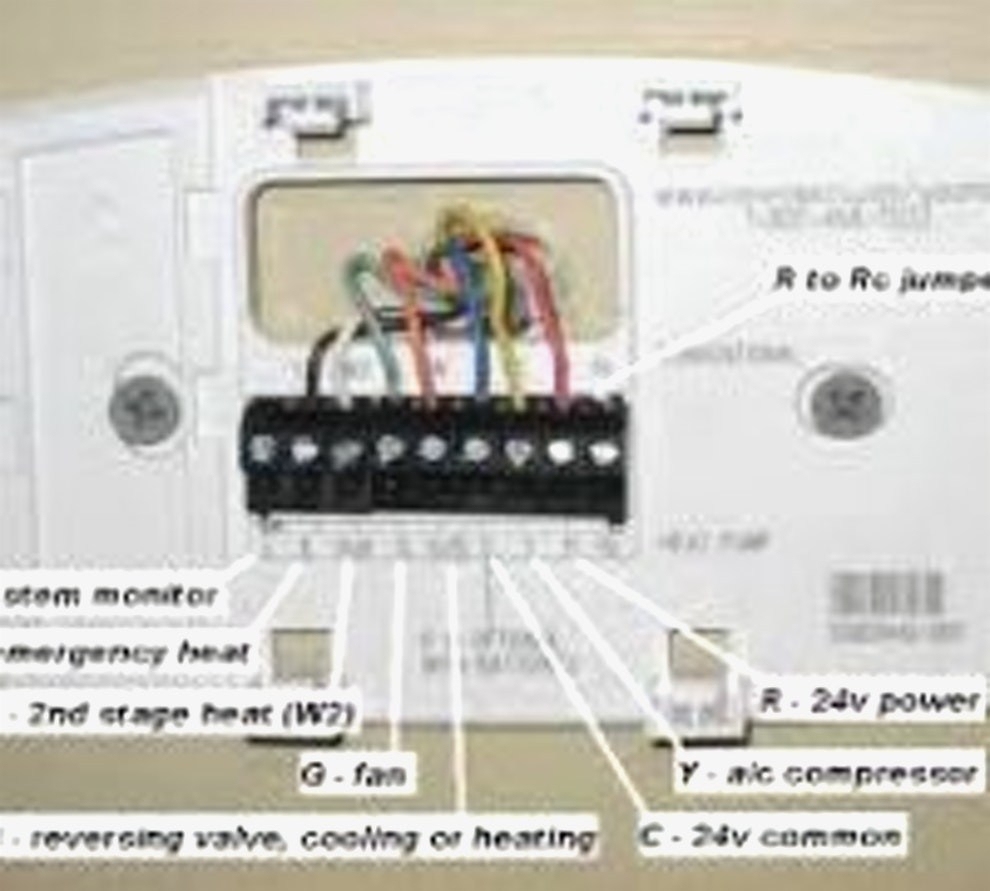

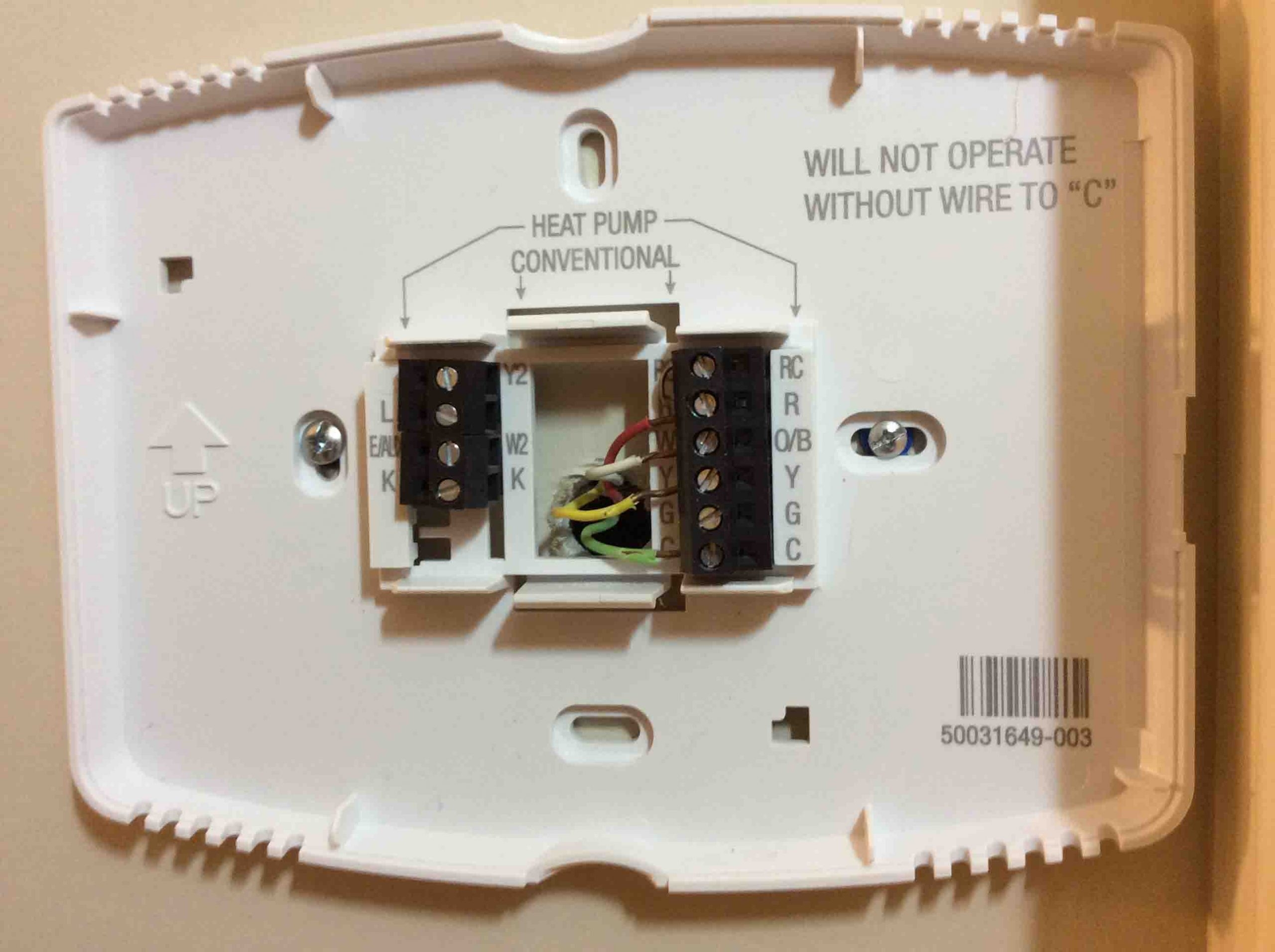

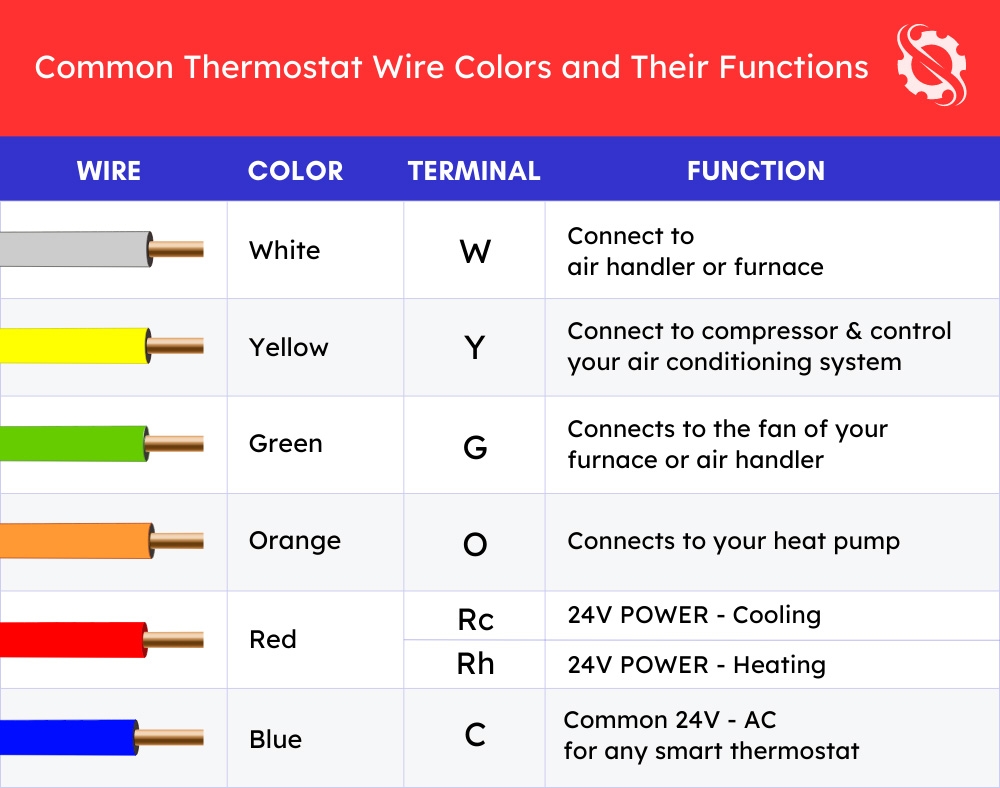

One common setup for a 6-wire thermostat includes connections for the R (power), C (common), W (heat), Y (cooling), G (fan), and O/B (reversing valve for heat pump) wires. Each wire serves a specific function and must be connected correctly for the thermostat to work properly. Referencing the wiring diagram provided by Honeywell can help you identify which wire goes where and ensure a successful installation.
It is important to turn off the power to your HVAC system before attempting to wire your thermostat. This will prevent any electrical hazards and ensure your safety during the installation process. Once the power is off, you can carefully follow the wiring diagram and connect each wire to its designated terminal on the thermostat. Double-check your connections before turning the power back on to avoid any issues.
After completing the wiring process, you can test your thermostat to make sure it is functioning correctly. Set the desired temperature on the thermostat and wait for your heating or cooling system to kick in. If everything is working as it should, you have successfully installed your Honeywell thermostat with a 6-wire setup. Enjoy the convenience and comfort of a properly functioning thermostat in your home.
In conclusion, having a clear understanding of the Honeywell thermostat wiring diagram for a 6-wire setup is essential for a successful installation. By following the diagram carefully and ensuring all connections are made correctly, you can enjoy the benefits of a properly functioning thermostat in your home. Remember to prioritize safety by turning off the power before starting the installation process and double-checking your connections before testing the thermostat.
