When it comes to installing a thermostat in your home, it’s important to understand the wiring diagram to ensure it functions properly. A four wire thermostat is a common type of thermostat that is used in many homes. Understanding how to wire it correctly can save you time and frustration in the long run.
Before you begin the installation process, it’s important to gather all the necessary tools and materials. This includes the thermostat, wire connectors, a screwdriver, and possibly a voltage tester. Make sure to turn off the power to your HVAC system before starting any work to avoid any accidents.

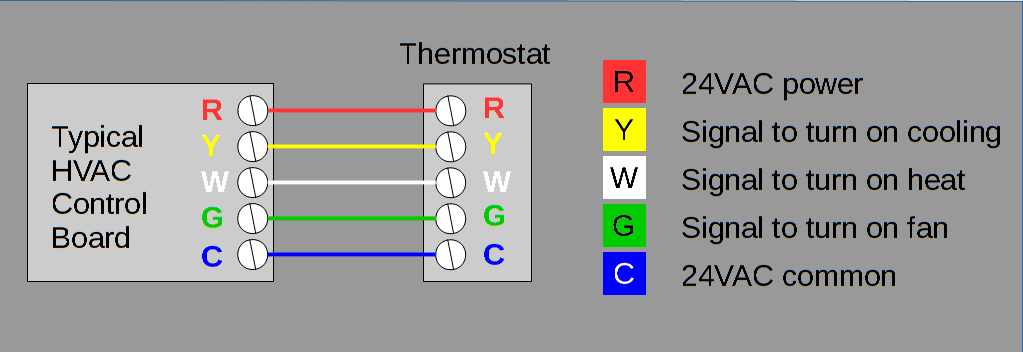

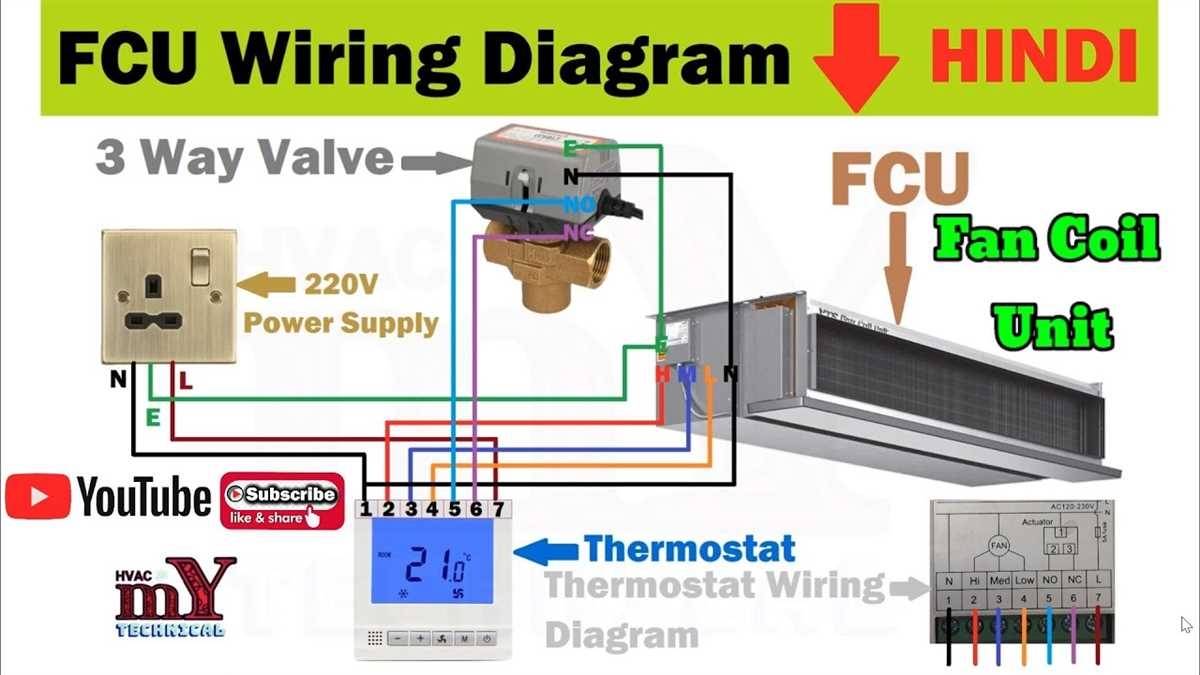

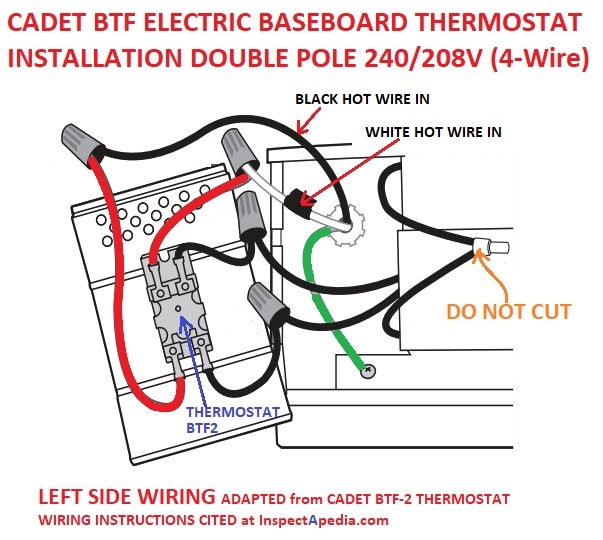

Four Wire Thermostat Wiring Diagram

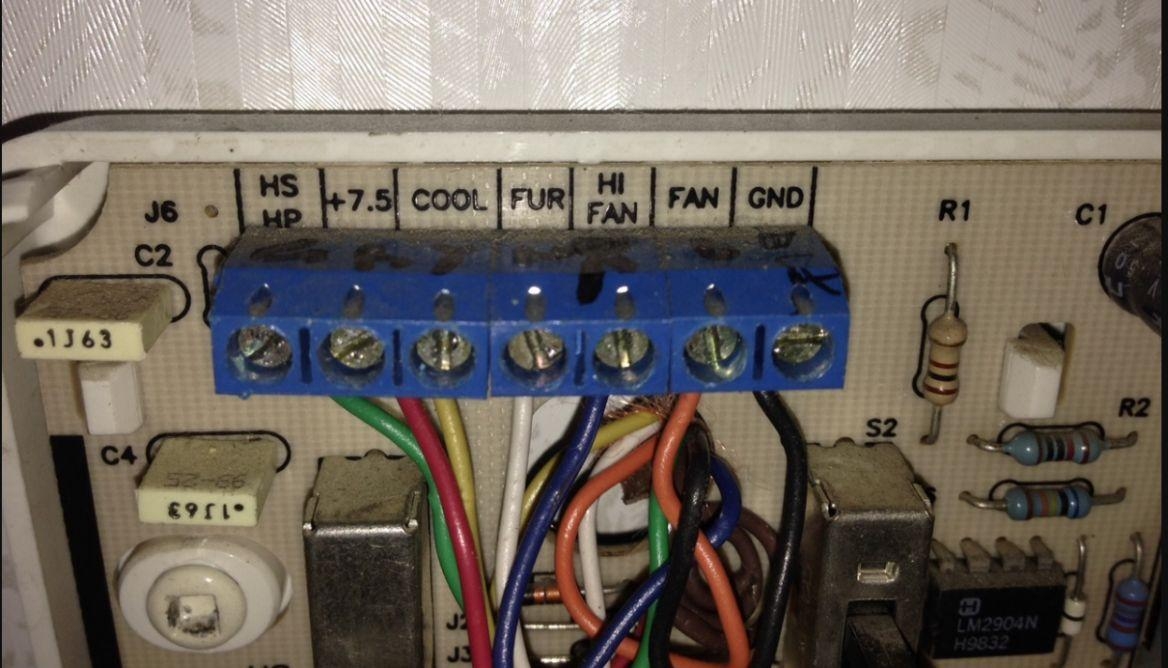

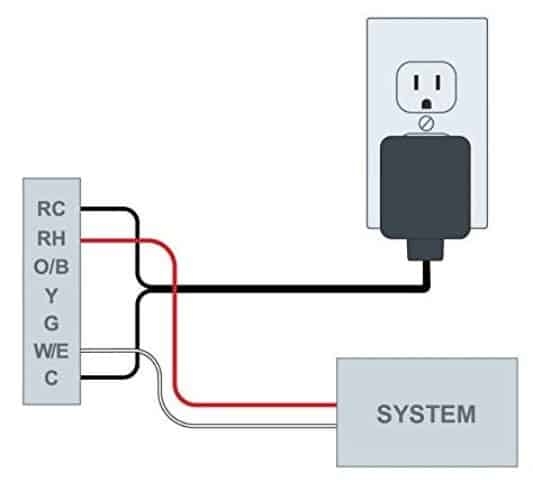

When looking at the wiring diagram for a four wire thermostat, you will typically see four wires labeled R, G, Y, and W. The R wire is the power wire, the G wire is for the fan, the Y wire is for cooling, and the W wire is for heating. It’s important to connect each wire to the correct terminal on both the thermostat and the HVAC system to ensure proper functionality.
To begin the wiring process, start by connecting the R wire to the R terminal on both the thermostat and the HVAC system. Next, connect the G wire to the G terminal, the Y wire to the Y terminal, and the W wire to the W terminal. Secure each connection with a wire connector to ensure a strong and stable connection.
Once all the wires are properly connected, you can turn the power back on to your HVAC system and test the thermostat to ensure it is working correctly. If you are unsure about any part of the wiring process, it’s always best to consult a professional for assistance to avoid any potential damage to your system.
In conclusion, understanding the wiring diagram for a four wire thermostat is essential for a successful installation. By following the correct wiring procedures and making sure each wire is connected to the right terminal, you can ensure your thermostat functions properly and efficiently. If you are unsure about any part of the process, don’t hesitate to seek help from a professional to avoid any costly mistakes.
