When it comes to controlling a light fixture from multiple locations in your home, a four-way light switch is a convenient solution. By installing four-way switches along with two three-way switches, you can easily control the light from four different locations. In this article, we will discuss the wiring diagram for a four-way light switch to help you understand how to install it correctly.
Before you start with the wiring process, it is essential to turn off the power to the circuit to ensure safety. Make sure to use a voltage tester to confirm that the power is off before proceeding with the installation. You will need basic tools such as a screwdriver, wire stripper, and electrical tape to complete the wiring process.

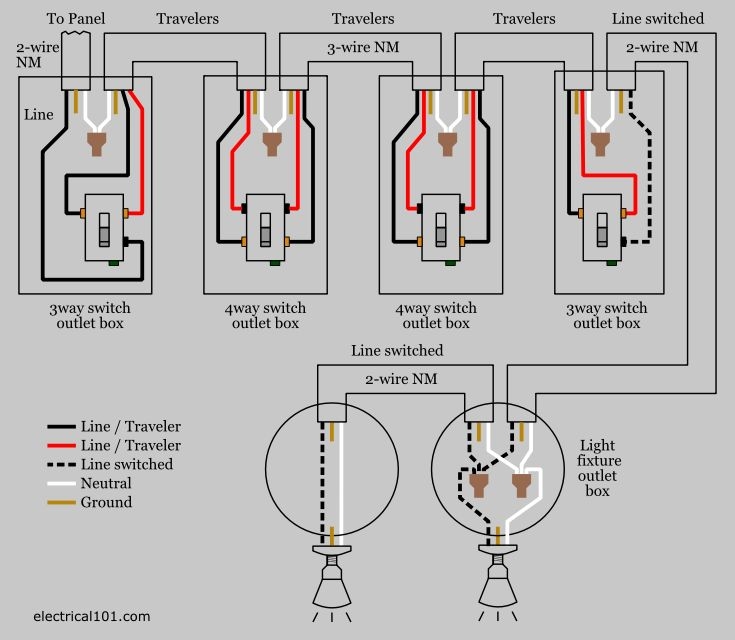

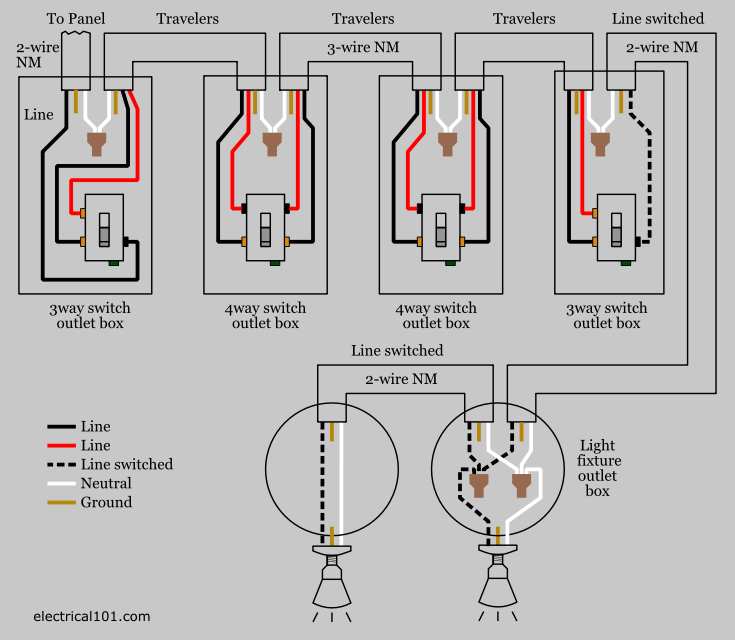

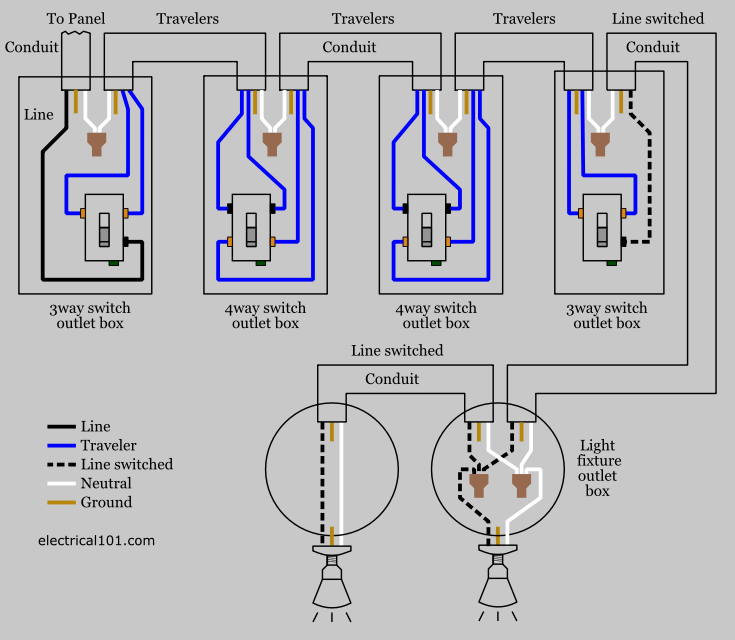

Four Way Light Switch Wiring Diagram

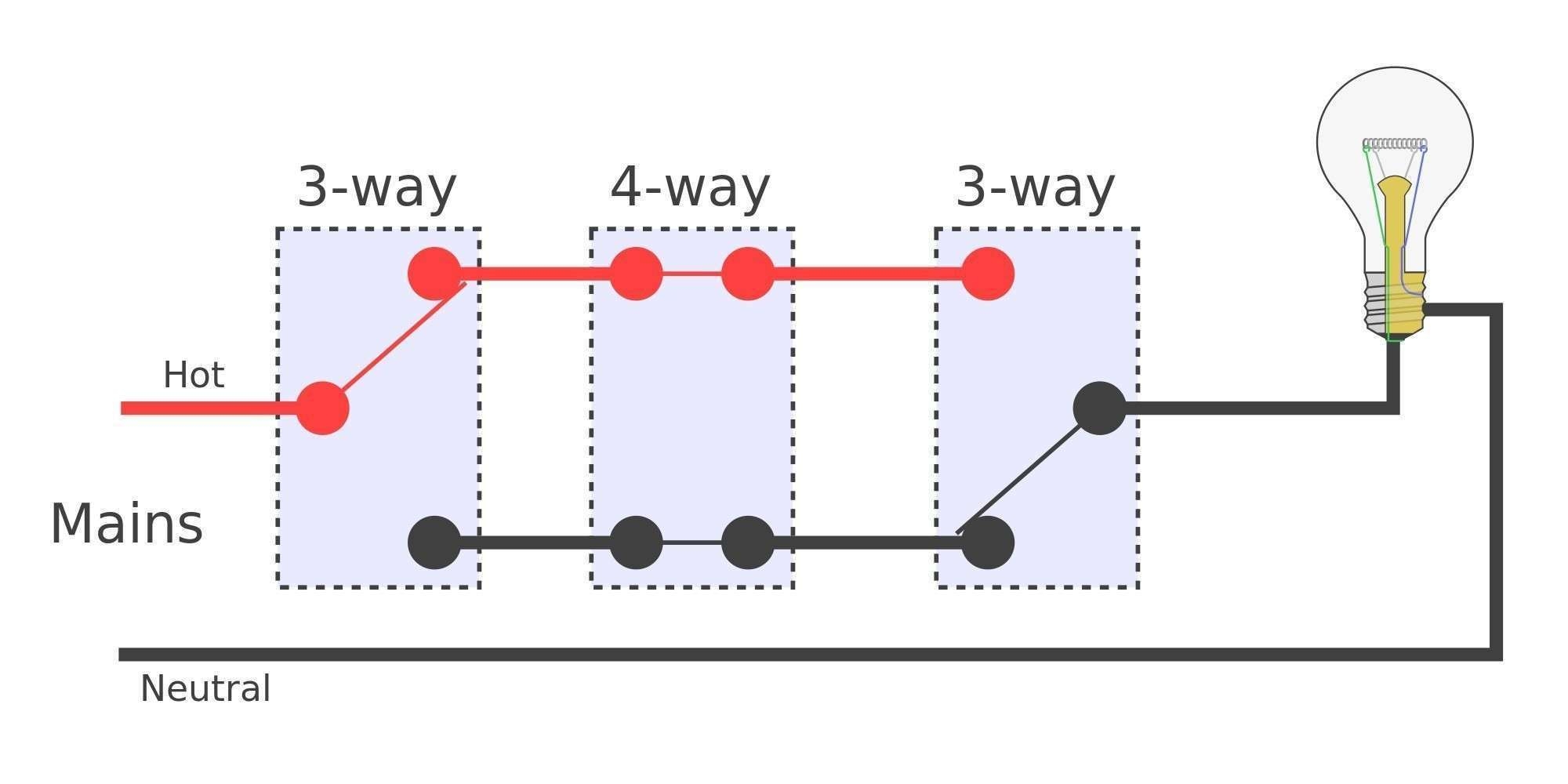

First, let’s understand the components involved in the four-way light switch wiring diagram. You will have a four-way switch, which is used to control the light fixture from the middle of the circuit. In addition to the four-way switch, you will also have two three-way switches at the beginning and end of the circuit. The wiring connections between these switches will determine how the light is controlled from different locations.

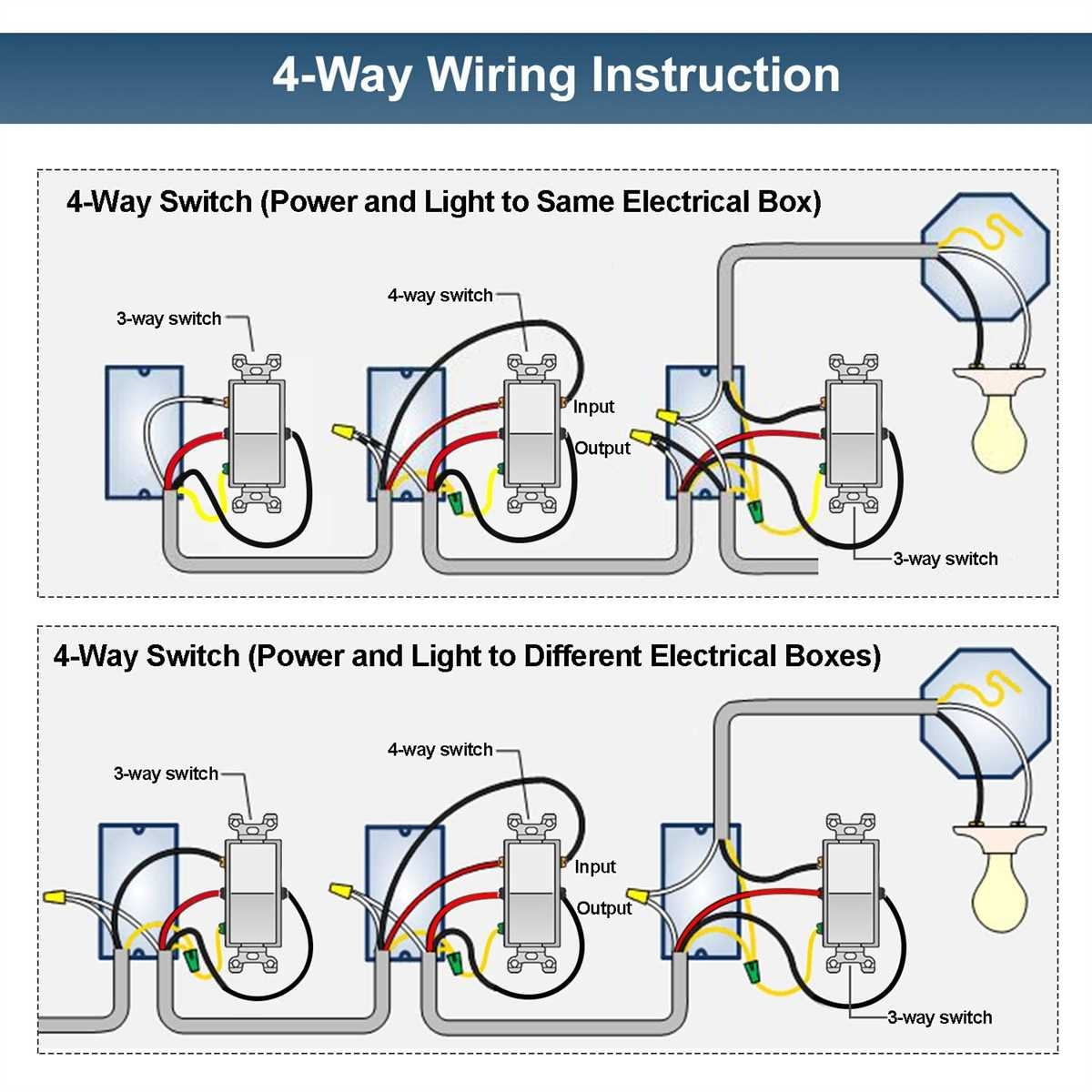

To start the wiring process, connect the power source to the first three-way switch. From the first three-way switch, run a 3-wire cable to the four-way switch. Next, connect another 3-wire cable from the four-way switch to the second three-way switch. Finally, run a 2-wire cable from the second three-way switch to the light fixture. Make sure to follow the wiring diagram carefully to ensure proper connections.
Once all the connections are made, secure the switches and the light fixture in place. Turn on the power and test the switches to make sure the light turns on and off from all locations. If the light does not function correctly, double-check the wiring connections to ensure everything is connected properly. With the right wiring diagram and proper installation, you can enjoy the convenience of controlling your light fixture from four different locations in your home.
In conclusion, a four-way light switch is a practical solution for controlling a light fixture from multiple locations. By following the wiring diagram and proper installation steps, you can easily set up a four-way switch in your home. Remember to prioritize safety by turning off the power before starting the installation process. With the right tools and knowledge, you can successfully install a four-way light switch to enhance the functionality of your lighting system.
