When it comes to towing a trailer, having the proper wiring is crucial for safety and functionality. A four pin trailer wiring diagram is a simple and easy-to-follow guide that shows you how to connect your trailer lights to your vehicle’s electrical system. This type of wiring is commonly used for small trailers, such as utility trailers, boat trailers, and more.
Understanding how to wire your trailer correctly can prevent accidents on the road and ensure that your lights, brakes, and signals are working properly. By following a four pin trailer wiring diagram, you can easily connect your trailer lights to your vehicle and be ready to hit the road in no time.

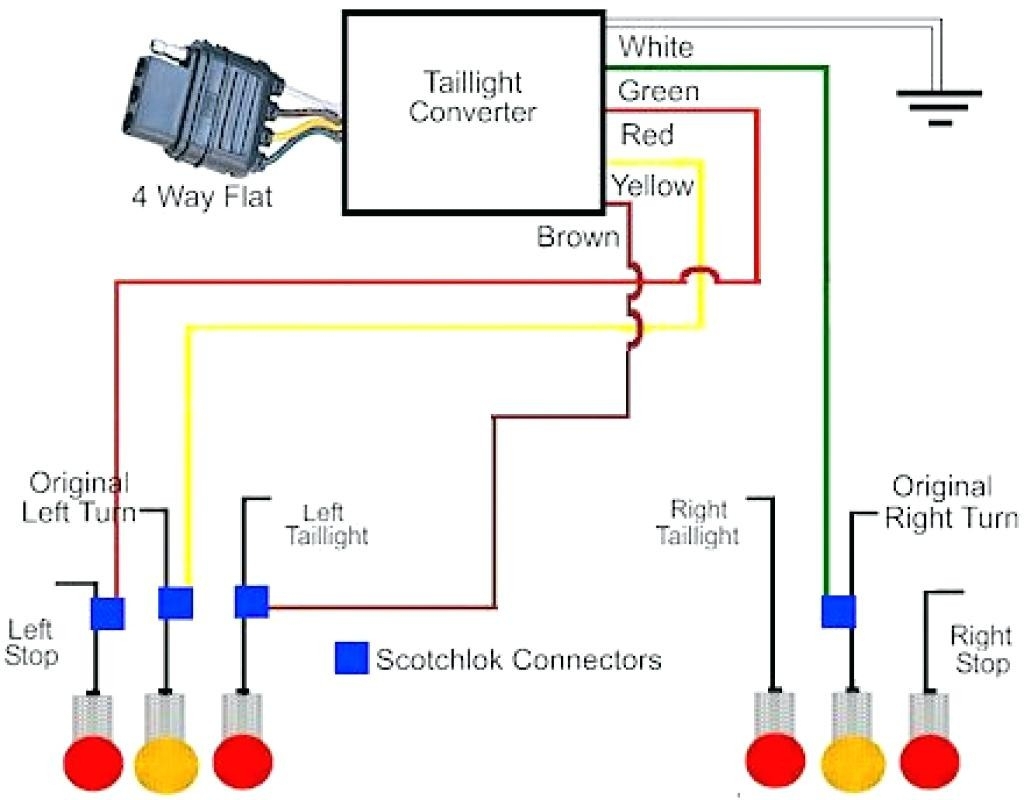

Four Pin Trailer Wiring Diagram

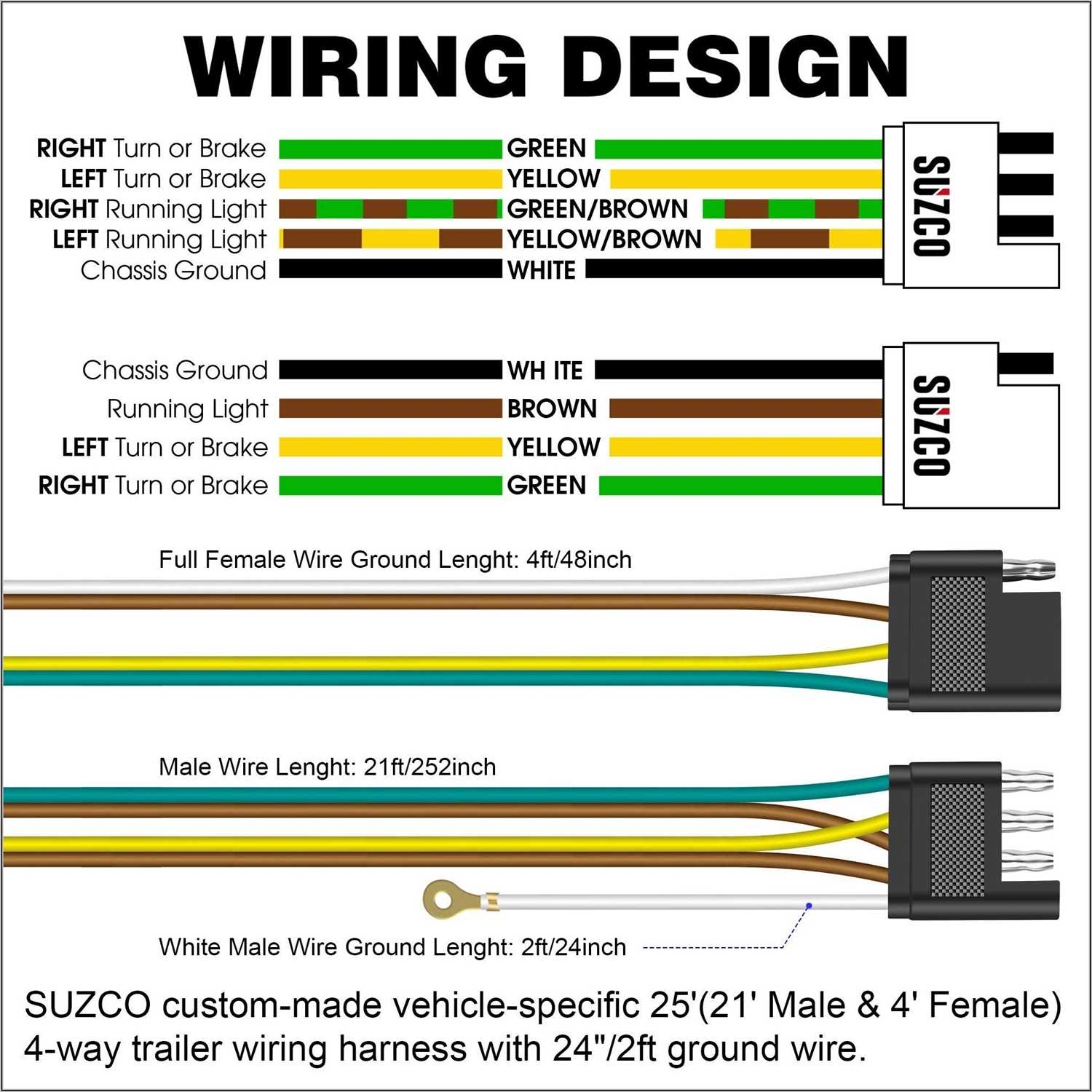

Typically, a four pin trailer wiring diagram will show you how to connect the following wires: the brown wire for the tail lights, the yellow wire for the left turn signal and brake light, the green wire for the right turn signal and brake light, and the white wire for the ground. By connecting these wires correctly, you can ensure that your trailer lights work in sync with your vehicle’s lights.
It’s important to note that not all vehicles come equipped with a standard four pin trailer wiring harness. If your vehicle does not have one, you may need to purchase a wiring kit and install it yourself. However, with the help of a four pin trailer wiring diagram, this process can be relatively simple and straightforward.
Before hitting the road with your trailer, always double-check your wiring connections to ensure everything is secure and functioning properly. It’s also a good idea to test your trailer lights before each trip to avoid any potential issues while on the road. By following a four pin trailer wiring diagram and taking the time to properly connect your trailer lights, you can enjoy a safe and stress-free towing experience.
In conclusion, a four pin trailer wiring diagram is a valuable tool for anyone towing a trailer. By following the instructions provided in the diagram, you can easily connect your trailer lights to your vehicle’s electrical system and ensure that everything is working correctly. With the right wiring in place, you can tow your trailer with confidence and peace of mind.
