When it comes to towing a trailer, having the proper wiring setup is essential for safety and functionality. One common wiring configuration used for trailers is the flat four wiring diagram. This diagram consists of four wires that control the basic functions of the trailer lights, including the turn signals, brake lights, and running lights.
Understanding the flat four trailer wiring diagram is crucial for anyone who plans to tow a trailer regularly. By following this diagram, you can ensure that your trailer lights are working properly, making it easier for other drivers to see your signals and helping to prevent accidents on the road.
Flat Four Trailer Wiring Diagram
Flat Four Trailer Wiring Diagram

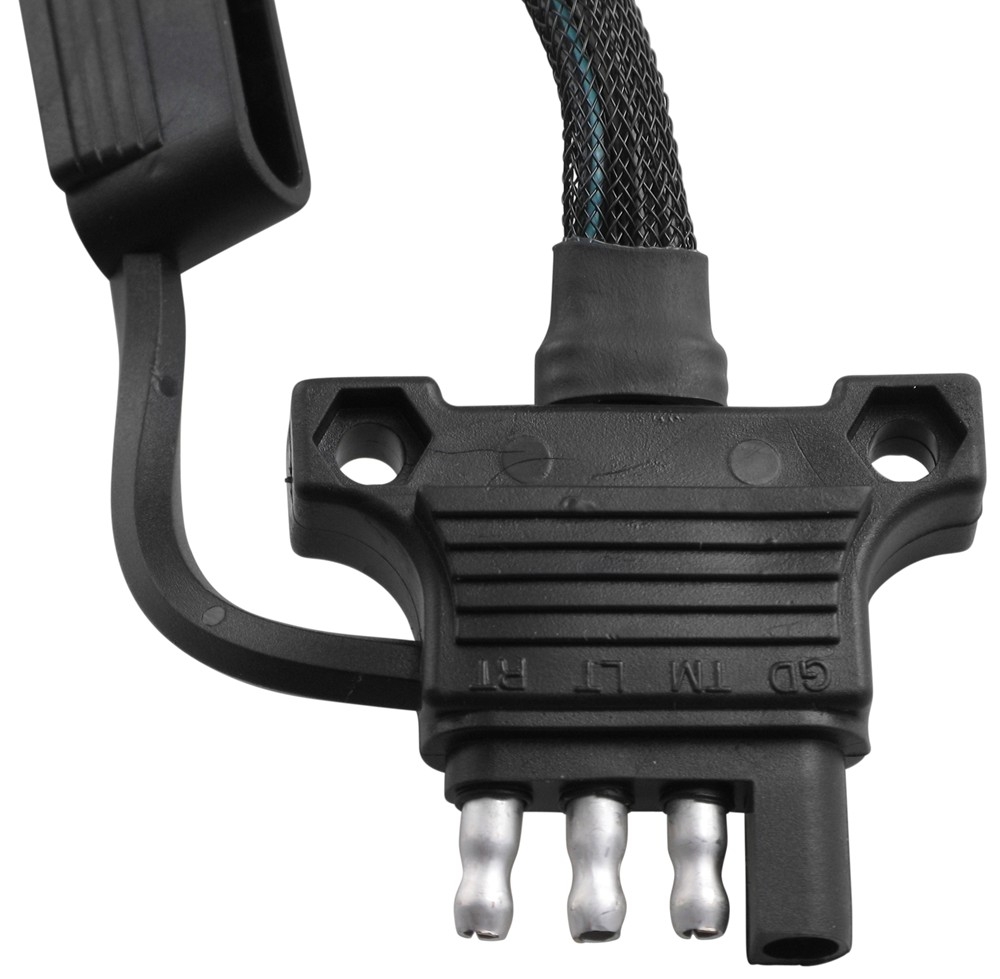

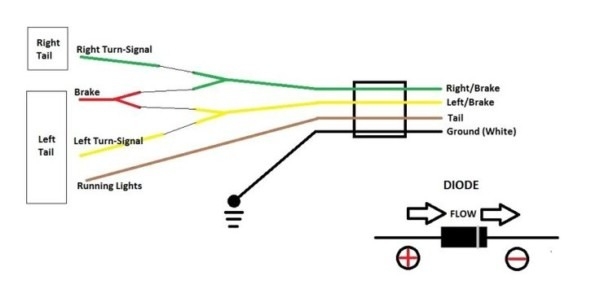

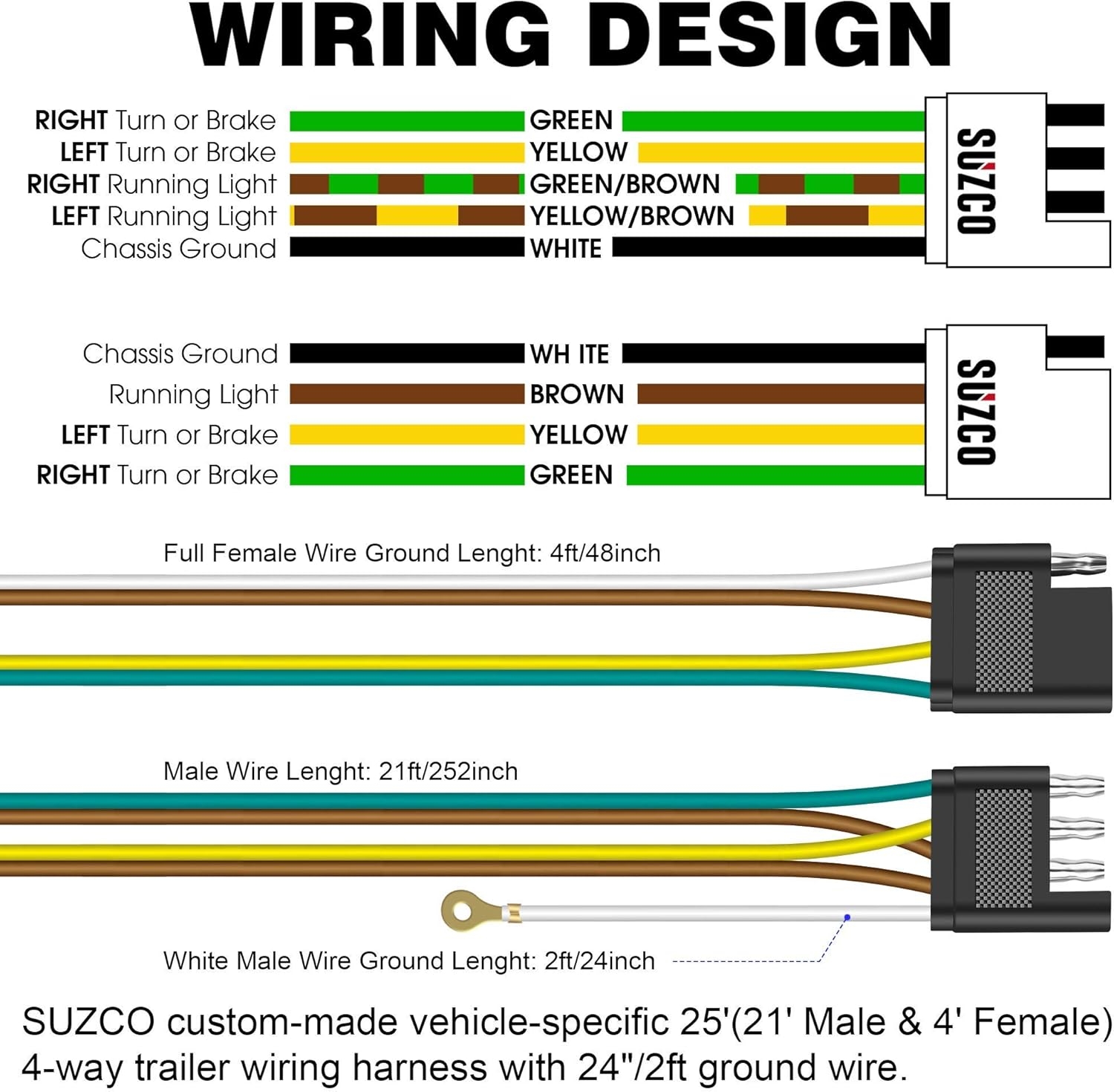

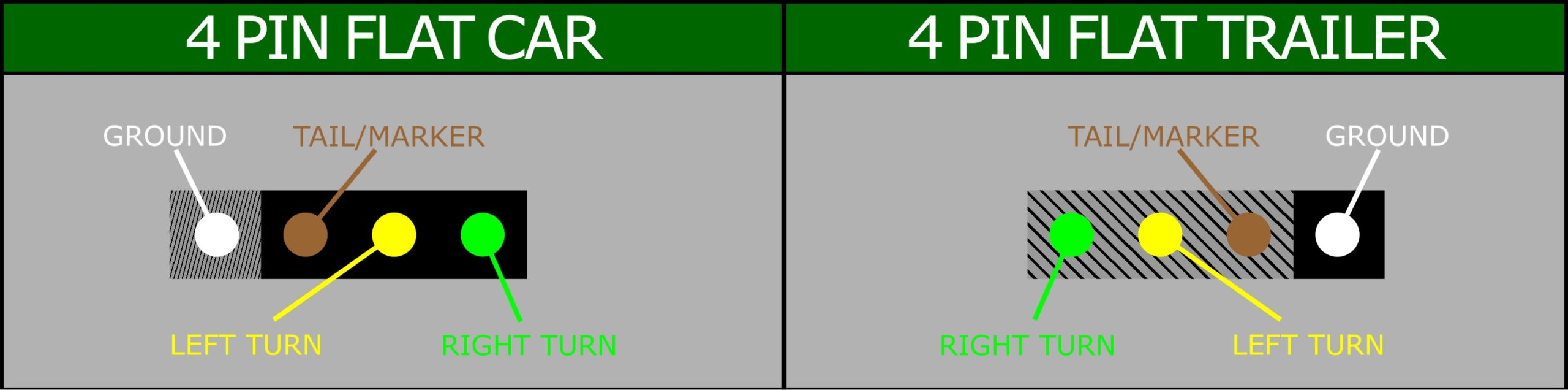

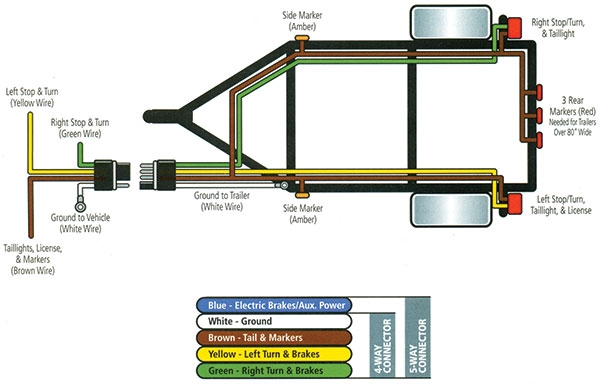

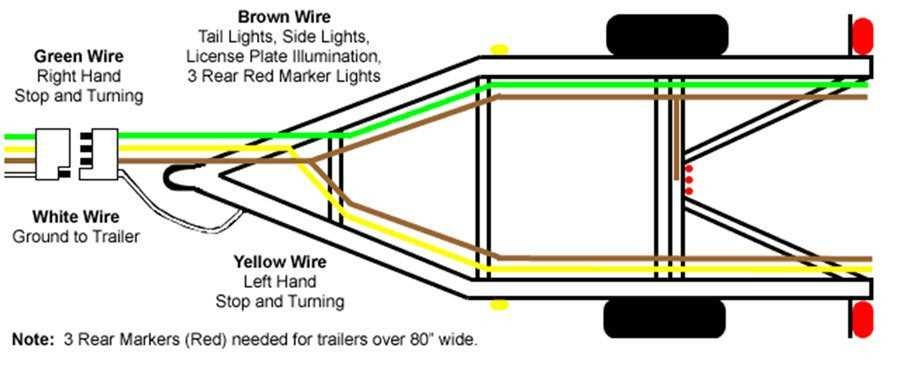

The flat four trailer wiring diagram consists of four wires color-coded for easy identification. The white wire is the ground wire, which connects the trailer lights to the vehicle’s chassis. The brown wire controls the running lights, while the yellow wire controls the left turn signal and brake light. The green wire controls the right turn signal and brake light.
When connecting the flat four trailer wiring diagram to your vehicle, it is important to use a wiring harness that matches the color-coding of the diagram. This will ensure that the correct signals are sent from your vehicle to the trailer lights, allowing for safe and reliable operation while towing.
In addition to the basic functions outlined in the flat four trailer wiring diagram, some trailers may also require additional wiring for features such as electric brakes or reverse lights. It is important to consult the wiring diagram for your specific trailer to ensure that all necessary connections are made for proper functionality.
Overall, understanding and following the flat four trailer wiring diagram is essential for safe and efficient towing. By properly connecting the wires and ensuring that all signals are functioning correctly, you can help prevent accidents on the road and make your towing experience smoother and more enjoyable.
Whether you are a seasoned trailer owner or new to towing, familiarizing yourself with the flat four trailer wiring diagram is a crucial step in ensuring the safety and functionality of your trailer lights. By following this diagram and making the proper connections, you can hit the road with confidence and peace of mind.
