The Cat5e Ethernet cable is a popular choice for networking due to its reliability and affordability. In order to properly set up a Cat5e Ethernet connection, it is important to understand the wiring diagram and how to correctly configure the cables.
By following the Cat5e Ethernet cable wiring diagram, you can easily connect your devices and ensure a stable and fast network connection. Whether you are setting up a home network or a business network, understanding the wiring diagram is crucial for a successful installation.
Ethernet Cable Wiring Diagram Cat5e
Ethernet Cable Wiring Diagram Cat5e

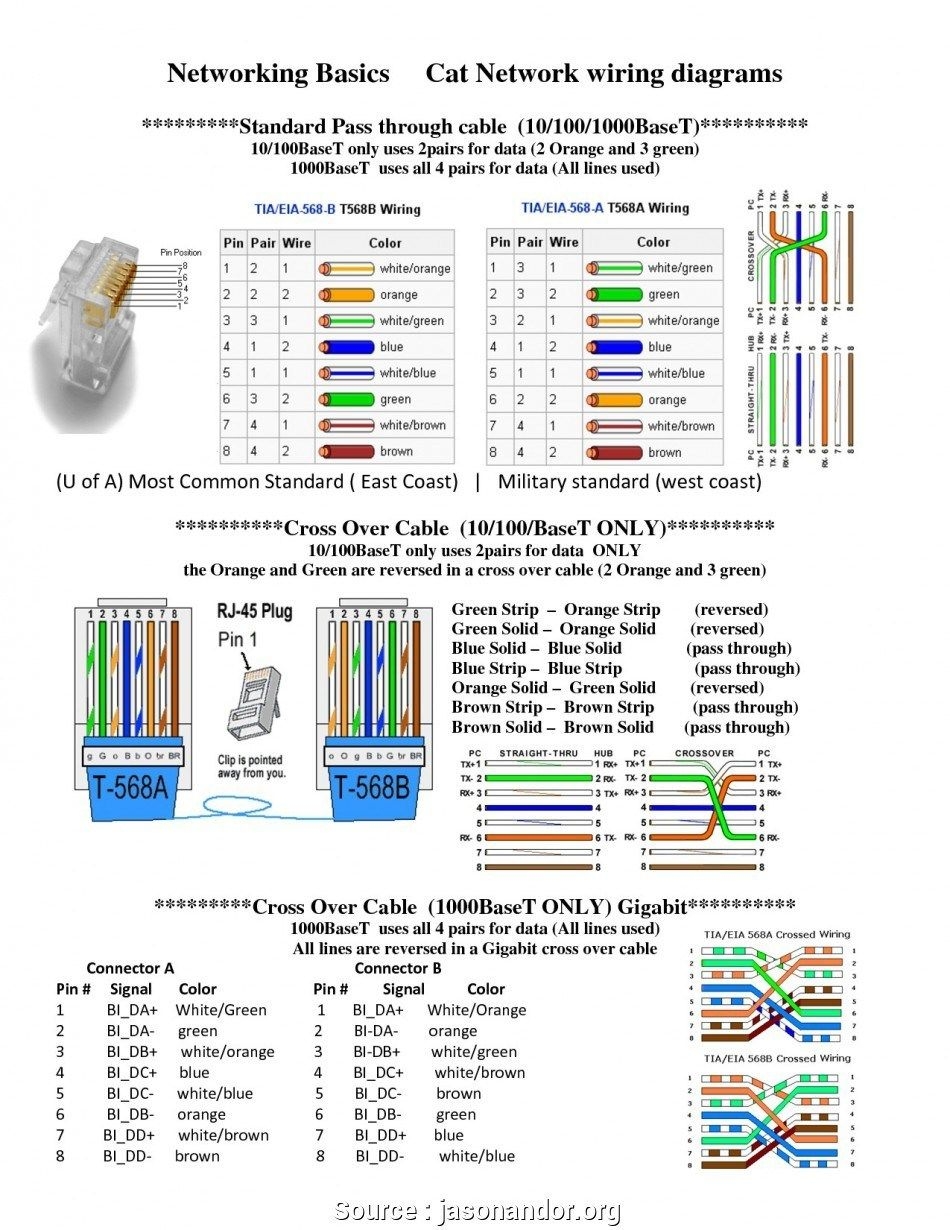

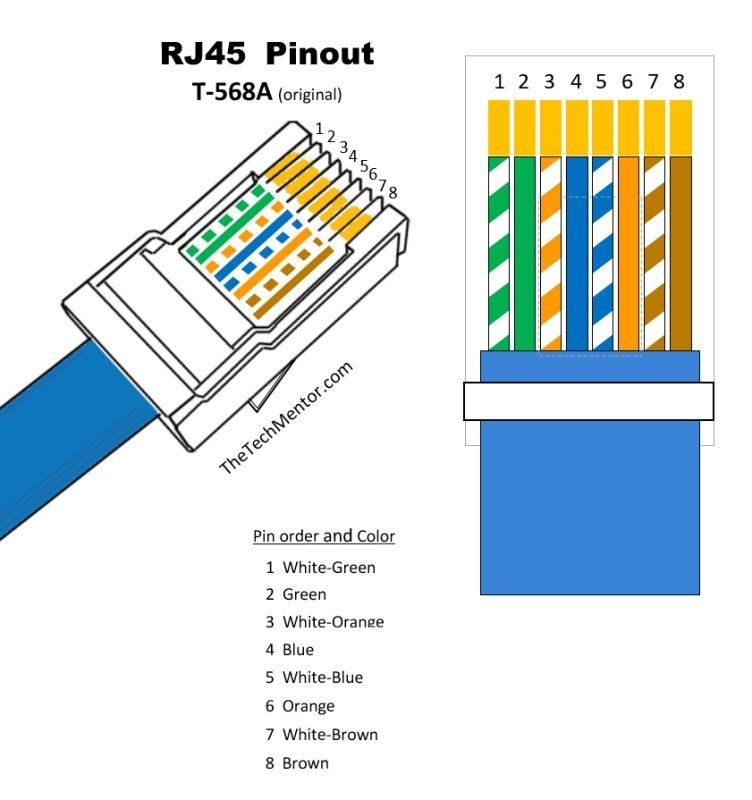

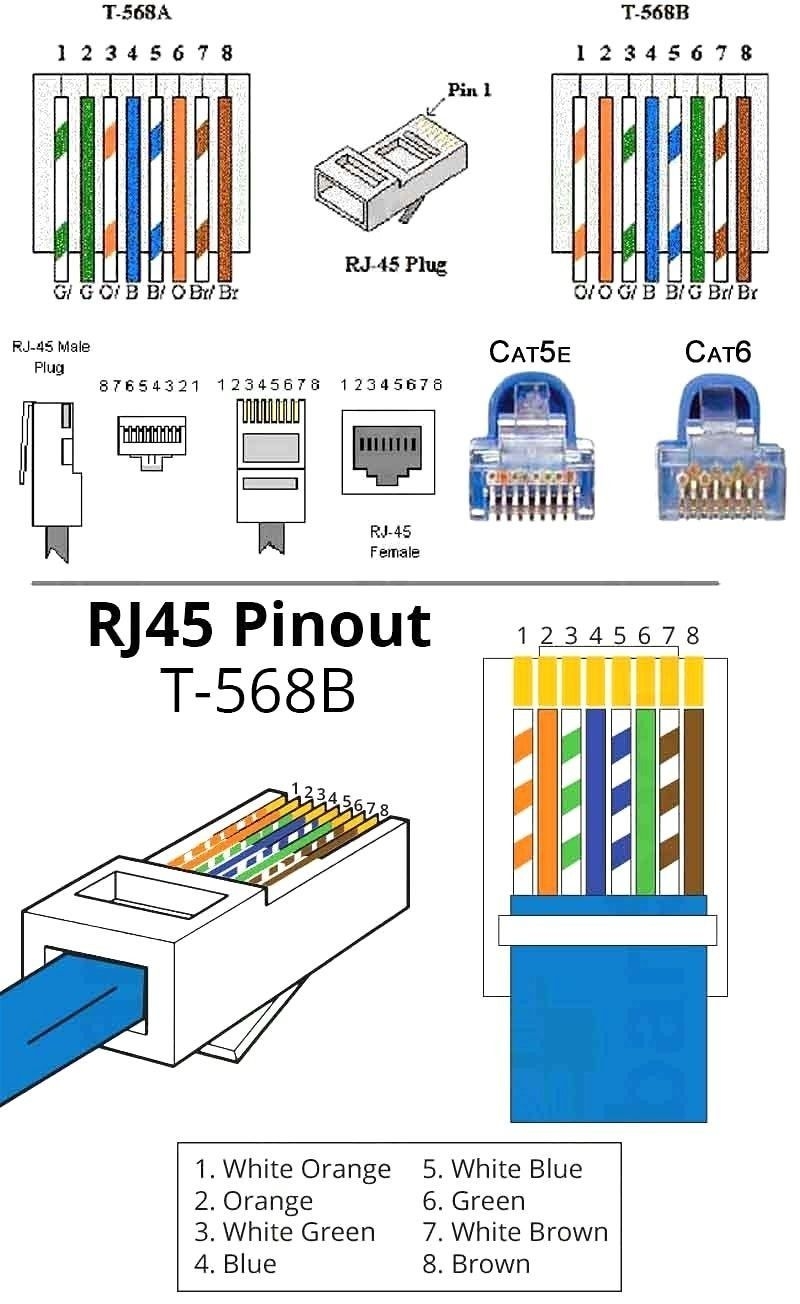

The Cat5e Ethernet cable consists of four pairs of twisted cables, with each pair assigned a specific color code. The wiring diagram for a Cat5e cable is as follows:
Pair 1 – White/Blue, Blue
Pair 2 – White/Orange, Orange
Pair 3 – White/Green, Green
Pair 4 – White/Brown, Brown
When connecting the Cat5e Ethernet cable, it is important to match the color codes on both ends of the cable. This ensures that the data signals are transmitted correctly and prevents any connectivity issues.

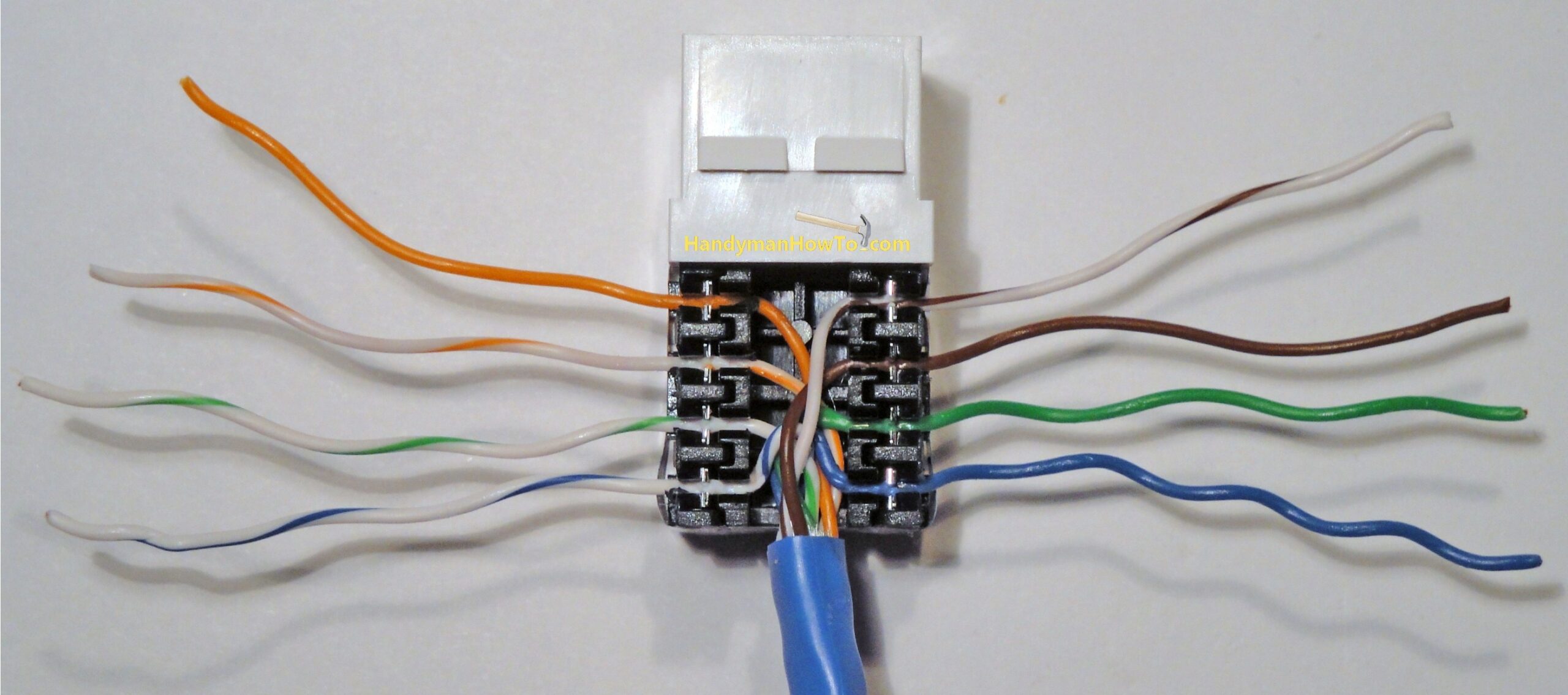

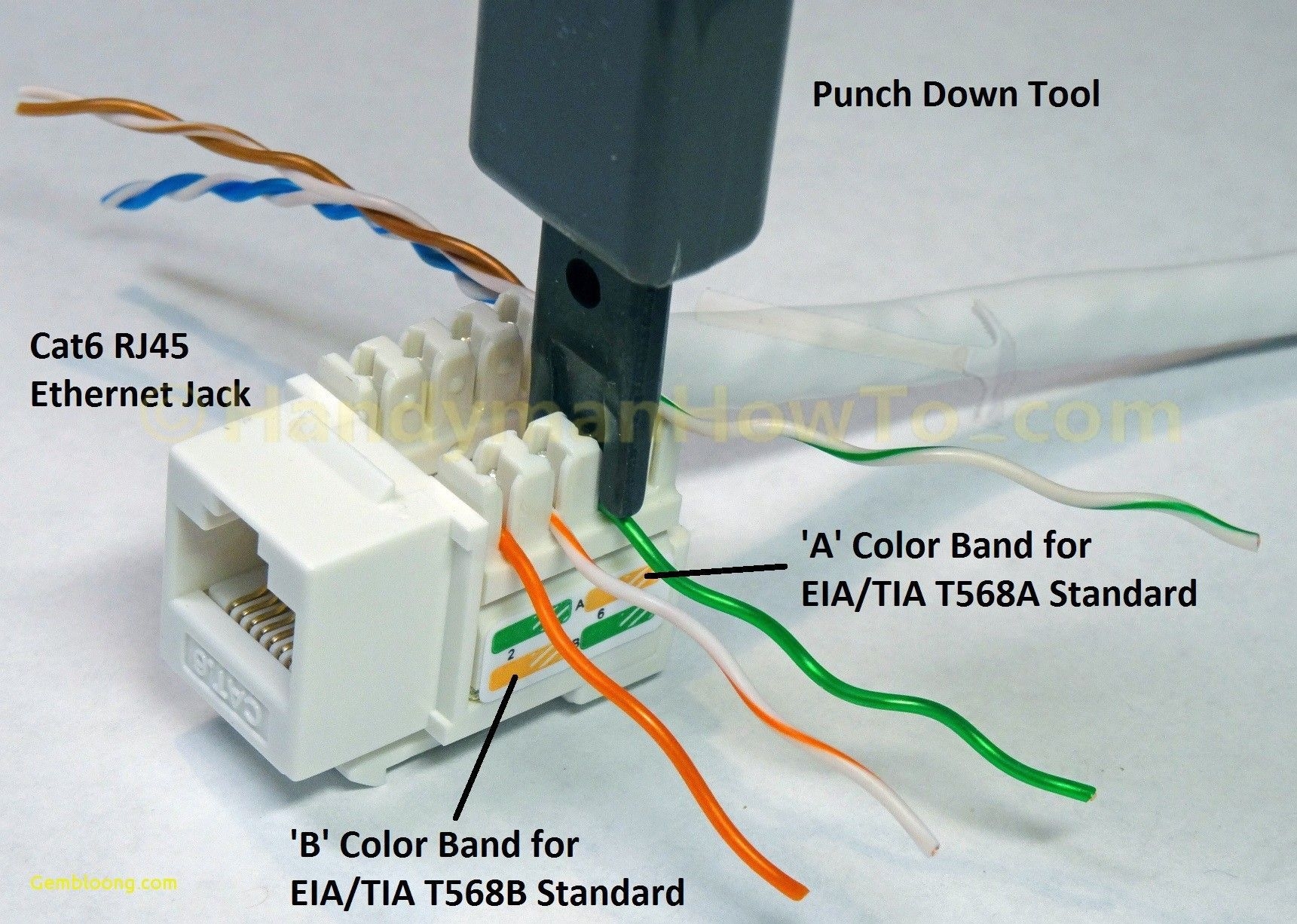

Additionally, using a punch-down tool to secure the cables in the Ethernet jack is recommended to ensure a secure connection. Once the cables are properly connected, you can test the network connection to ensure that everything is working as intended.
Overall, understanding the Cat5e Ethernet cable wiring diagram is essential for setting up a reliable and efficient network connection. By following the color codes and properly securing the cables, you can ensure a stable and fast network connection for all your devices.
In conclusion, the Cat5e Ethernet cable wiring diagram is a crucial component of setting up a network connection. By familiarizing yourself with the color codes and proper installation techniques, you can ensure a successful installation and enjoy a reliable network connection for all your devices.
