When it comes to setting up a network, understanding how to wire Ethernet cables is crucial. Ethernet cables are used to connect devices within a local area network (LAN) or to connect a device to the internet. By following a proper wiring diagram, you can ensure that your network operates efficiently and reliably.
It is important to note that there are different types of Ethernet cables, such as Cat5, Cat5e, Cat6, and Cat6a, each with varying capabilities and speeds. However, the basic wiring principles remain the same regardless of the cable type. By following a standardized wiring diagram, you can easily create reliable connections between devices.
Ethernet Cable Wiring Diagram
Ethernet Cable Wiring Diagram

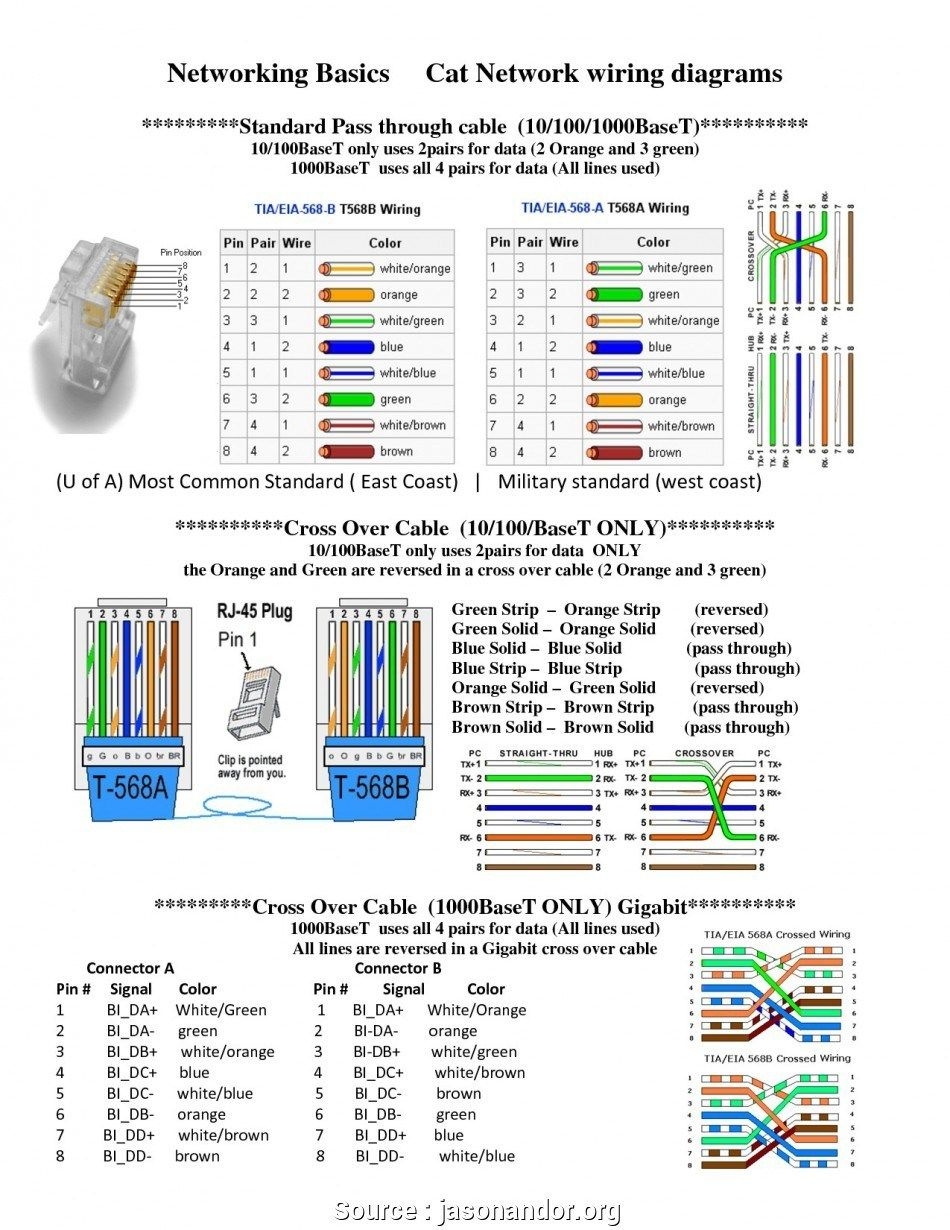

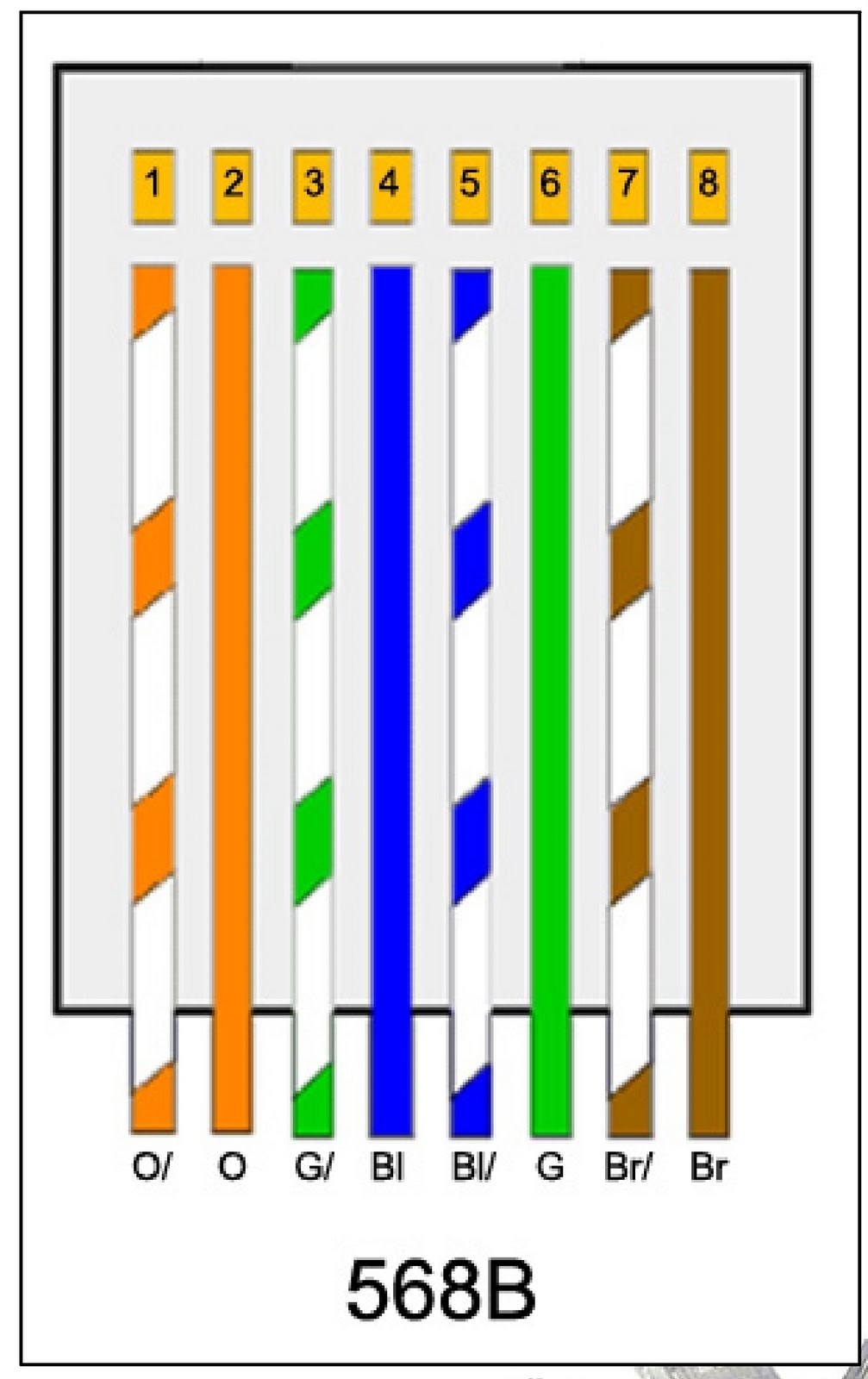

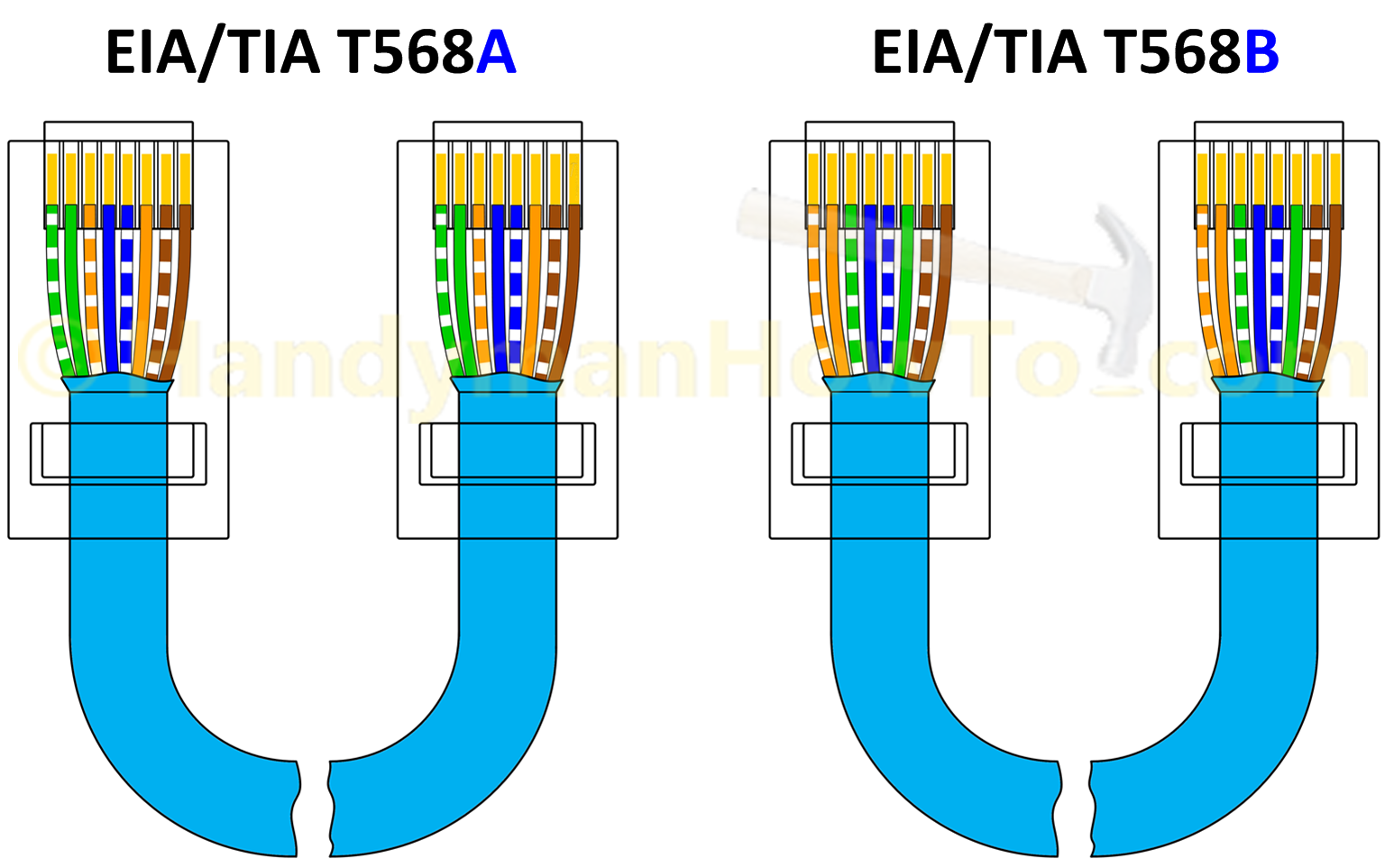

Typically, Ethernet cables have eight wires, which are twisted in pairs to reduce interference. The wiring diagram for Ethernet cables follows the T568A or T568B standard, which specifies the order in which the wires should be connected to the RJ45 connector. The diagram includes the color-coding for each wire pair, ensuring that the connections are made correctly.
To wire an Ethernet cable, you will need a crimper tool, Ethernet cable, RJ45 connectors, and a wiring diagram. Begin by stripping the outer jacket of the cable, then carefully untwist and arrange the wires according to the diagram. Once the wires are in the correct order, insert them into the RJ45 connector and crimp the connector to secure the wires in place.
After crimping the connector, it is essential to test the cable using a cable tester to ensure that the connections are correct and that there are no shorts or breaks in the cable. Testing the cable will help you identify any issues before connecting devices to the network, saving you time and frustration in the long run.
By following the Ethernet cable wiring diagram and using the proper tools, you can create reliable connections for your network. Whether you are setting up a small home network or a large office network, understanding how to wire Ethernet cables is an essential skill. With the right knowledge and equipment, you can ensure that your network operates smoothly and efficiently.
Overall, Ethernet cable wiring is a fundamental aspect of network setup. By following the appropriate wiring diagram and using the correct tools, you can create reliable connections for your network. Remember to test your cables before connecting devices to ensure optimal performance.
