Electrical wall outlets are an essential component of any home’s electrical system. Proper installation and wiring of these outlets are crucial for ensuring the safety and functionality of your electrical devices. Understanding the wiring diagram of an electrical wall outlet can help you troubleshoot any issues that may arise and make any necessary repairs.
Before attempting to work on any electrical wiring, it is important to turn off the power to the circuit you will be working on to avoid any accidents or injuries. It is also recommended to consult a professional electrician if you are unsure or uncomfortable with working on electrical systems.
Electrical Wall Outlet Wiring Diagram

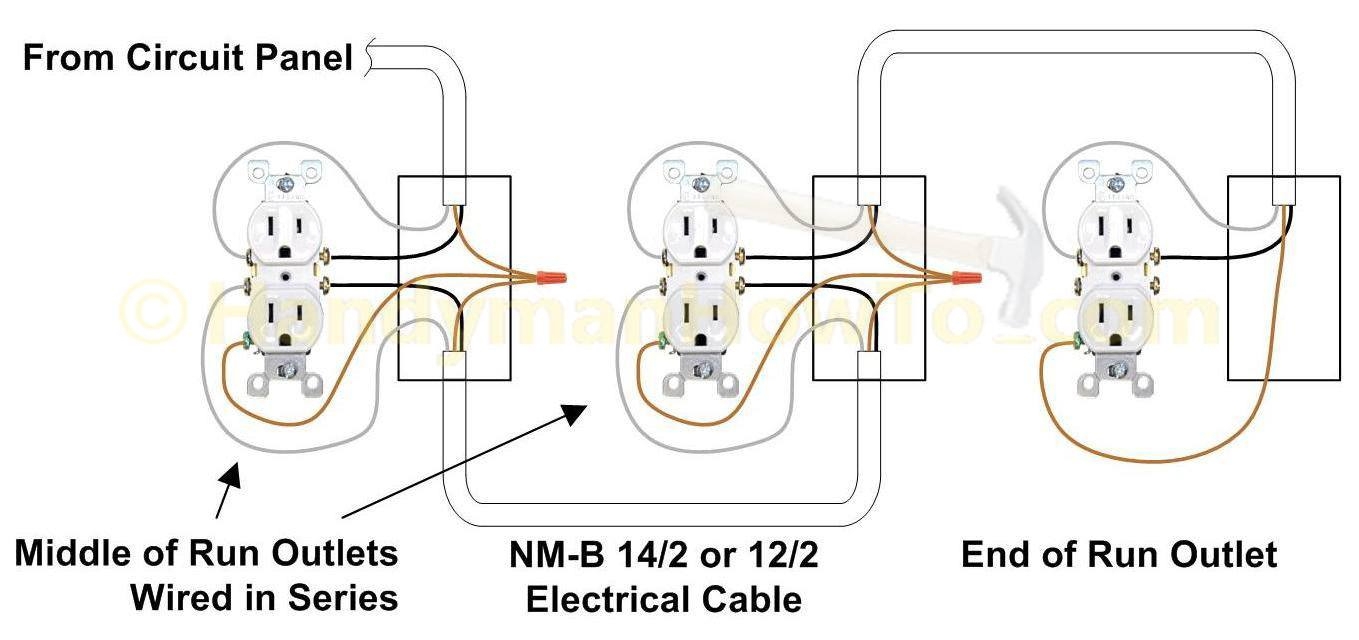

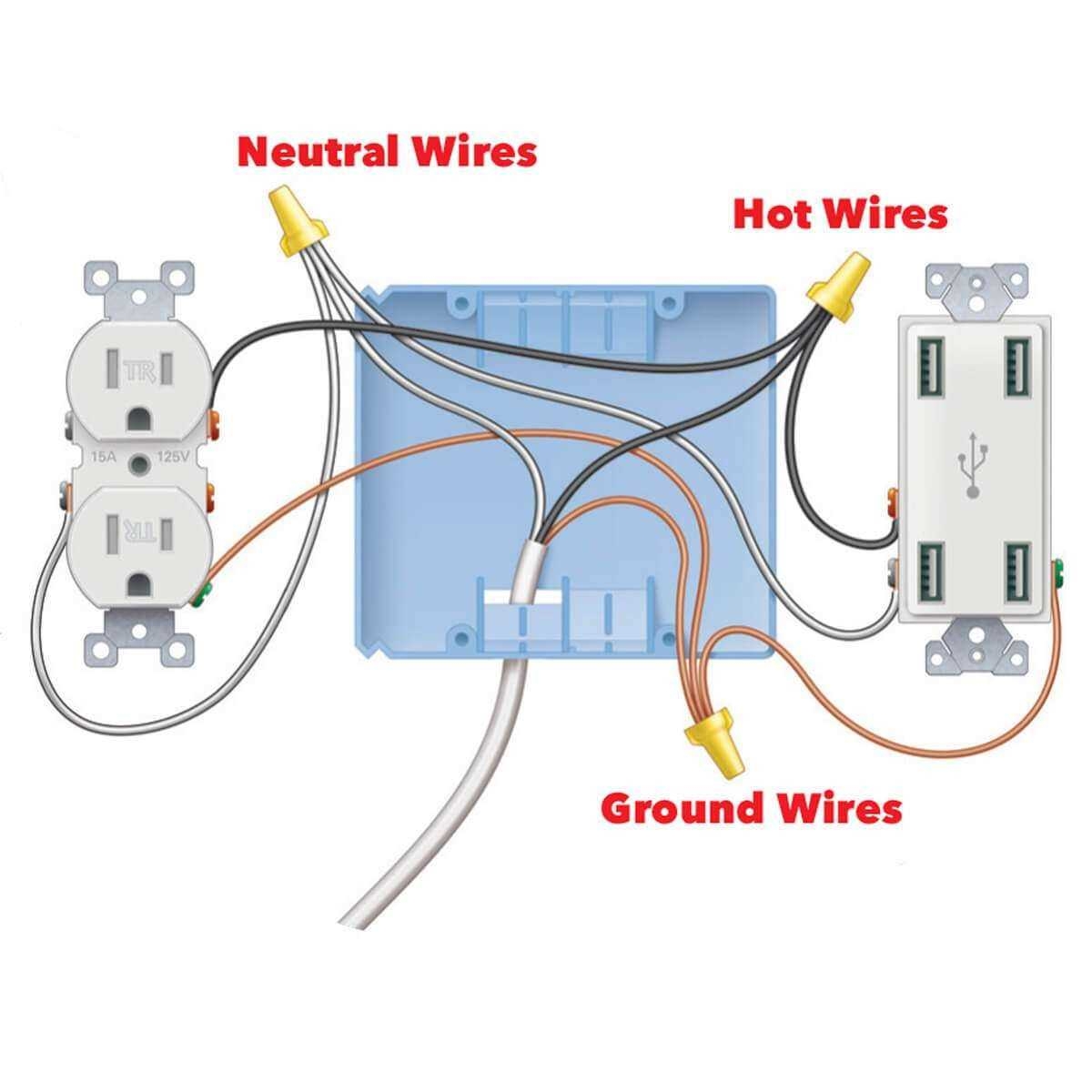

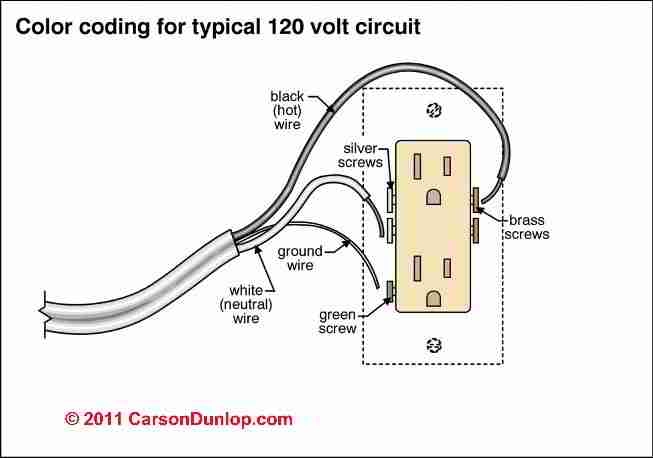

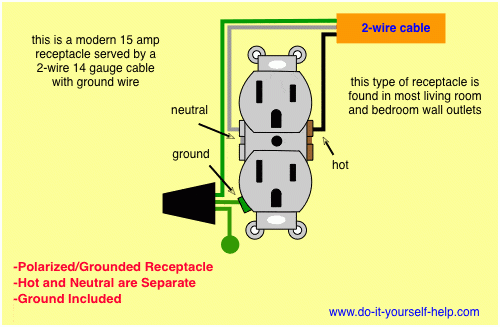

When looking at a typical electrical wall outlet wiring diagram, you will see three terminals – the “hot” terminal (brass screw), the “neutral” terminal (silver screw), and the “ground” terminal (green screw). The hot wire carries the electrical current to the outlet, the neutral wire completes the circuit, and the ground wire provides a path for any stray electrical current to safely dissipate.

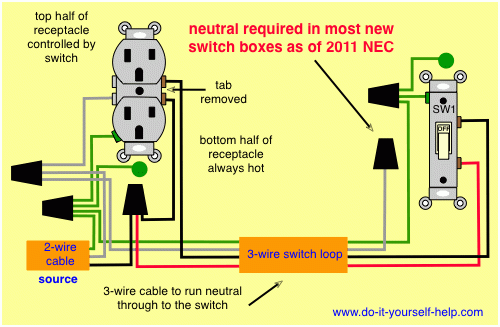

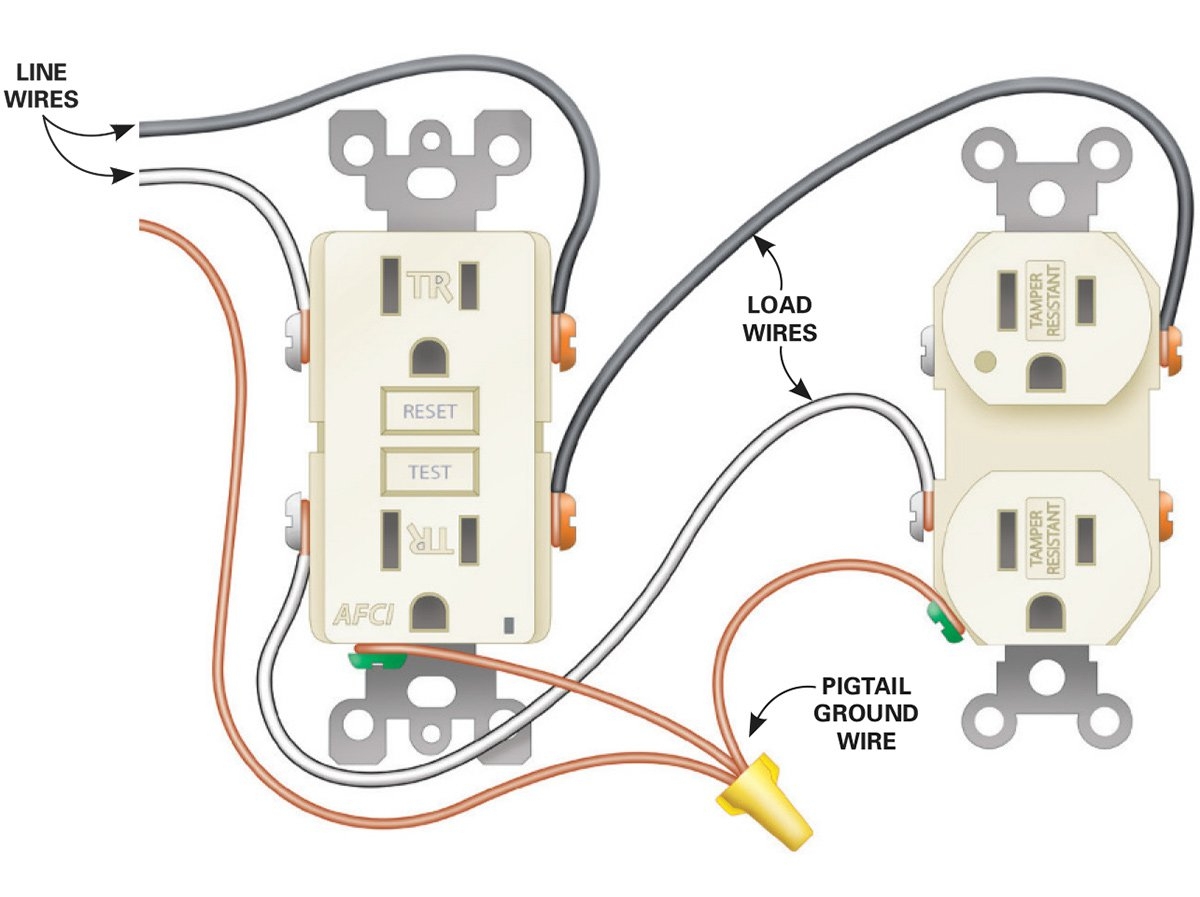

To wire an electrical wall outlet, you will need to connect the hot wire to the brass screw, the neutral wire to the silver screw, and the ground wire to the green screw. It is important to ensure that all connections are secure and that no bare wires are exposed to prevent any electrical hazards. Once the wiring is complete, you can safely turn the power back on and test the outlet to ensure it is functioning properly.
If you encounter any issues with your electrical wall outlet, such as a lack of power or unusual sparking or buzzing sounds, it is important to investigate the problem immediately. Using the wiring diagram as a reference, you can trace the source of the issue and make any necessary repairs or replacements to ensure the safety of your home’s electrical system.
In conclusion, understanding the wiring diagram of an electrical wall outlet is essential for maintaining the functionality and safety of your home’s electrical system. By following proper wiring practices and consulting a professional electrician when needed, you can ensure that your electrical outlets are installed correctly and working efficiently.
