When it comes to installing a smart thermostat like Ecobee, understanding the wiring diagram is crucial. The wiring diagram shows how your HVAC system is connected to the thermostat, helping you ensure a proper installation and optimal performance. Without the correct wiring, your Ecobee thermostat may not function correctly, leading to heating or cooling issues in your home.
Before you start the installation process, it’s important to familiarize yourself with the Ecobee wiring diagram. This will help you identify the different wires and their respective terminals on the thermostat. By following the wiring diagram carefully, you can avoid any potential mistakes that may cause problems down the line.

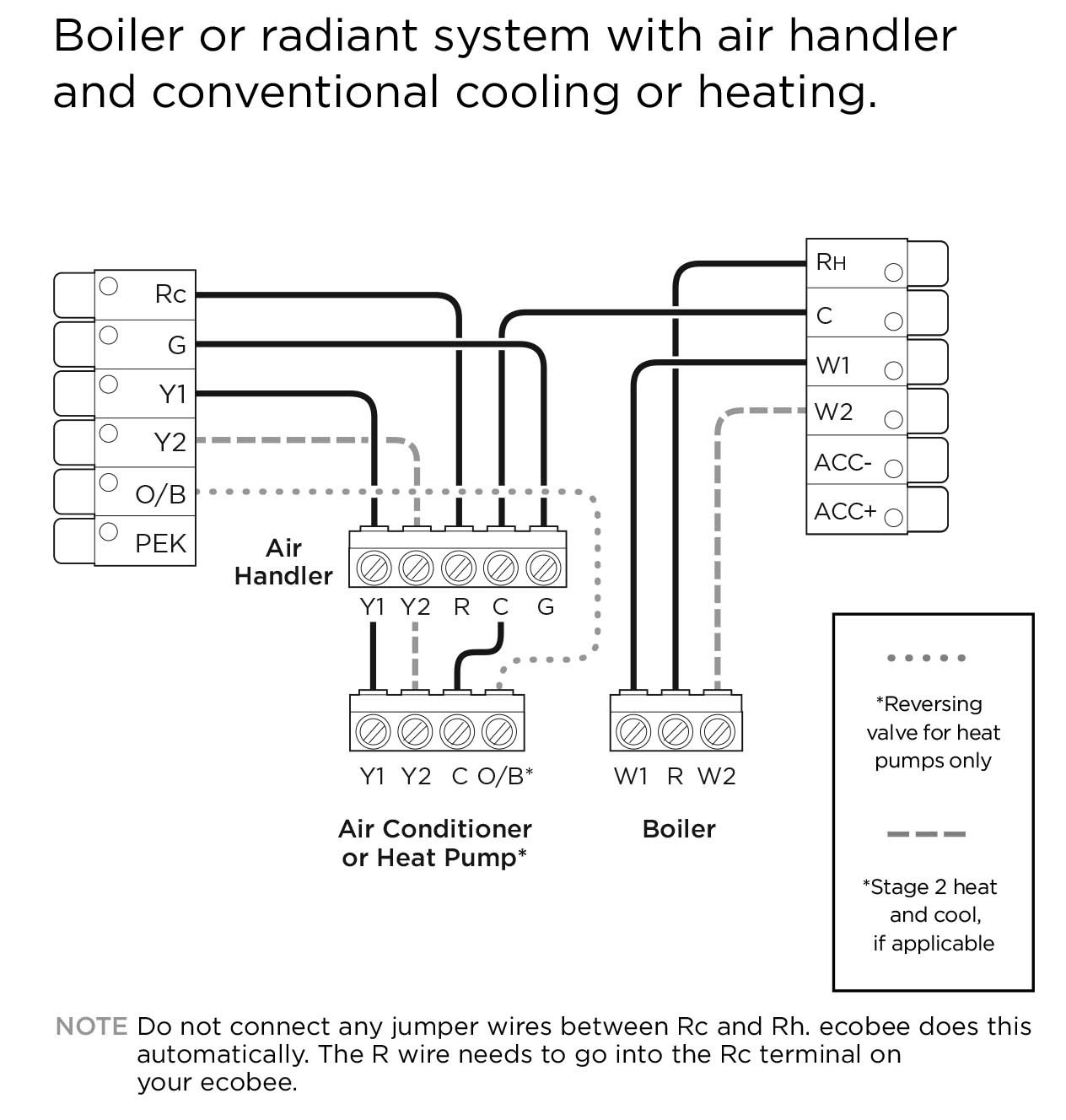

Ecobee Wiring Diagram
Ecobee Wiring Diagram
The Ecobee wiring diagram typically consists of labels for various wires, such as R, C, Y, G, W, and more. Each wire corresponds to a specific function in your HVAC system, such as power, cooling, heating, fan control, and more. By connecting the wires to their correct terminals on the Ecobee thermostat, you can ensure seamless communication and operation between the thermostat and your HVAC system.
One common wiring configuration for Ecobee thermostats is the four-wire setup, which includes wires for Rh (power), Rc (cooling power), G (fan), and W (heat). However, depending on your HVAC system and the features you want to utilize with your Ecobee thermostat, the wiring diagram may vary. It’s essential to consult the Ecobee installation guide or seek professional help if you’re unsure about the wiring connections.

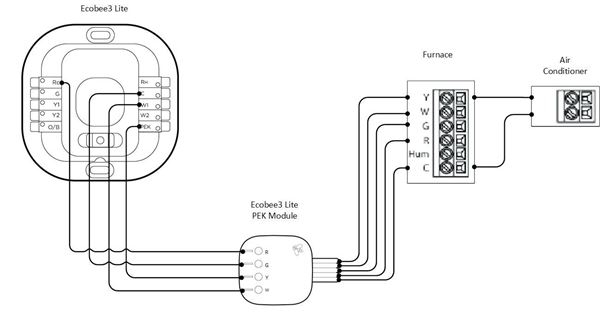

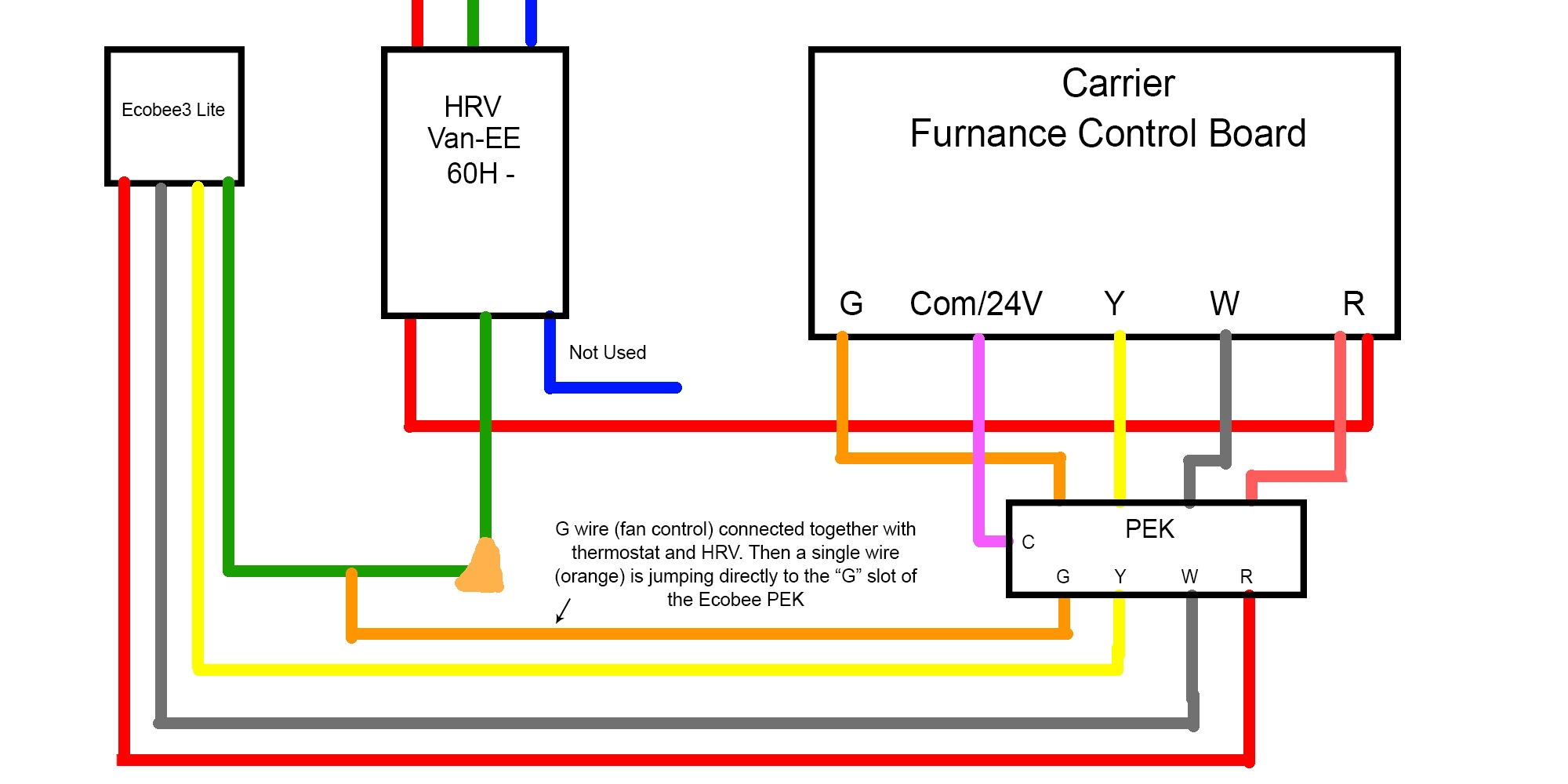

Additionally, some Ecobee models may require a C wire (common wire) for proper power supply and operation. If your existing thermostat setup doesn’t include a C wire, you may need to install one or use alternative solutions like a power extender kit (PEK) to ensure compatibility with your Ecobee thermostat.
By following the Ecobee wiring diagram and guidelines provided by the manufacturer, you can successfully install and configure your smart thermostat for optimal performance and energy efficiency. If you encounter any challenges during the installation process, don’t hesitate to reach out to Ecobee customer support or consult a professional HVAC technician for assistance.
In conclusion, understanding the Ecobee wiring diagram is essential for a successful installation and operation of your smart thermostat. By following the wiring instructions carefully and ensuring the correct connections, you can enjoy the convenience and energy-saving benefits that Ecobee thermostats have to offer.
