Ecobee thermostats are known for their energy-saving features and smart technology that help homeowners regulate their home’s temperature efficiently. However, installing an Ecobee thermostat may seem daunting at first, especially when it comes to wiring. Understanding the wiring diagram is crucial to ensure the thermostat functions properly and optimally.
Before diving into the wiring process, it’s important to familiarize yourself with the components of the Ecobee thermostat and the corresponding terminals. Each terminal serves a specific function, such as powering the device, connecting to the HVAC system, or controlling auxiliary devices like humidifiers or dehumidifiers.

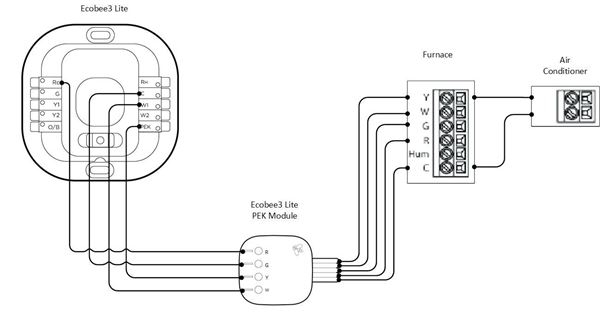

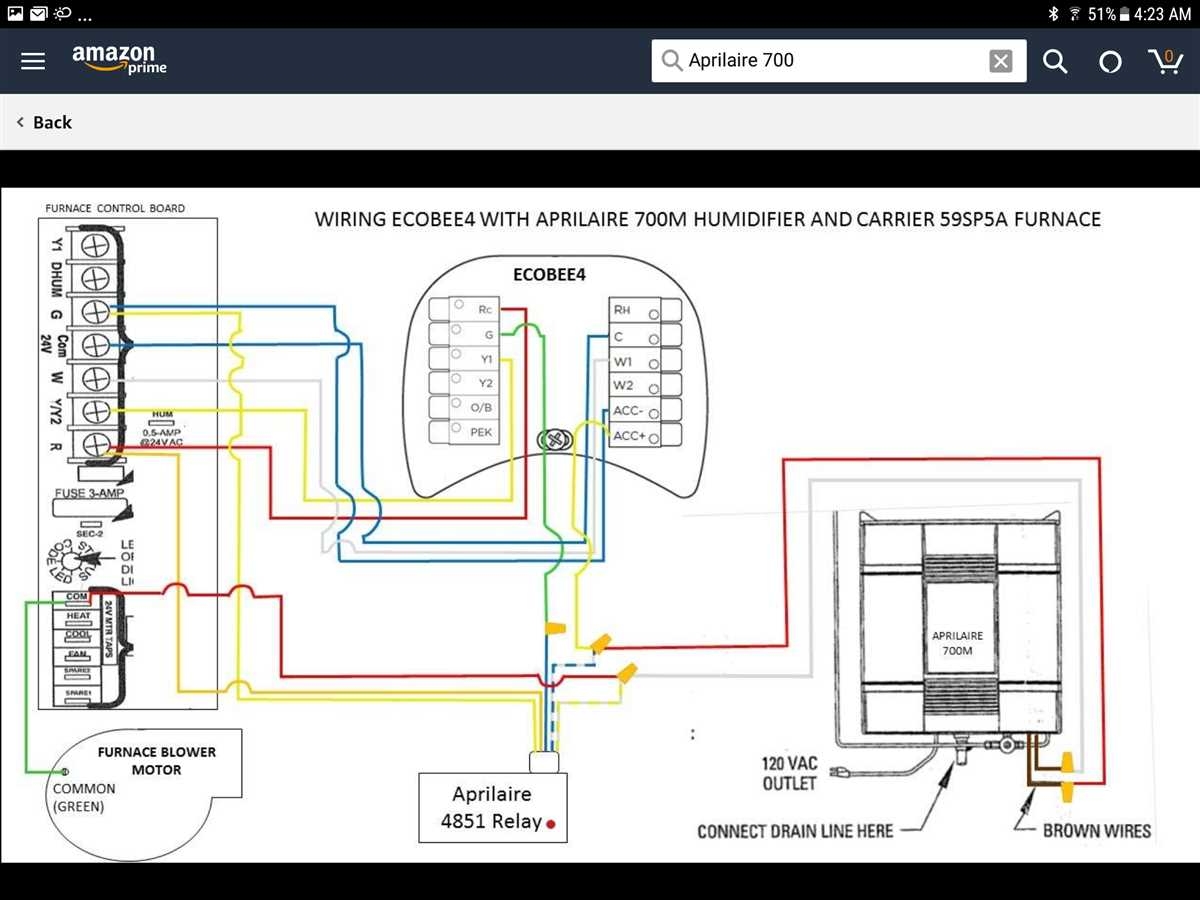

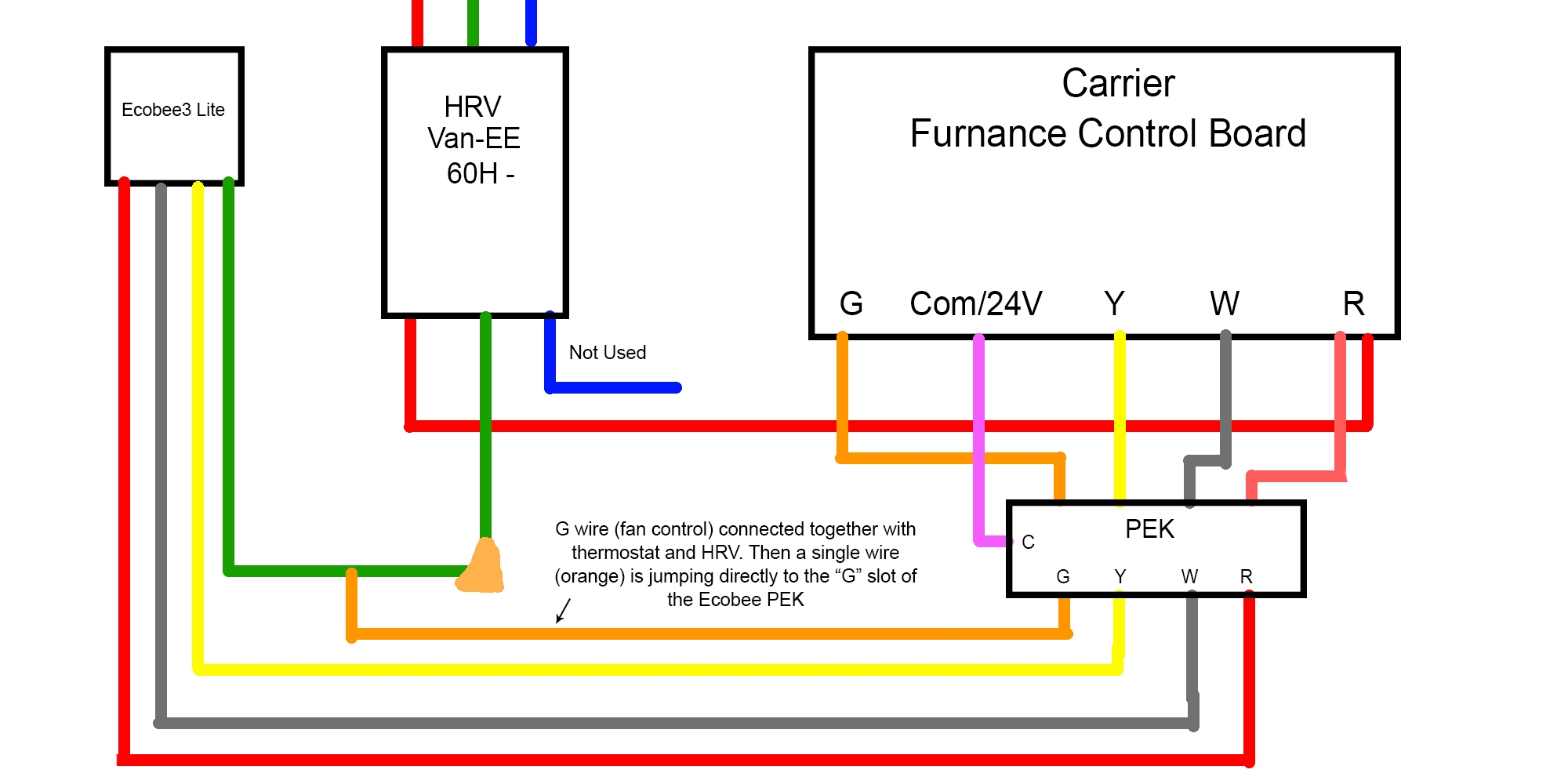

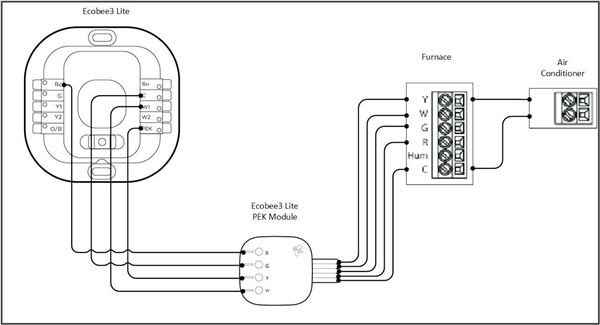

Ecobee Thermostat Wiring Diagram
When it comes to wiring an Ecobee thermostat, the diagram provided by the manufacturer is your best guide. The diagram typically includes color-coded wires and corresponding terminals on both the thermostat and the HVAC system. It’s essential to match the wires correctly to prevent any damage to the thermostat or the HVAC system.
One common wiring configuration for Ecobee thermostats involves connecting the R (power), C (common), Y (cooling), G (fan), and W (heating) wires. Additionally, there may be terminals for auxiliary devices like humidifiers (HUM) or dehumidifiers (DEHUM). Following the wiring diagram carefully and double-checking each connection can help prevent any issues during installation.
If you’re unsure about the wiring or have a more complex HVAC system, it’s recommended to consult a professional HVAC technician. They have the expertise and experience to ensure the Ecobee thermostat is installed correctly and functions optimally. Investing in professional installation can save you time and potential headaches down the road.
In conclusion, understanding the Ecobee thermostat wiring diagram is essential for a successful installation. By following the manufacturer’s diagram and double-checking each connection, you can ensure that your thermostat operates efficiently and effectively. If in doubt, don’t hesitate to seek help from a professional to avoid any potential issues.
