Electric scooters have become a popular mode of transportation for many people due to their convenience and eco-friendly nature. However, like any other vehicle, e-scooters require proper maintenance and sometimes repairs. Understanding the wiring diagram of your e-scooter is essential to troubleshoot any electrical issues that may arise.
Having a basic knowledge of the wiring diagram can help you identify any faulty connections or components that may be causing your e-scooter to malfunction. Whether you are a DIY enthusiast or simply want to have a better understanding of how your e-scooter works, knowing how to read and interpret the wiring diagram is crucial.
E Scooter Wiring Diagram
Understanding the Wiring Diagram
The wiring diagram of an e-scooter typically consists of various components such as the battery, controller, motor, throttle, and brake system. Each component is connected through a series of wires and connectors that determine how the electrical system functions. By studying the wiring diagram, you can trace the flow of electricity and identify any areas that may be causing a problem.
It is important to pay attention to the color-coding of the wires in the diagram as they indicate the function of each wire. For example, red wires are usually associated with the positive terminal of the battery, while black wires are commonly used for grounding. By following the color-coding and understanding the wiring connections, you can easily diagnose and fix any electrical issues that may arise.
In addition to the color-coding, the wiring diagram also provides information on the voltage and current requirements of each component. This is crucial in ensuring that the electrical system is properly balanced and that all components are receiving the correct amount of power. By following the specifications outlined in the wiring diagram, you can prevent any damage to the components and ensure the safe operation of your e-scooter.
In conclusion, having a good understanding of the wiring diagram of your e-scooter is essential for proper maintenance and troubleshooting. By familiarizing yourself with the connections, color-coding, and specifications outlined in the diagram, you can easily identify and fix any electrical issues that may arise. Whether you are a beginner or an experienced e-scooter enthusiast, knowing how to read and interpret the wiring diagram will help you keep your e-scooter running smoothly for years to come.
Easily Download and Print E Scooter Wiring Diagram

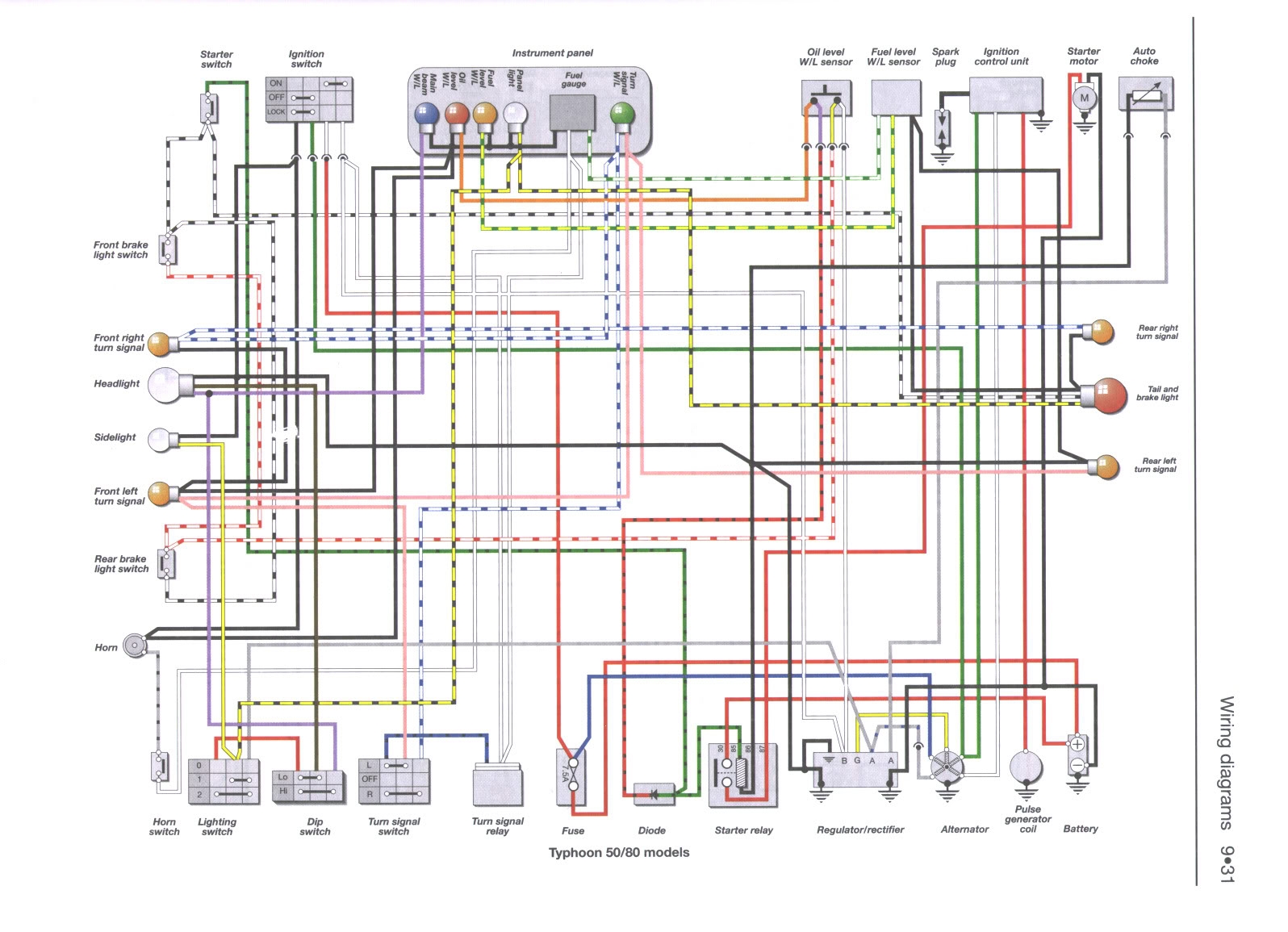

Lime Scooter Wiring Diagram Wiring Diagram Pictures
E Scooter Wiring Diagram For 24 Volt

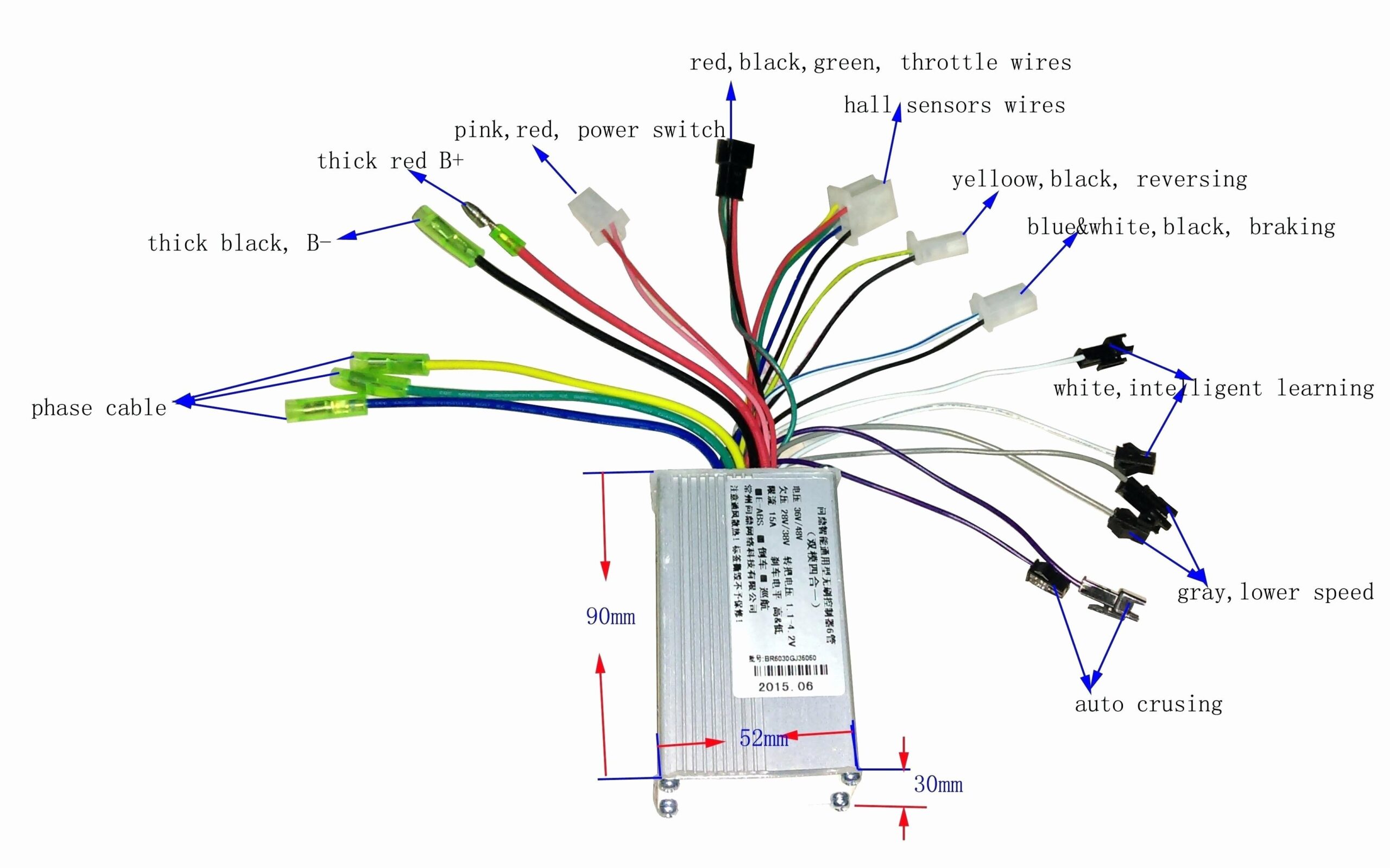

Electric Bicycle Kit Electric Scooter Electric Vehicle Electric Cars

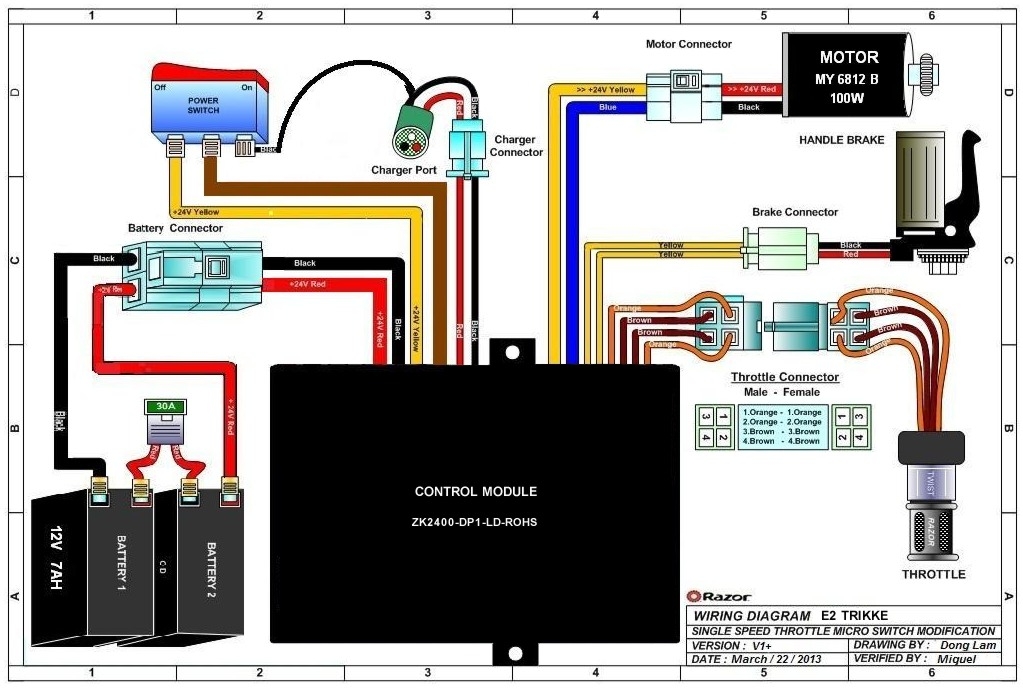

Razor E100 Scooter Wiring Diagram Wiring Diagram
